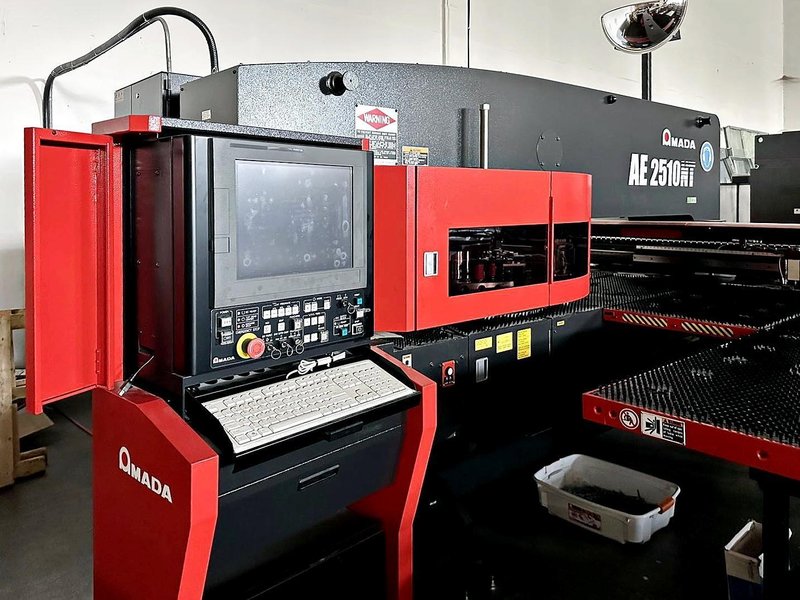

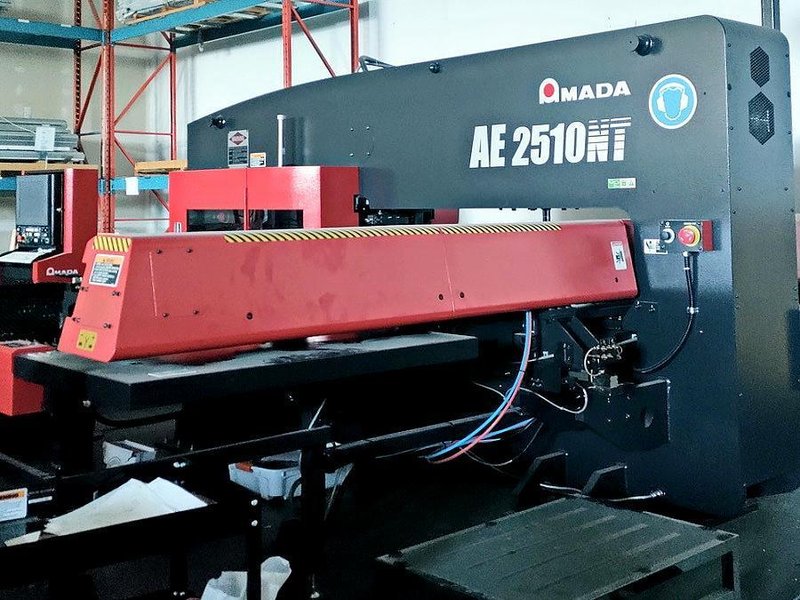

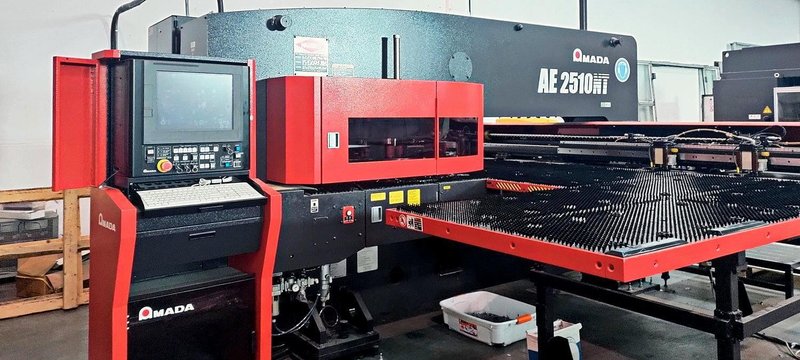

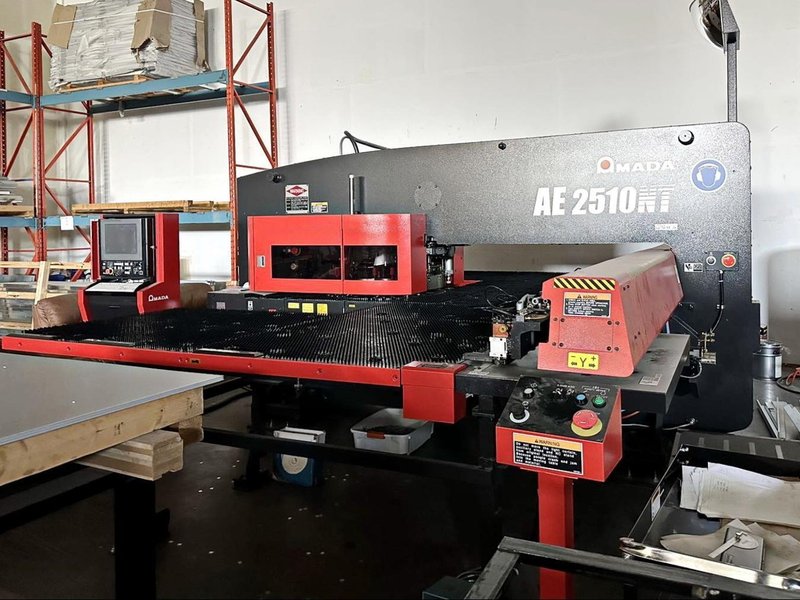

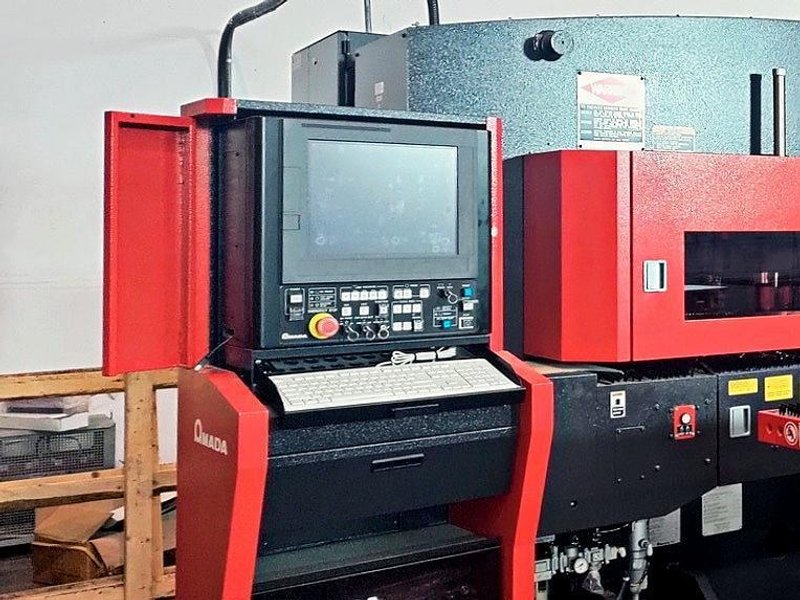

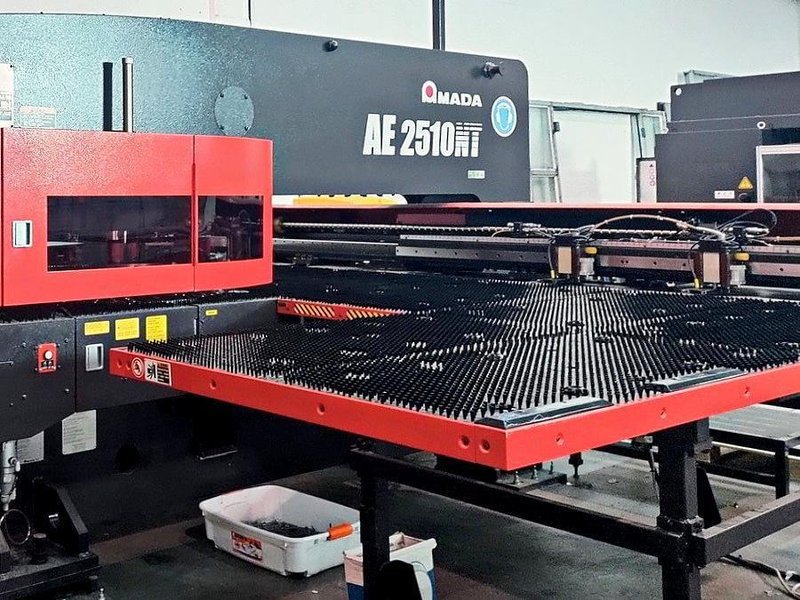

Amada AE-2510NT Turret
Brand
Category
Type
Model
AE-2510NT
Stock #
100441
Year
2015
Condition
Like New
Location
Not specified
| Control | Amada AMNC-F CNC |
| Tonnage | 22 Tons |
| Max Sheet (L): | 196.8" |
| Max Sheet (W) | 50" |
| Travels X-Axis | 98.4" |
| Travels Y-Axis | 50" |
| Press Stroke | 1.65" |
| # Turret Stations | 58 |
| Max Material Thickness | 0.12" |
| Max Material Weight | 330 Lbs. |
| Max Hole Diameter | 4.5" |
| Stroke Rate (Marking) | 900 Hit/Min. (Pitch 0.118") |
| Stroke Rate (Punching) | X 350/Y 285 Hit/Min. (1" Pitch) |
| Turret Speed | 30 RPM |
| X-Axis Speed | 3,150 IPM |
| Y-Axis Speed | 2,362 IPM |
| Punching Accuracy | 0.004 ̋ |
| Dimensions | L 201.57" X W 163.58" X H 83.27" |
| Weight | 28,660 Lbs. |
|

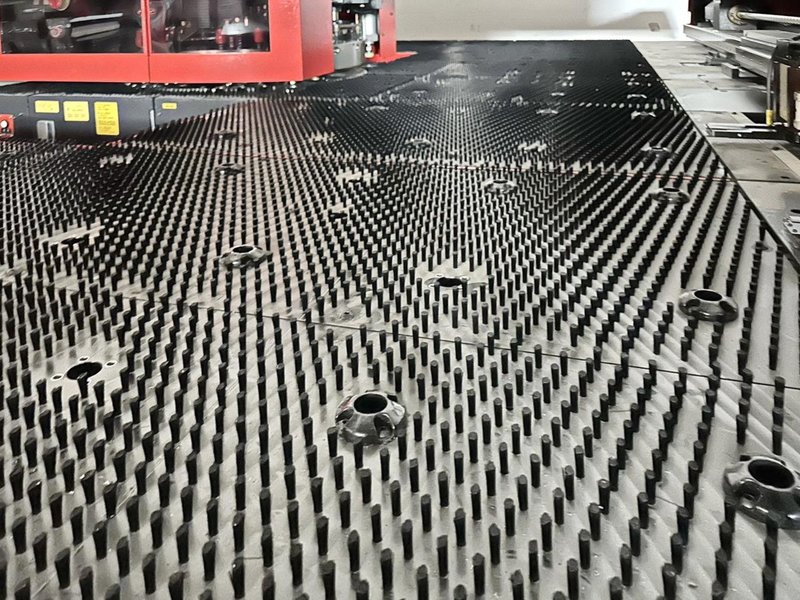

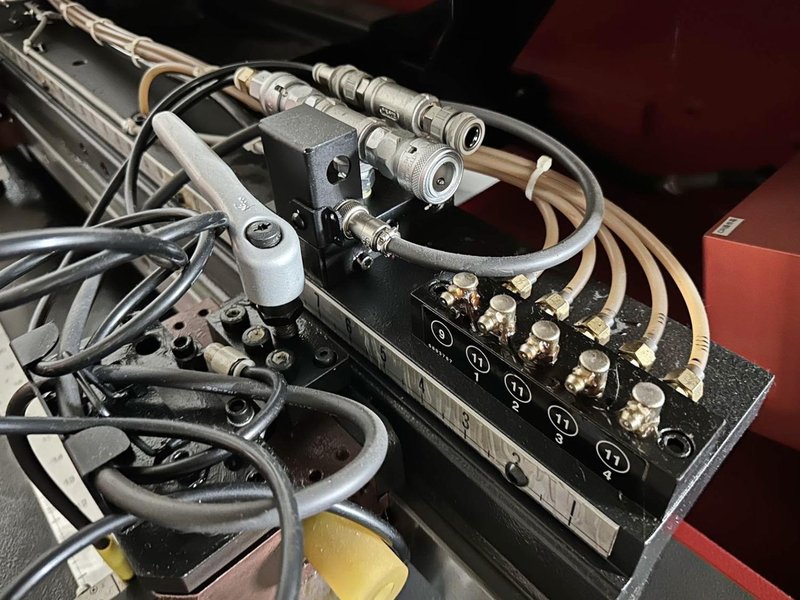

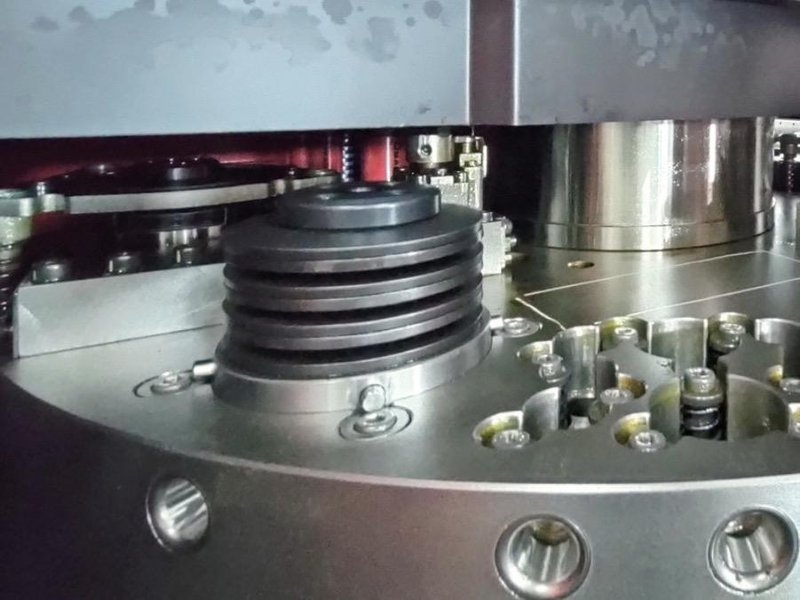

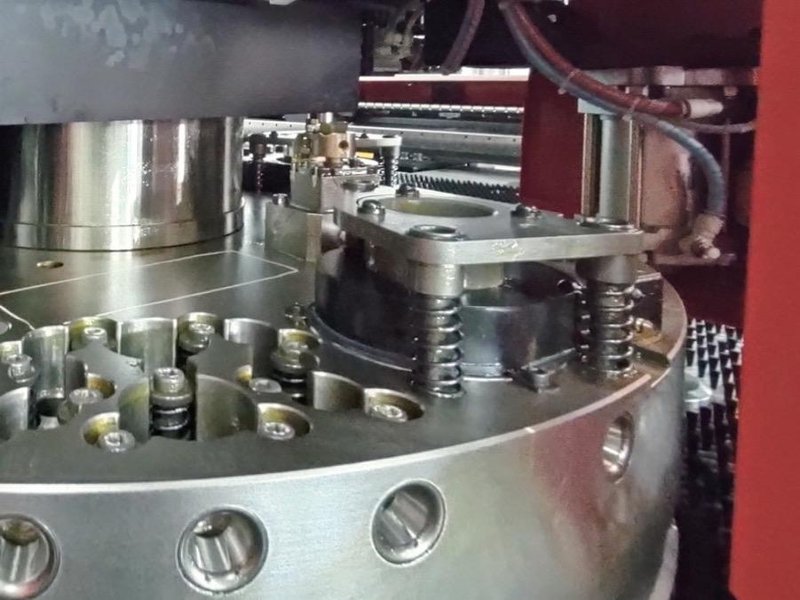

Equipped With: AC Servo Ram Drive Heavy-Duty Brush Table Auto-Indexing Triple-Track Turret Pneumatic Tool Balancer (2) Pneumatically Operated Sheet Clamps (Y-Axis Stop) Pneumatic X-Gauge Block Vacuum Die & Air Blow Systems High-Speed Forming Deburring, Tapping, Part Marking |
|
