80,000 LBS ANCHOR-LAMINA 4-CYLINDER PORTABLE HYDRAULIC DIE SETTING & SEPARATING SYSTEM: STOCK #18989

Brand
Model
Not specified
Stock #
18989
Year
Not specified
Condition
Good
Location
Ohio

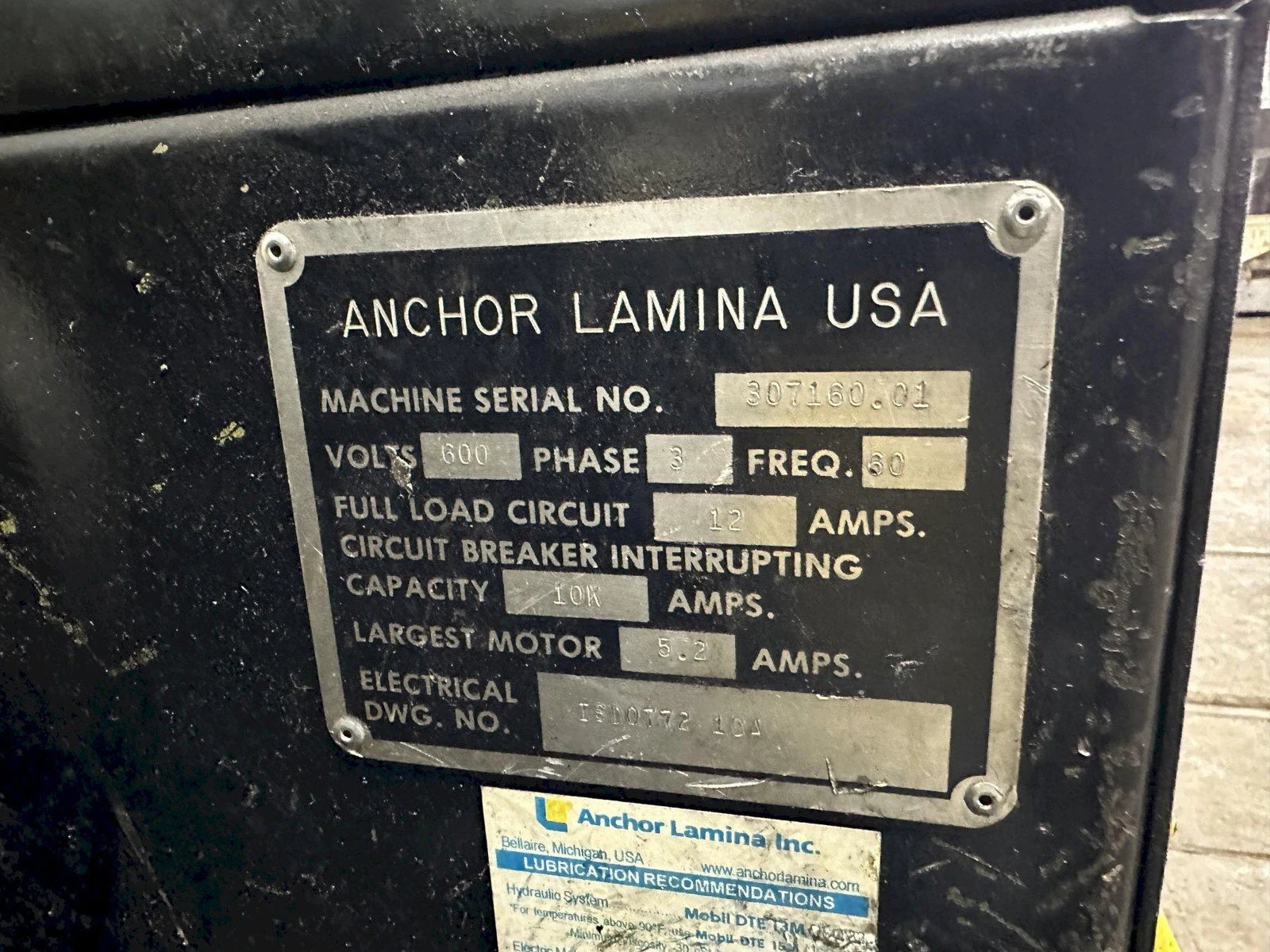

SERIAL ....................... 307160.01

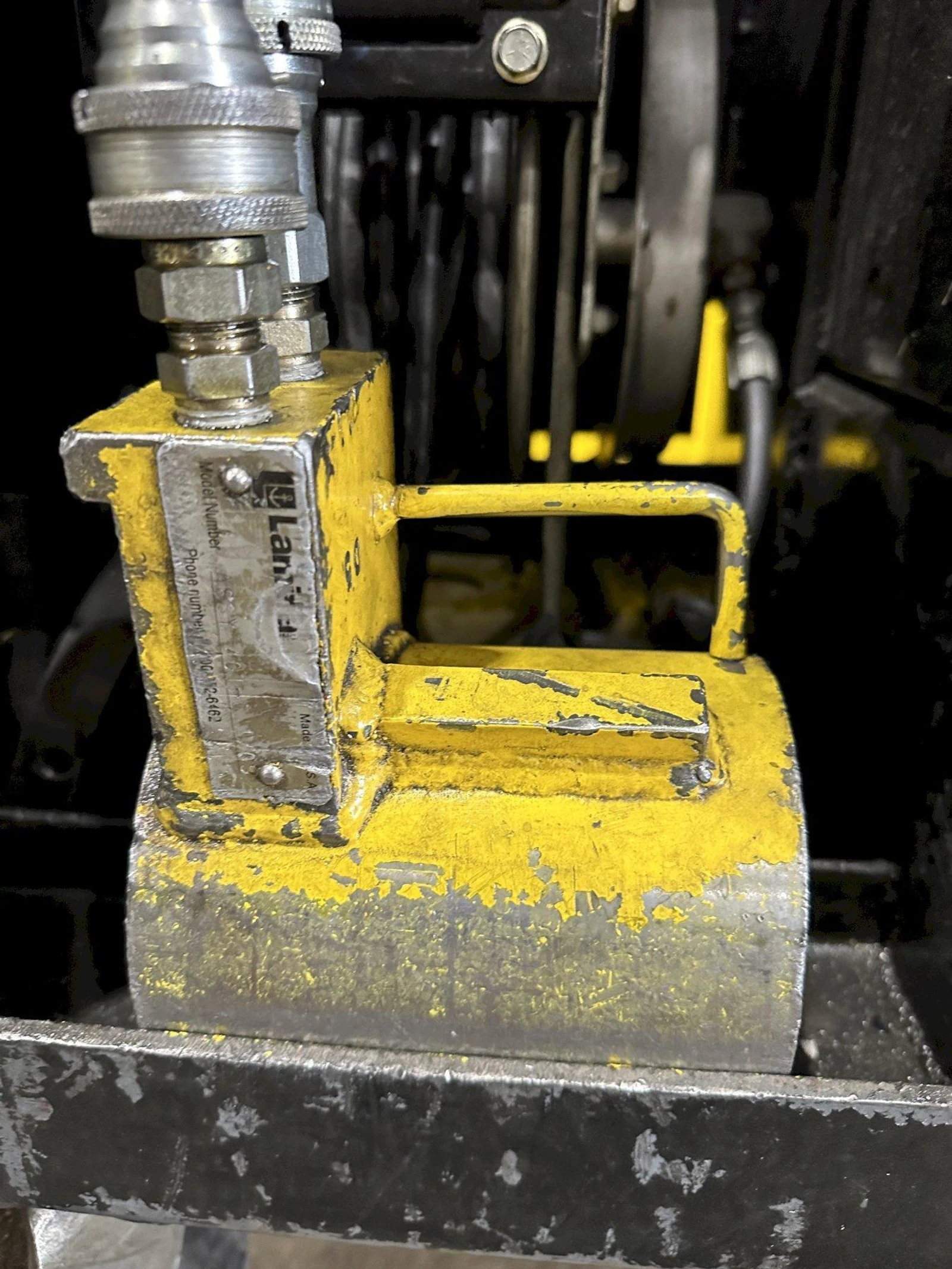

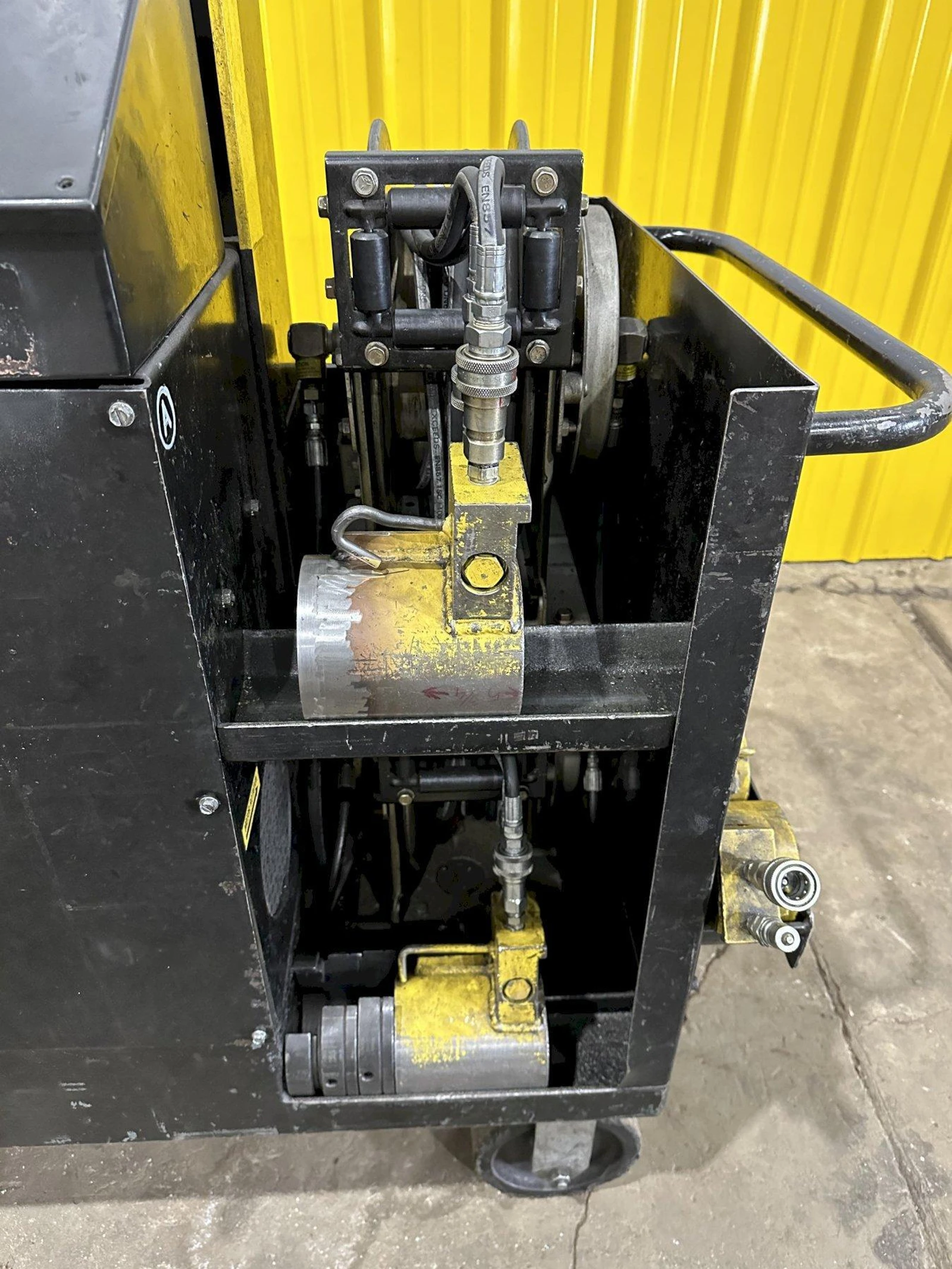

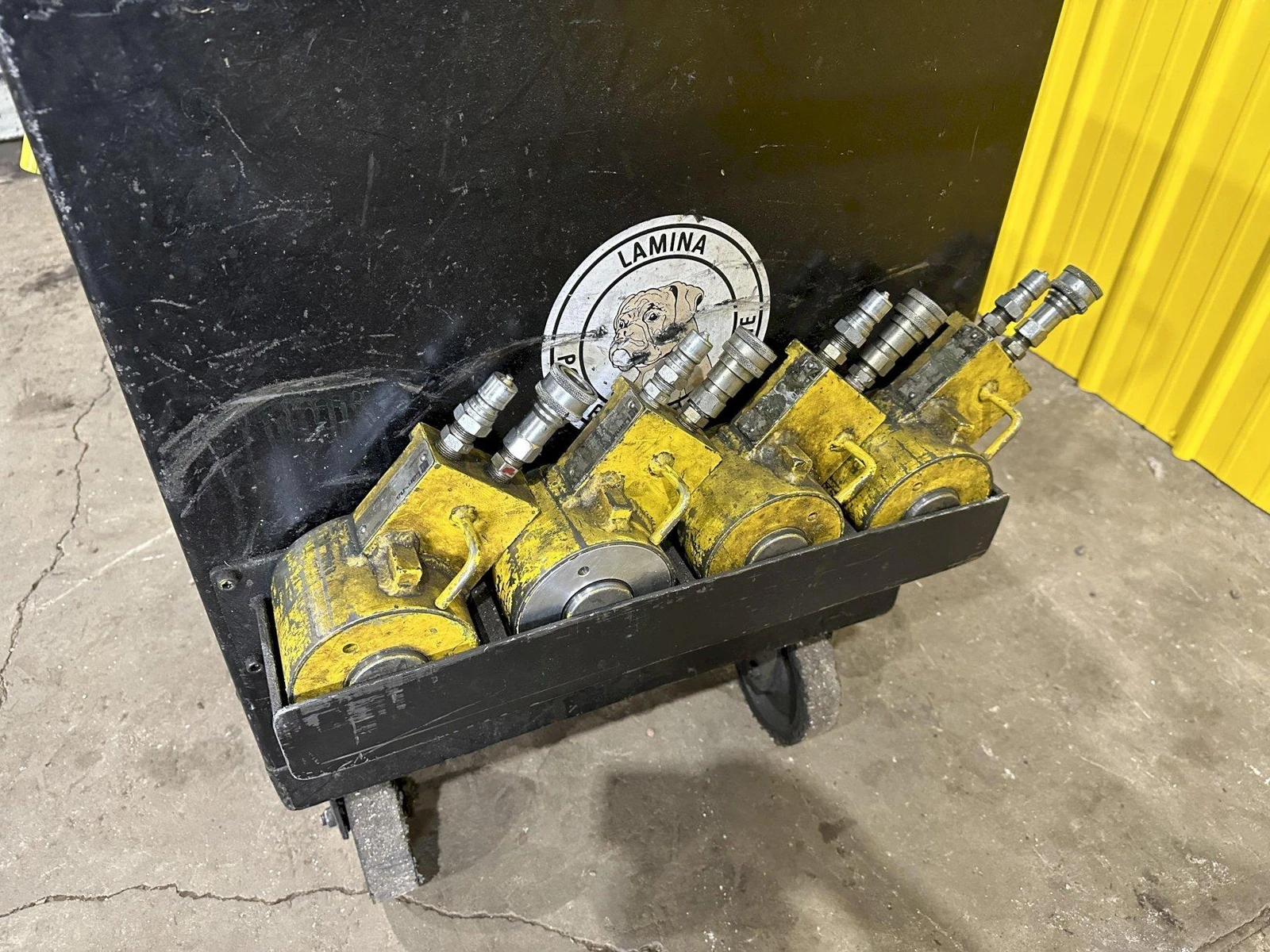

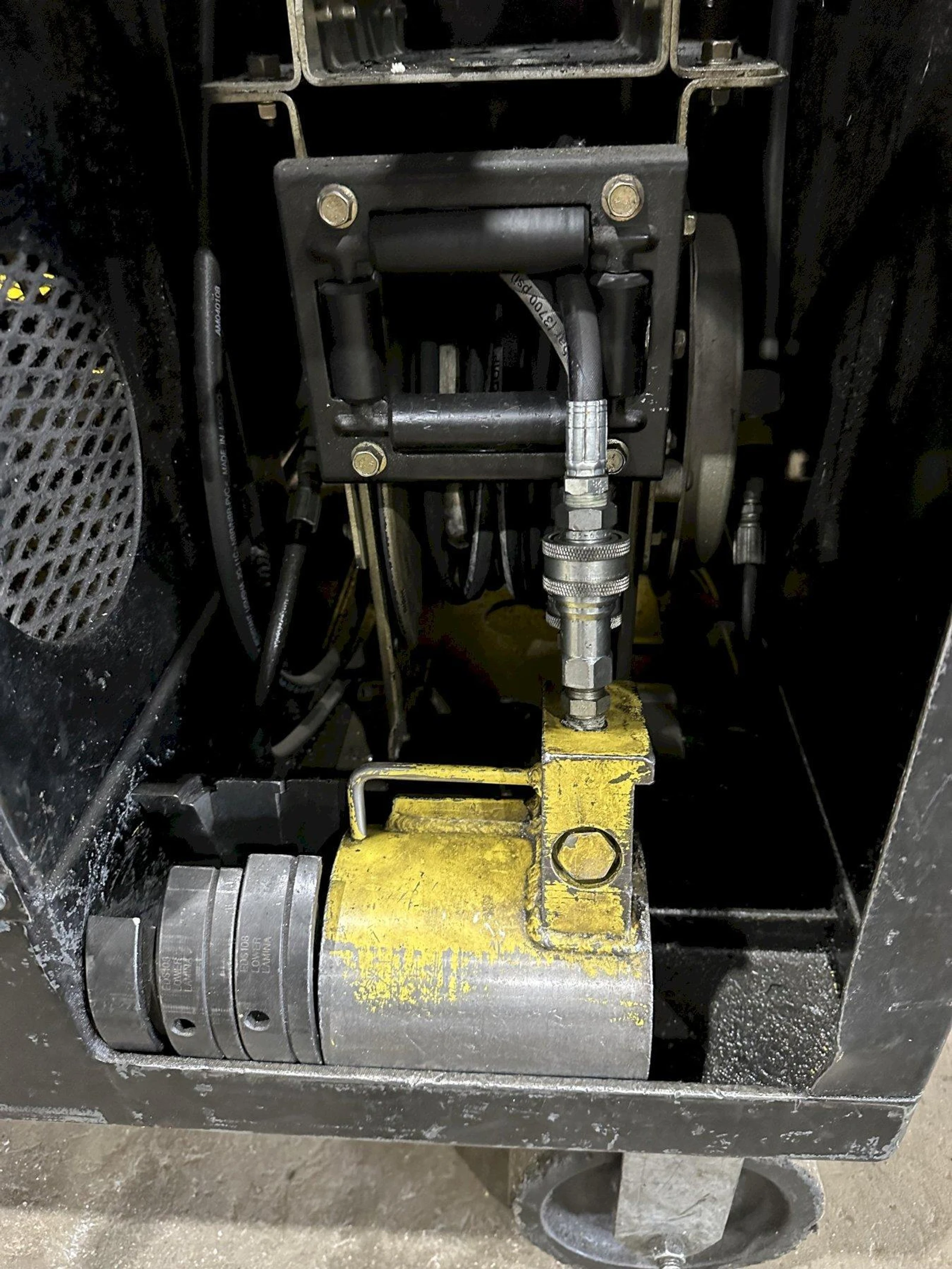

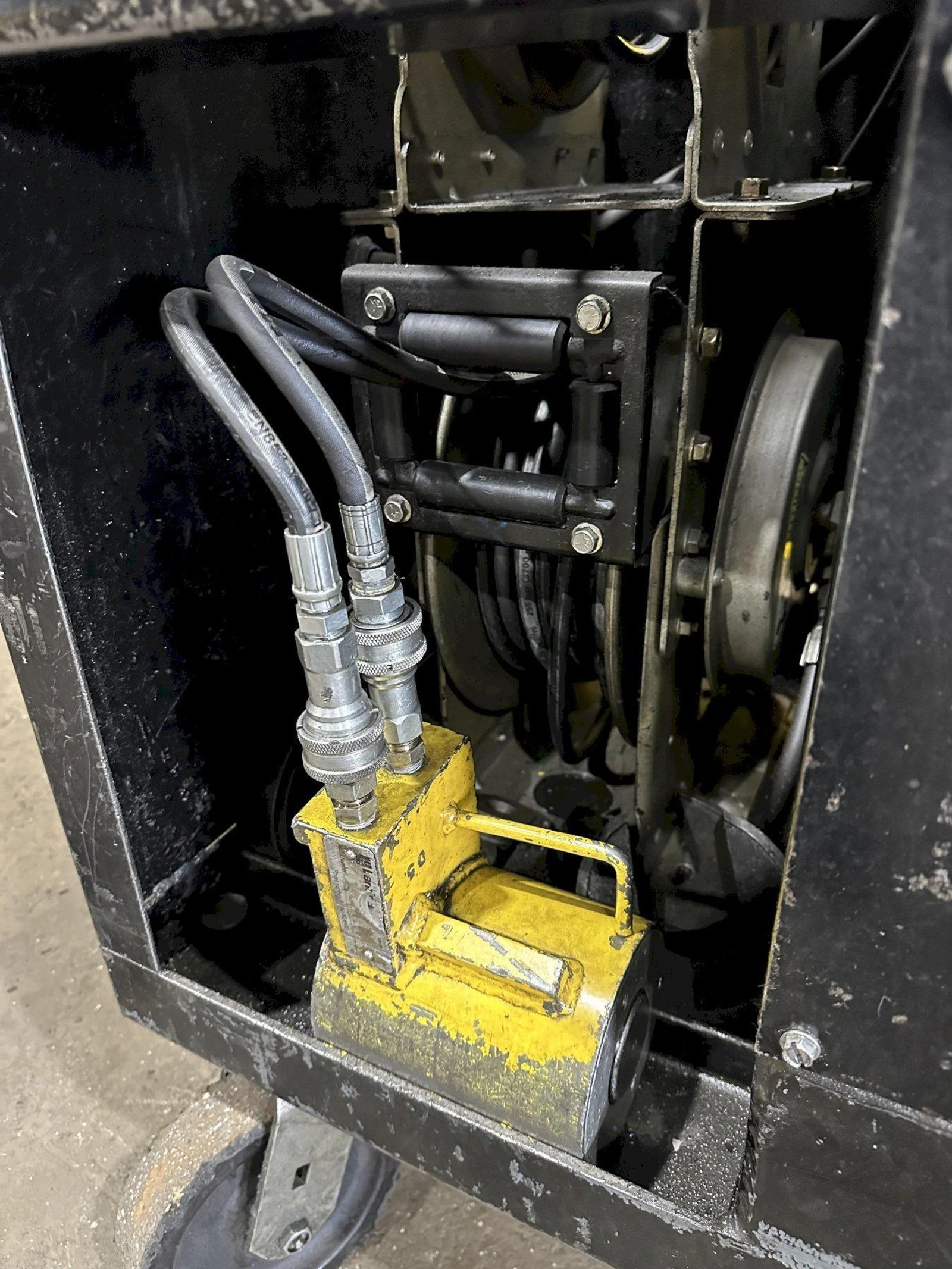

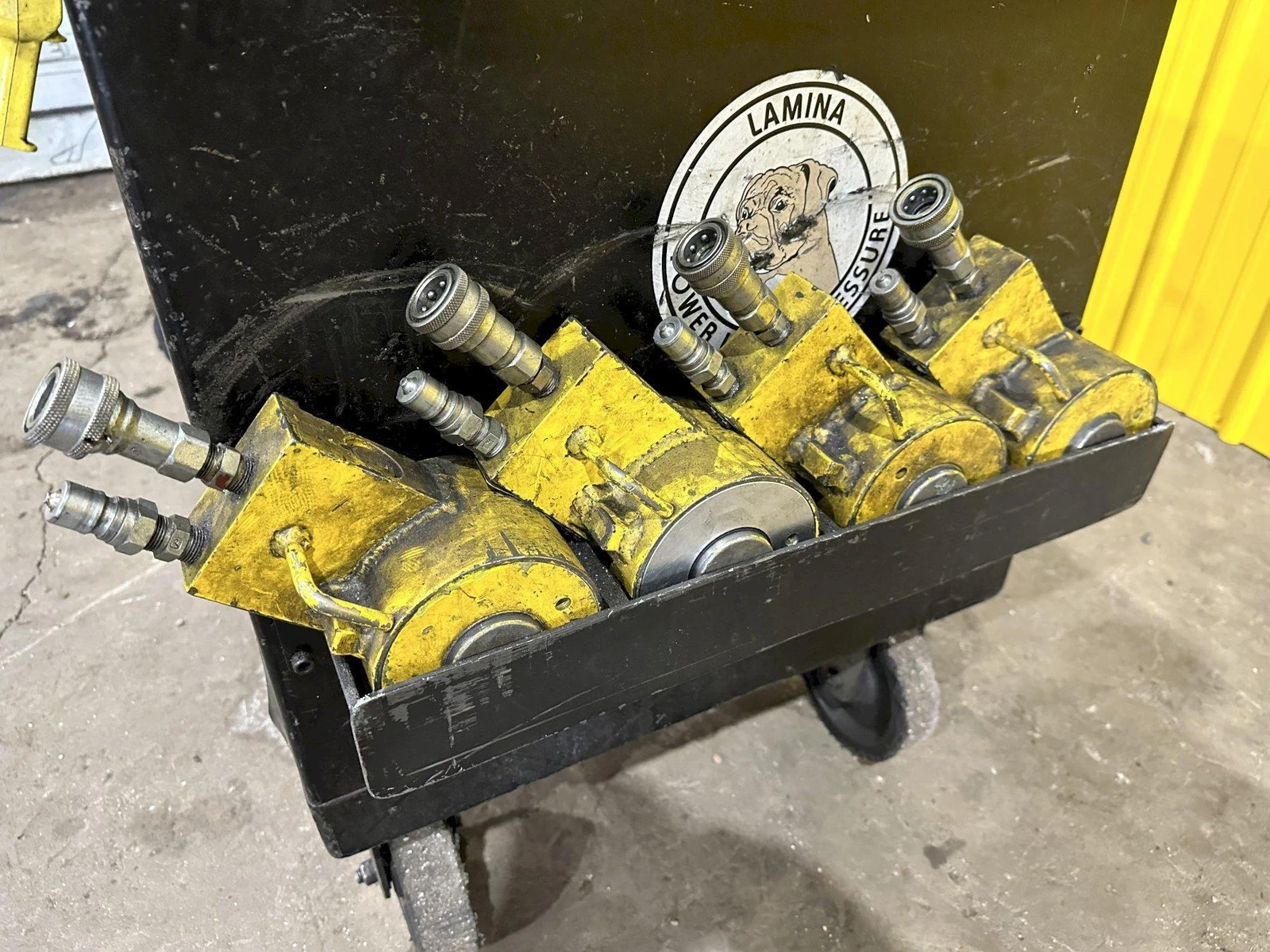

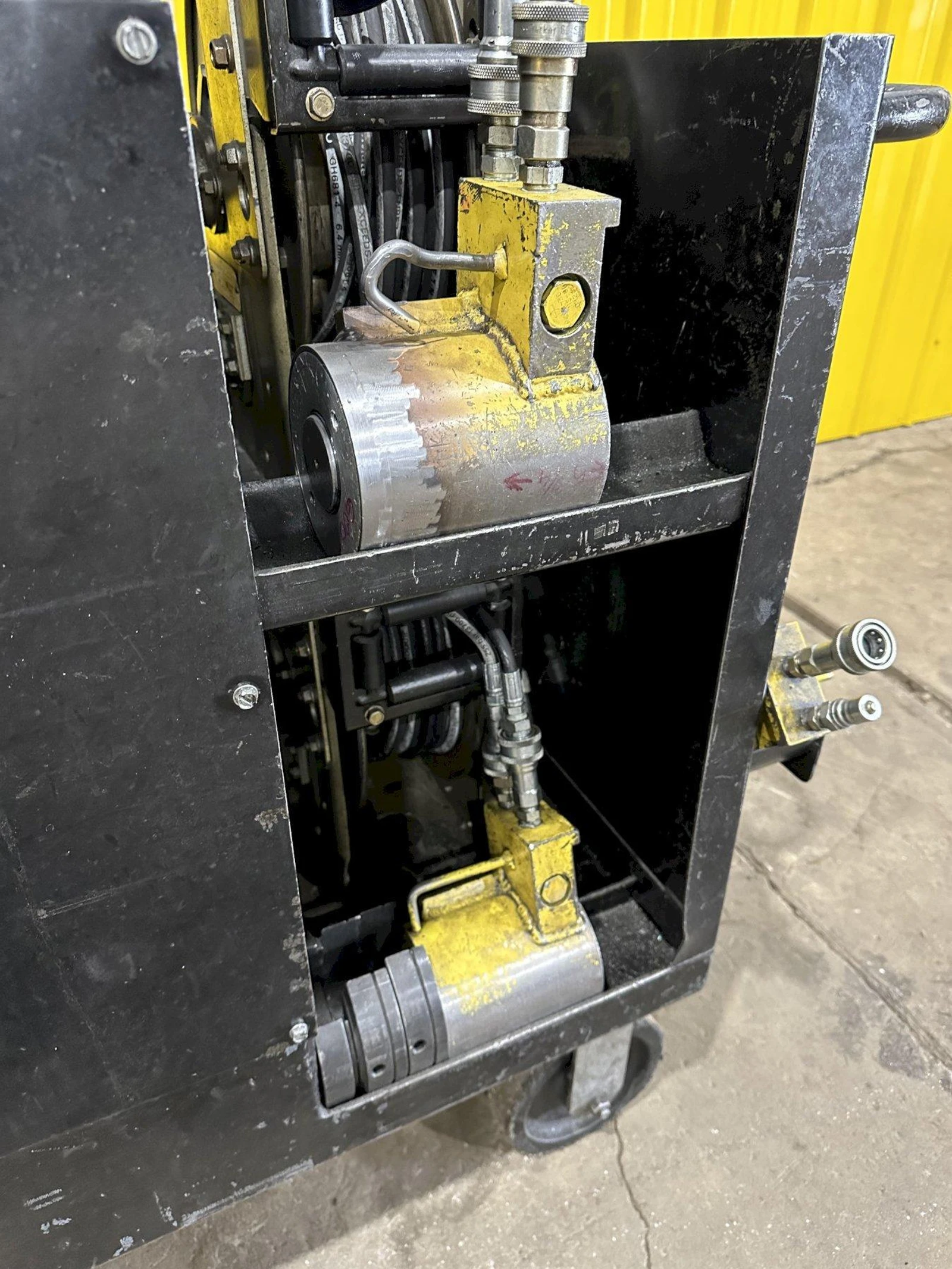

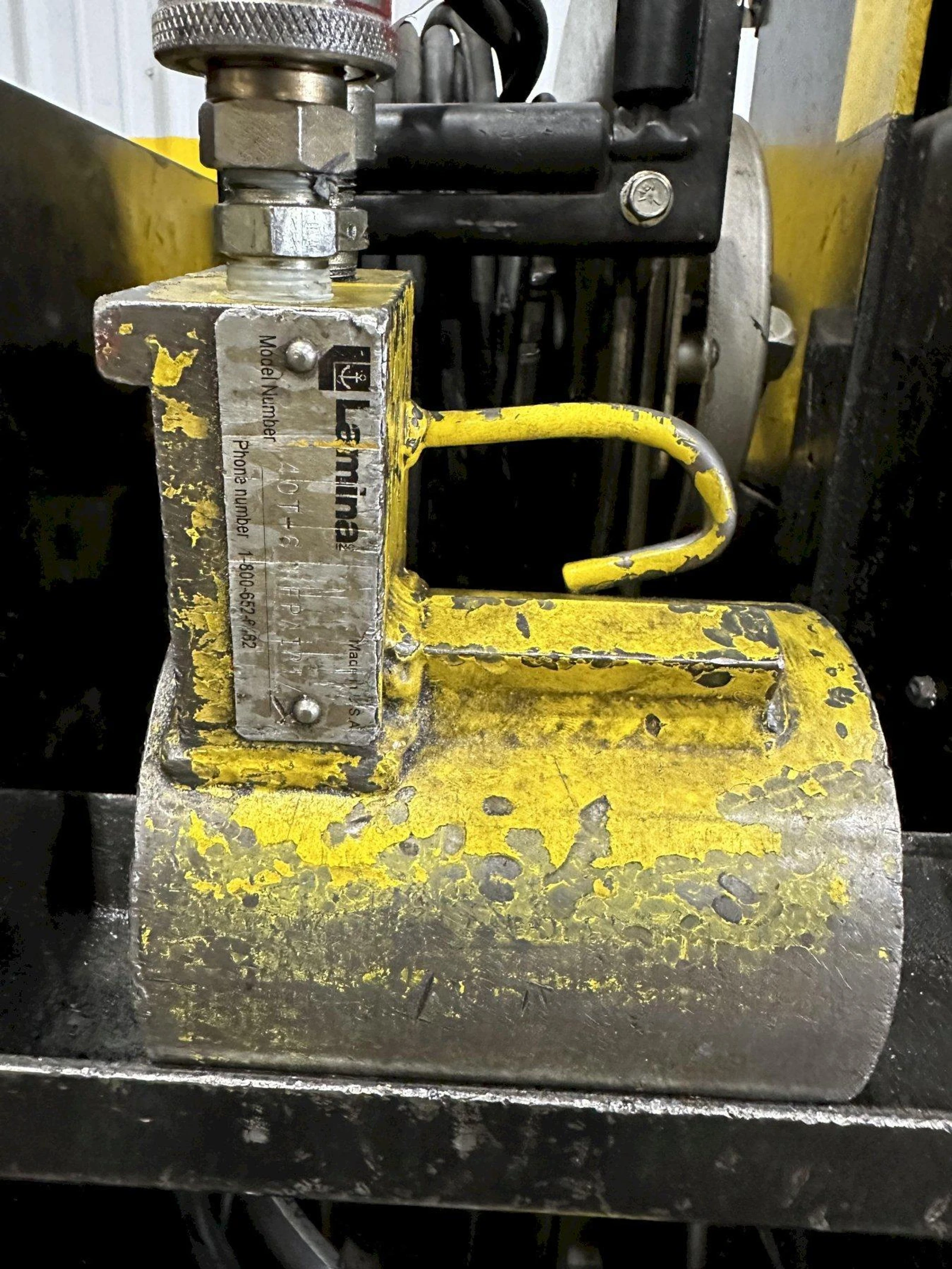

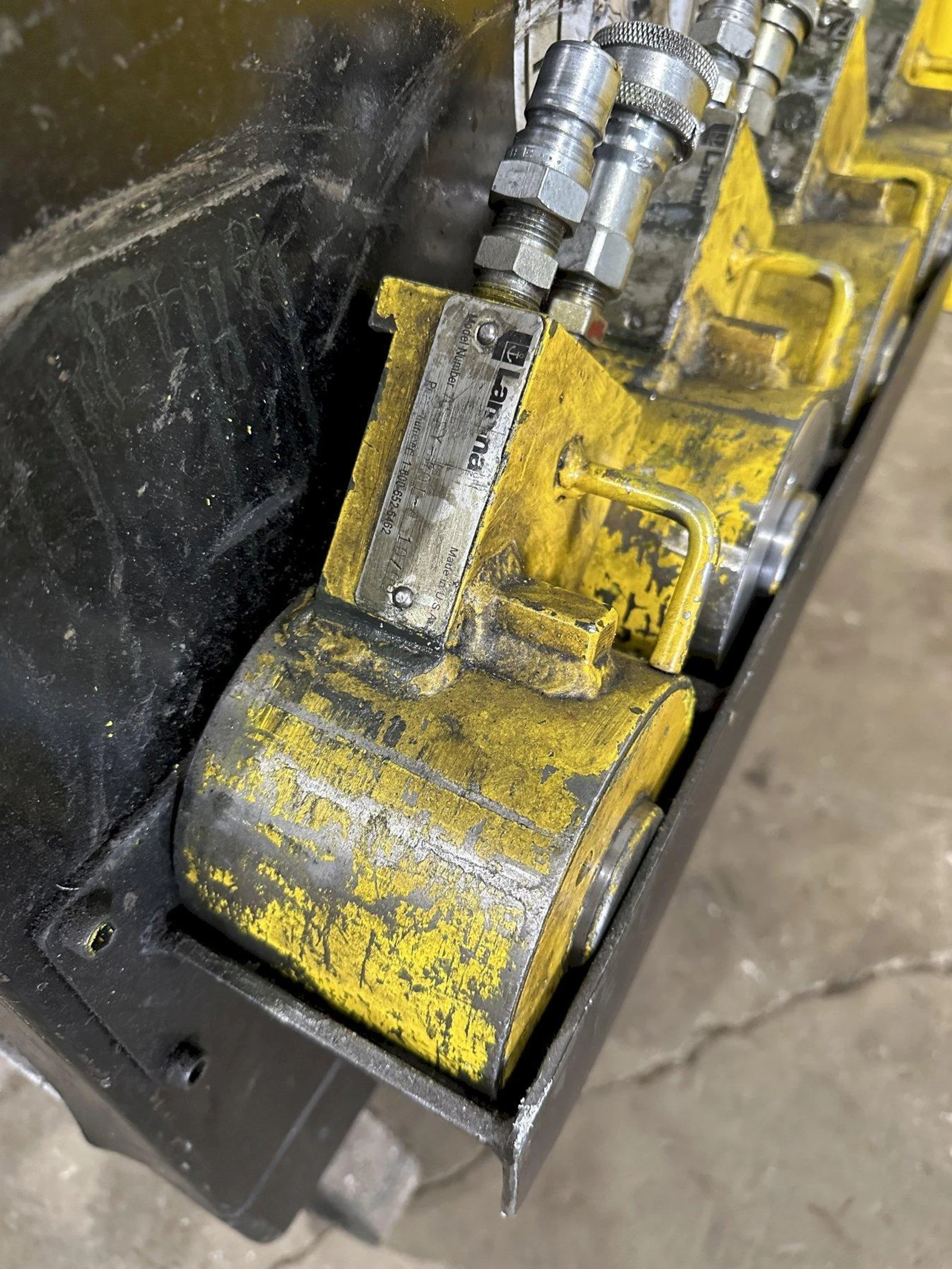

NUMBER OF LIFT CYLINDERS ..... 8 (2 SETS OF 4)

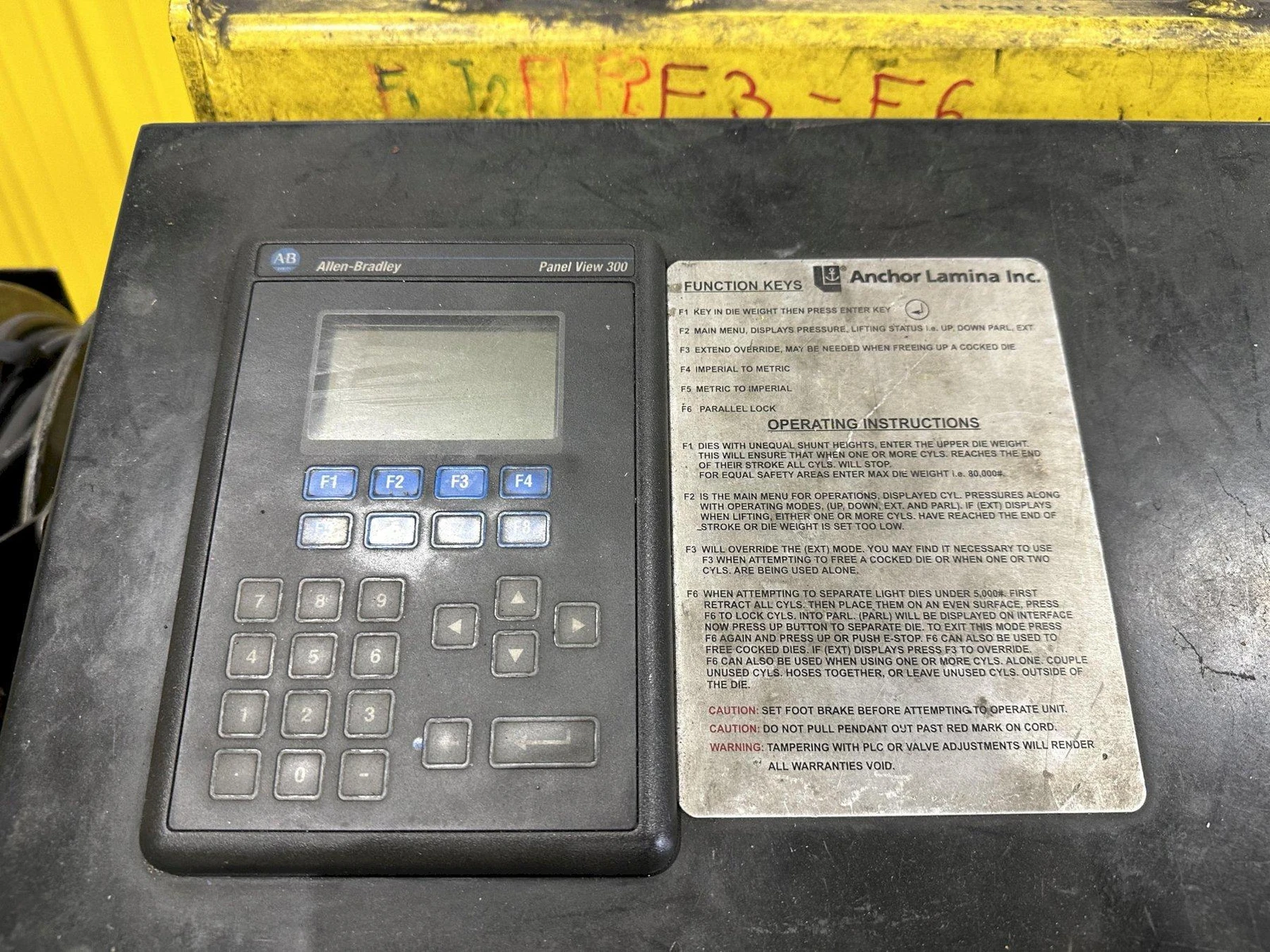

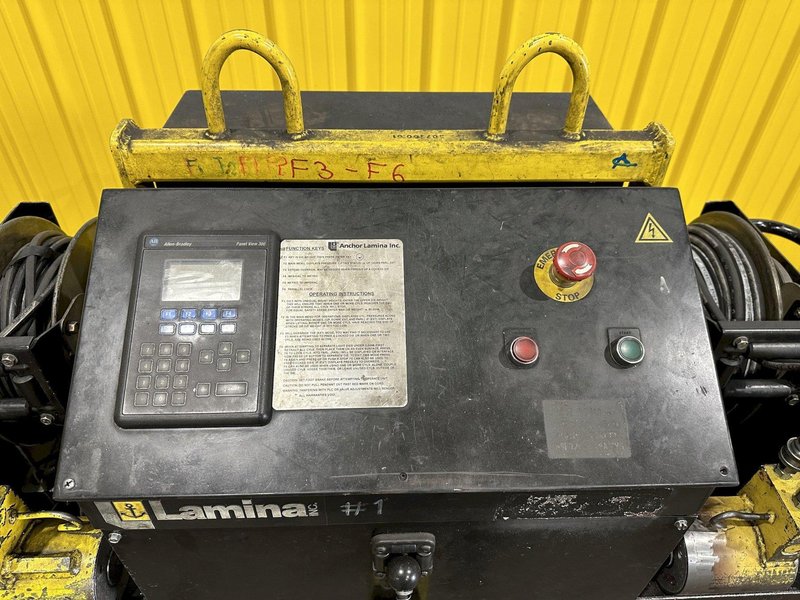

ALLEN BRADLEY PANELVIEW ...... YES
MICROPROCESSOR CONTROL ....... E300 DIGITAL
PENDANT CONTROL .............. YES
PORTABLE CART MOUNTED FRAME .. YES

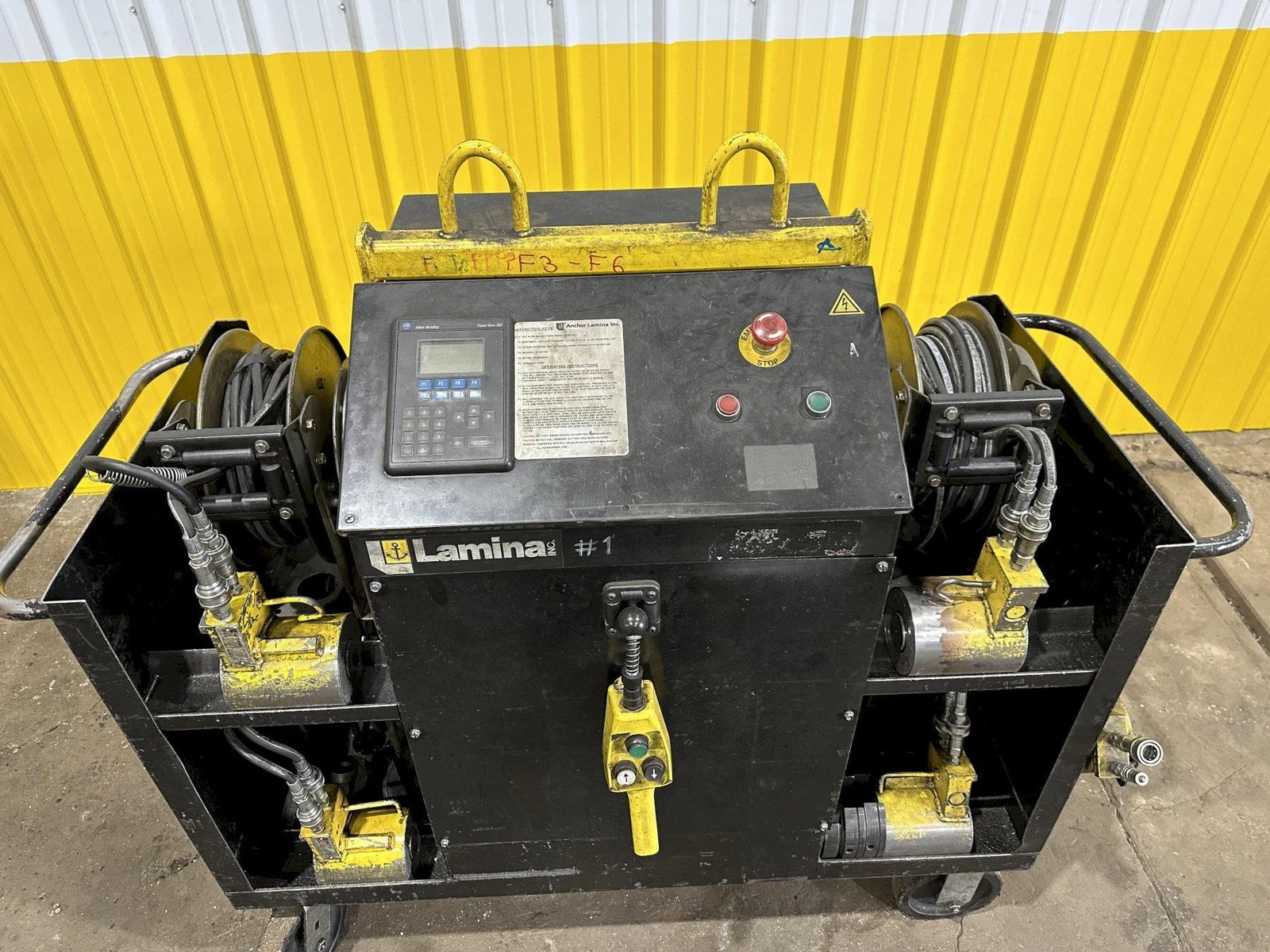

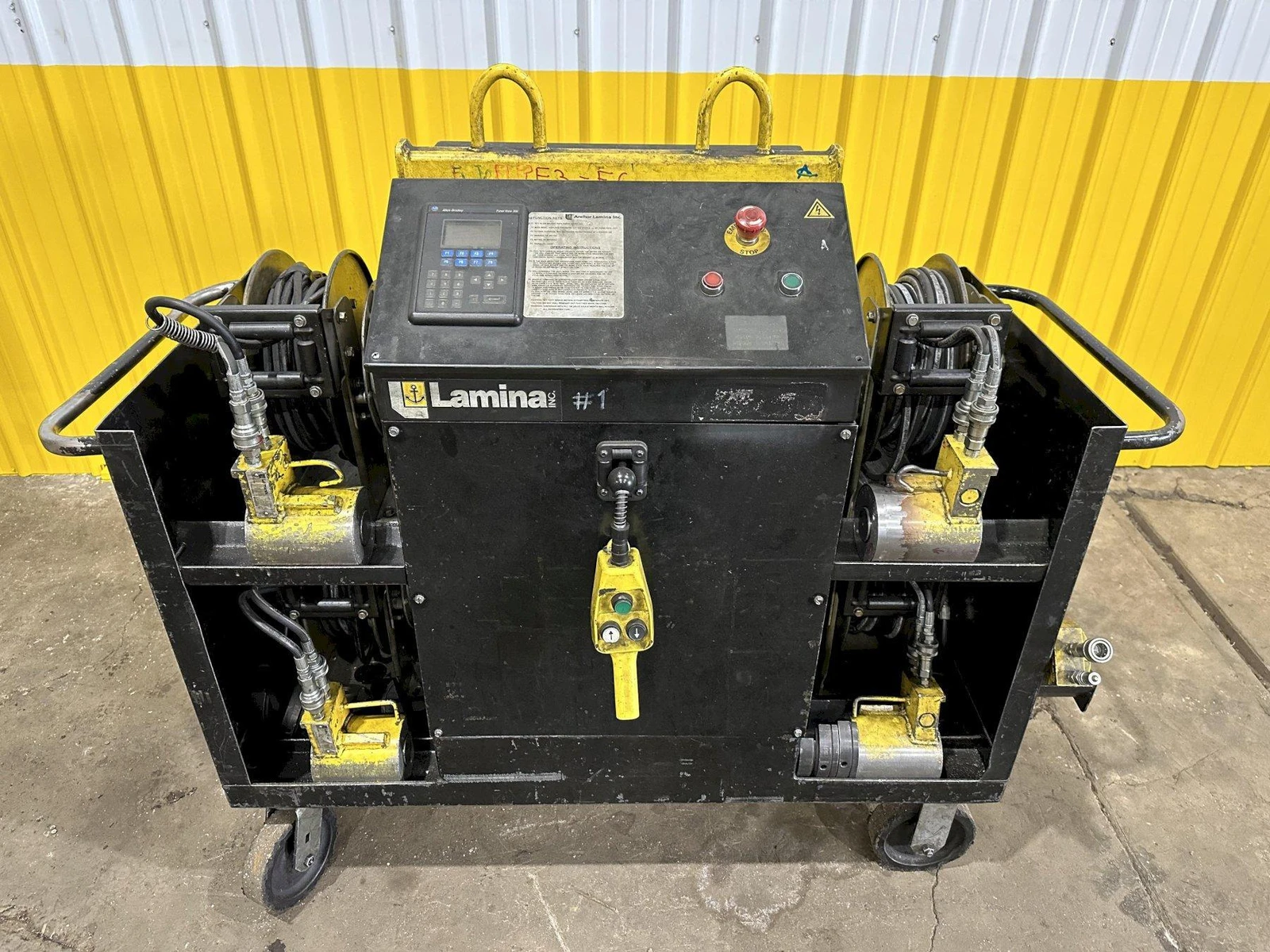

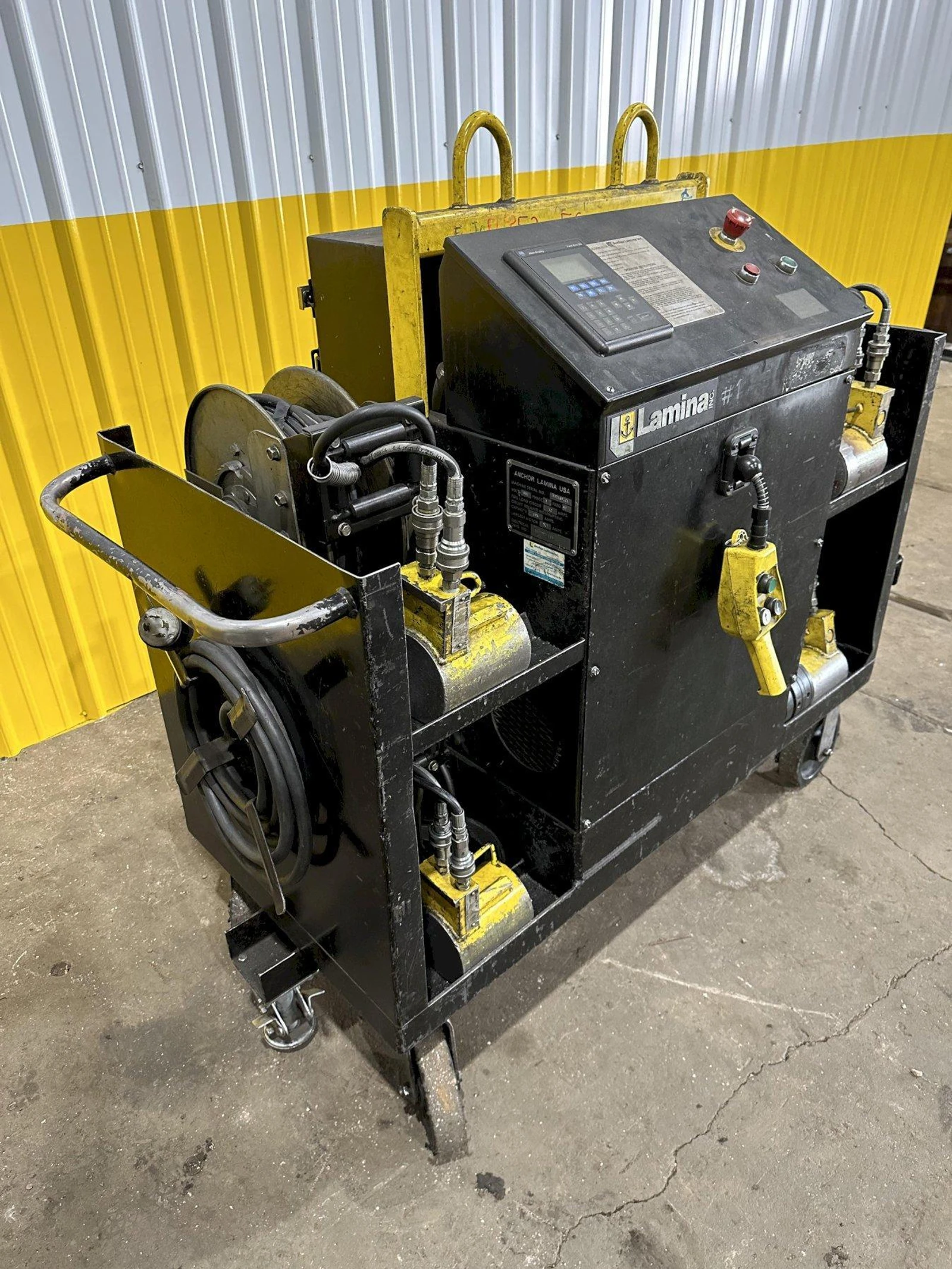

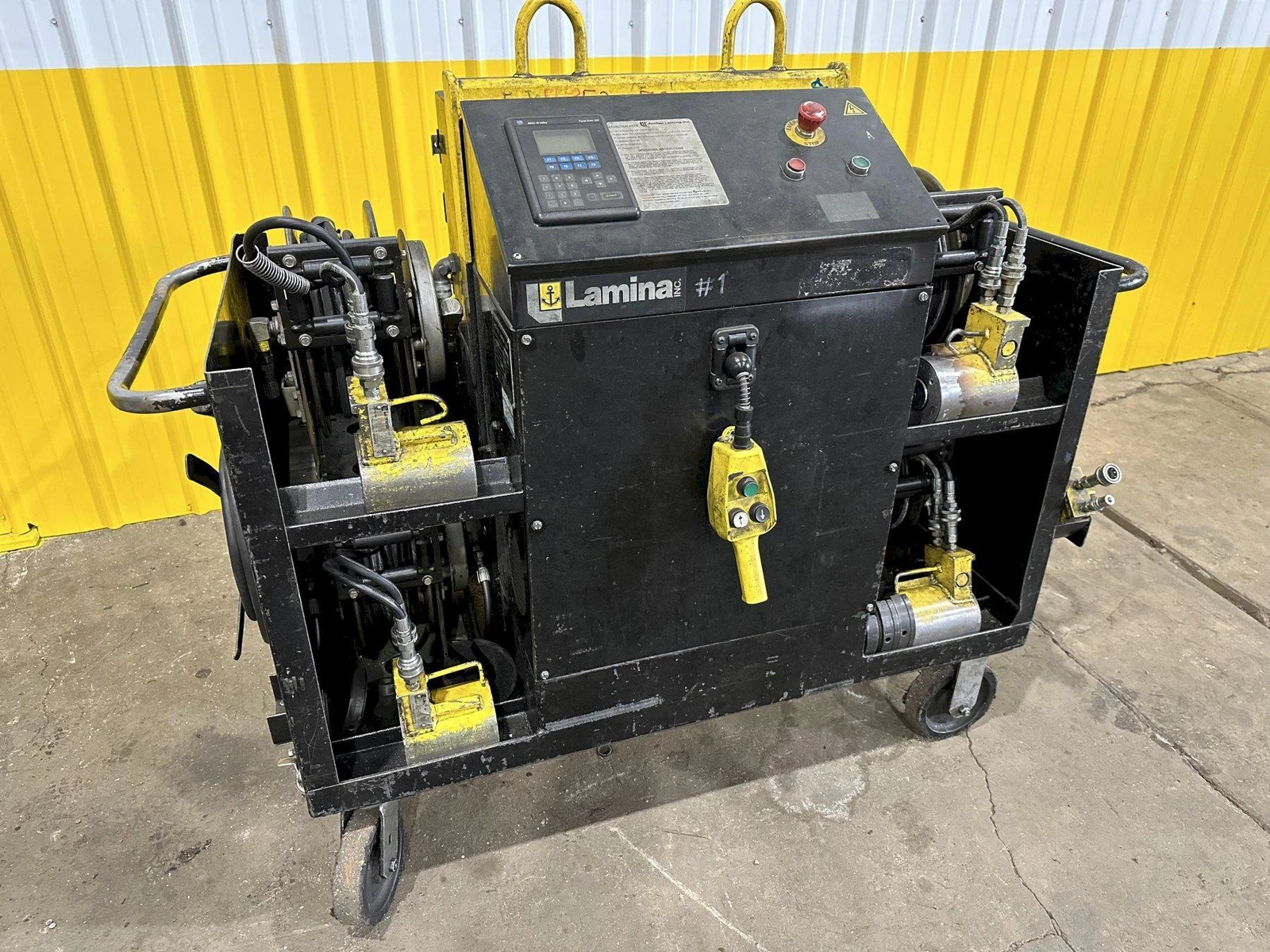

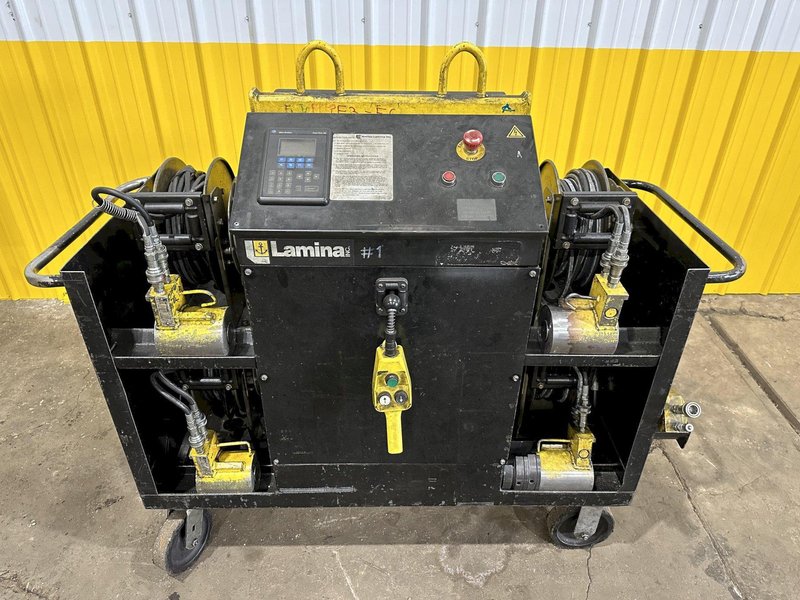

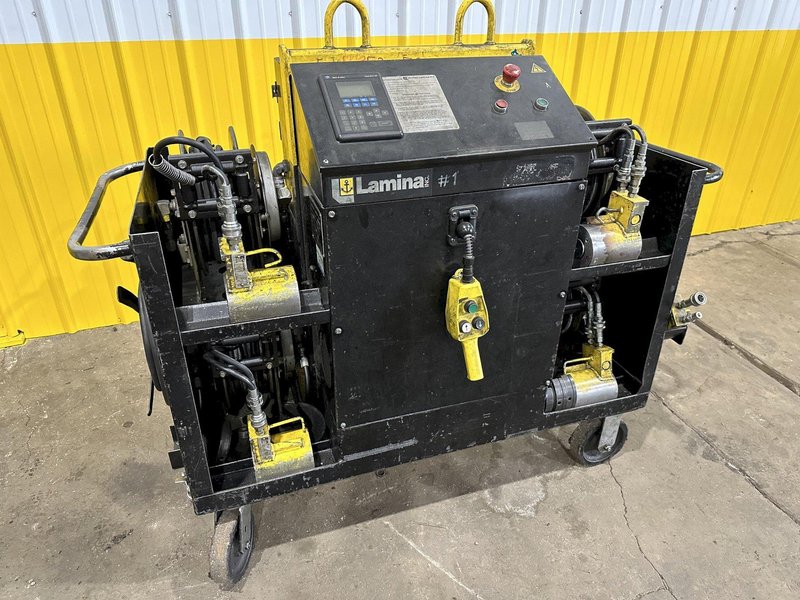

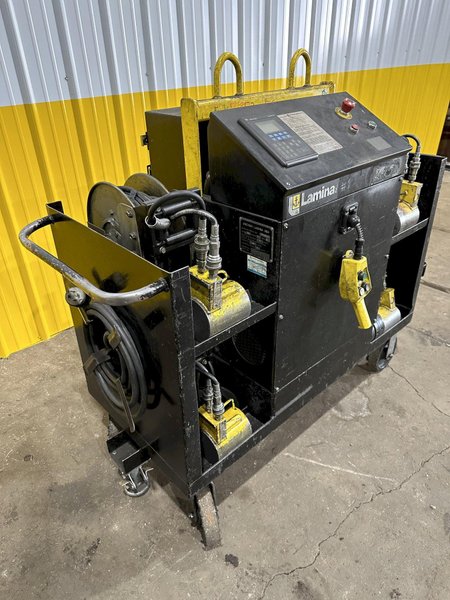

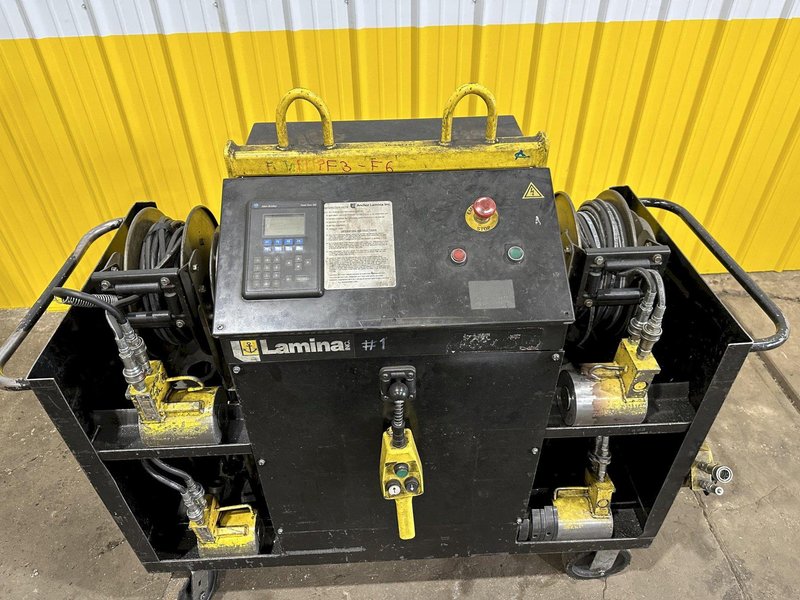

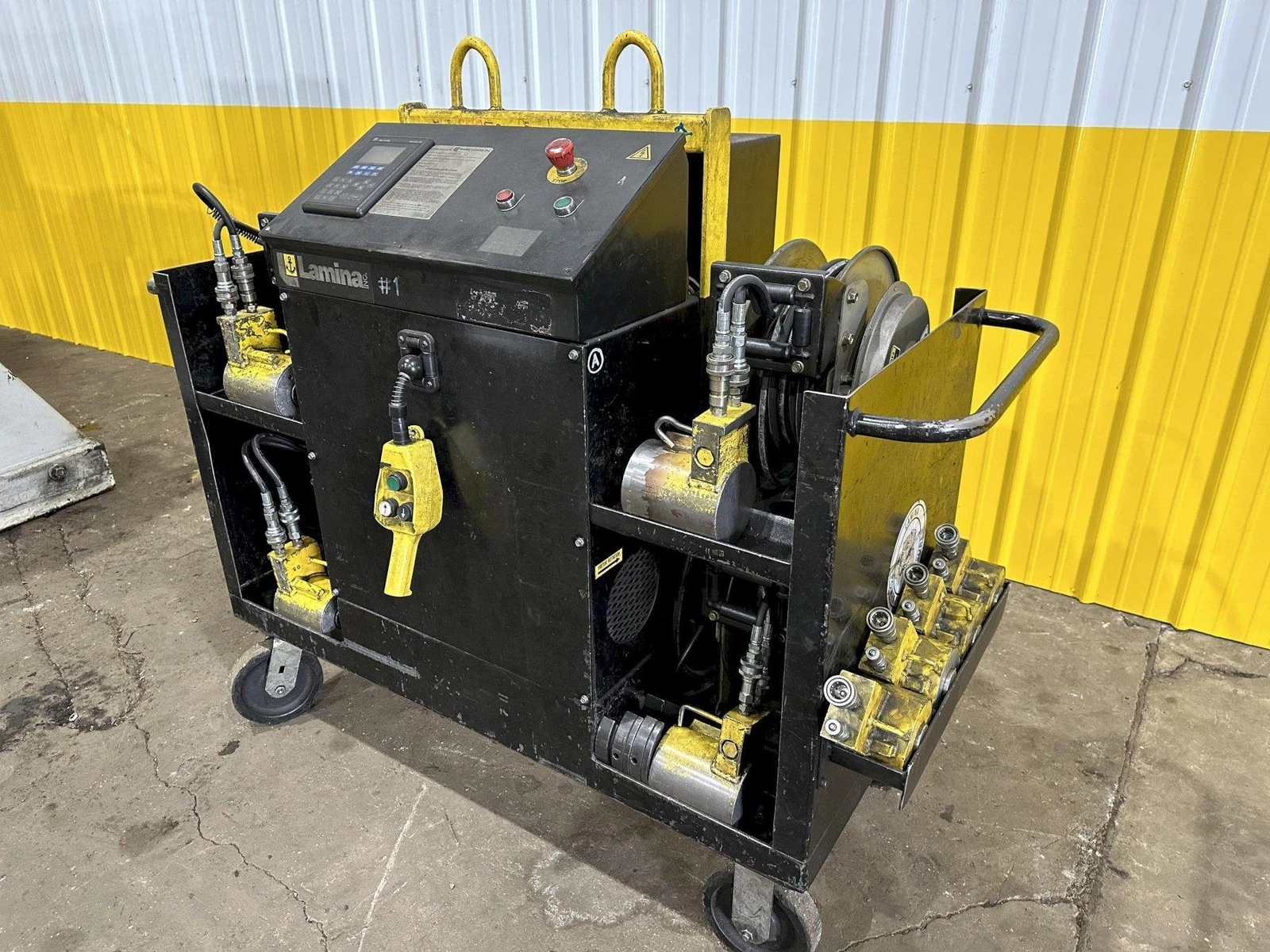

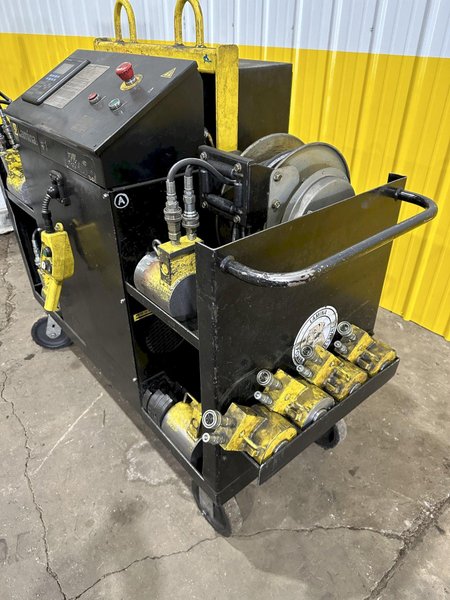

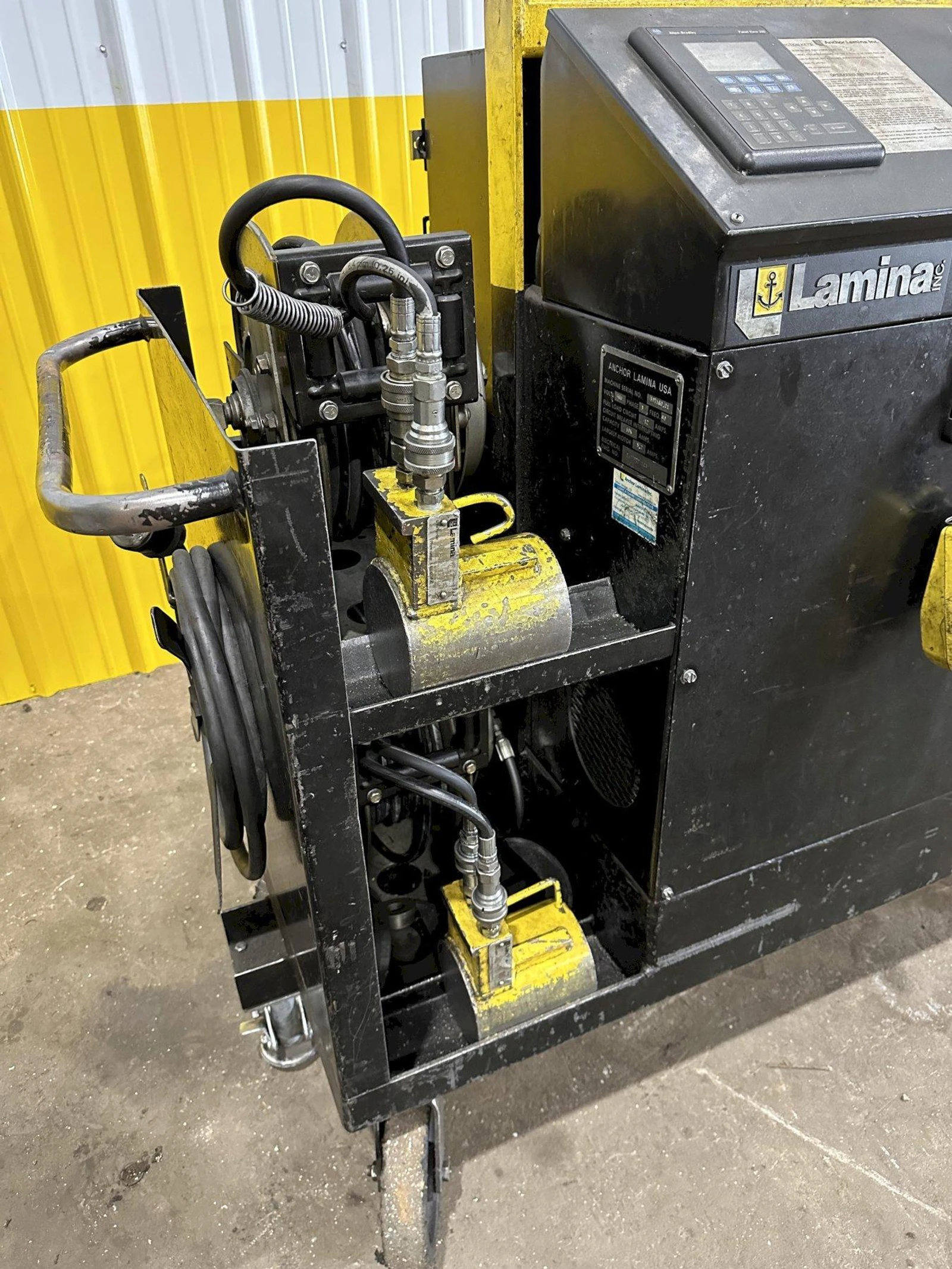

Portable Electronic Die Setter - 4 Cylinders

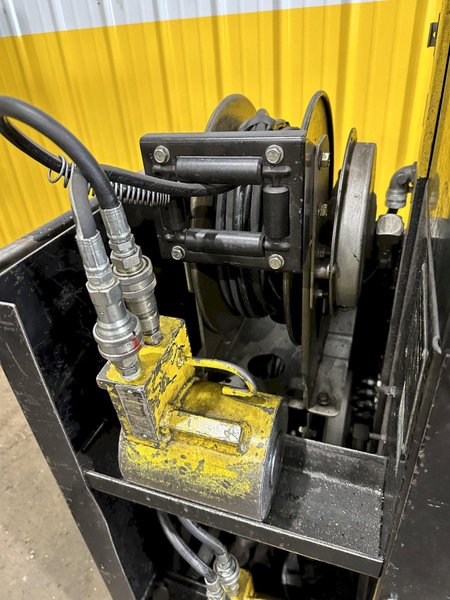

One compact, low profile wheeled cabinet contains all the equipment you need for all the punch spotting, die setting and die separation jobs in your shop. This die setter is completely portable with self-retracting hose reels and pendant.

Each Die Setter has two modes of operation:

1. Unify Mode - Cylinders will extend until each makes contact with the die; cylinders will subsequently lift uniformly, creating a synchronous lifting system.
2. Parallel Mode - Cylinders will extend uniformly, at the same rate, and act as a synchronous jacking system. To initiate this mode, cylinders must be fully extended or fully retracted.
