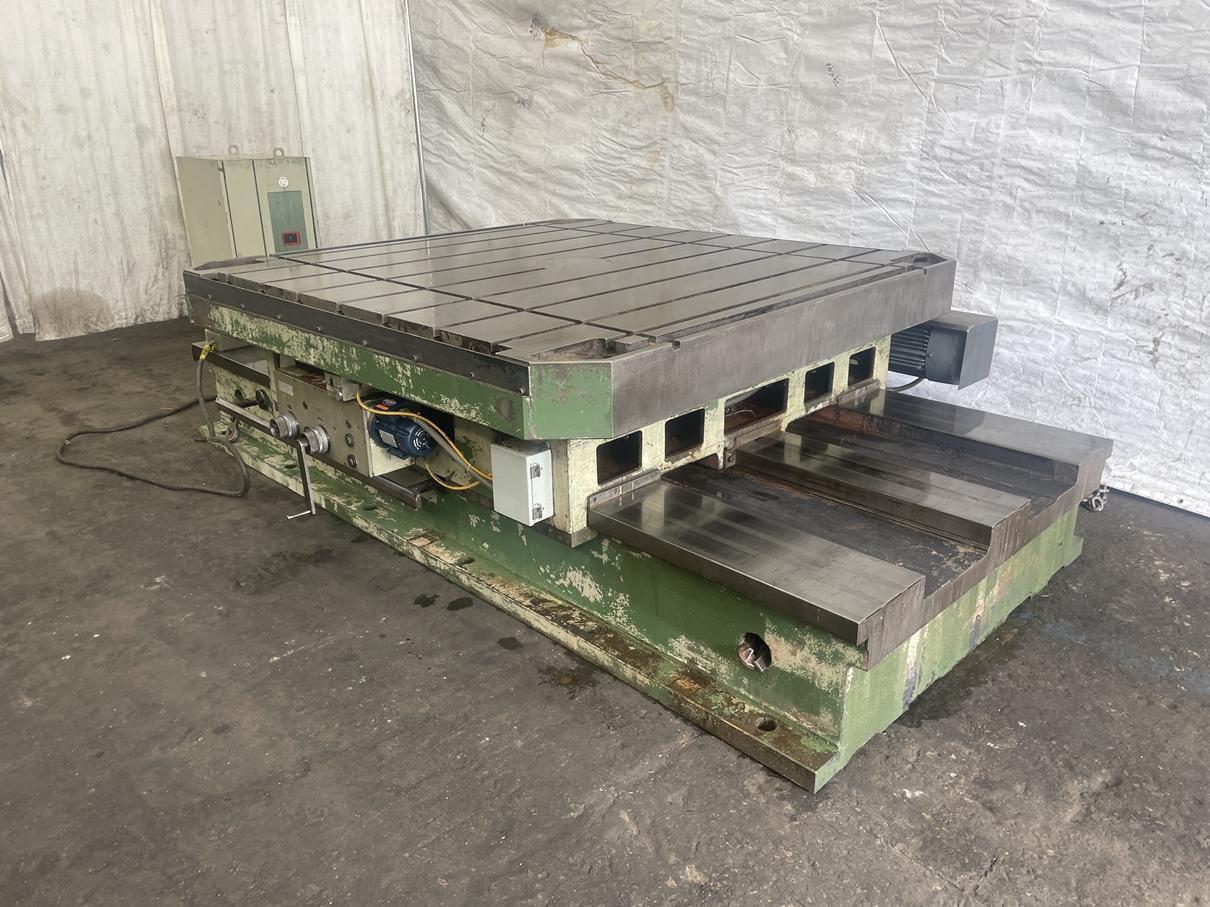

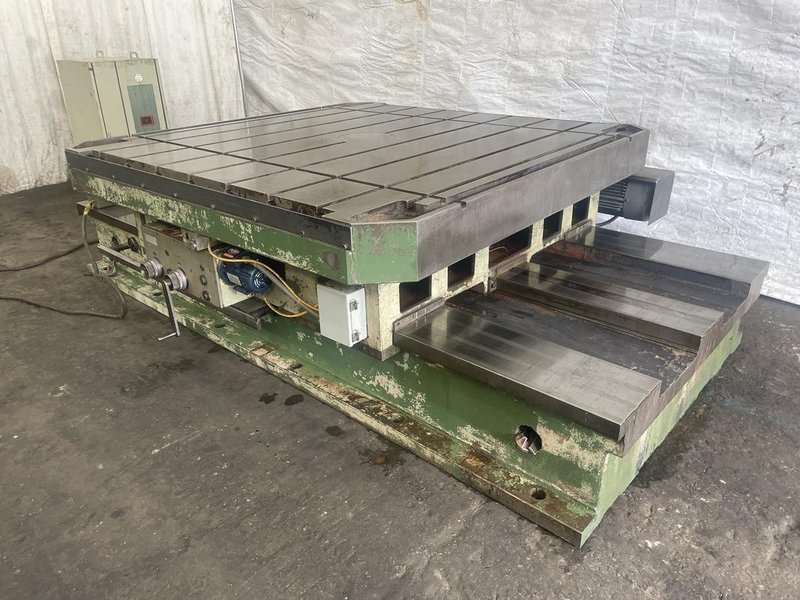

86" X 86" TOS COMPOUND POWER ROTARY TABLE: STOCK #76804
Brand
Category
Type
Model
null
Stock #
76804
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ..................... 003-25 MODEL ...................... ISO16 YEAR NEW ................... 1980 LENGTH OF TABLE ............ 86" WIDTH OF TABLE ............. 86" TABLE HEIGHT ............... 37.4" WEIGHT CAPACITY ............ 39,600 Lb TABLE TRAVEL ............... 72" TABLE FEEDS LONGITUDINAL ... .05 TO 6.2 IPM TABLE FEEDS @ 41.14 DIA. ... .05 TO 6/2 IPM RAPID TRAVERSE BOTH FEEDS .. 78.11 IPM NUMBER OF T SLOTS .......... 9 T SLOT CENTERS ............. 10" NUMBER OF CROSS SLOTS ...... 2 CENTER HOLES ............... 11.81" PENDANT CONTROL ........... YES MOTORS HORSEPOWER .......... 5 & 2 |
