Preliminary Specifications

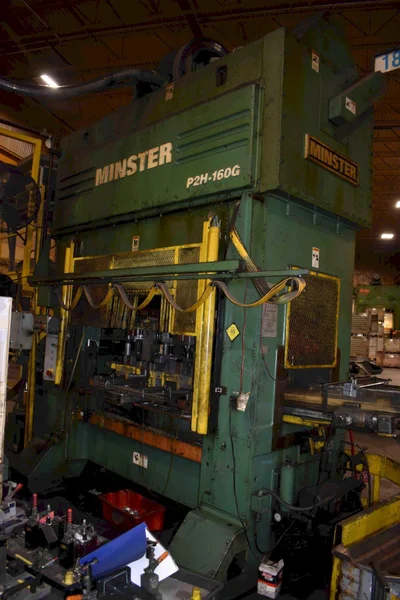

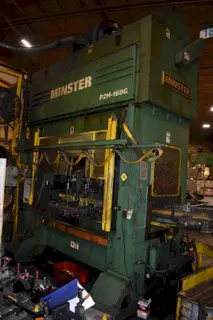

Minster High Speed Straight Side Press
Single-Geared Twin Drive
Model: P2H-160G
Year: 2003

180 Ton Capacity (1600 kN)
7.87" Stroke (200 mm)
5.91" Slide Adjustment (150 mm)
19.68" Shut Height (SDAU on Bed)
74.8" LR x 33.5" FB Boster & Slide Area (1900 mm x 850 mm)
0-120 SPM Variable
24.80" W  Windows

Equipped With
Minster Press Control with (PMC) Production Management Control
4.92" Thick T-Slotted Bolster
63" x 9.80" Opening in Bed (Not in Bolster)- per catalog specification
46.40 Floor to Top of Bolster
40 HP Motor, 1765 RPM
480V / 3 PH / 60 Hz
Integral Press Shock Mounts (Foot Pads serve as Levelers & Vibration Absorbers)

Approx. Dimensions 145" LR x 80" FB x 189" H
Estimated Weight 77,000 lbs

Available Immediately with or without Feed Line as shown in video, quoted separately!
Available for Inspection By Appointment

Click on Video Link in Quote

Specifications Subject To Verification; Subject To Prior Sale & Price Change!
