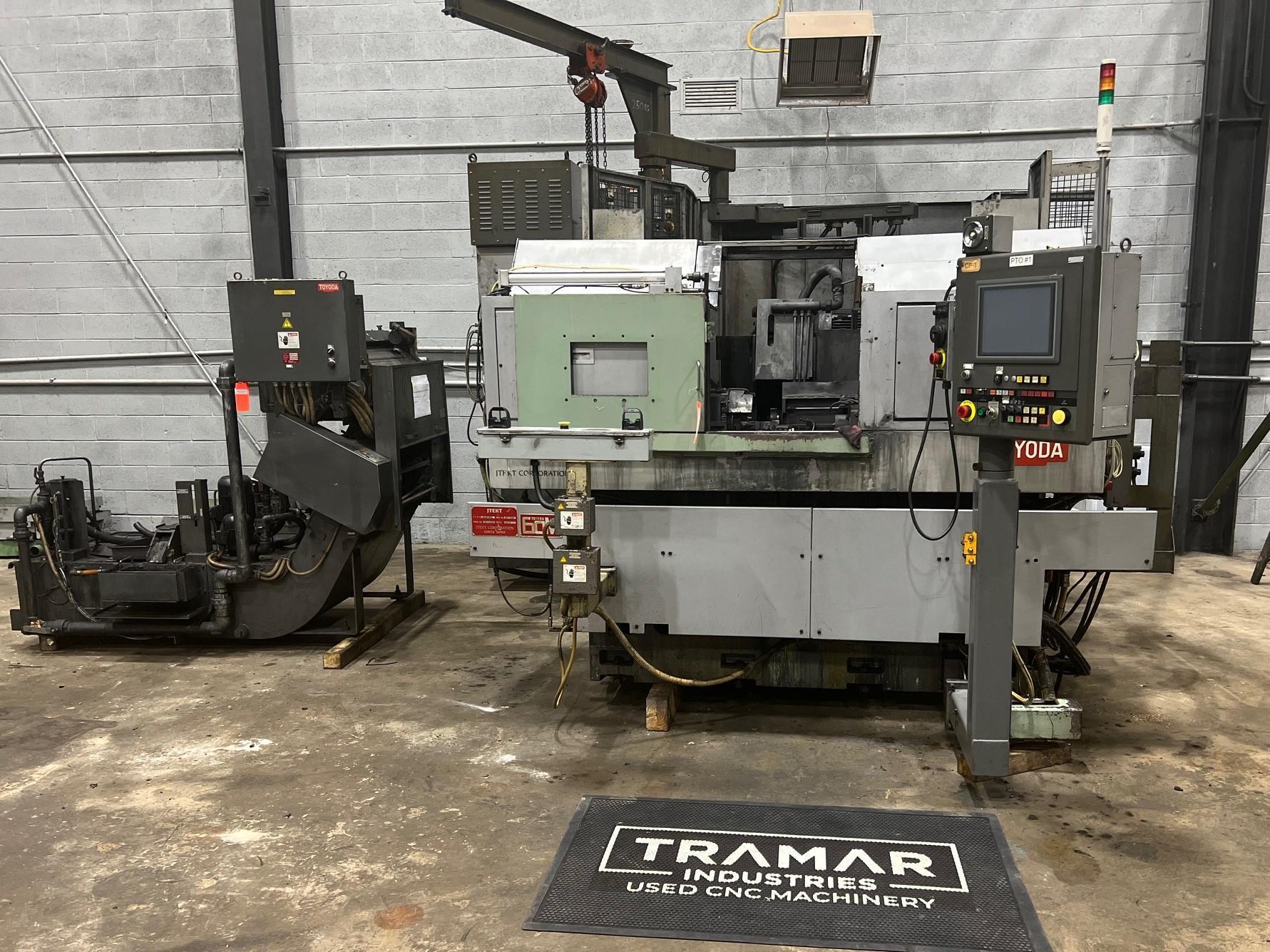

2013 JTEK Toyoda GL6P 32II CNC Plain Cylindrical Grinder For Sale
Brand
Category
Model
GL-6P 32II
Stock #
14265
Year
2013
Condition
Used
Location
Michigan
| CNC Control | yes |
| Type of CNC Control | Toyoda GC-50 |
| Swing | 12.6 inches |
| Centers | 12.6 inches |
| Plain or Angle Head | plain |
| Grinding Wheel Dia. | 24 inches |
| Grinding Wheel Width | 6.3" |
| Wheelhead (Angle / Straight / Universal) | Straight |
| Max Load Between Centers | 660 pounds |
| X-Axis Travel (wheelhead Infeed) | 16 inches |
| Z-Axis Travel (Table Traverse) | 16 inches |
| C Axis - (Workhead Rotation) | 360,000 Degrees |
| Workhead Speed | 32-630 rpm |
| Surface Feet Per Minute (SFPM) | 11811 |
| Gauging (Yes/No) | yes |
| Dresser (Yes/No) | yes |
| Lateral Locator | Yes |
| Workhead (Live / Dead) | Dead |
| Weight | 18700 pounds |
|

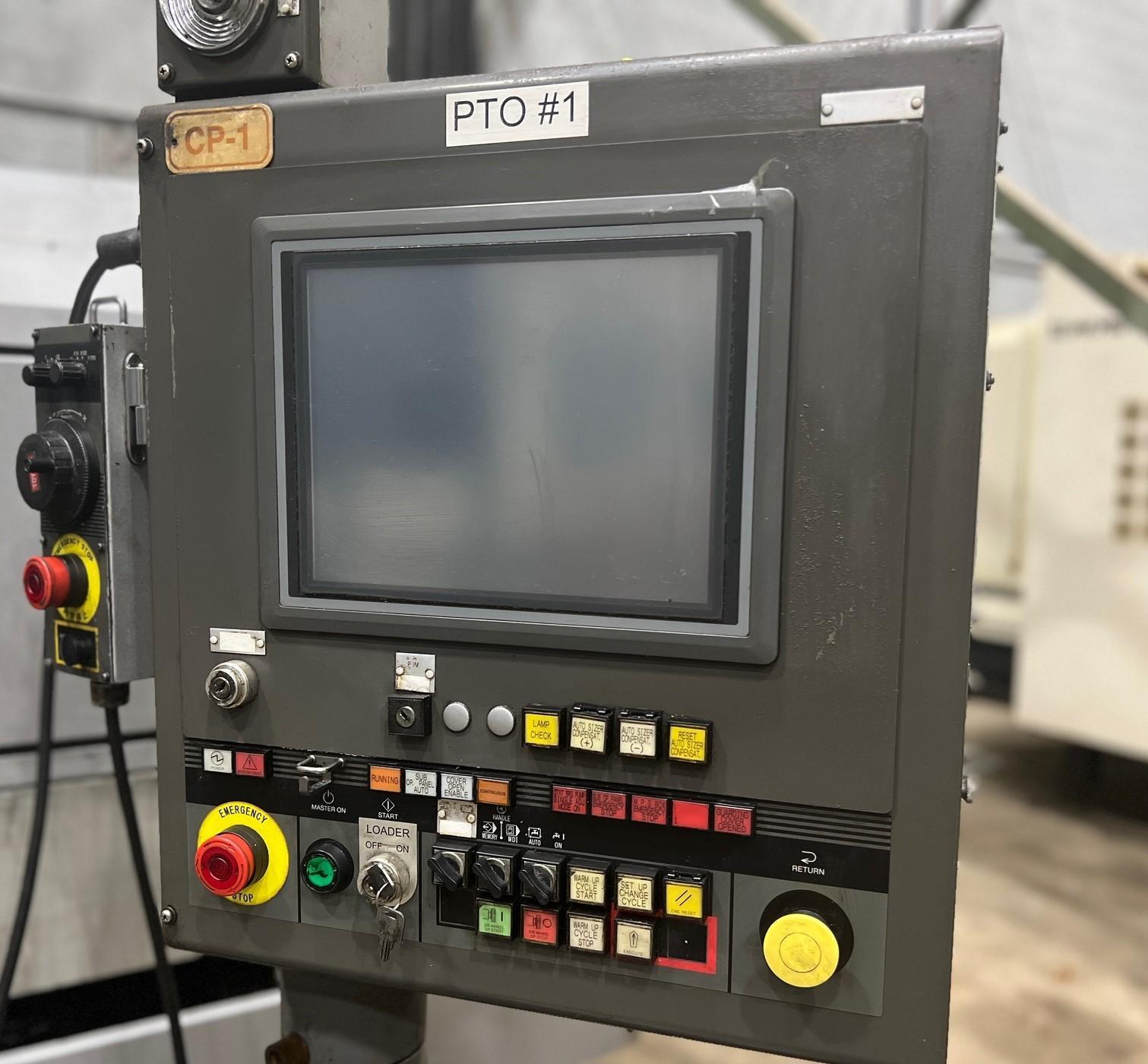

- Toyoda GC-50 CNC Control
- 2 Axis Single Point Dresser (Behind the Wheel)
- Form Point Diamond Dresser
- In-Process Gaging
- Lateral Locator
- Magnetic Separator
- Coolant System - Tailstock Options: Simultaneous Contouring Control (X-Z-C) Grinding Data Patterns (MAX-64) Grinding Process Patterns (Max 1800 Processes) |
|
