Coil Weight Capacity: | 8000 pounds |
Coil Width Capacity: | 18 inches |
Minimum Expansion Range: | 16 inches |
Maximum Expansion Range: | 21 inches |
Coil O.D. Capacity: | 60 inches |

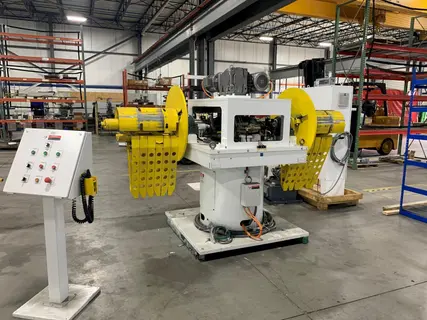

NIDEC CHS Double End Motorized Coil Reel Specifications:
Coil weight capacity: 8,000 Lb. (Per Side) Coil width capacity: 18" Expansion range: 16" - 21" Coil O.D. capacity: 60" NIDEC CHS Double End Motorized Coil Reel Equipment and Features: Three leaf mandrel assemblies Hydraulic H Link type expansion Full set of coil keeper arms Air brakes mounted on main spindles (caliper type) Locking pin for main turret Hydraulic turret rotation Centralized lubrication points Hand held pendant control for jog forward / reverse functions Dual AC variable frequency drive system Free standing electrical enclosure Free standing pedestal operators control station Fused disconnect Auto / Run cycle Laser loop control |
