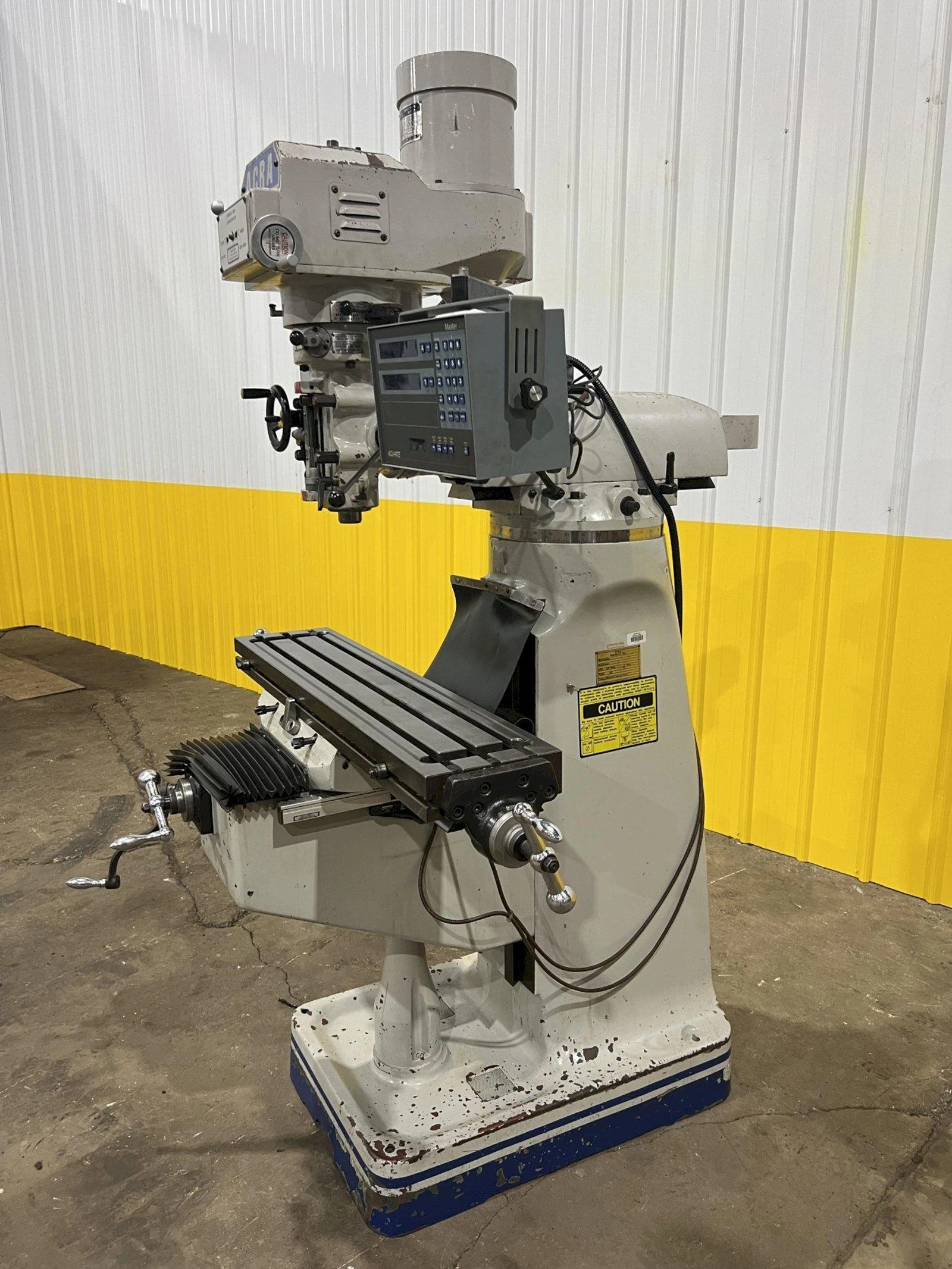

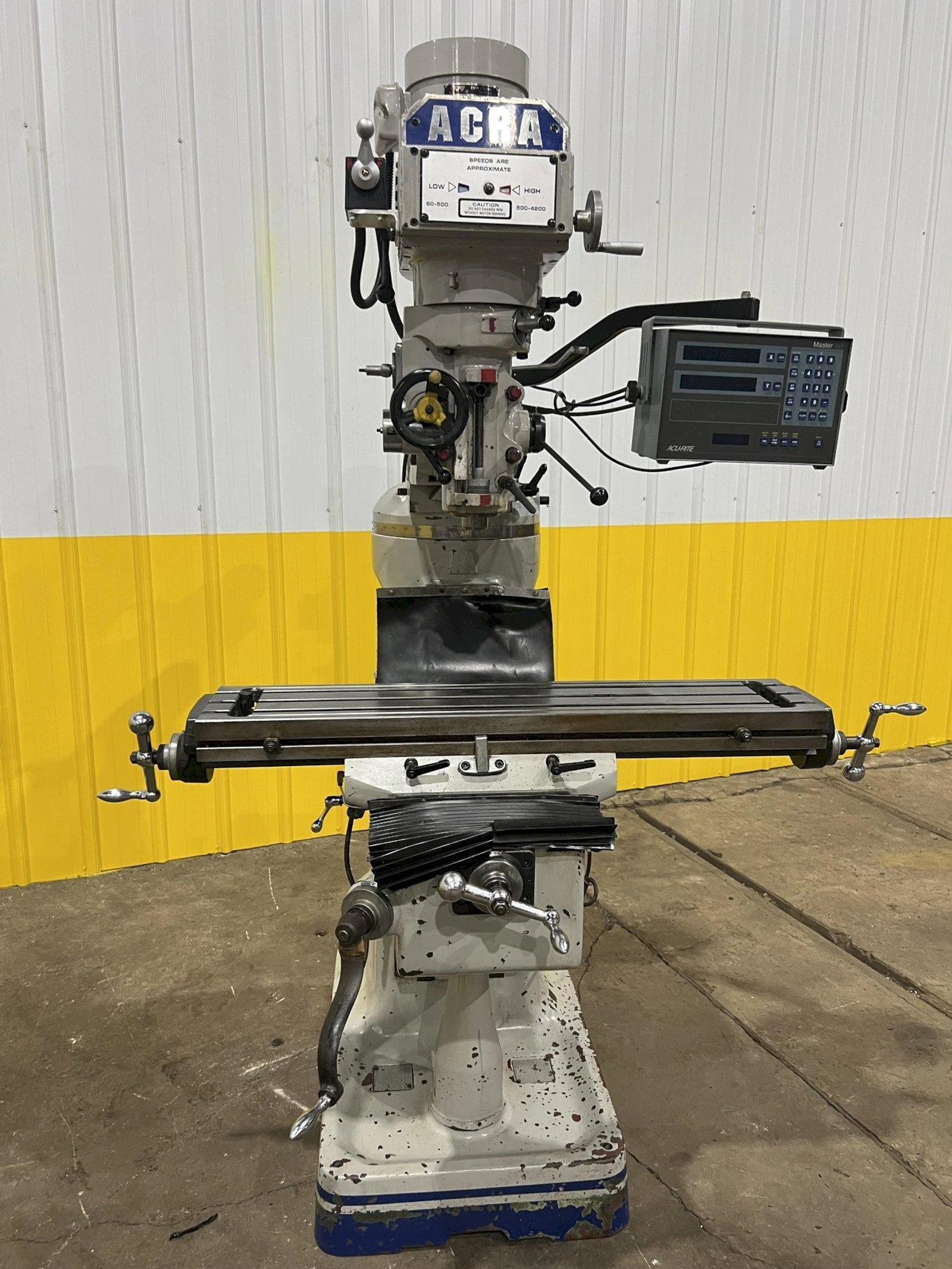

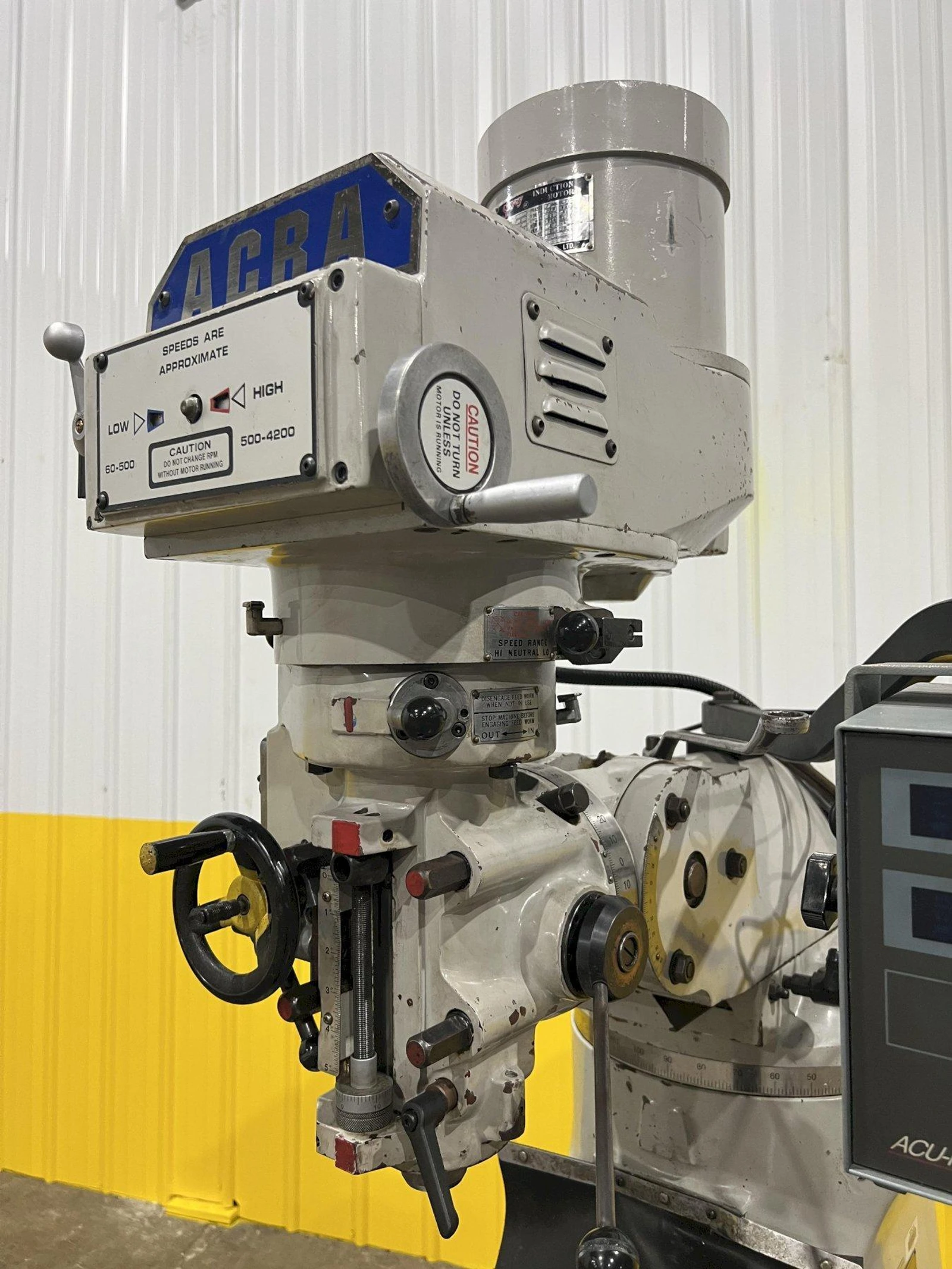

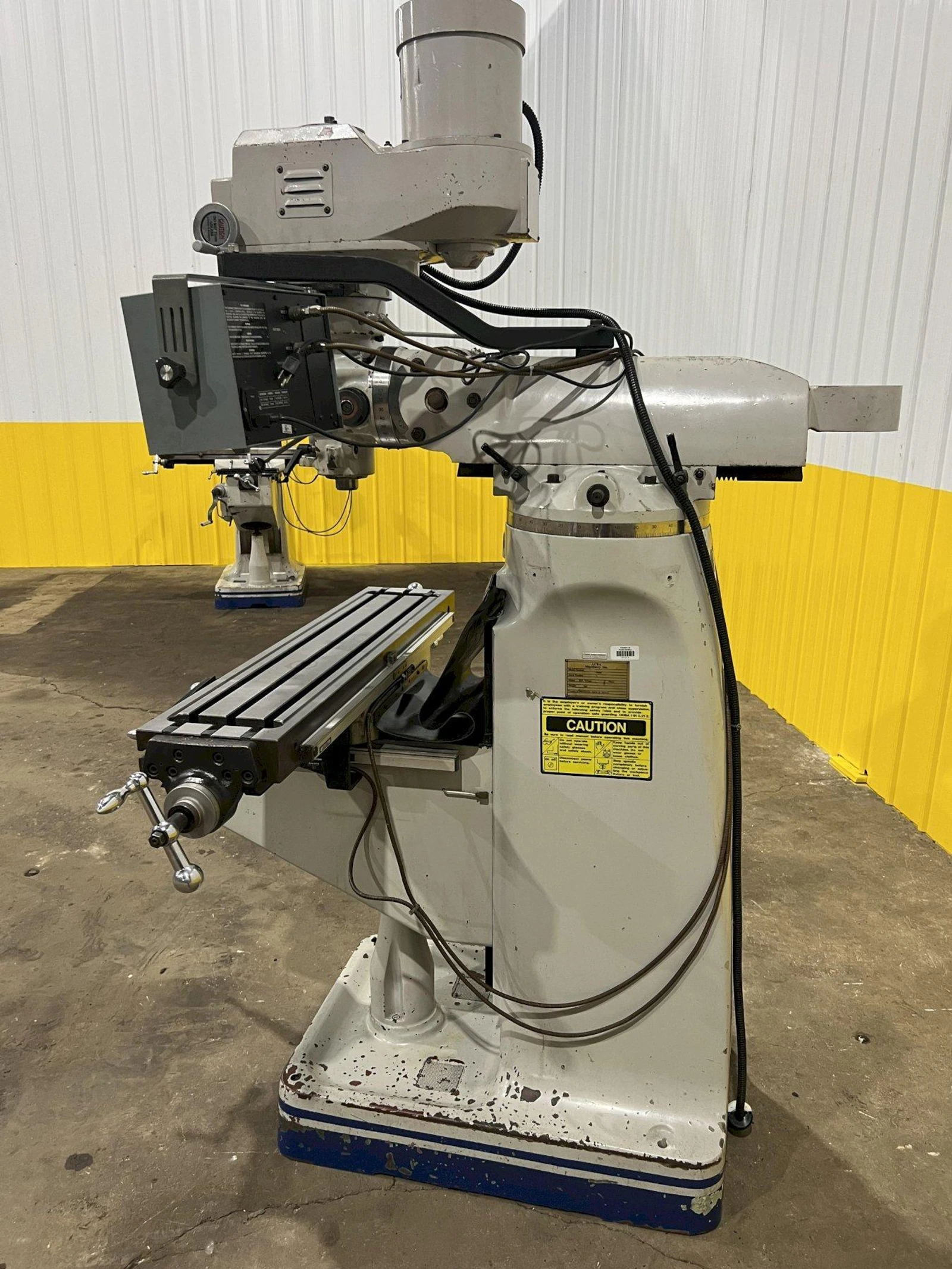

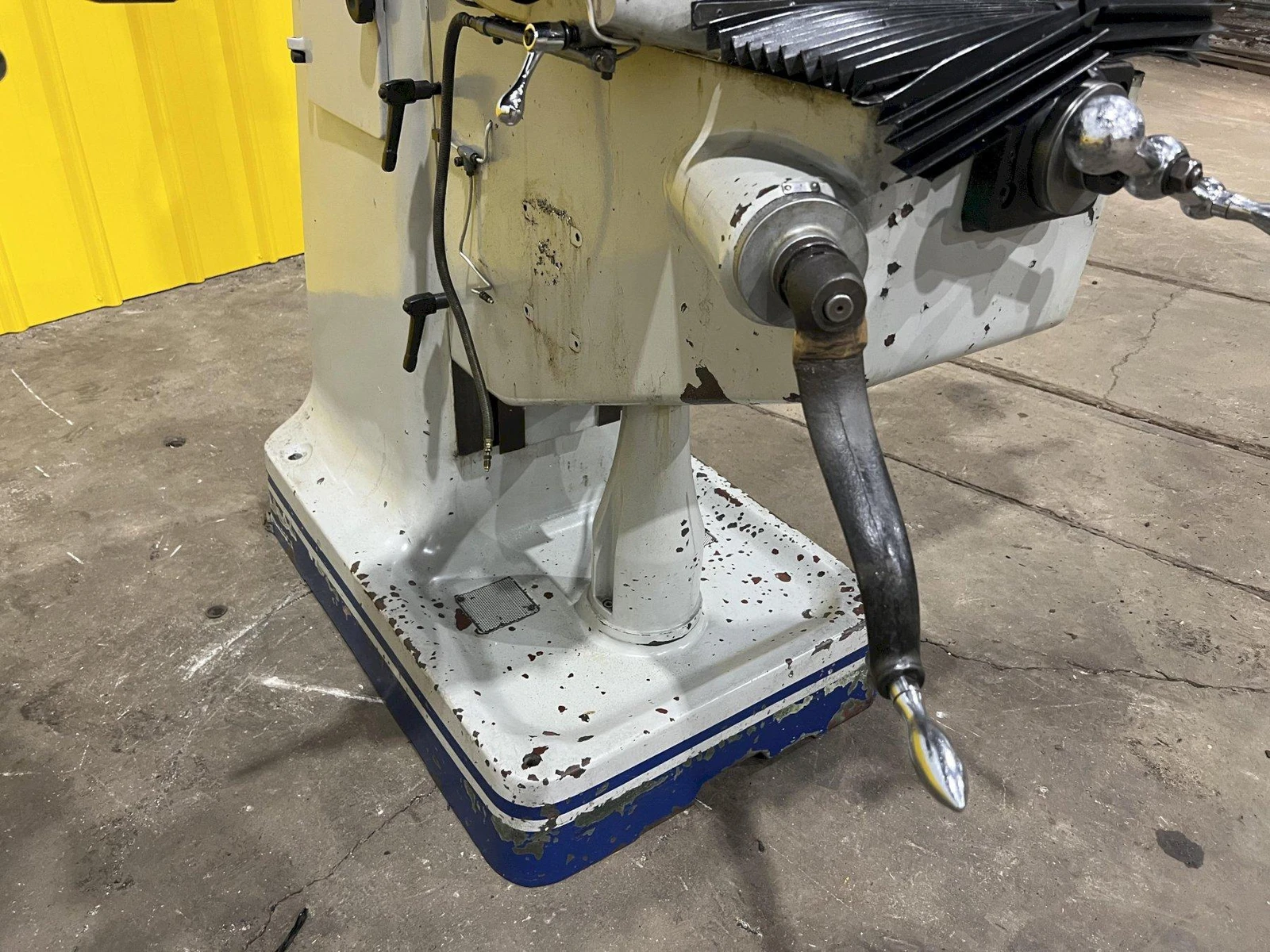

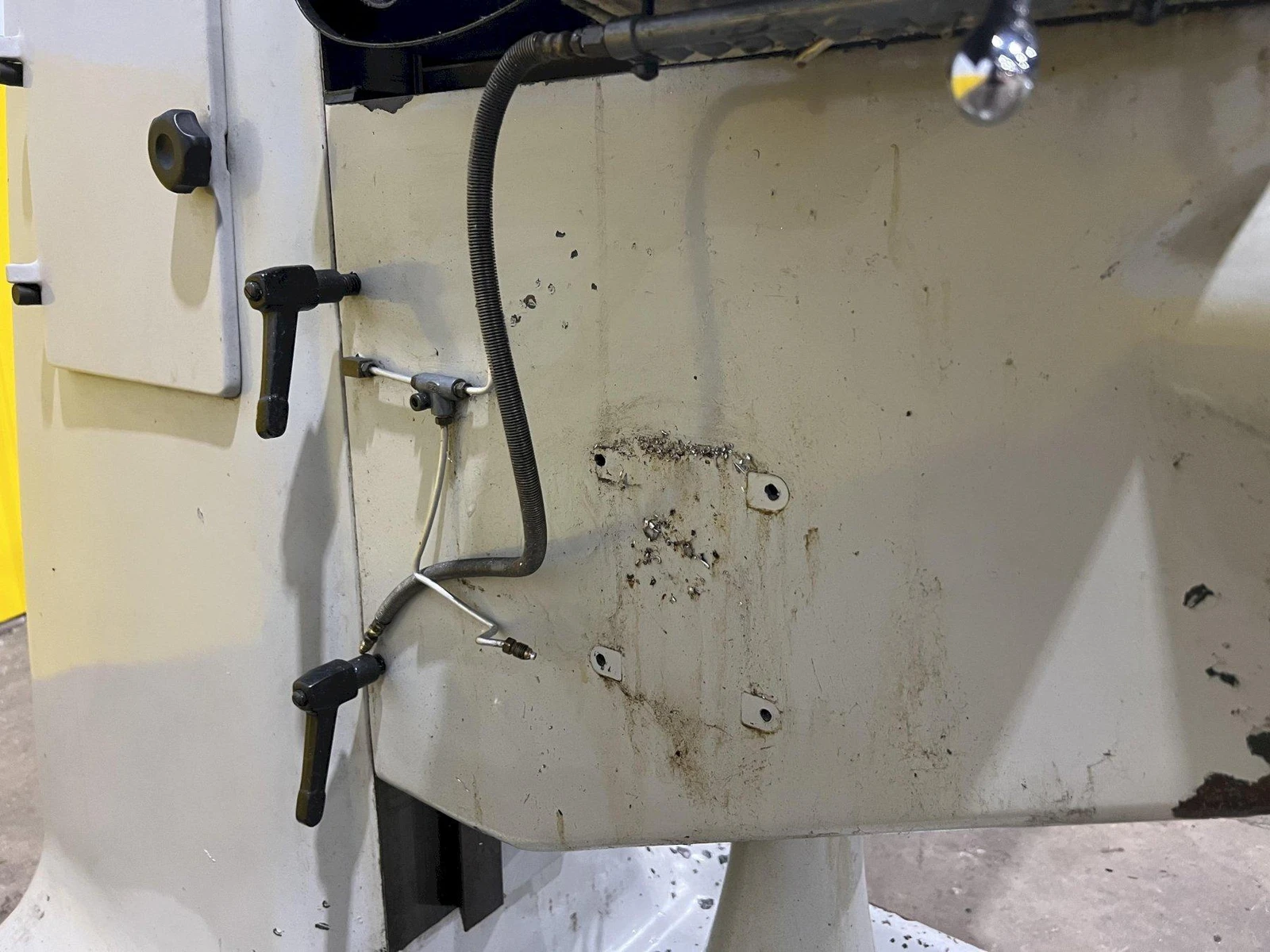

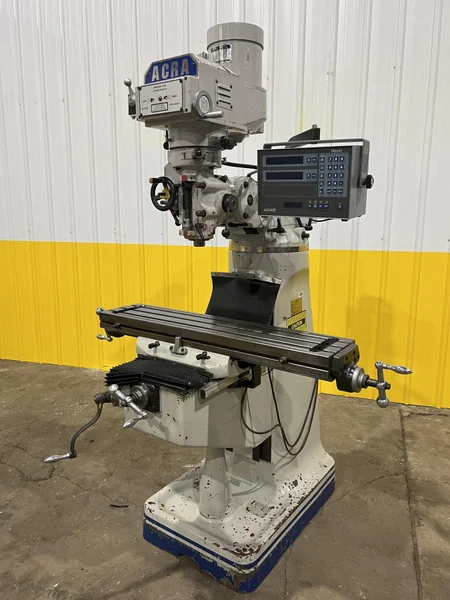

2 HP ACRA MODEL #AM-2V VERTICAL KNEE MILL: STOCK #18824

Brand
Model
AM-2V
Stock #
18824
Year
Not specified
Condition
Good
Location
Ohio
Price
$4,950.00
Weight 2200 pounds
Dimensions 54" X 48"
MODEL ........................... AM-2V

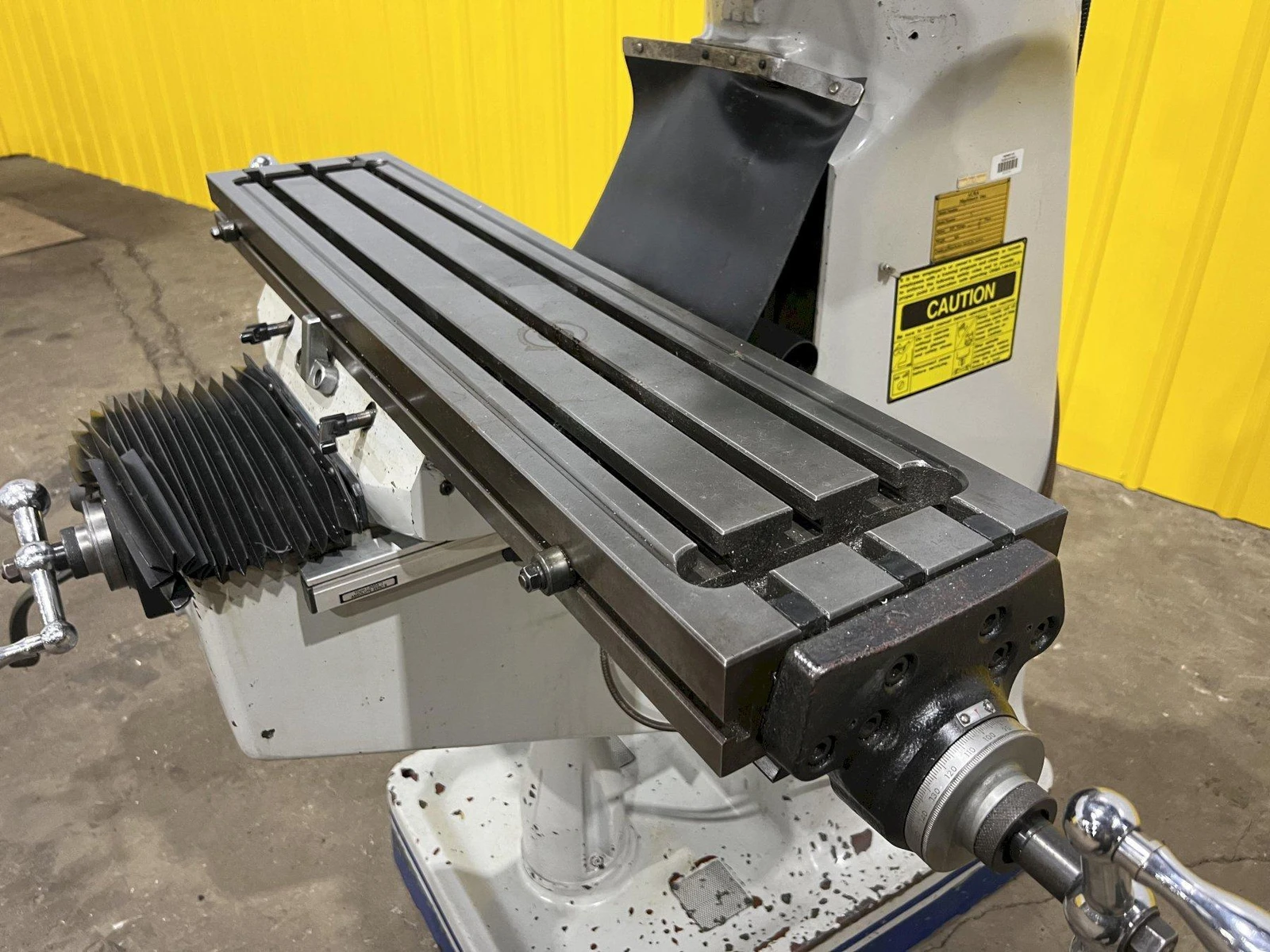

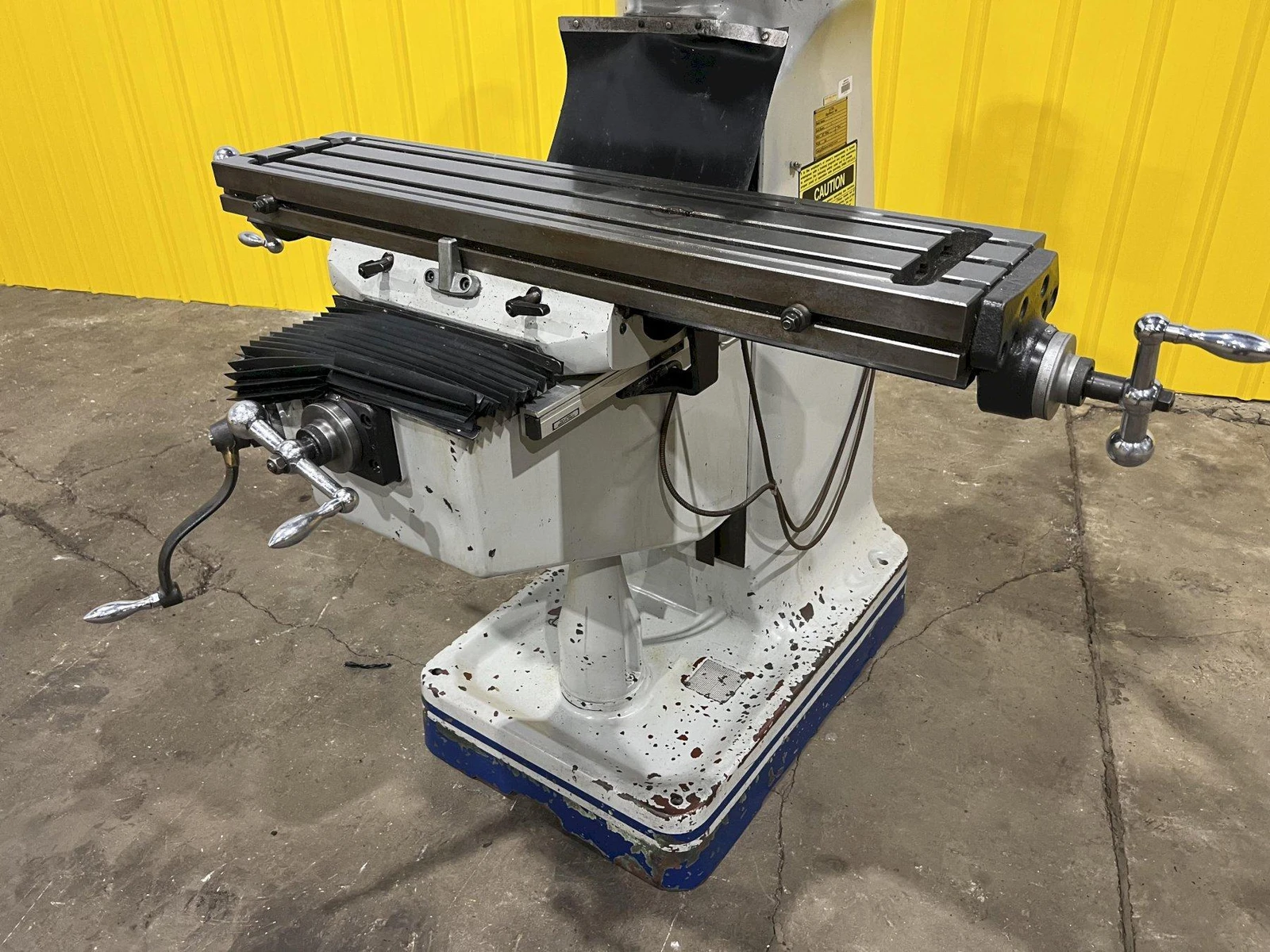

Table Size ...................... 9” x 49”
Longitudinal Travel (X-Axis) .... 32-1/2”
Cross Travel (Y-Axis) ........... 12-1/2”
Knee Travel (Z-Axis) ............ 16”
Overarm Travel .................. 16-1/4”
Number of T-Slots ............... 3
T-Slot Size and Centers ......... 5/8”, 2-1/2”

DRILLING SPECIFICATIONS:
CAST IRON ....................... 3/4"
STEEL ........................... 5/8"
FACE MILL ....................... 3"
END MILL ........................ 3/4"
SPINDLE TAPER ................... R8 OR NT-30
QUILL DIAMETER .................. 3-3/8"
COLLET CAPACITY ................. 1/8" TO 5/8"

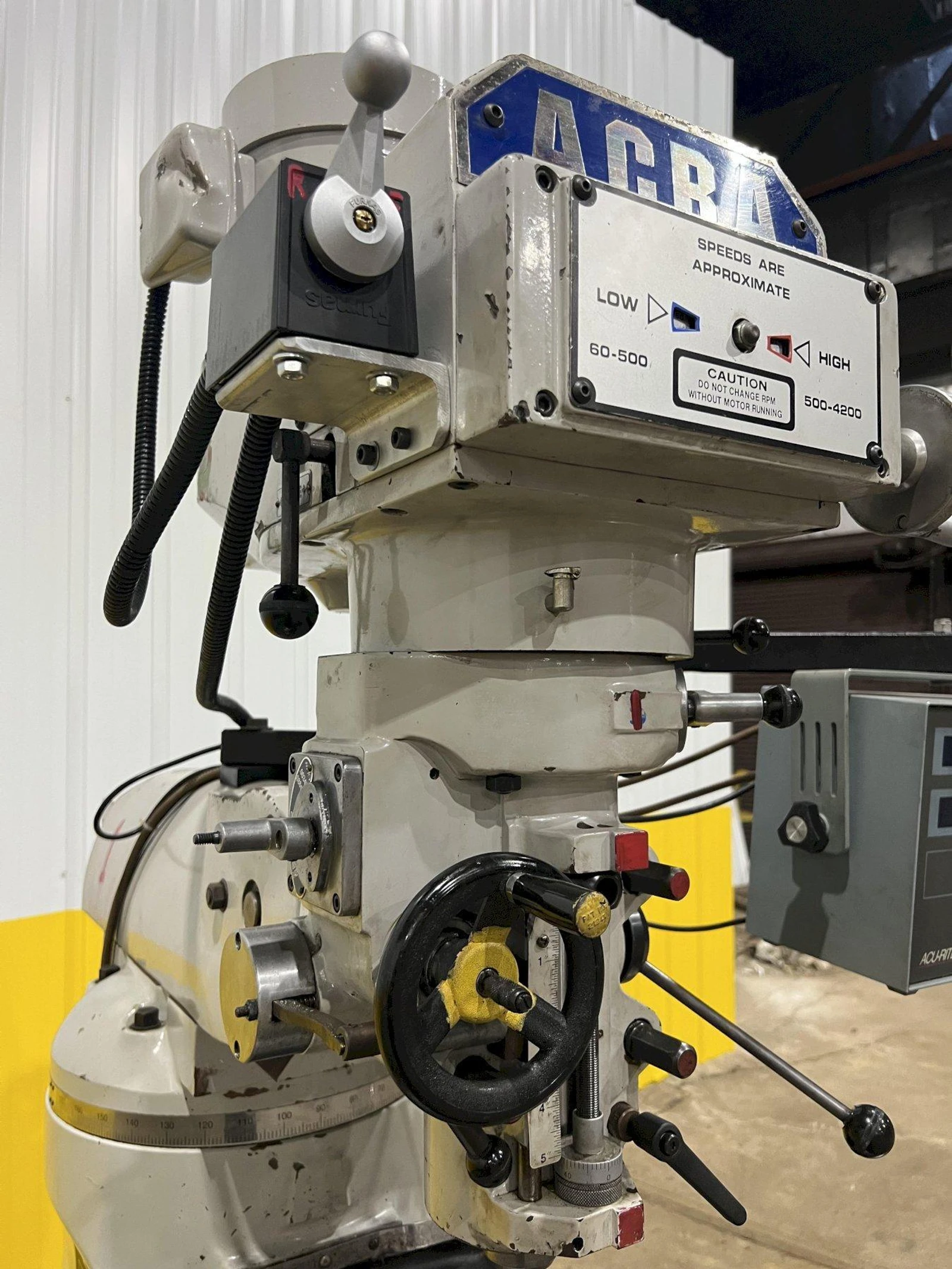

VARAIABLE SPINDLE SPEED ......... 60 TO 4200 RPM
SPINDLE FEEDS ................... .0015, .0003, .0006 INCH/REV
SPINDLE TO COLUMN ............... 5" TO 17-3/8"

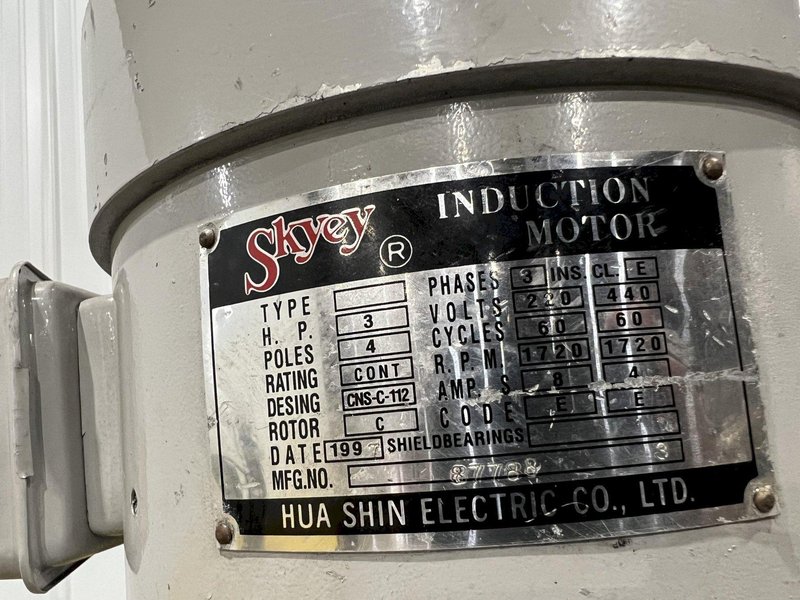

MOTOR ........................... 3 HP

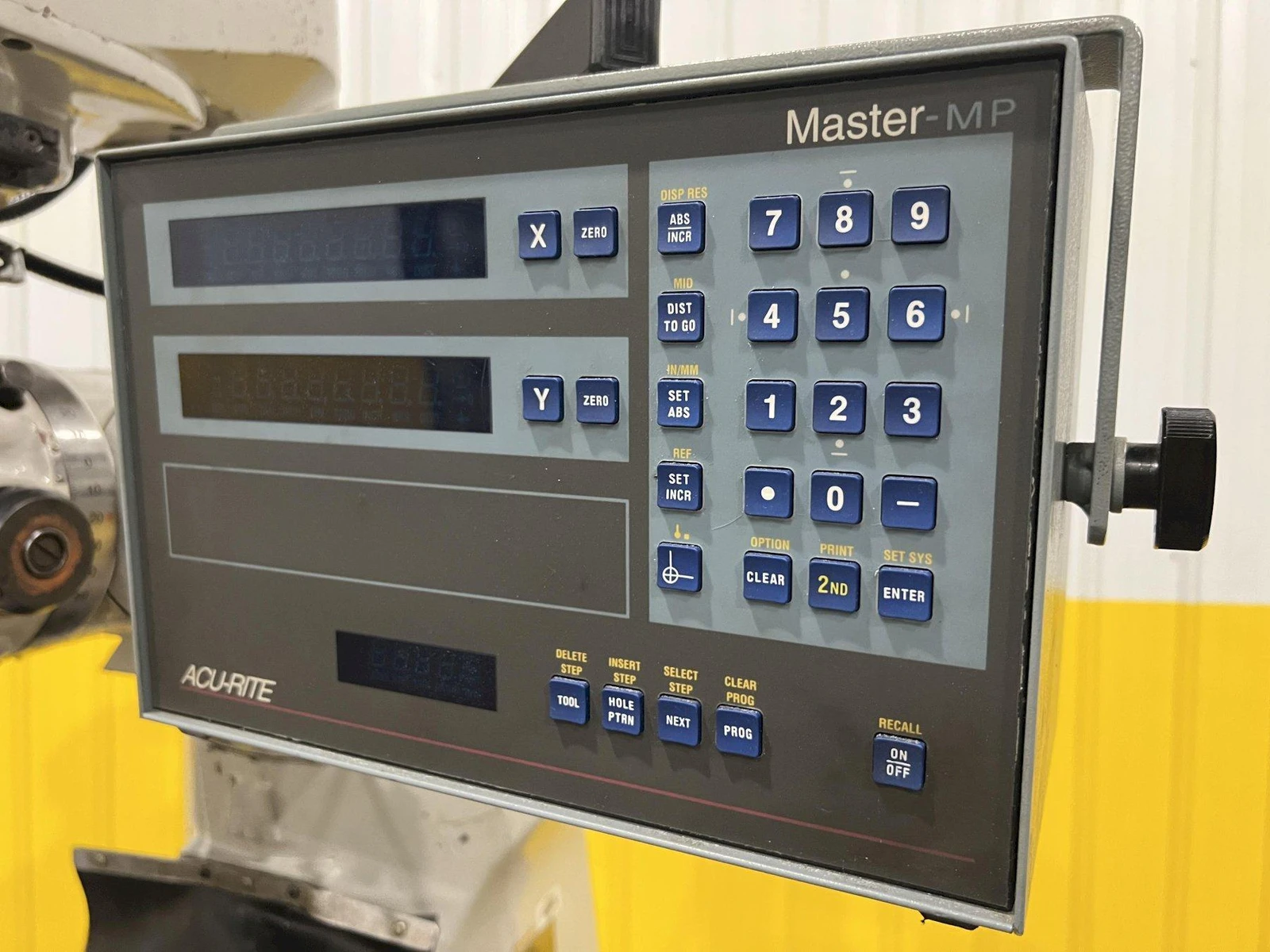

Acu-Rite MillPower 3 Axis Controller
