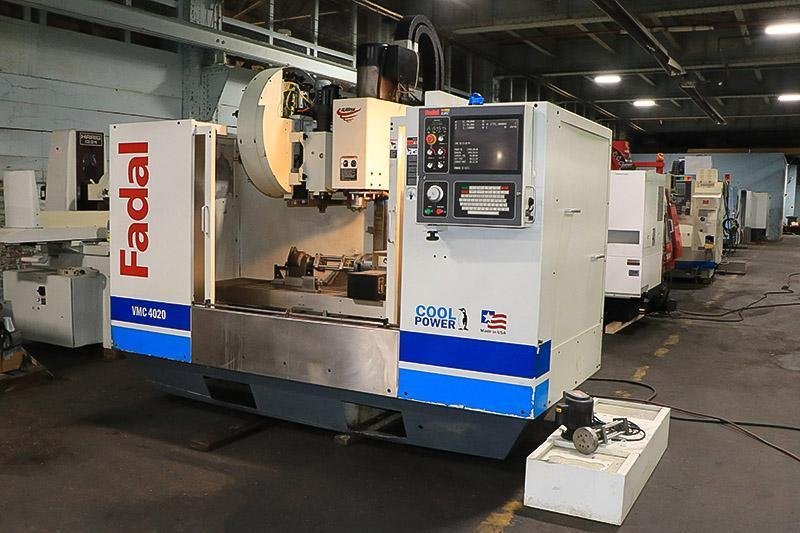

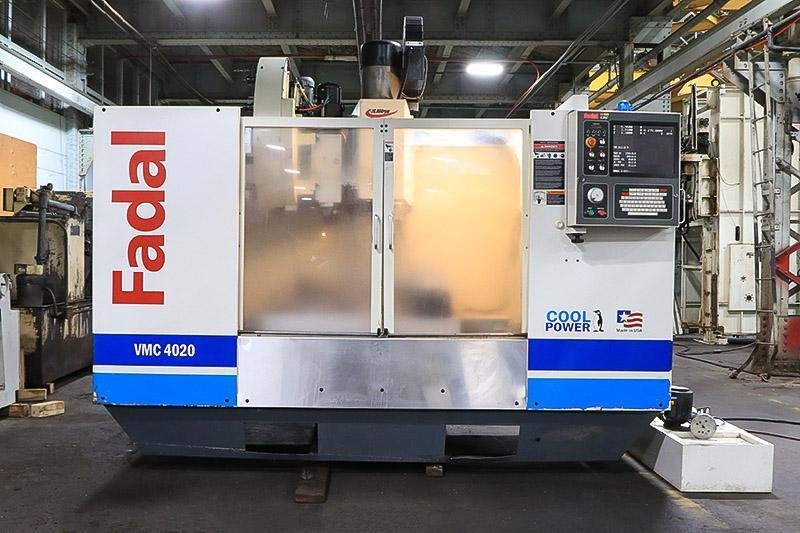

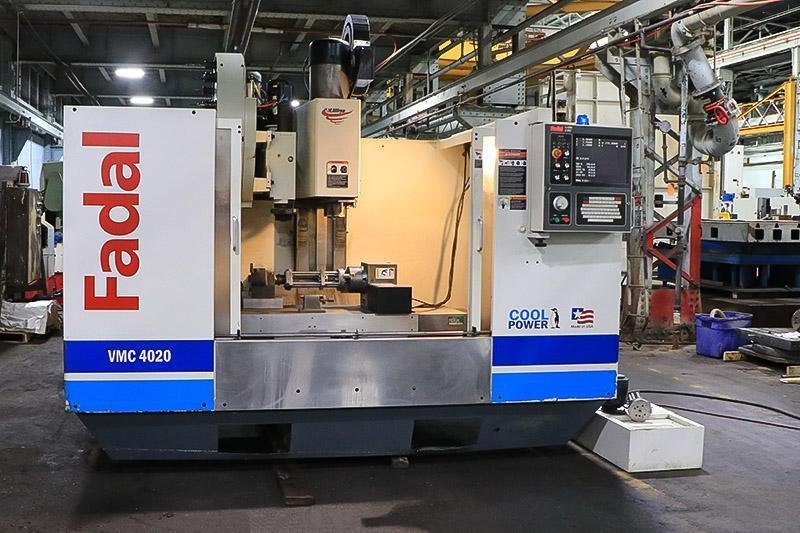

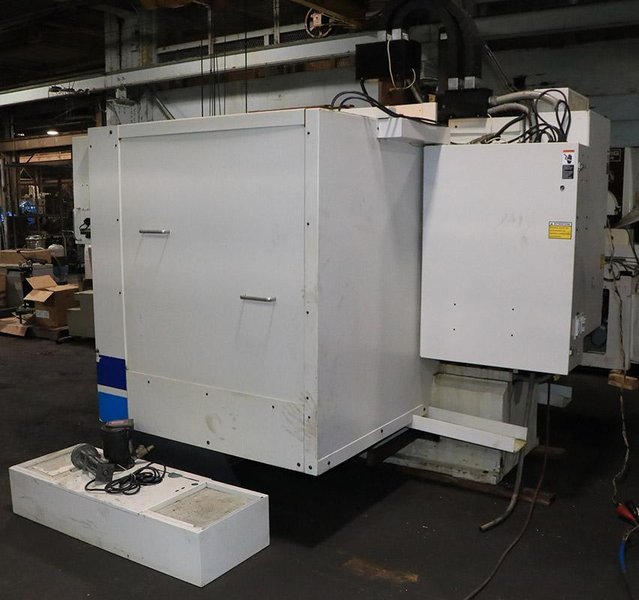

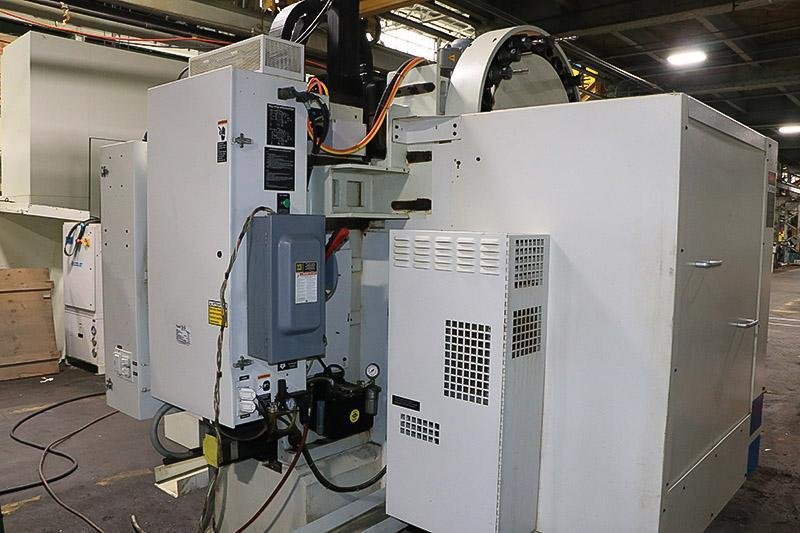

FADAL 4-AXIS VERTICAL MACHINING CENTER MODEL: 4020 HT
Brand
Category
Model
4020 HT
Stock #
4630
Year
2004
Condition
Used
Location
New Jersey
|
FADAL 4-AXIS VERTICAL MACHINING CENTER
MODEL: 4020 HT
New 2004 SPECIFICATIONS:
TABLE SIZE .................................... 48" x 20"
MACHINE TRAVELS:
X - AXIS .................................. 40"
Y - AXIS .................................. 20"
Z - AXIS .................................. 20"
TABLE TOP TO SPINDLE .......................... 4" - 24"
THROAT DEPTH .................................. 16.5"
RAPID TRAVERSE RATES ......................... 900 X,Y, 700 Z IPM
CUTTING FEED RATES ............................ .01 - 400 IPM
SPINDLE NOSE .................................. #40 CT
SPINDLE SPEED ................................. 10,000 RPM
TOOL MAGAZINE ................................. 24 ATC
MAX TOOL DIAMETER ............................. 3" / 6"
MAX TOOL LENGTH ............................... 15"
MAIN MOTOR .................................... 22.5 HP
MACHINE WEIGHT ................................ 10,500 LBS.
EQUIPPED WITH:

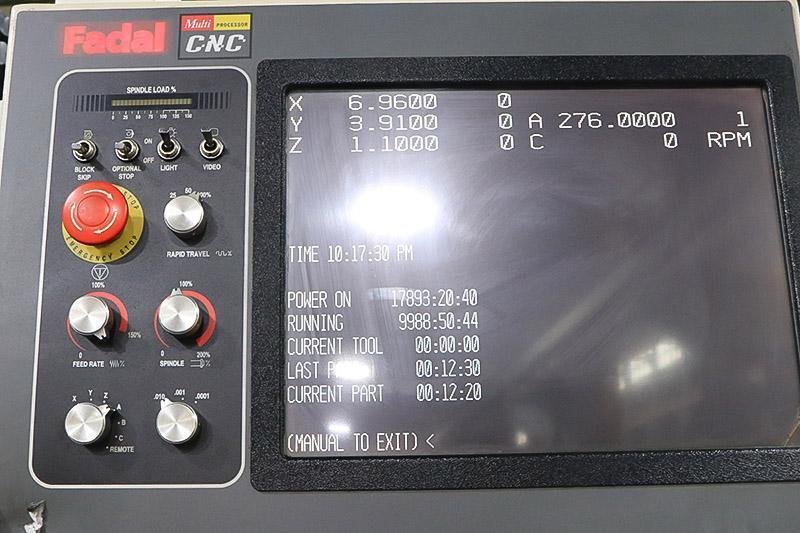

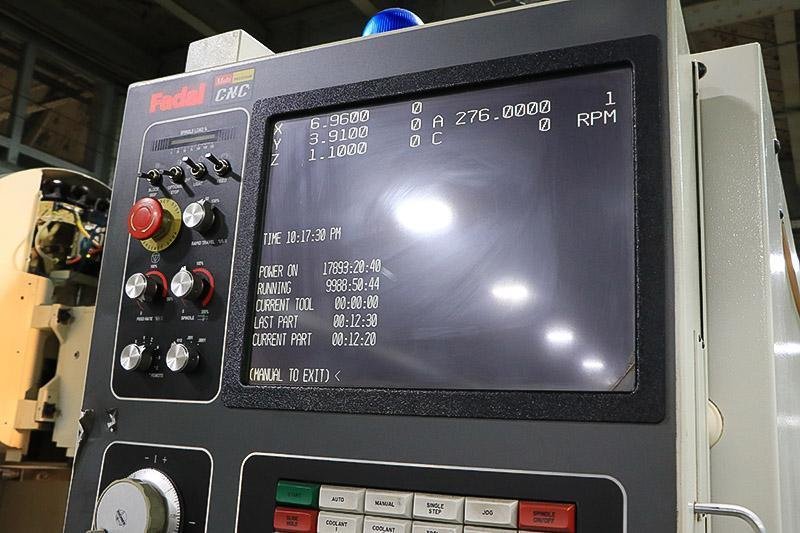

FADAL MULTI-PROCESSOR CNC CONTROL
HIGH TORQUE SPINDLE

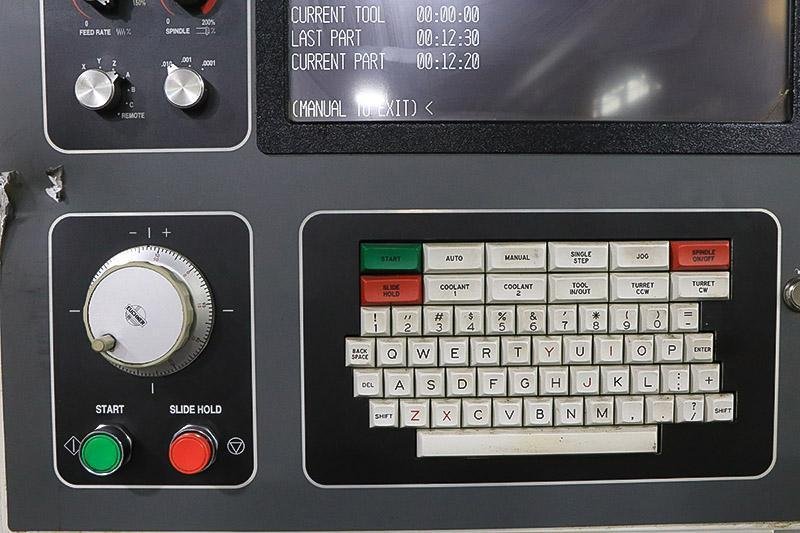

REMOTE JOG PENDANT

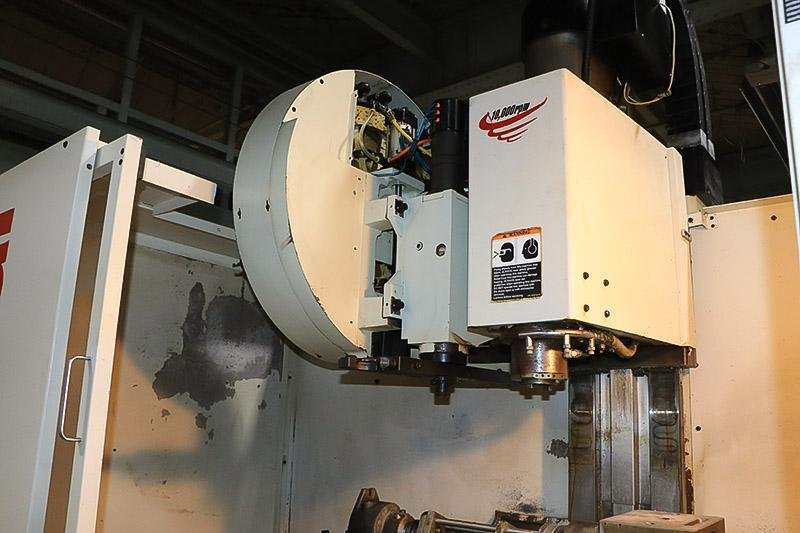

SIDE MOUNTED AUTOMATIC TOOL CHANGER (24) STATION
RIGID TAPPING
BOX WAYS

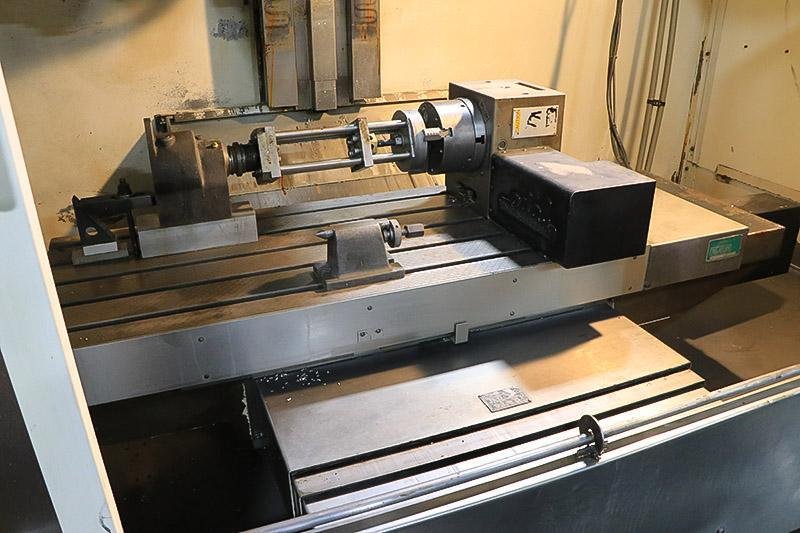

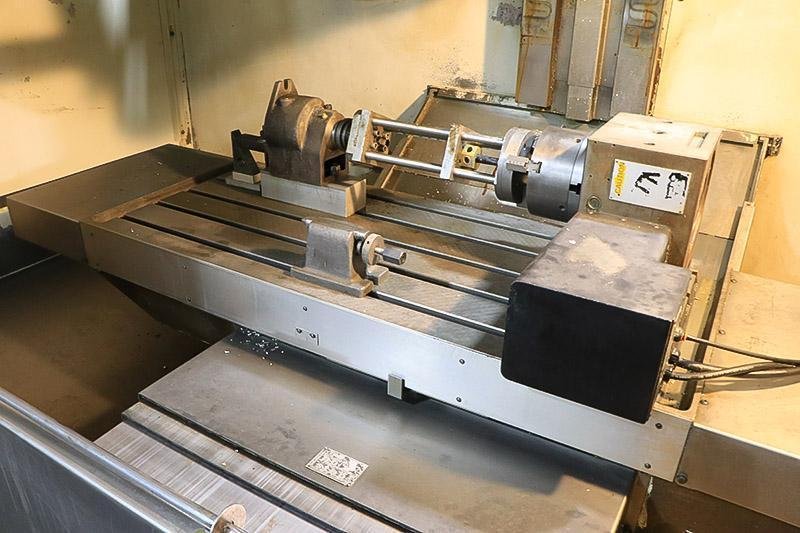

FADAL FOURTH AXIS TABLE
COOLANT SYSTEM
FOB: Origin |
