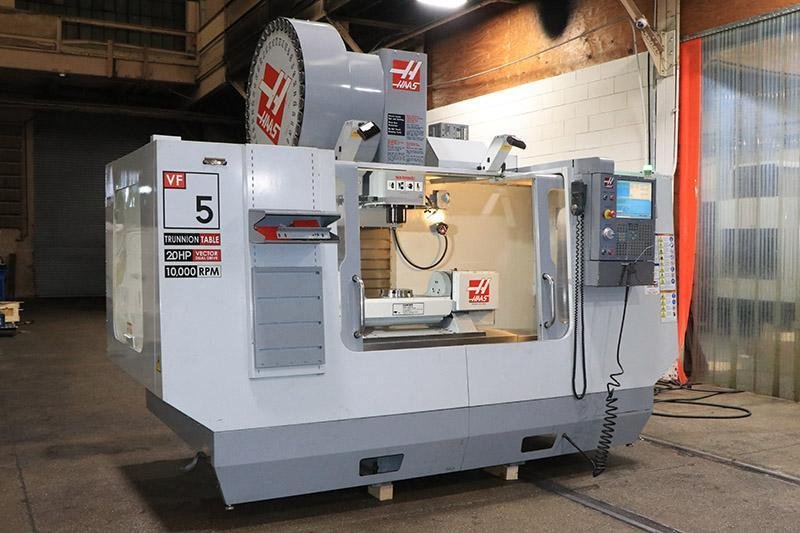

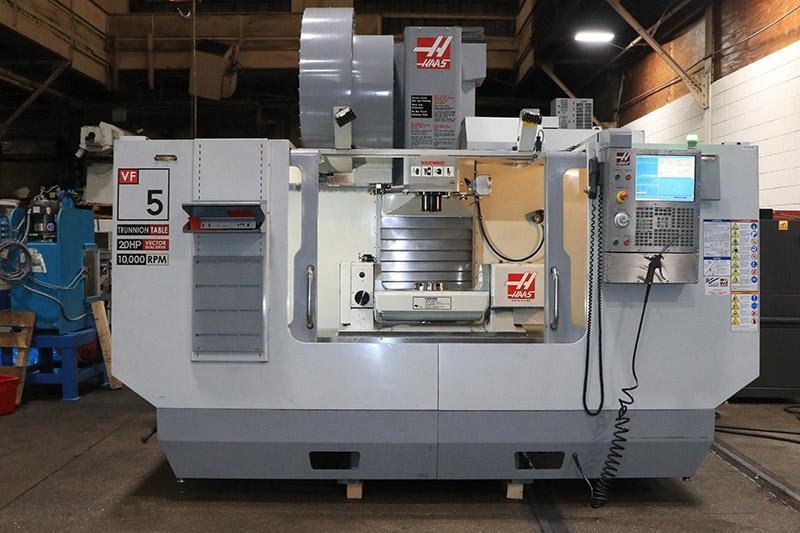

2009 HAAS VF-5D/40TR VERTICAL MACHINING CENTER, 5-AXIS TRUNION TABLE

Brand
HAAS
Category
Machining Centers
Type
Vertical Machining Centers (5-axis Or More)
Model
VF-5D/40TR
Stock #
21116
Year
2009
Condition
Not specified

Location

New Jersey
X 50 inches
Y 26 inches
Z 25 inches
# Axis 5
Power 20 horsepower
RPM 10000
# ATC 40
Taper 40
CNC Control yes

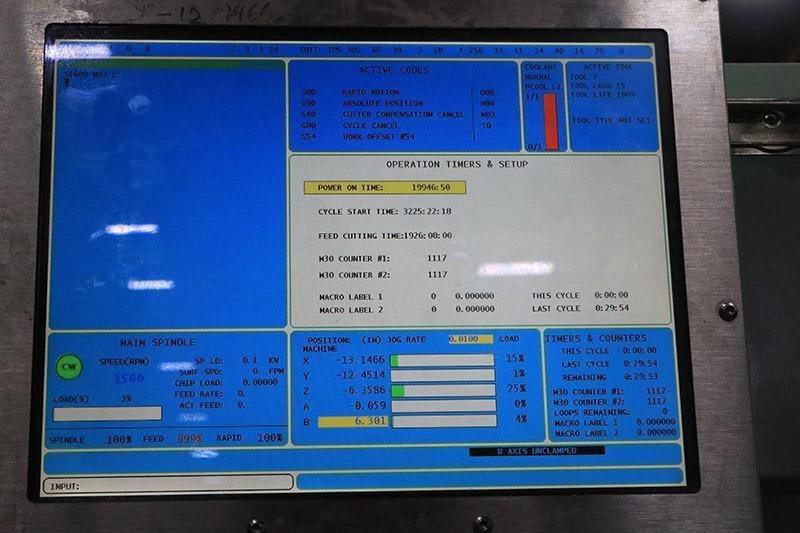

Type Of CNC Control HAAS

TRAVELS

X-AXIS: 50"

Y-AXIS: 26"

Z-AXIS: 25"

A-AXIS TILT: + OR - 120 DEGREES

B-AXIS ROTATION: 360 DEGREES

PLATEN DIAMETER: 8.3"

MAXIMUM WEIGHT ON PLATTEN: 200 LB

TABLE DIMENSIONS: 52" x 23"

MAX WEIGHT ON TABLE: 4,000 LBS

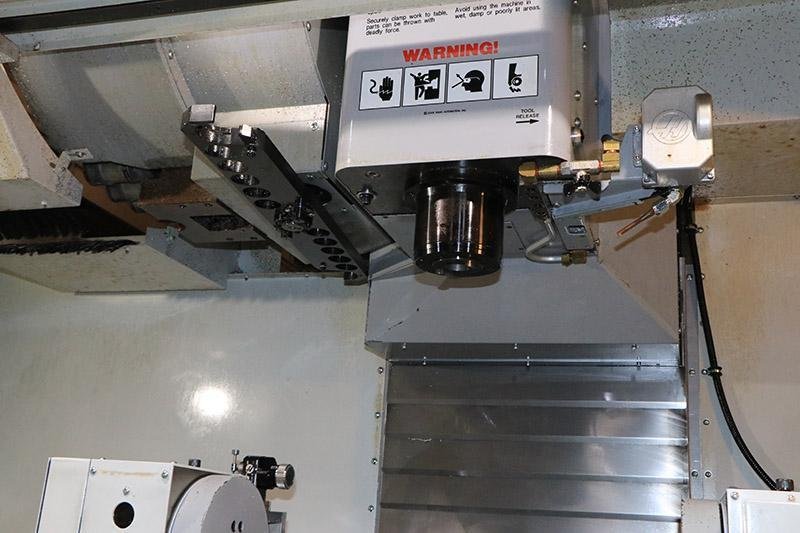

SPINDLE SPEED RANGE: 0 - 10,000 RPM

SPINDLE MOTOR: 20 HP

SPINDLE TAPER: CT#40

TOOL CHANGER: 40 POSITION

APPROXIMATE MACHINE DIMENSIONS: 139"L x 102"W x 115"H

APPROXIMATE MACHINE WEIGHT: 16,500 LBS



EQUIPPED WITH

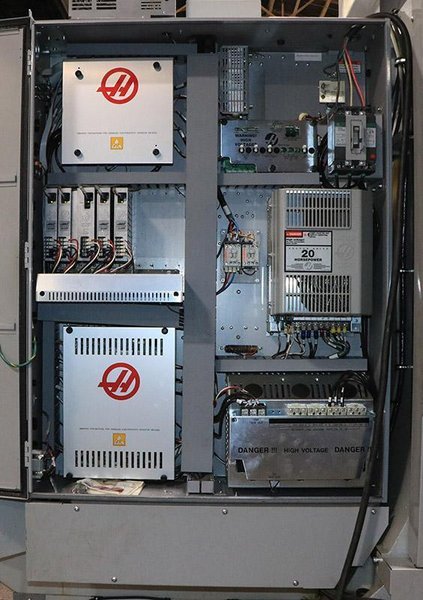

HAAS 5-AXIS CONTROL (DRIVES & WIRING)

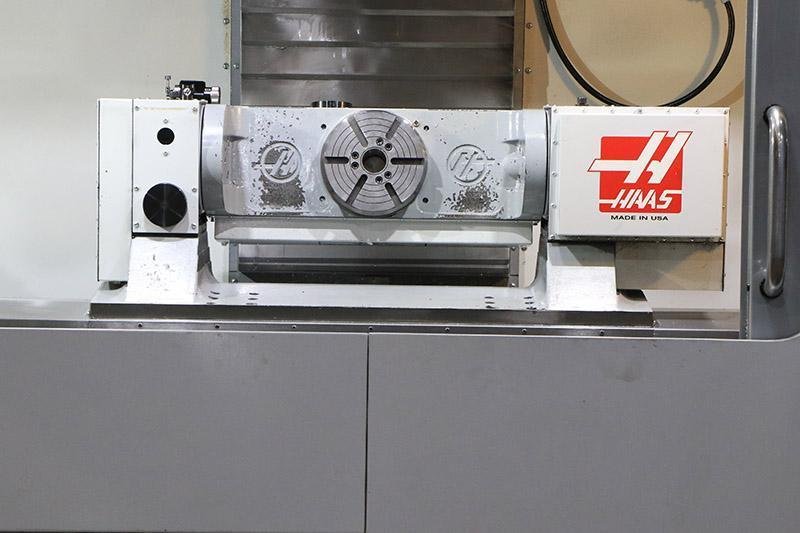

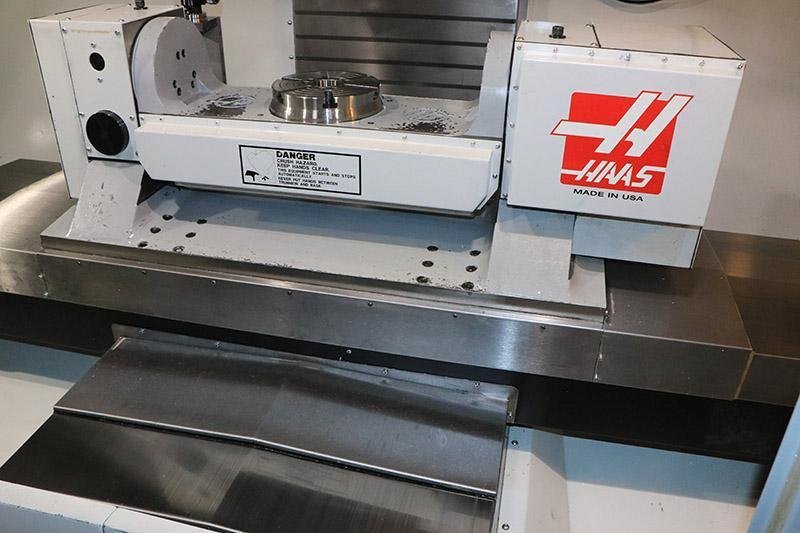

TRUNNION TABLE 2-AXIS

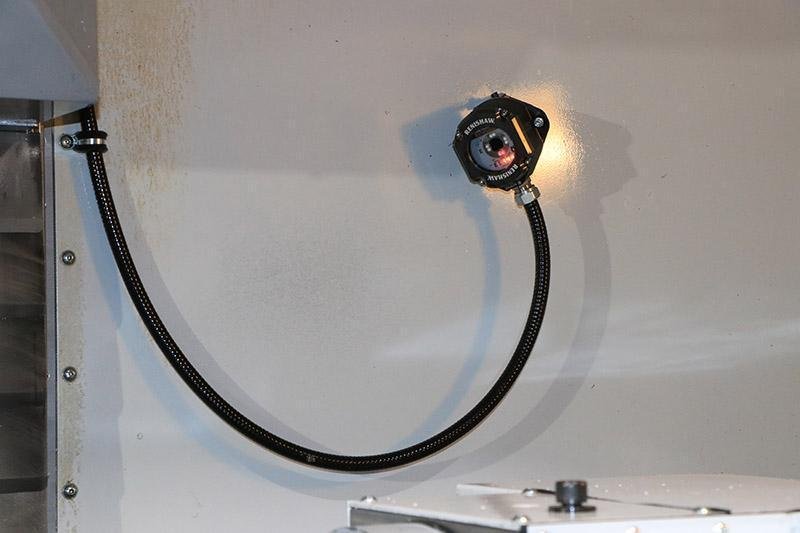

WIRELESS PROBING SYSTEM

CHIP AUGER

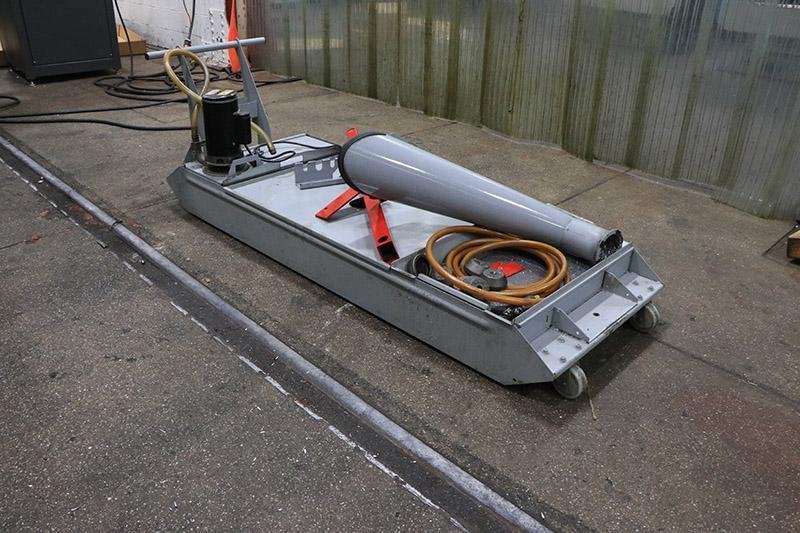

COOLANT SYSTEM

PROGRAMMABLE COOLANT

RIGID TAP
