CNC Control | yes |

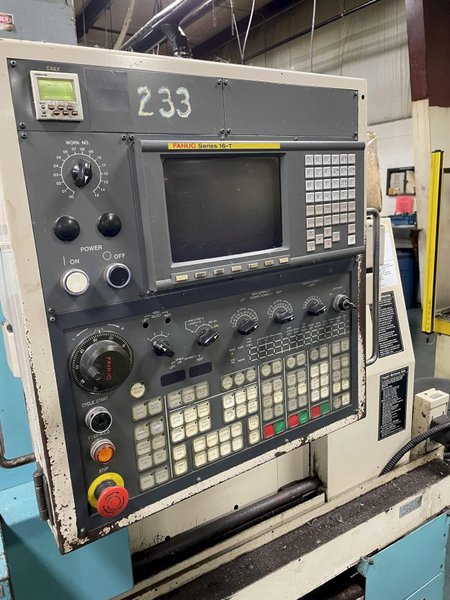

Type of CNC Control | FANUC 16T |
Chuck Size | 6 inches |
Swing | 9 inches |
Turning Diameter | 8.27 inches |
Bar Capacity | 1.77 inches |
Spindle Bore | 2 inches |
X Axis Travel | 7.87 inches |
Z Axis Travel | 25.6 inches |
Rapid Traverse (X/Z) | 945 |
Spindle Speed (RPM) | 6000 |
Main Motor | 15 |
Turret Capacity | 15 |
Tailstock | no |
Power | 15 horsepower |
# Axis | 4 |

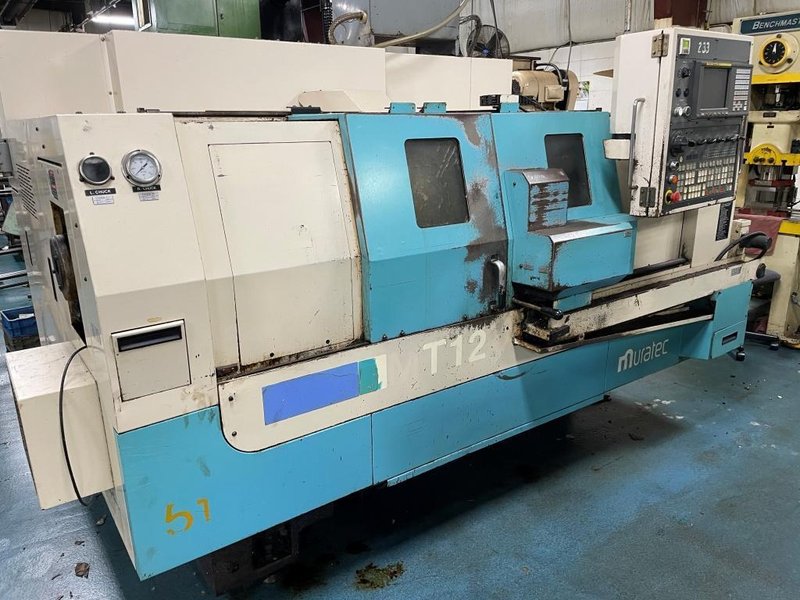

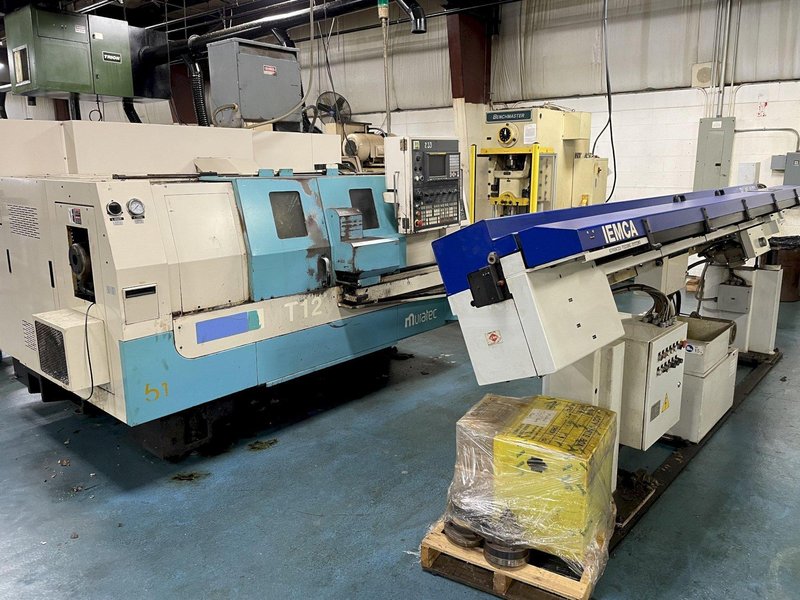

10 / 15 HP 4-Axis CNC Twin Opposed Spindle Lathe
Machine Style(s): Bar, Chucker
Spindle Direction: Horizontal
Operation Type: CNC
HEADSTOCK
Chuck Size (in.) Std: 6.000 Opt: 8.000 Max. Swing: 9.800
Turning Diameter Max: 8.270
Turning Length (in.) Max: 7.000
Bar Capacity (in.) Std: 1.770 Opt Max: 2.000
# of Main Spindles: 2
Main Spindle: rpm: 4500 HP: 15.00
Nose: A2-5 Bore: 1.850 Opt: 2.250
Second Spindle: rpm: 6000 HP: 15.00
Nose: A2-5 Bore: 1.850
TOOLING
Primary Tool Carrier: TURRET
Max Tools Turning: 15 Rotary: 15
Tool Shank Size (in.): Square: 0.750 Round: 1.570 Rotary: 0.625
Rotary Tool Spindle : rpm: 4,000 Power: 3.80 hp
Second Tool Carrier : TURRET
Max Tools Turning: 15 Rotary: 15
Tool Shank Size (in) : Square: 0.750 Round: 1.570 Rotary: 0.625
RotaryTool Spindle : rpm: 4000 Power: 3.80 hp
# of Simultaneous Cutting Tools: 2
Secondary Mill/Drill Function On-Center: Optional With 'C' Axis: Optional
AXES AND TRAVELS
Number of Axes: Standard: 4 Optional: 5
Travel Max Feed Rapid Rate
C1Opt. 360.000 deg
X1 Std. 7.870 in. 945 ipm
X2 Std. 7.870 in. 945 ipm
Z1 Std. 25.600 in. 945 ipm
Z2Std. 25.600 in.945 ipm
Weight 12,100 lbs.
|
