Arm Length | 45 inches |
Column Dia. | 12 inches |
Power | 5 horsepower |
RPM | 1800 |
CNC Control | no |
Dimensions | 7’ L-R X 3’ F-B X 8’5” H (APPROXIMATE) |
Weight | 6600 pounds |

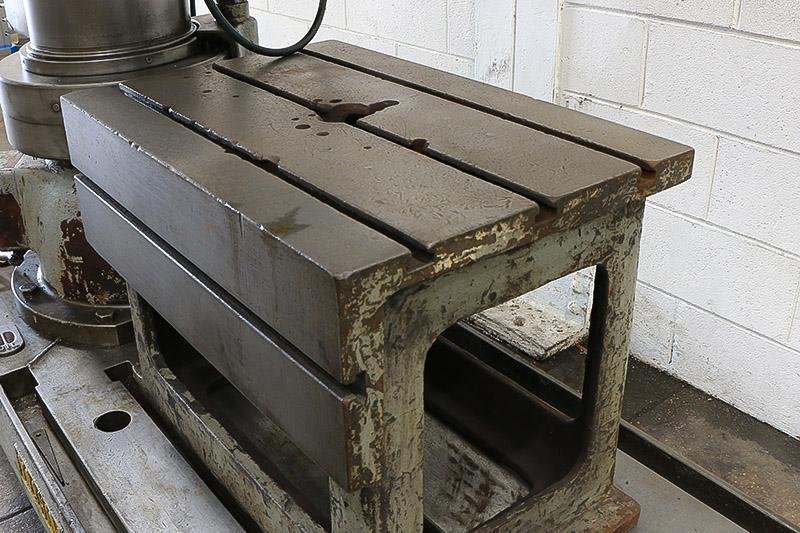

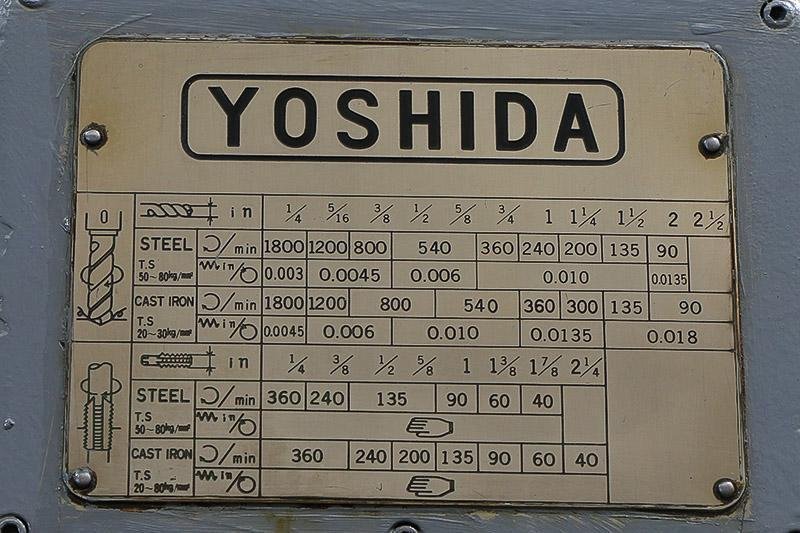

CAPACITIES MAXIMUM DISTANCE, COLUMN SURFACE TO SPINDLE END: 45-1/4” MINIMUM DISTANCE, COLUMN SURFACE TO SPINDLE END: 11-1/16” MAXIMUM DISTANCE, BASE TOP TO SPINDLE END: 50-13/16” MINIMUM DISTANCE, BASE TOP TO SPINDLE END: 15/16” DRILLING CAPACITY IN STEEL: 2” TAPPING CAPACITY IN STEEL: 1-7/8” BORING CAPACITY IN STEEL: 2-3/4” ARM & COLUMN COLUMN DIAMETER: 12-5/8” HORIZONTAL TRAVERSE OF SPINDLE END: 33-7/8” VERTICAL TRAVEL OF ARM: 24-3/8” SPINDLE SPINDLE TAPER: NO. 5 MT SPINDLE SPEEDS (12): 40 TO 1800 RPM SPINDLE STROKE: 11-3/4” SPINDLE FEEDS (9): 0.002 TO .040 IPR BASE PLATE SIZE: 7-1/2” X 33-7/8” X 74-13/16” SIZE OF WORKING SURFACE: 27-3/4” X 43-5/16” SIZE OF TABLE: 17-3/4” X 19-11/16” X 25-5/8” MOTOR SPINDLE DRIVE: 5 HP ARM ELEVATING: 1.5 HP CLAMPING: 0.5 HP COOLANT PUMP: 1/6 HP GENERAL ELECTRICS: 220 VOLTS, 3 PH, 60 CY |
