Equipped With:

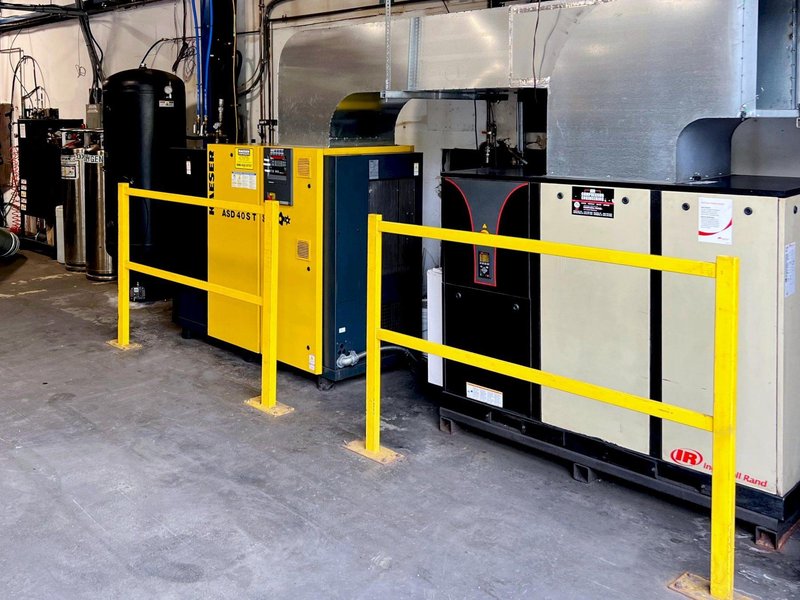

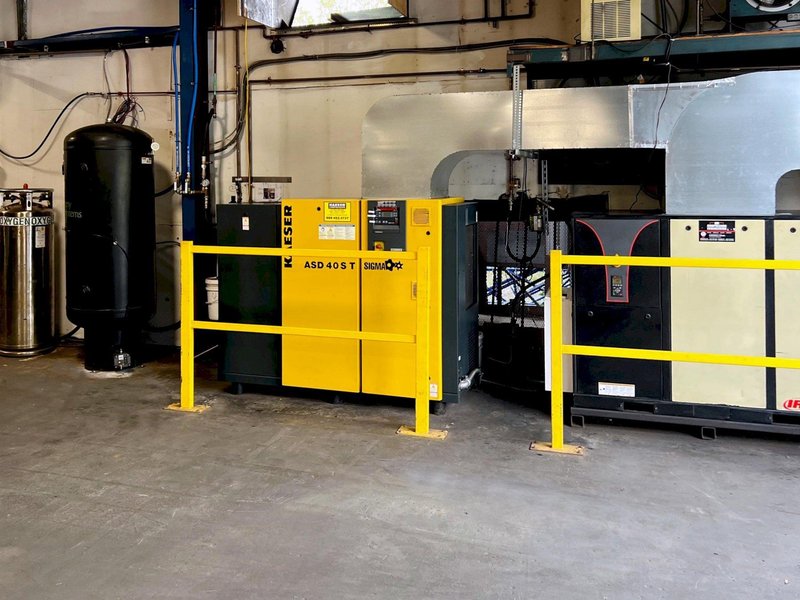

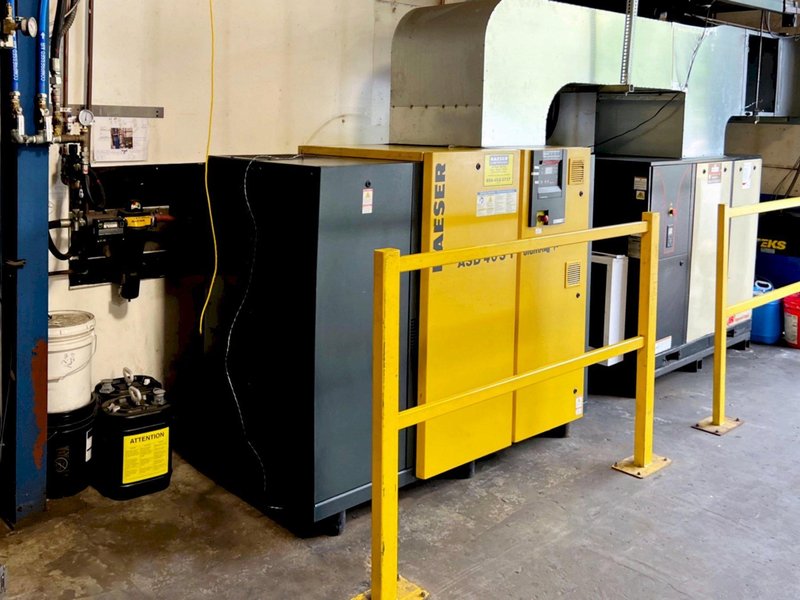

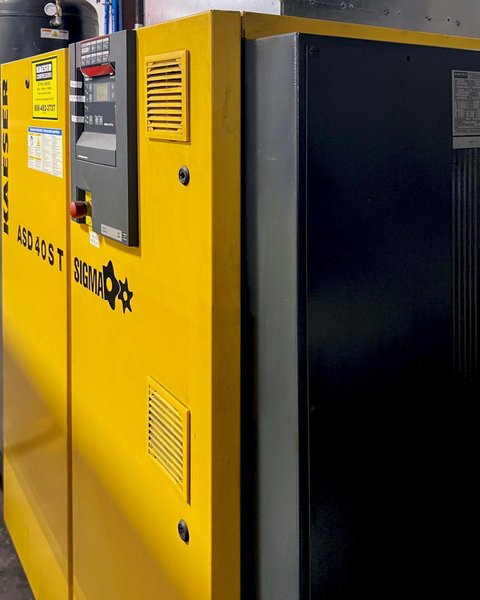

Kaeser 30 kW (40 HP) Fixed Speed Rotary Screw Compressor

• TEFC Motor
• Efficiency = 90.2%
• Compressor Carries a NEMA 1 Classification

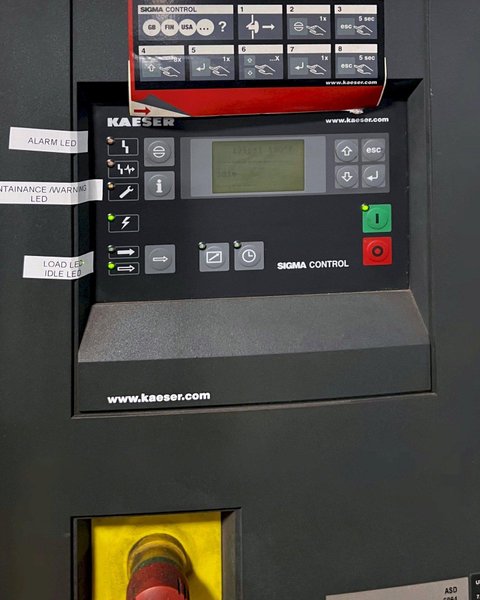

• Integrated Compressor Electrical Cabinet Carries a NEMA 12 Classification

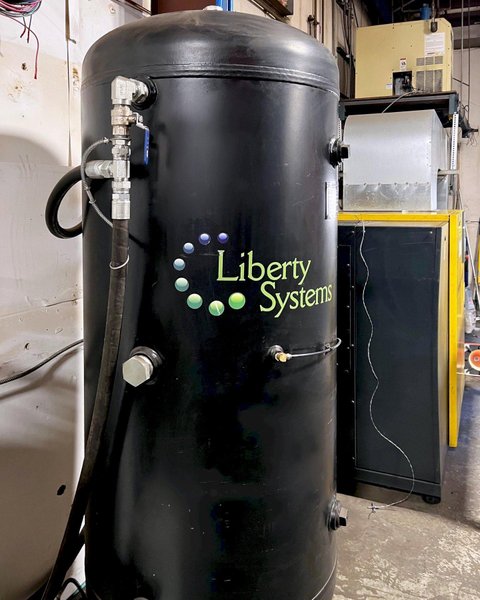

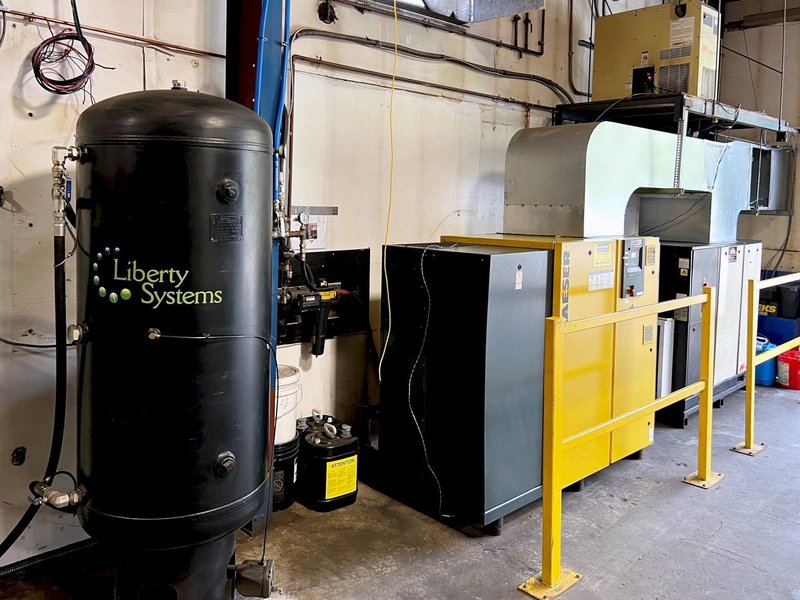

Compressed Air Tank

• ASME / CRN
• Pressure relief valve (certified)

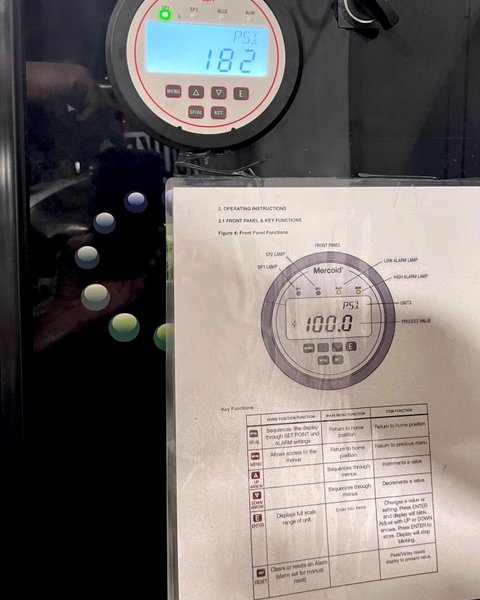

• 2” dial pressure gauge
• Inlet and outlet isolation valves
• Manual blow down valve

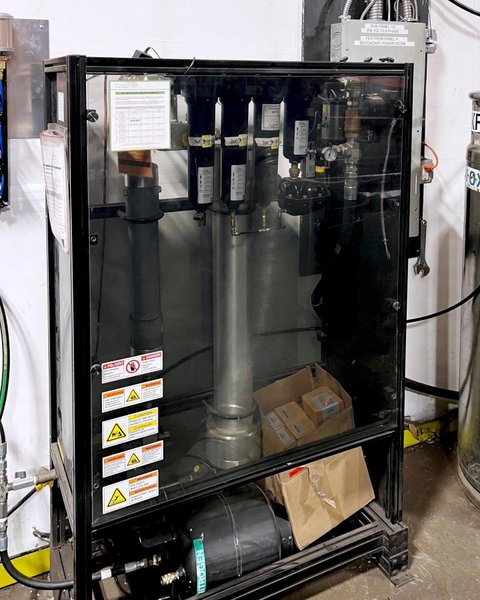

Compressed Air Filtration Assembly

• Water separator
• 1.0-micron coalescing
• 0.01-micron particulate
• 0.003-micron vapor removal

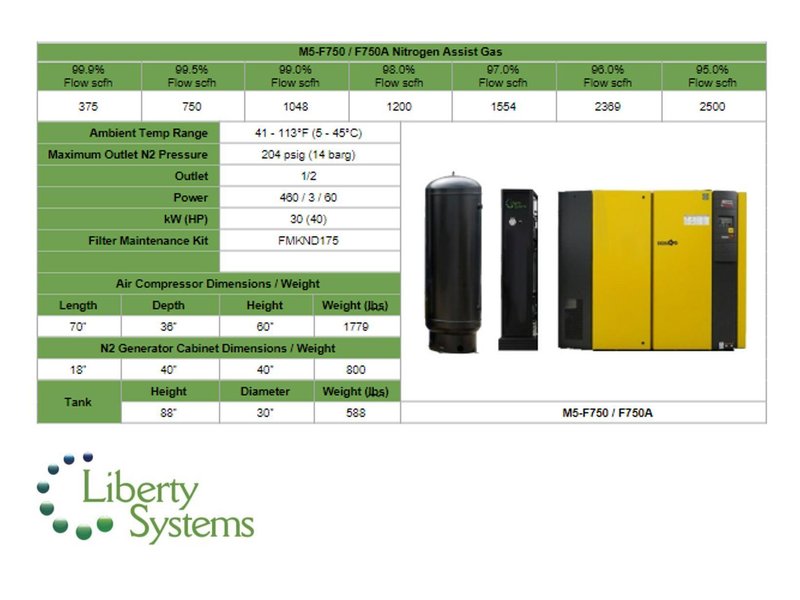

Nitrogen Flow Rate and Purity*

• 375 scfh @ 1000 ppm O2 (99.9%)
• 750 scfh @ 5000 ppm O2 (99.5%)
• 1058 scfh @ 1% O2 (99.0%)
• 1200 scfh @ 2% O2 (98.0%)
• 1554 scfh @ 3% O2 (97.0%)
• 2369 scfh @ 4% O2 (96.0%)
• 2500 scfh @ 5% O2 (95.0%)
