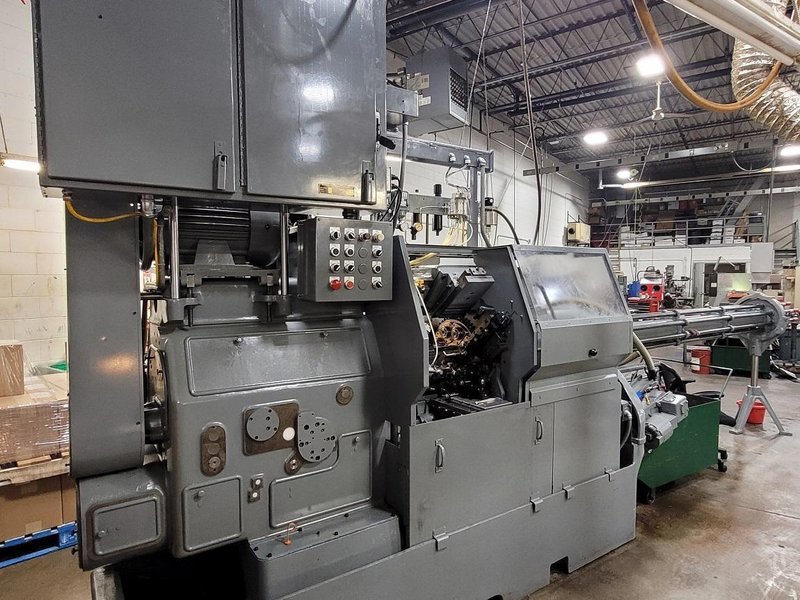

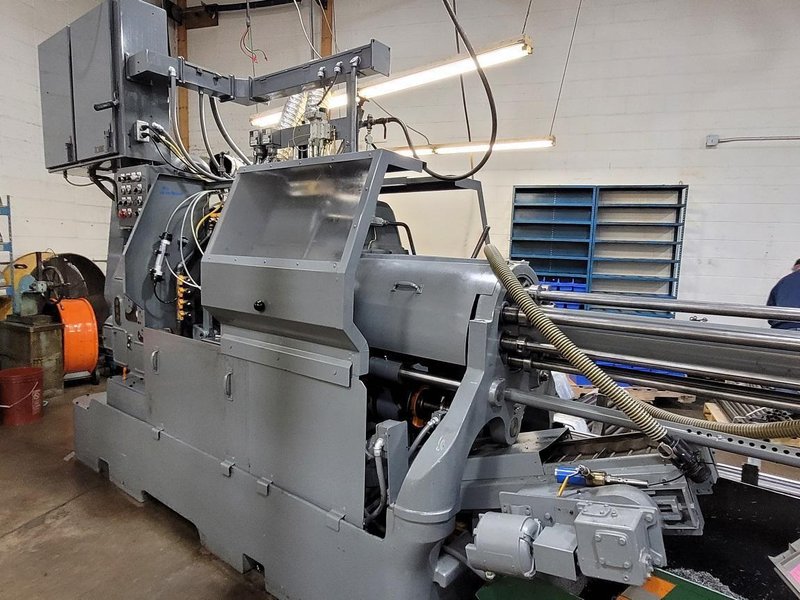

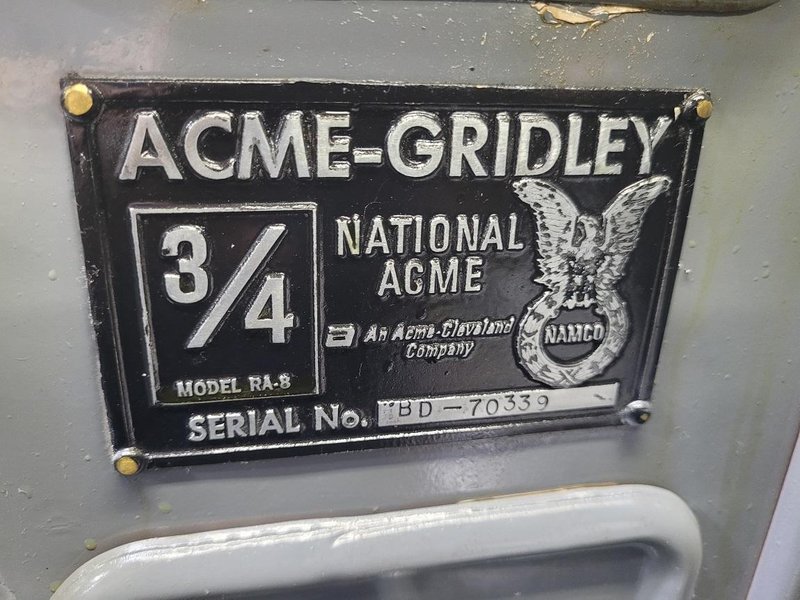

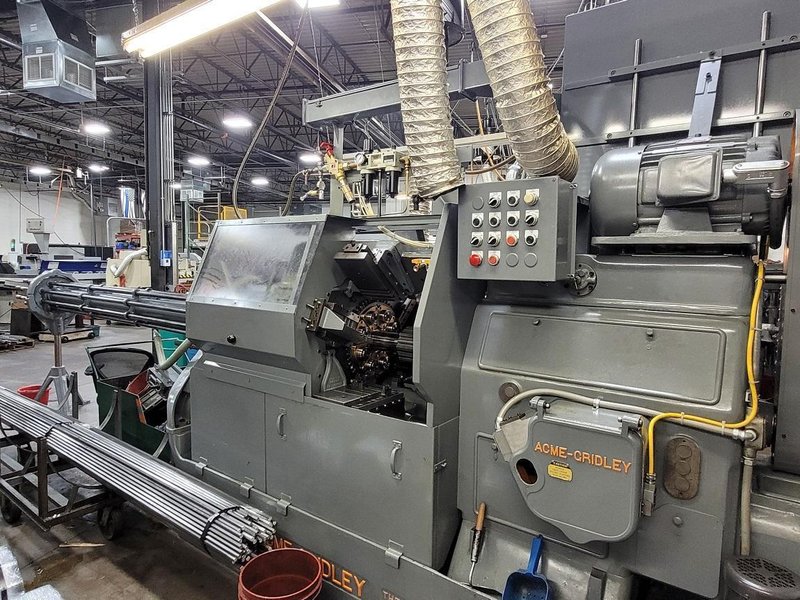

Acme Gridley Model RA-8 3/4" Multiple Spindle Automatic Screw Machine, Logan Clutches, Electric Air P/O, Backworking, Complete Rebuilt-2020-As NEW.
Brand
Category
Model
RA-8 3/4"
Stock #
56156
Year
1987
Condition
Like New
Location
Minnesota
| Number Of Spindles On Machine | 8 |
| Max. Round Bar Capacity | 3/4" |
| Max. Hexagon Bar Capacity | 5/8" |
| Max. Square Bar Capacity | 17/32" |
| Spindle Spindle - Min. | 463 RPM |
| Spindle Speed - Max. | 3880 RPM |
| Standard Toolslide Travel | 4-3/4" |
| Stock Feed (Slide Travel) | 7" |
| Idle Time (Seconds) | 1.44 sec. |
| Independently Operated Cross Slides | 6 |
| End Toolslide Toolholders (Hinge Type) | 8 |
| Cutoff Toolholders And Tool | 1 |
| Standard Main Motor | 30 HP |
| Dimensions | 17'-3/4" L x 3' 7" W x 5' 6" Ht. |
| Weight | 13800 pounds |
|

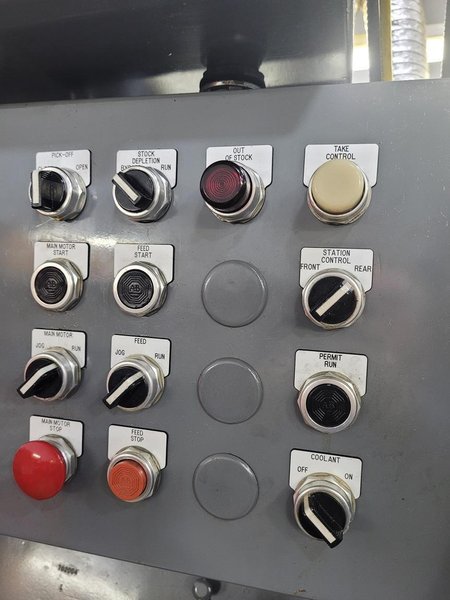

Electric Controls: Pick-off (Open/Close), Stock Depletion Switch (Return/Rn), Out of Stock light, Take Control Button, Main Motor Start button, Feed Start button, Station Control: Front/Rear Switch, Main Motor Switch: Jog/Run, Feed Switch: Jog/Run, Permit Run: Button, Main Motor Stop button, Feed Stop Button, Coolant Switch: Off/On

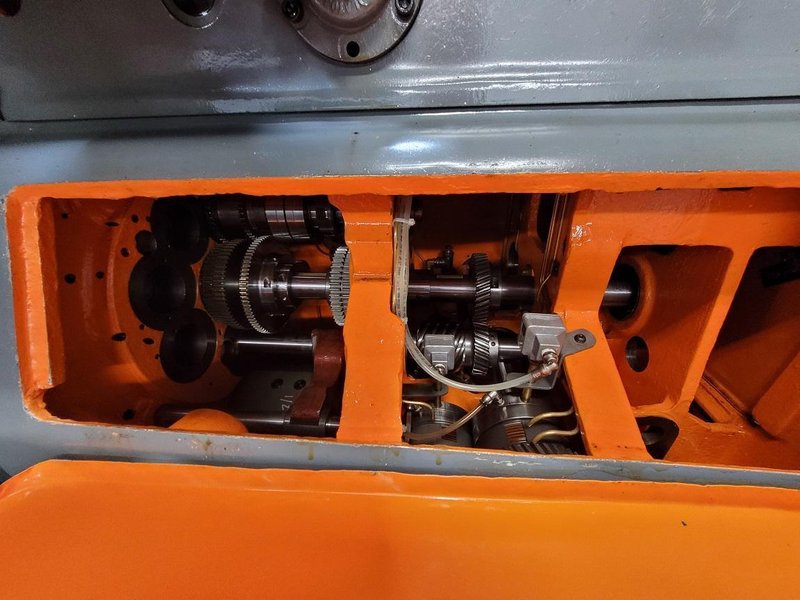

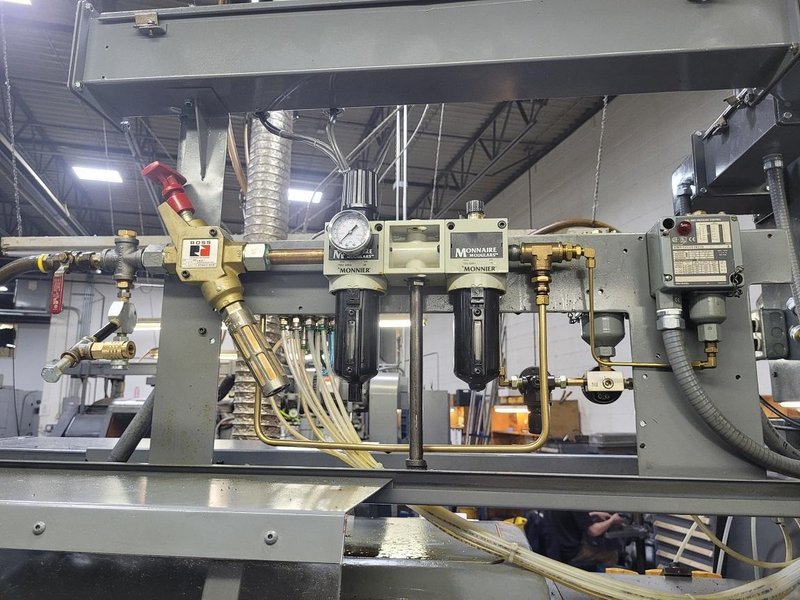

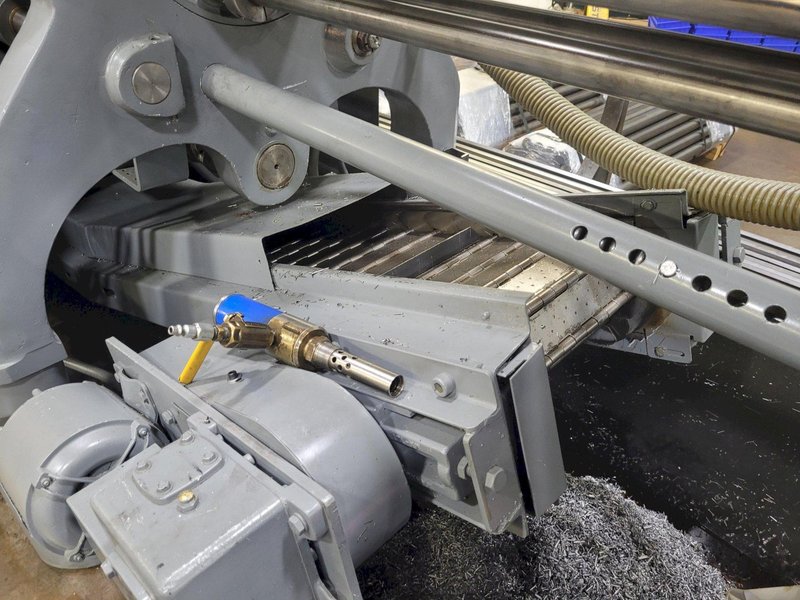

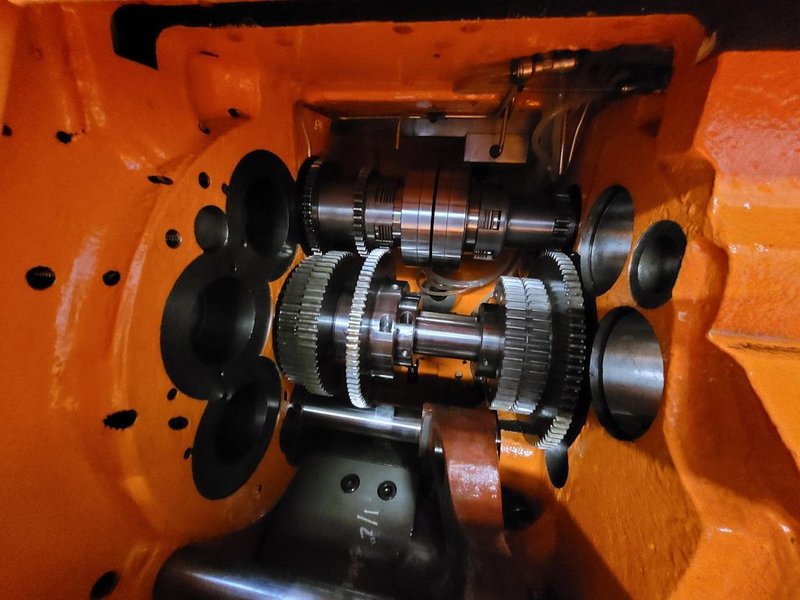

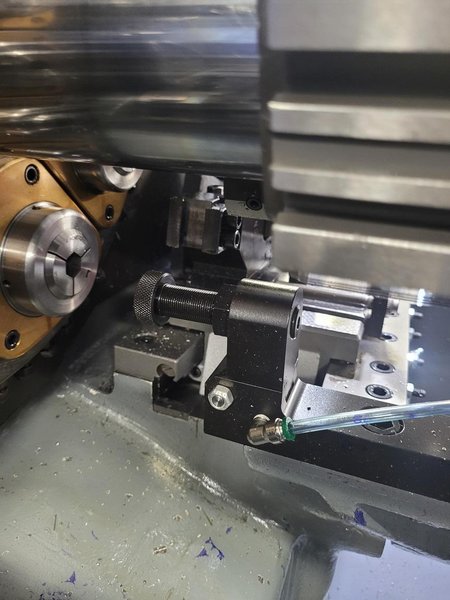

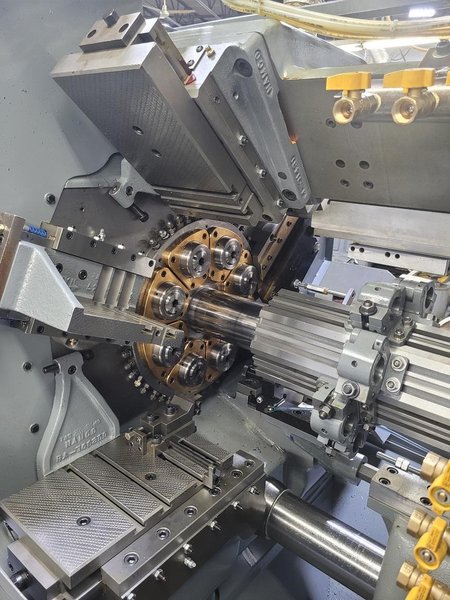

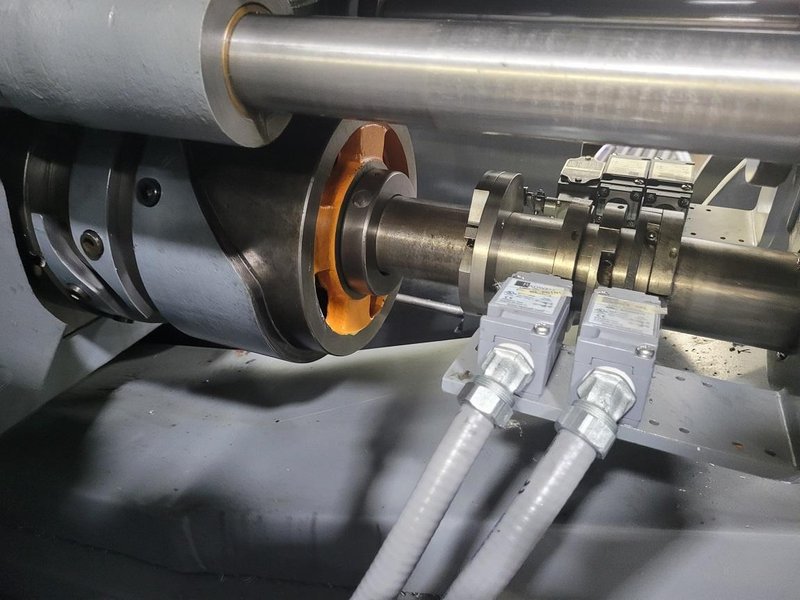

Six Slides 2nd Position Shelf Slide 5th Position - Logan Electric Air Trip Threading 6th Position - Pick Off Spindle with Collet 6th Position - Back Working Slide 8th Position - Stock Depletion and Feedout Logan HI/LO Clutches LED Work Lights Both Sides Universal Chip Conveyor Pneumatic Air Pressure Filters and Gauges Coolant System Stock Stand & Reel |
|
