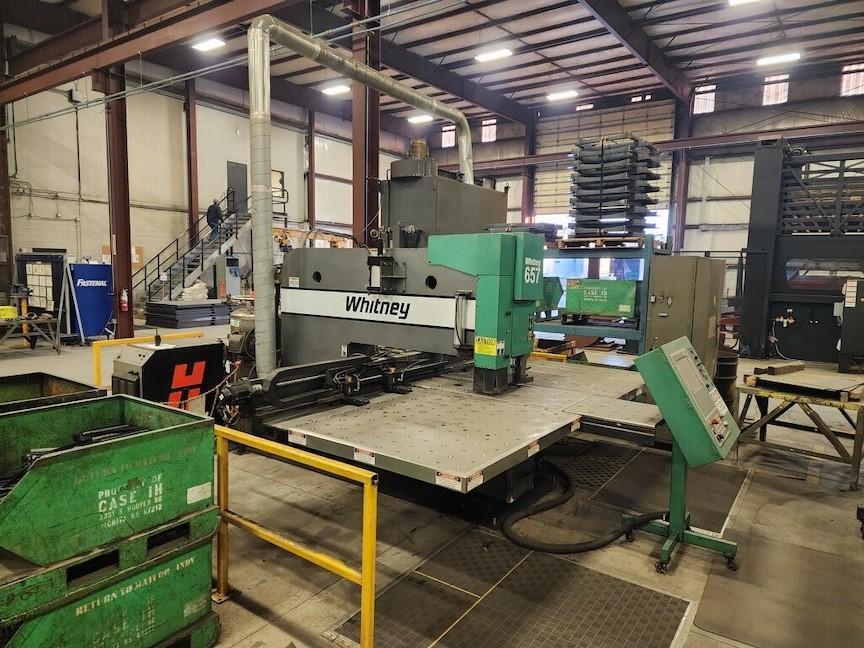

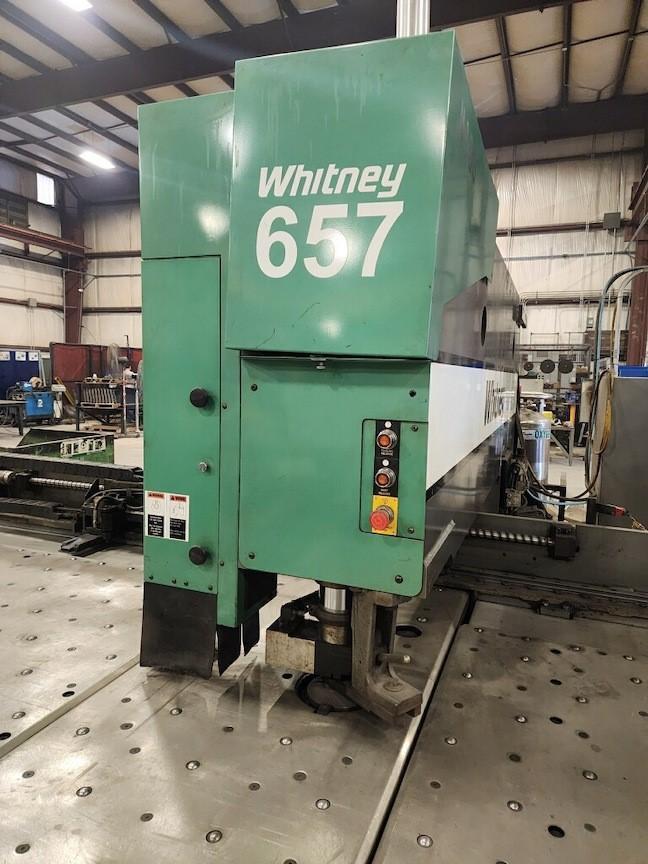

Specification: Punching force: 40 tons X-axis travel: 81.77" Y-axis travel: 50.59" Nominal distance between punch and torch: 15" Rapid speed: 1,000 IPM Stroke rate: 80 SPM @ 1" centers Punch cylinder stroke length: 2" Maximum punch size: 5" Tooling style: 28xx Maximum work piece weight: 500 Lbs. Maximum work piece thickness: 1/2" Work clamp opening: 5/8" Maximum work piece spread: 54" Minimum work piece spread: 5-1/2" Plasma capacity: 1" production on M.S. 3/4" on S.S. 1" on aluminum Hydraulic power unit: 15 H.P. Hydraulic tank capacity: 50 gallons Dimensions: 181" x 157" x 88-1/2" Weight: 24,000 Lbs.

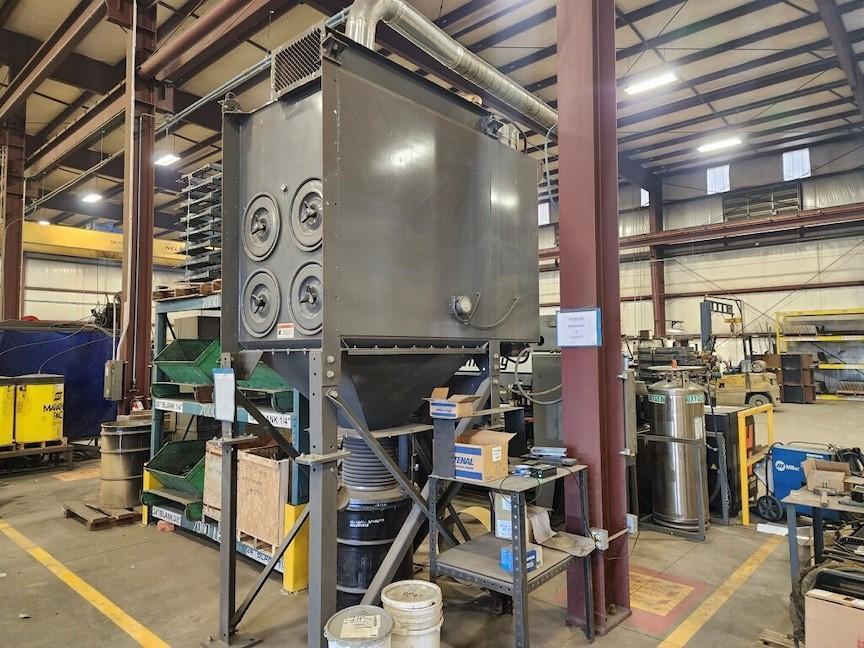

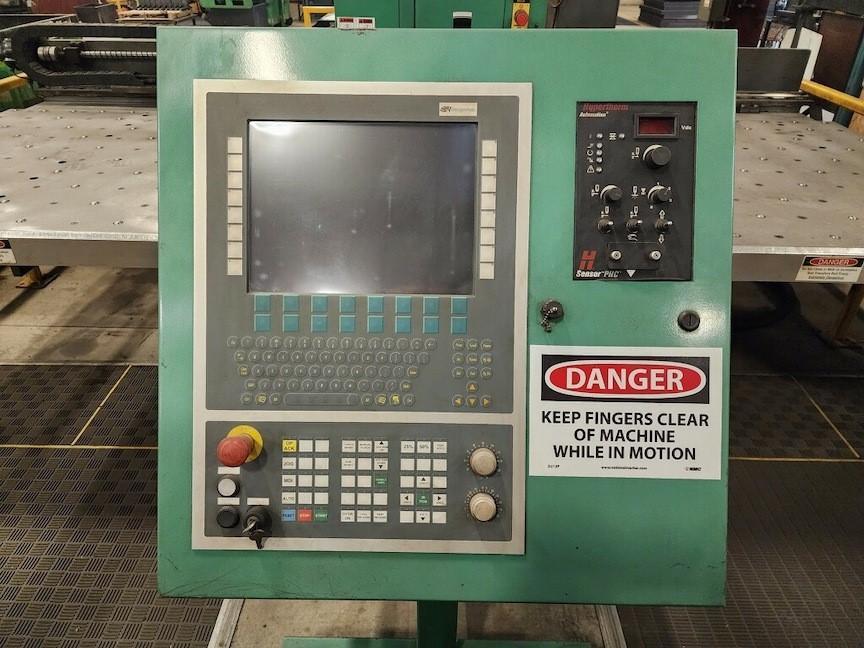

Equipped with: Hypertherm Hyspeed HSD 130 power supply (The HySpeed Plasma HSD130 is positioned between Powermax air plasma and HyPerformance HyDefinition plasma systems. It features impressive cut speeds, rapid piercing and minimal secondary operations for maximum productivity. A cost-effective alternative to other metal cutting solutions such as oxyfuel or air plasma, the system incorporates Hypertherm’s patented LongLife technology to significantly improve consumable life for both oxygen and air processes.) Donaldson Torit DFT2-8 8 cratridge system with integrated blower Beckhoff CNC control with SigmaNest programming system Punching and forming capabilities include electronic stroke control, positive stripping, pressure switch for forming and marking modes. Slug collection pan Slag collection pan (chamber is cooled by a recirculating water jacket) Sheet repositioning cylinders Hydraulic heat exchanger
Foundation requirement" 6" steel reinforced concrete
