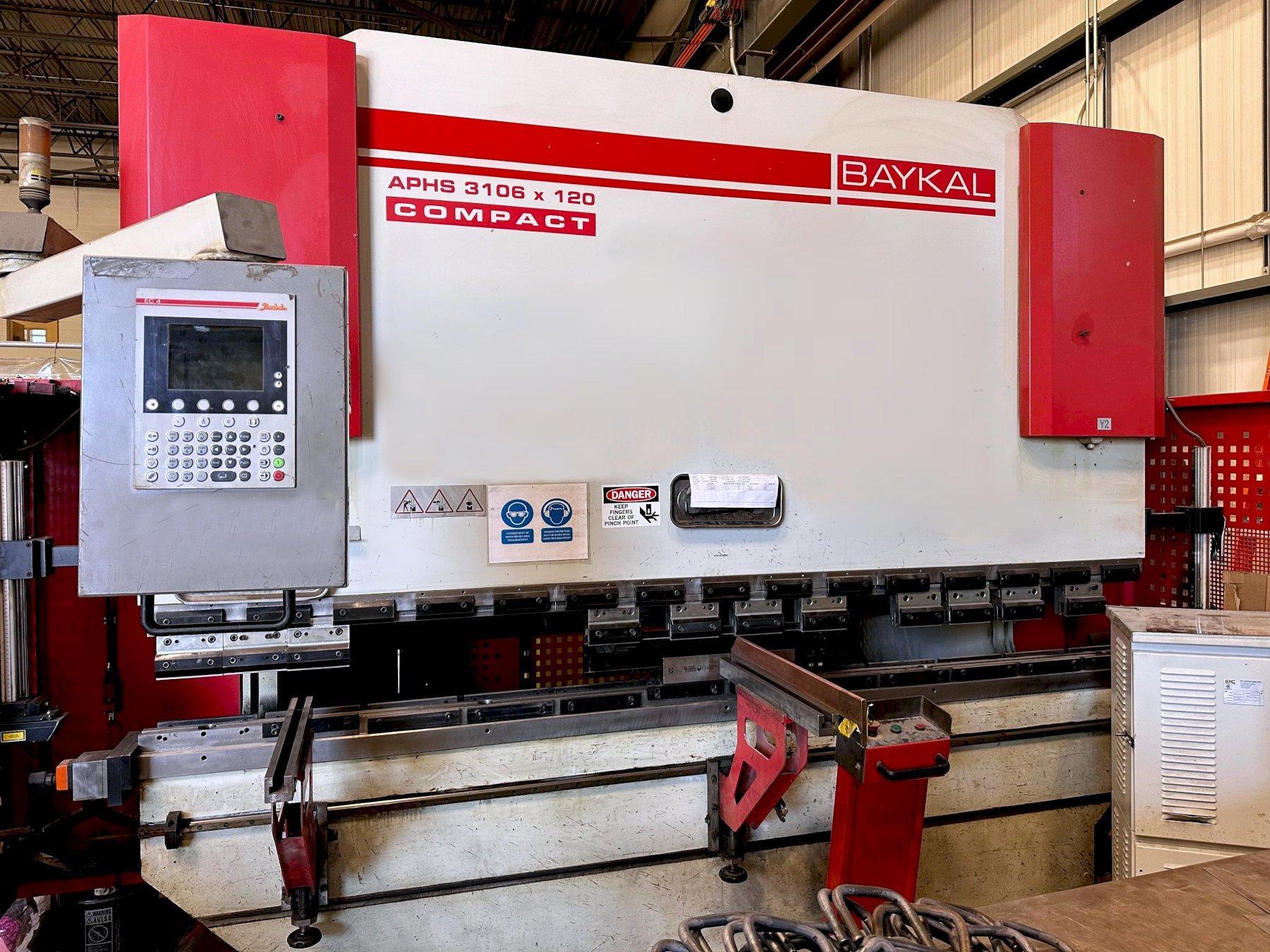

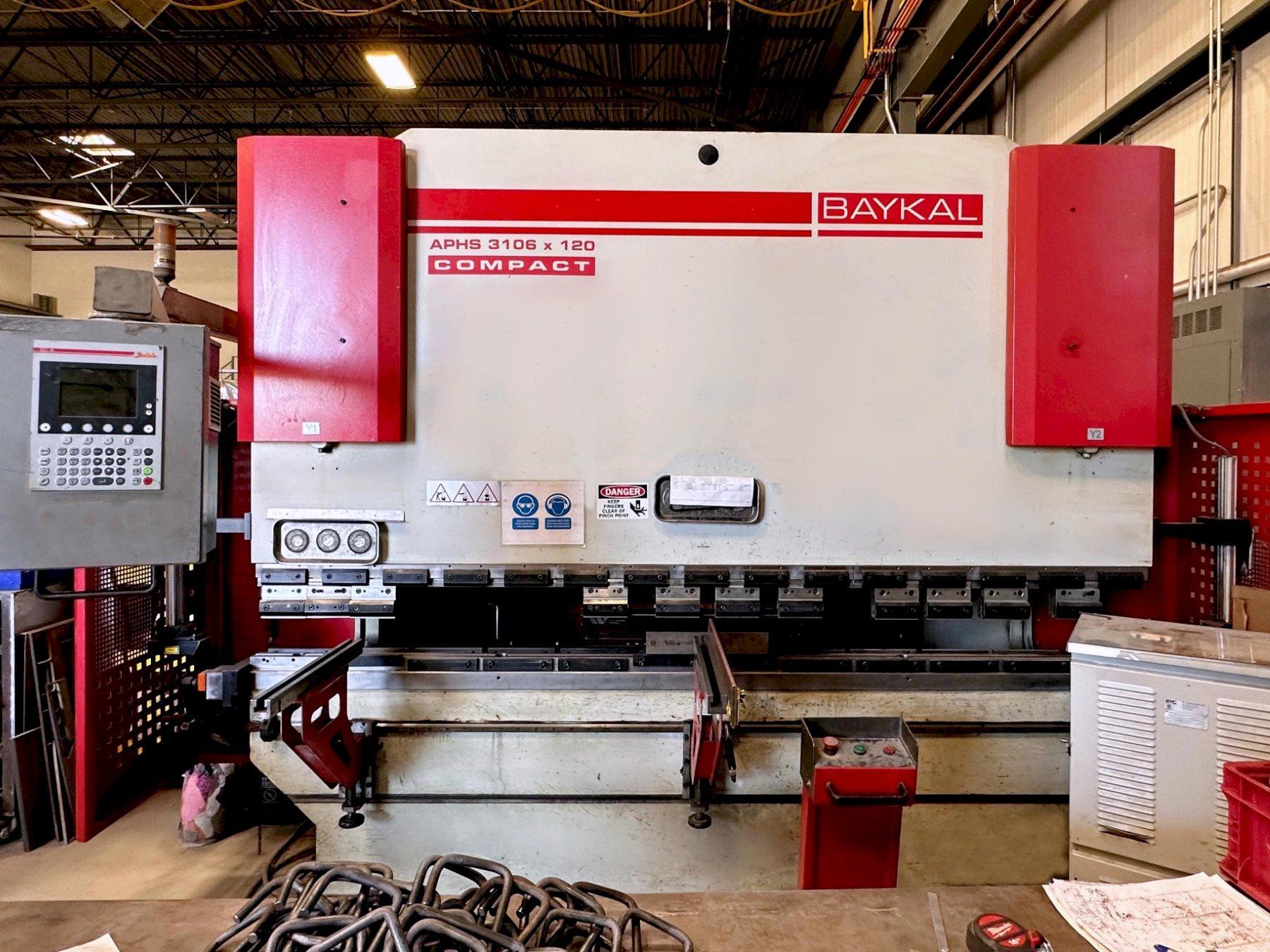

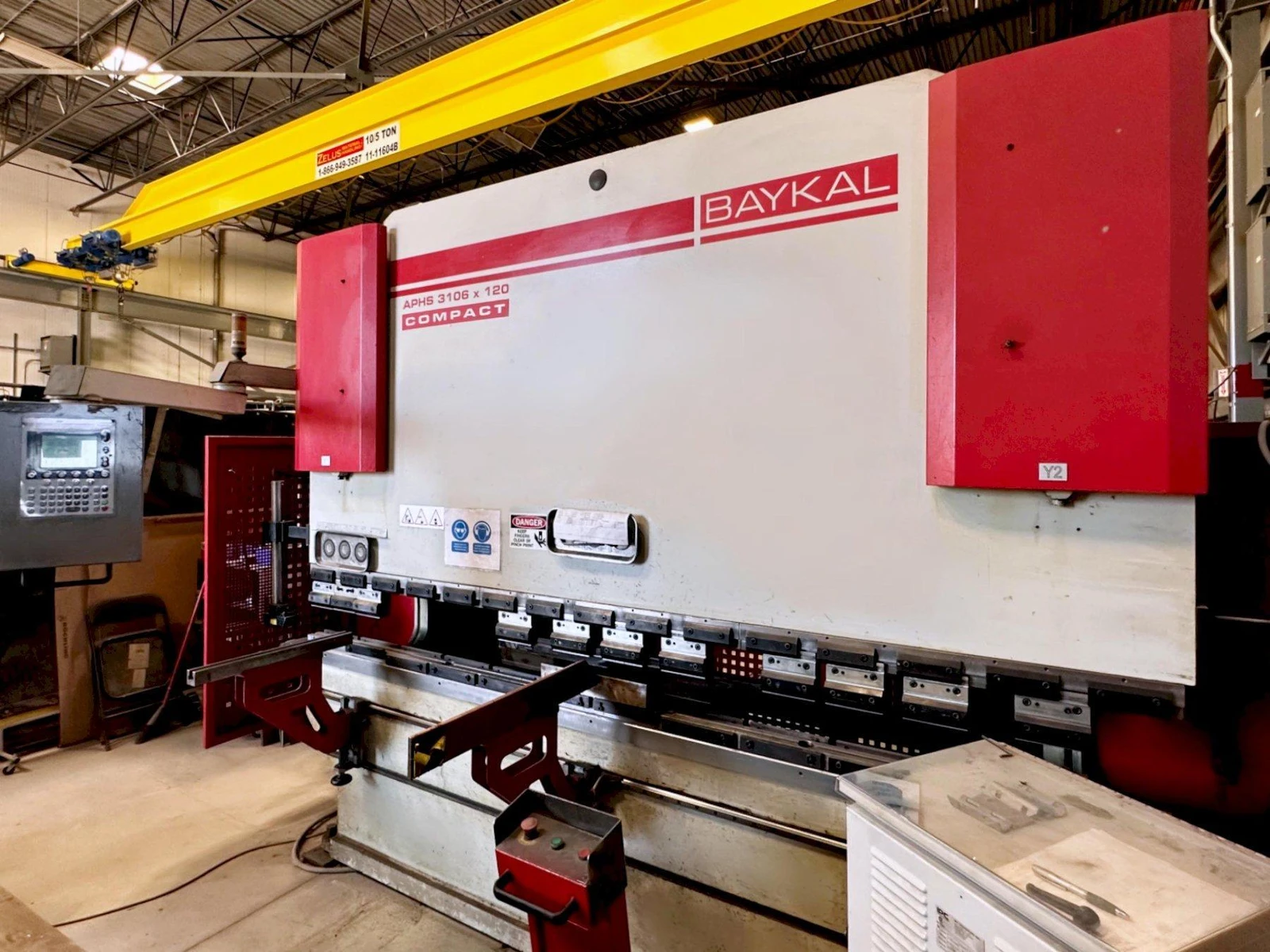

Baykal APHS Compact 3106 x 120
Brand
Category
Type
Model
APHS Compact 3106 x 120
Stock #
100428
Year
2009
Condition
Very Good
Location
Not specified

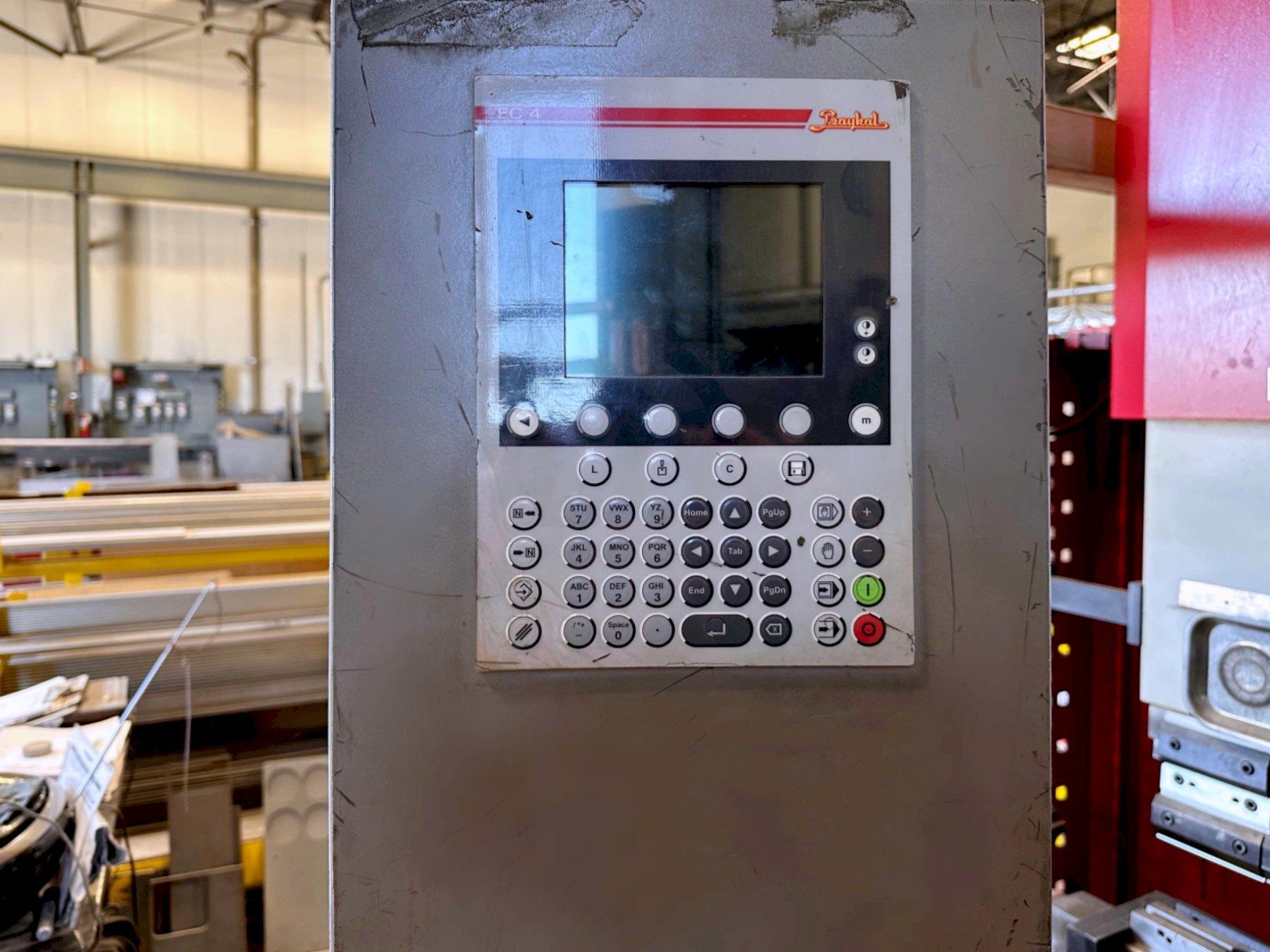

| Control | ESA EC4 4-Axis CNC |
| Capacity | 135 Ton |
| Bending Length | 122” |
| Inside Frames | 100.39” |
| Side Frame Width | 62.59” |
| Bed Height | 34.64” |
| Daylight Opening | 21.25” |
| Stroke | 10.23” |
| Table Width | 2.36” |
| Throat Gap | 16.14” |
| Axis | (4) Y1,Y2,X and R axis |
| Motor Output | 14.75 HP |
| Approach Speed | 377.4 IPM |
| Working Speed | 23.58 IPM |
| Return Speed | 307.08 IPM |
| Oil Tank Volume | 36.98 Gal. |
| Dimensions | L 140” x W 71” x H 113” |
| Approx. Weight | 18,518 Lbs. |
|

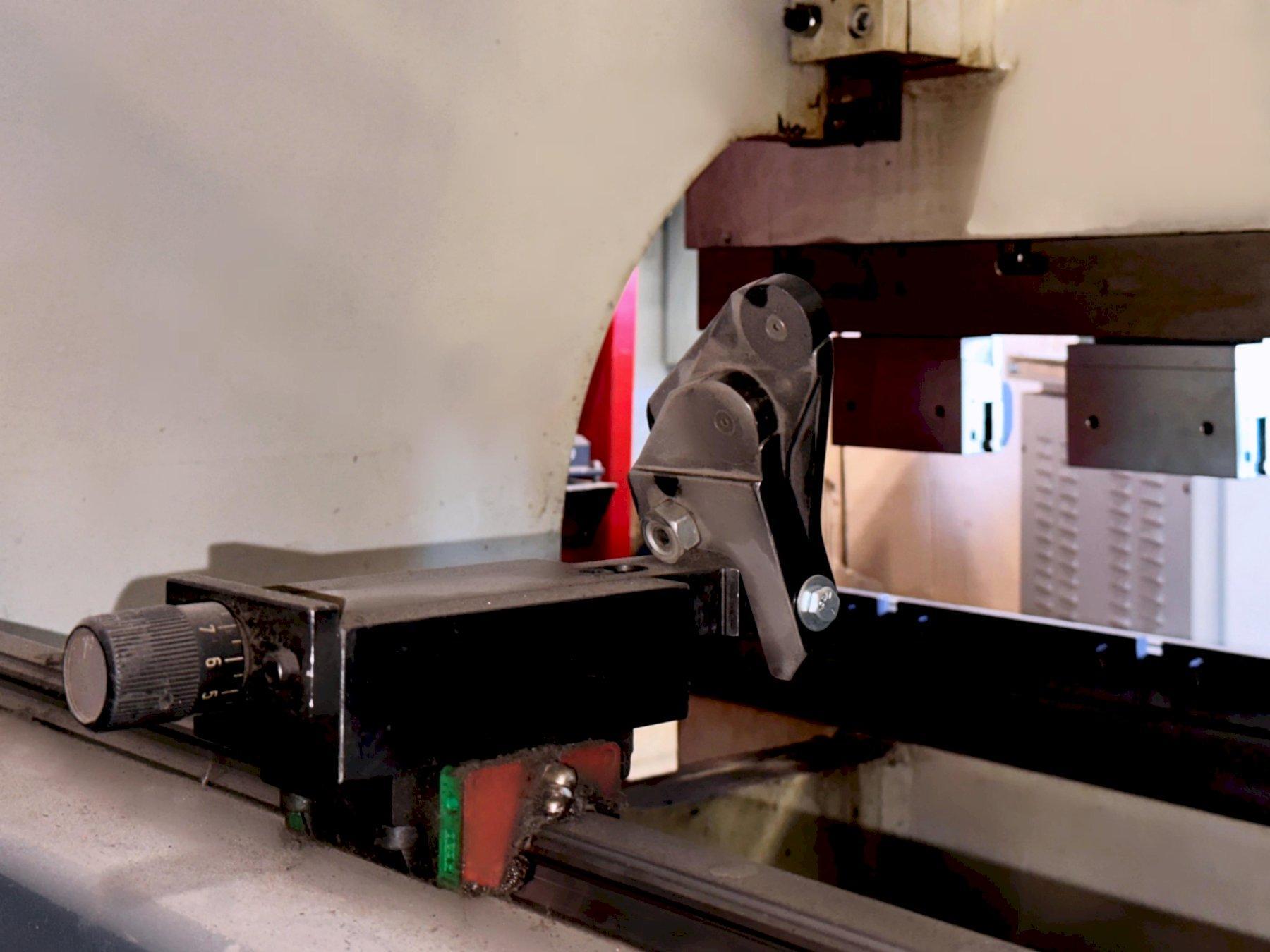

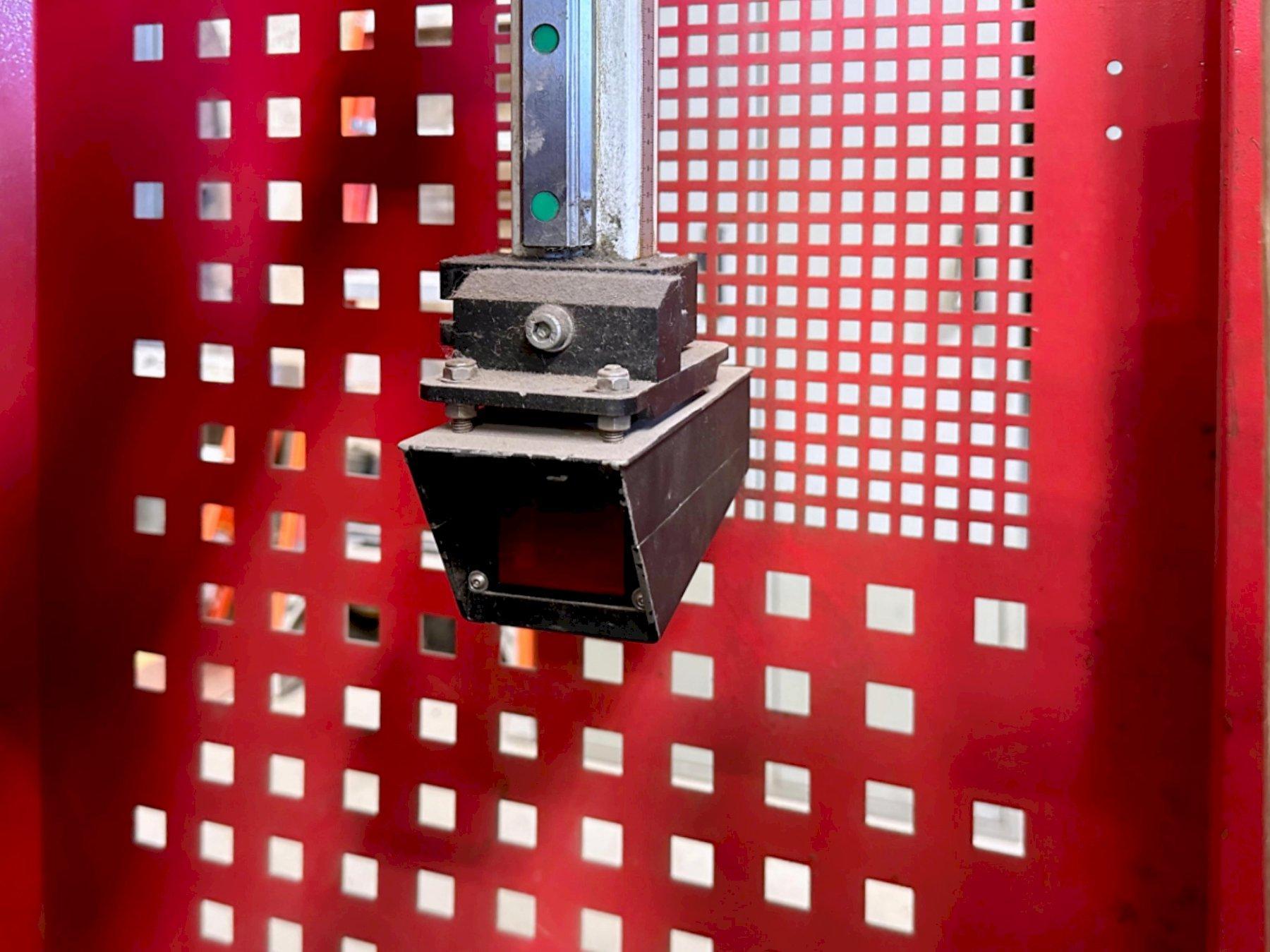

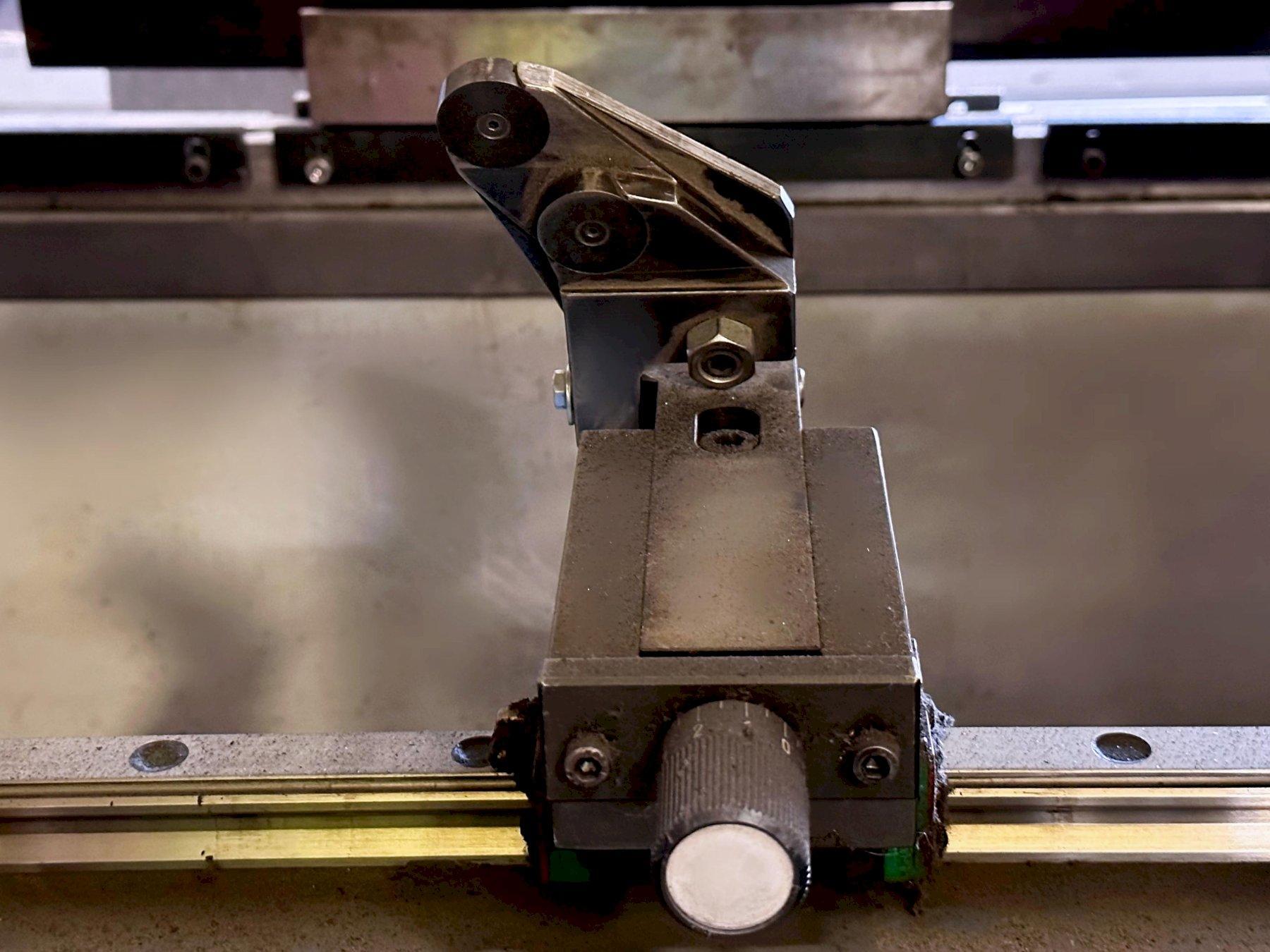

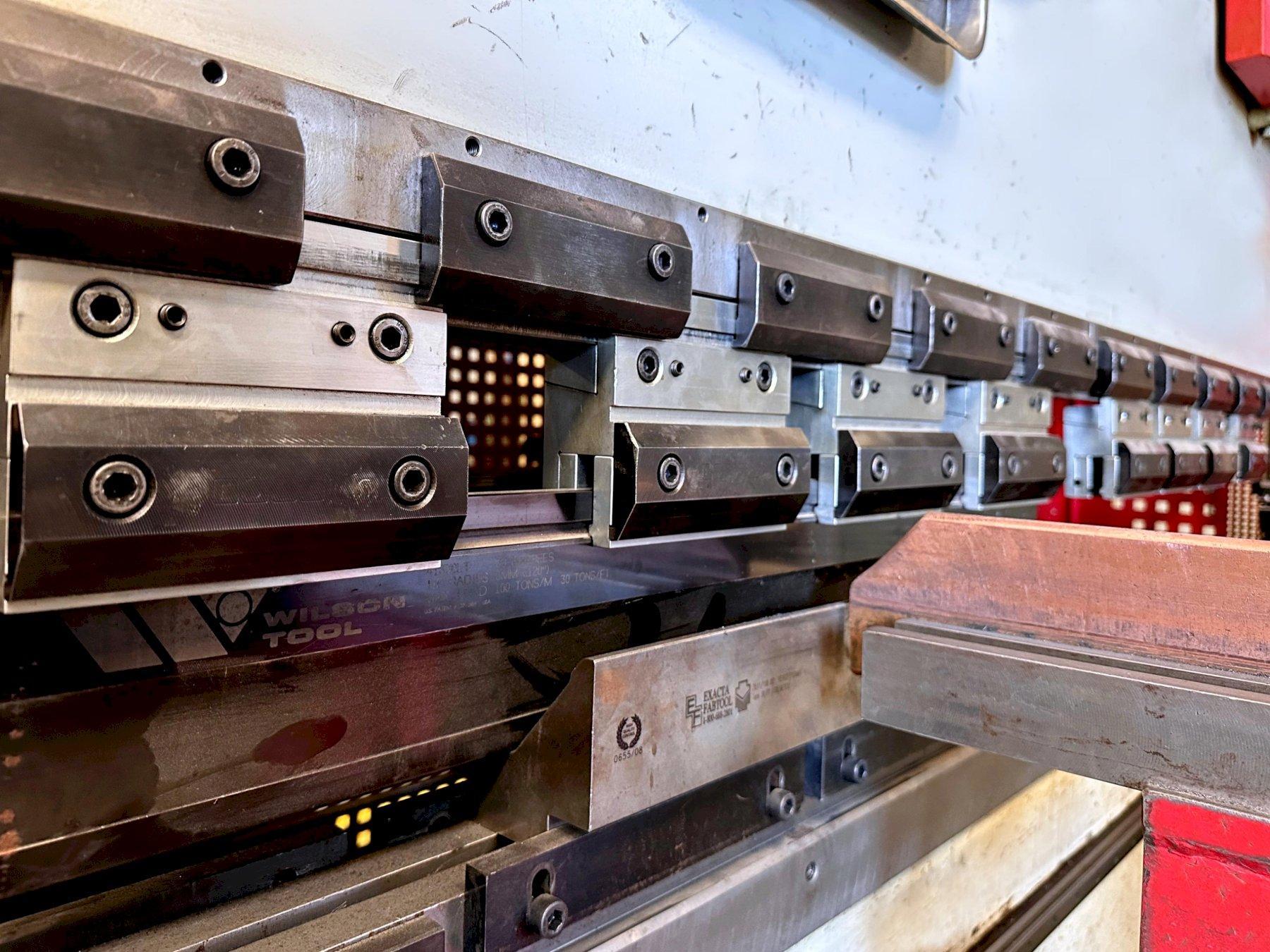

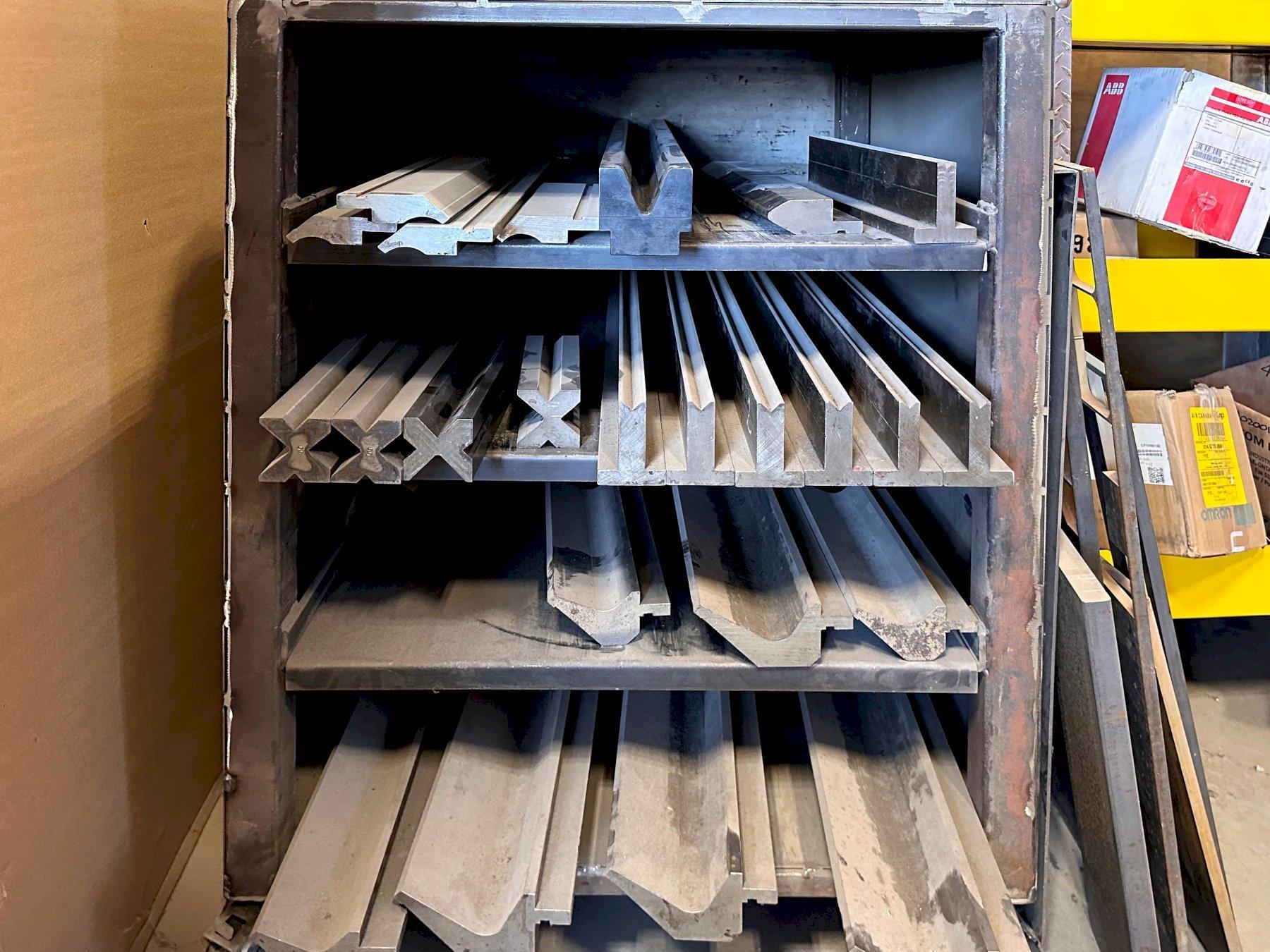

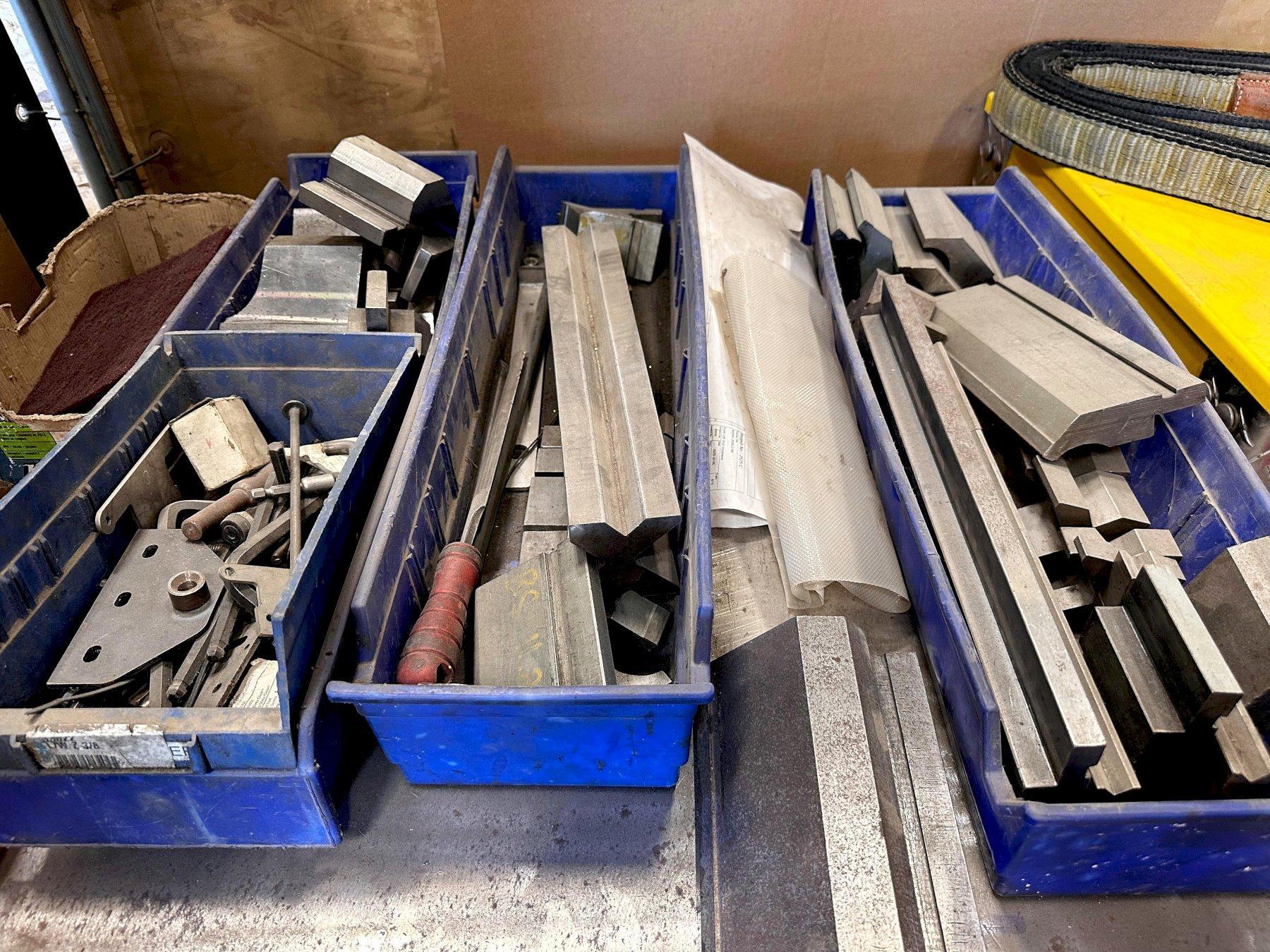

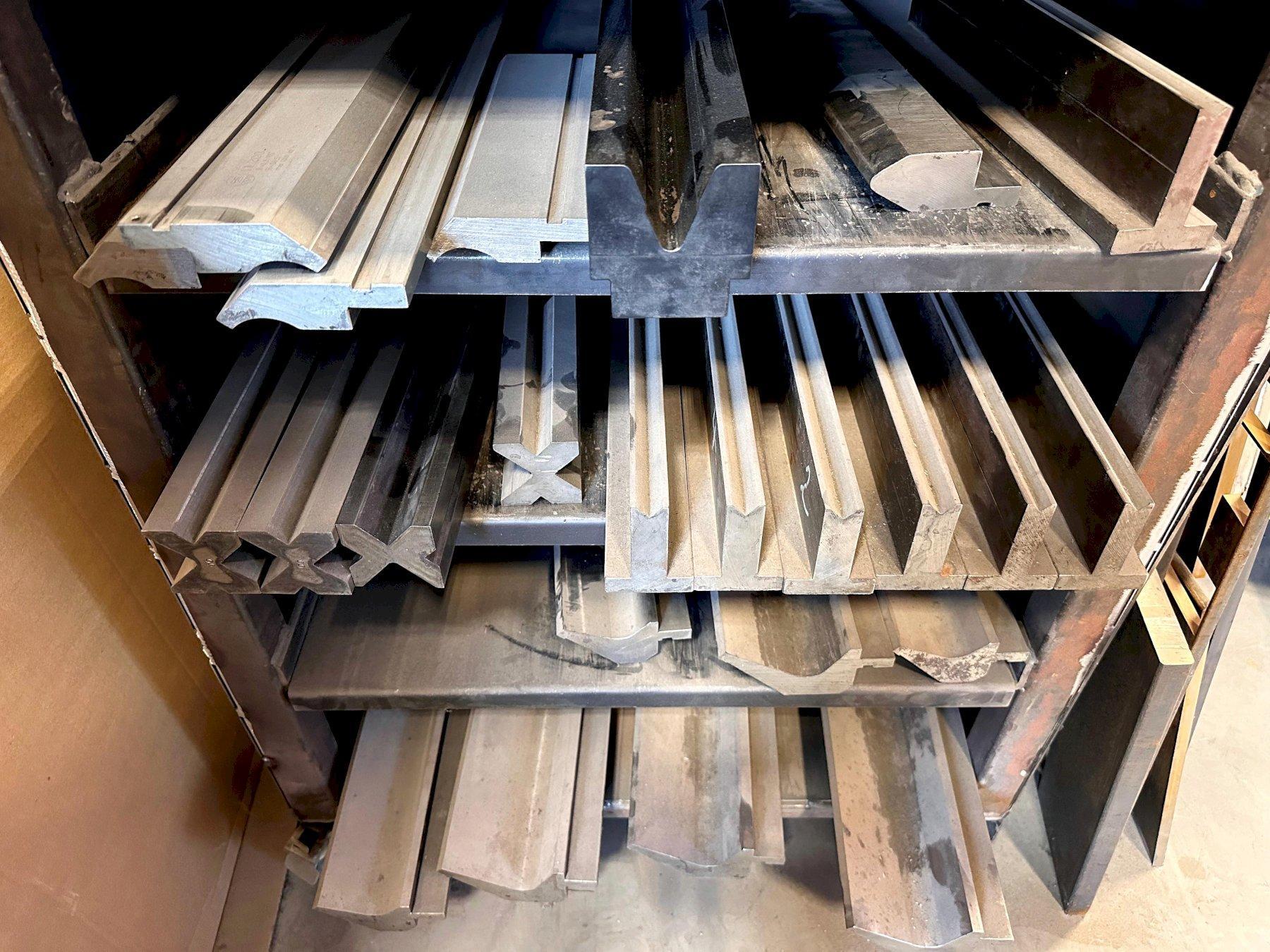

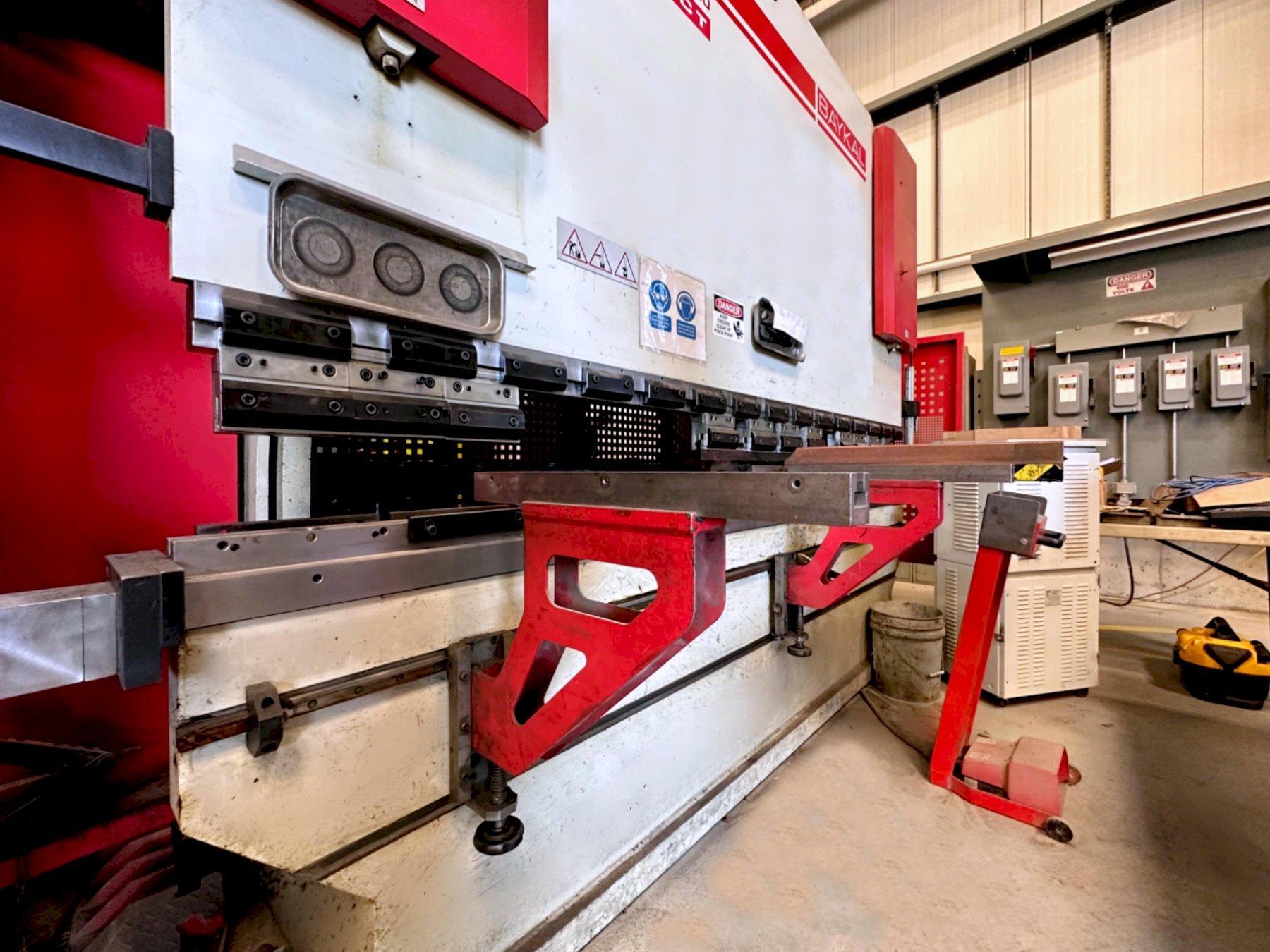

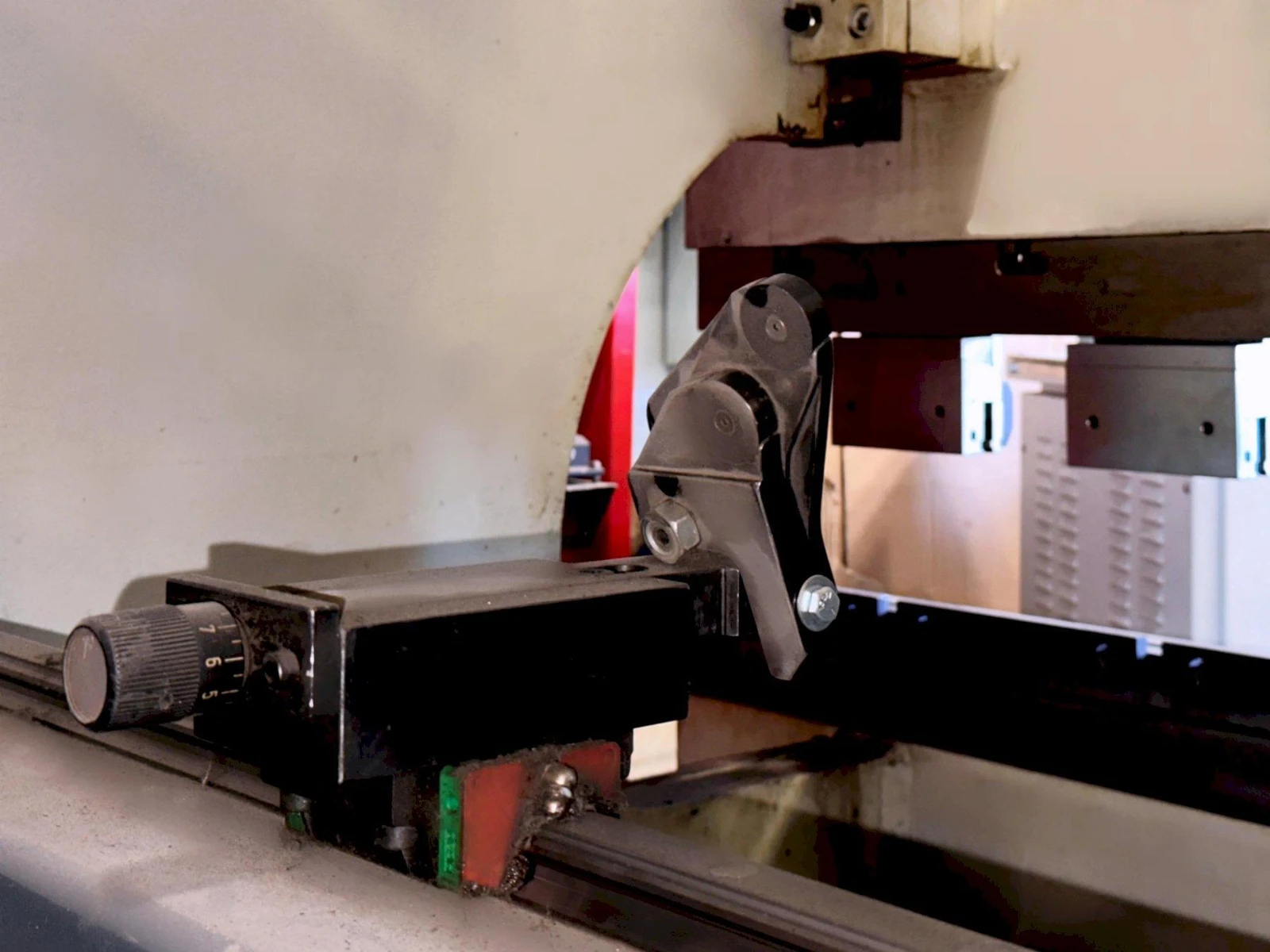

Equipped With: ESA EC4 4-Axis CNC Control 2-Axis CNC Back Gauge (X,R,) Electric Foot Switch Control (2) Front Support Arms Electric Foot Switch Control Pedestal Palm Button Control Laser Bending Security Miscellaneous Tooling (As Pictured)
|
|
