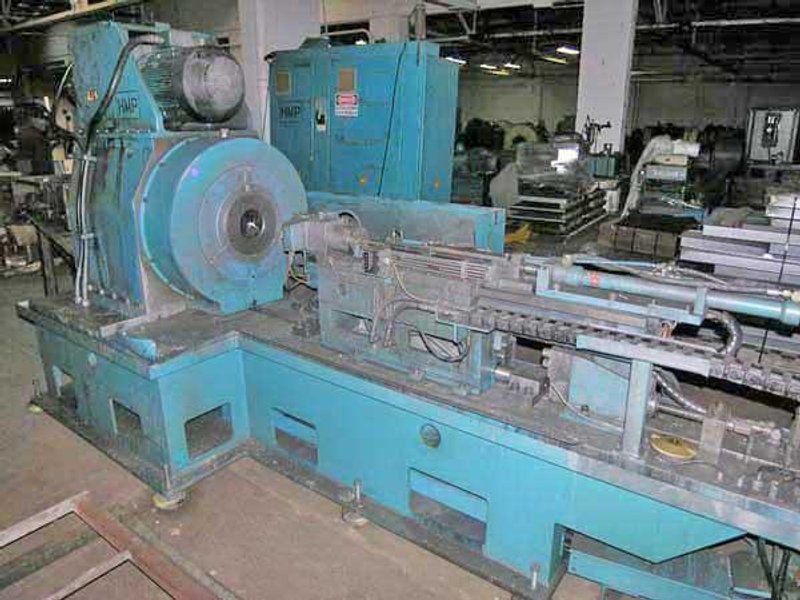

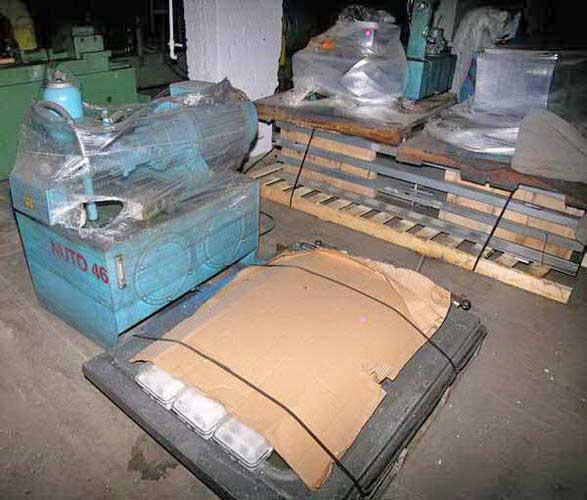

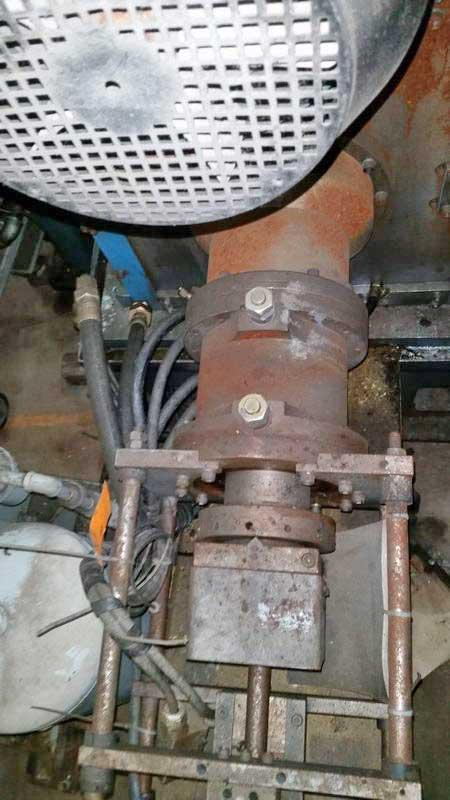

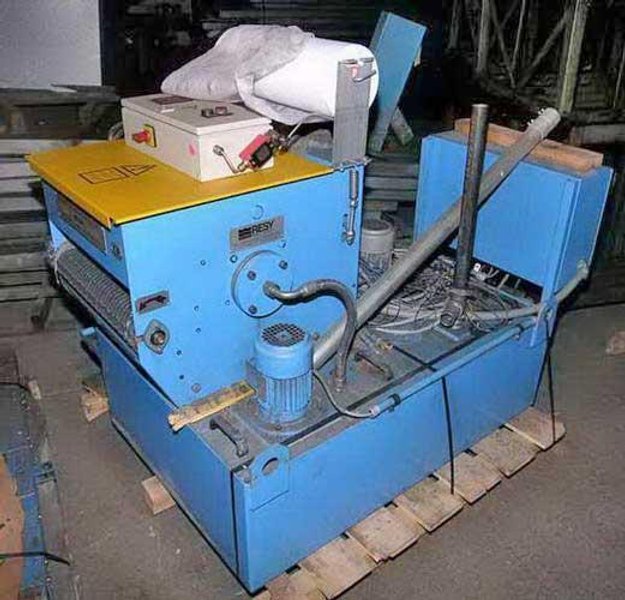

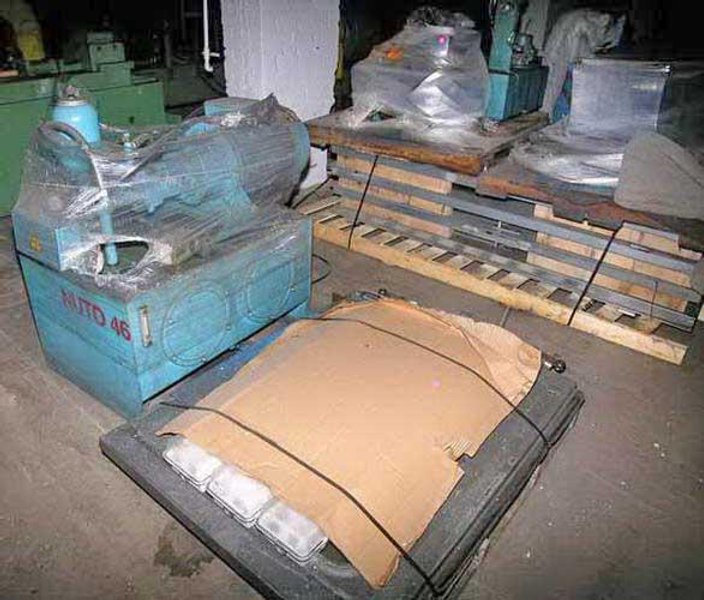

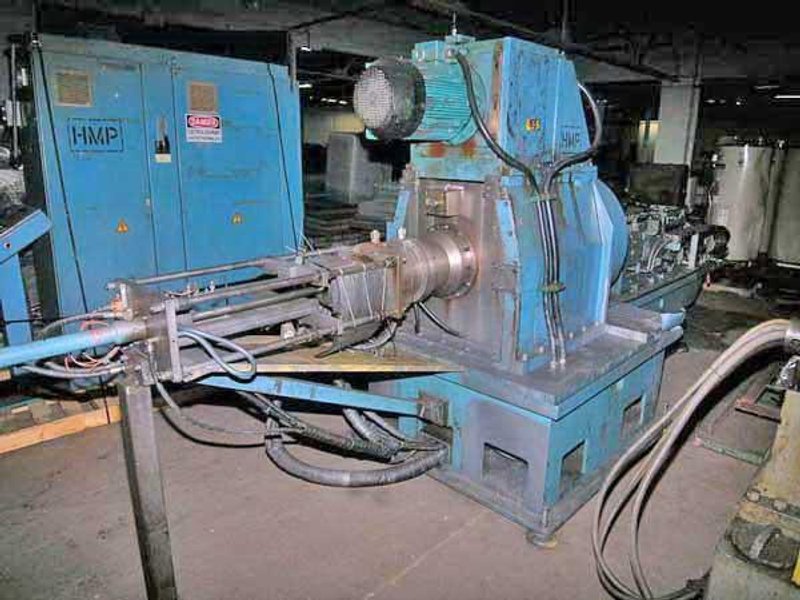

2-3/8" Tubing HEINRICH MUELLER MODEL UR5-4-DD-24H 4 DIE SWAGING MACHINE, 1.181" Solids Stock # 14187

2.362" HEINRICH MUELLER 4 DIE SWAGER
Stock # 14187

AGE: 1996
MODEL NUMBER: UR5-4-DD-24H

SPECIFICATIONS:

This is a single station swaging machine

This machine has both internal rotating spindle and outer
roller cage counter rotating ring

Capacity:

Bars: 5.0mm to 30mm
Tubes: 5.0mm to 60mm

Swaging Dies: 50mm W x 120mm L x 55mm H

This Machine Can:

Plunge Feed
Infeed Swage
Combination Plunge / Infeed Swaging

Can Also Swage Over a Mandrel, Hydraulic Powered Rear
In Feed of Mandrel / Extraction

Stroke Frequency: 1830 RPM
Outer Ring Rotation: 200 RPM

This is a four die swager with wedge type collapsing system
allowing plunging into the center of the part. It also has
a 500mm stroke hydraulic feed system with hydraulic part
clamping. This machine can also be used to swage internal
linear forms such as splines inside of tubing.

Wired For: 460/60/3, 80 Amp
Control Voltage: 120 and 24 Volt DC

EQUIPPED WITH:

Interchangeable 4-Die Swaging Head UR5-4ADD-A-3/1
Mandrel and Pusher Device UR5-4DD-N1-05-300

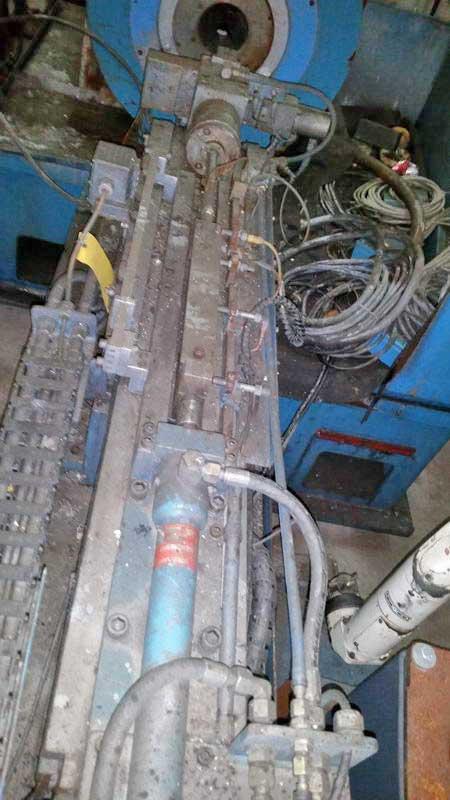

Hydraulic Feed System 24H-4050-03-100

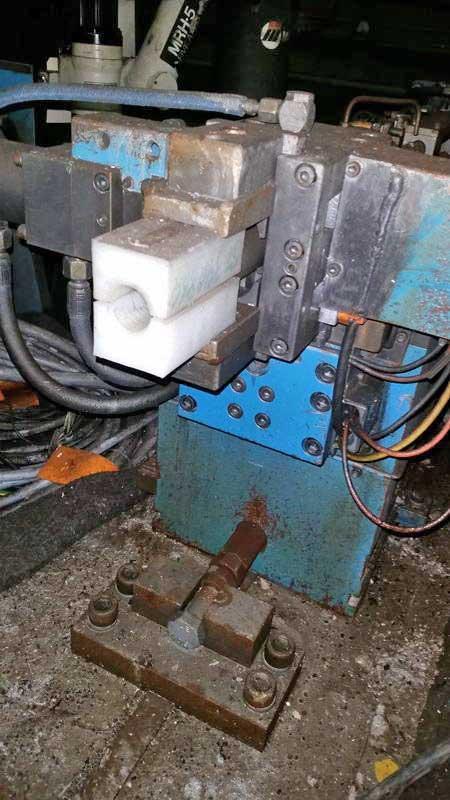

Hydraulic Clamping Jaw 24H-4005-01-200 (40mm Piston)
with Rotating Stop 24H-21-200 and Workpiece
Orientation System

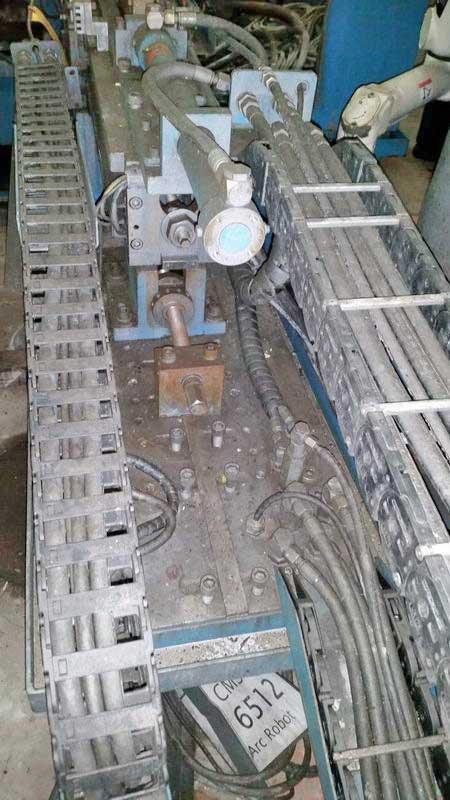

Mandrel Device 24H-4055-00-600 on Feed Slide
Feeder Slide Lock Device 24H-5025-00-800

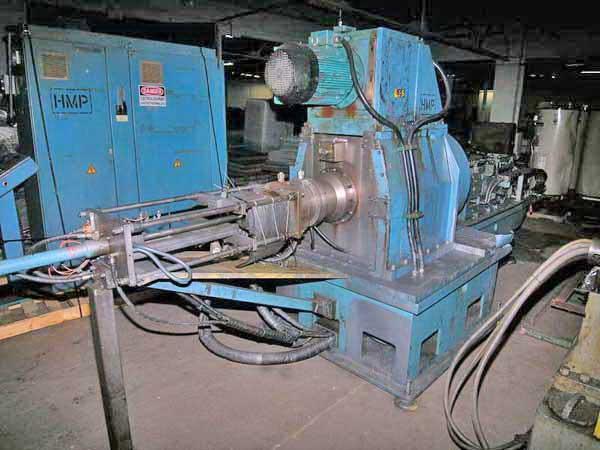

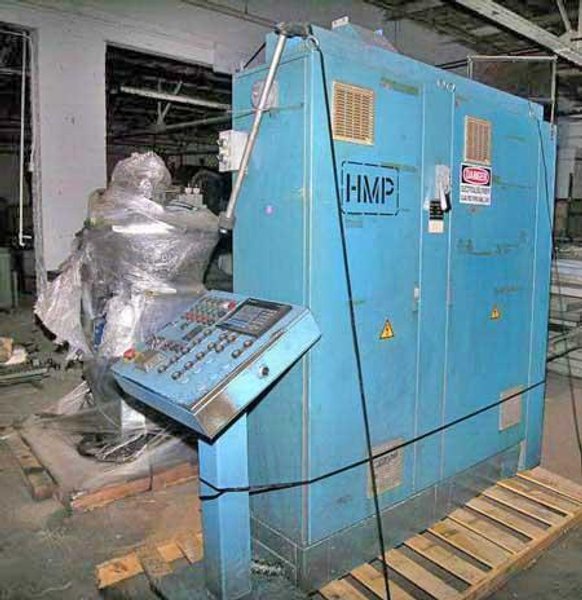

Complete Control System with Operator Control Pedestal
Siemens Controls
Sound Enclosure Room Type
Many Spares

MOTOR DATA: 8.6w, 18kw Plus Hydraulic Pump

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
