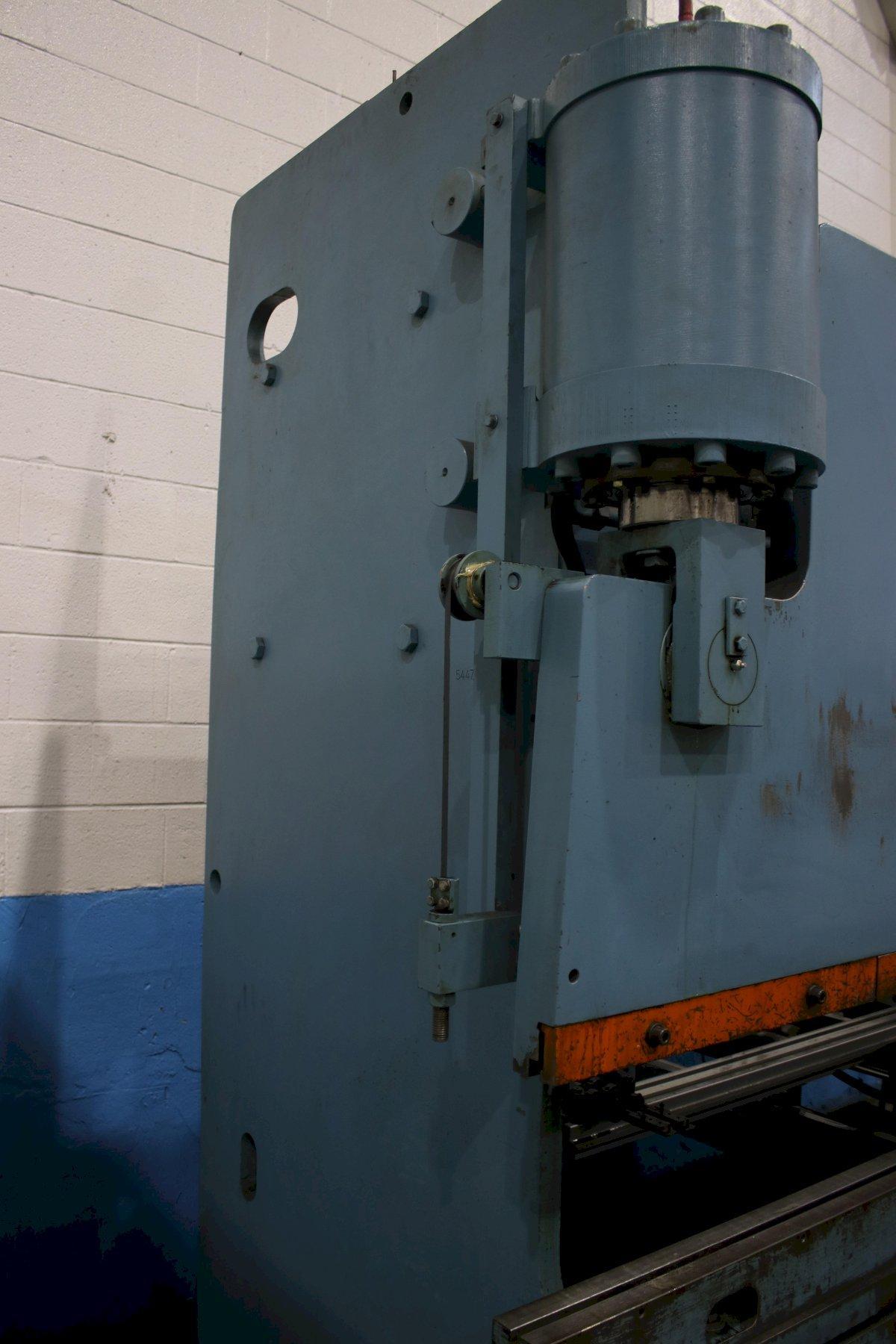

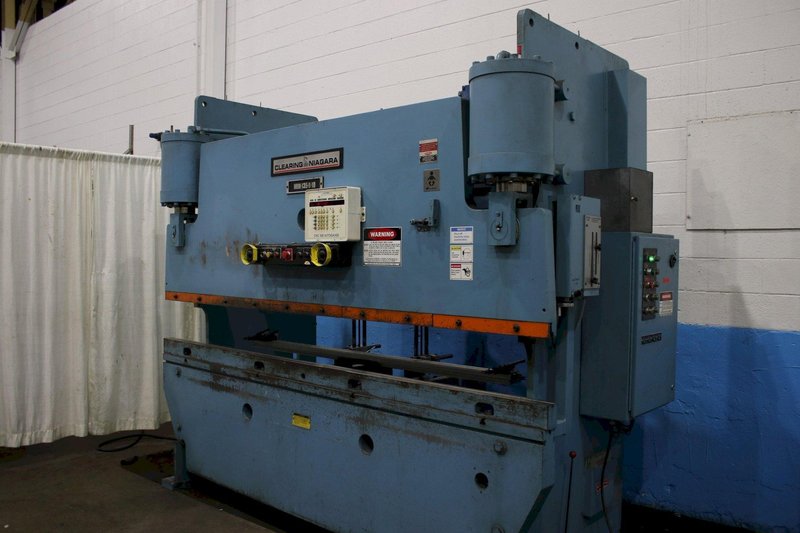

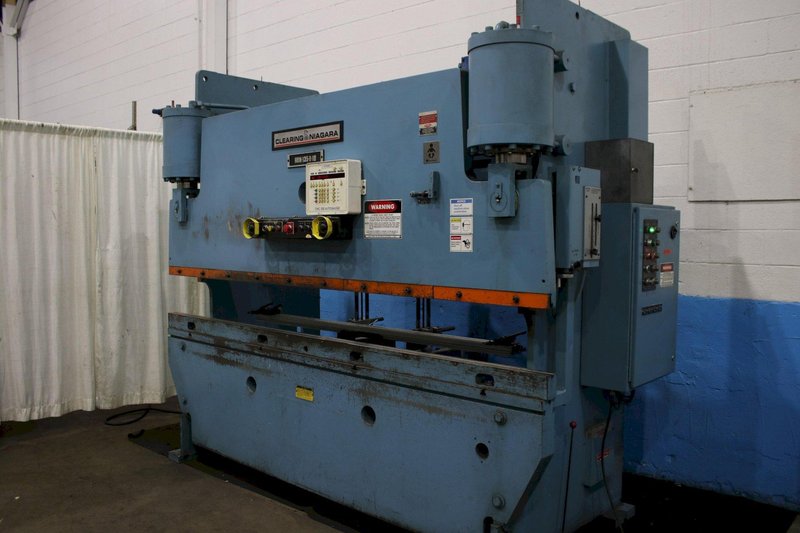

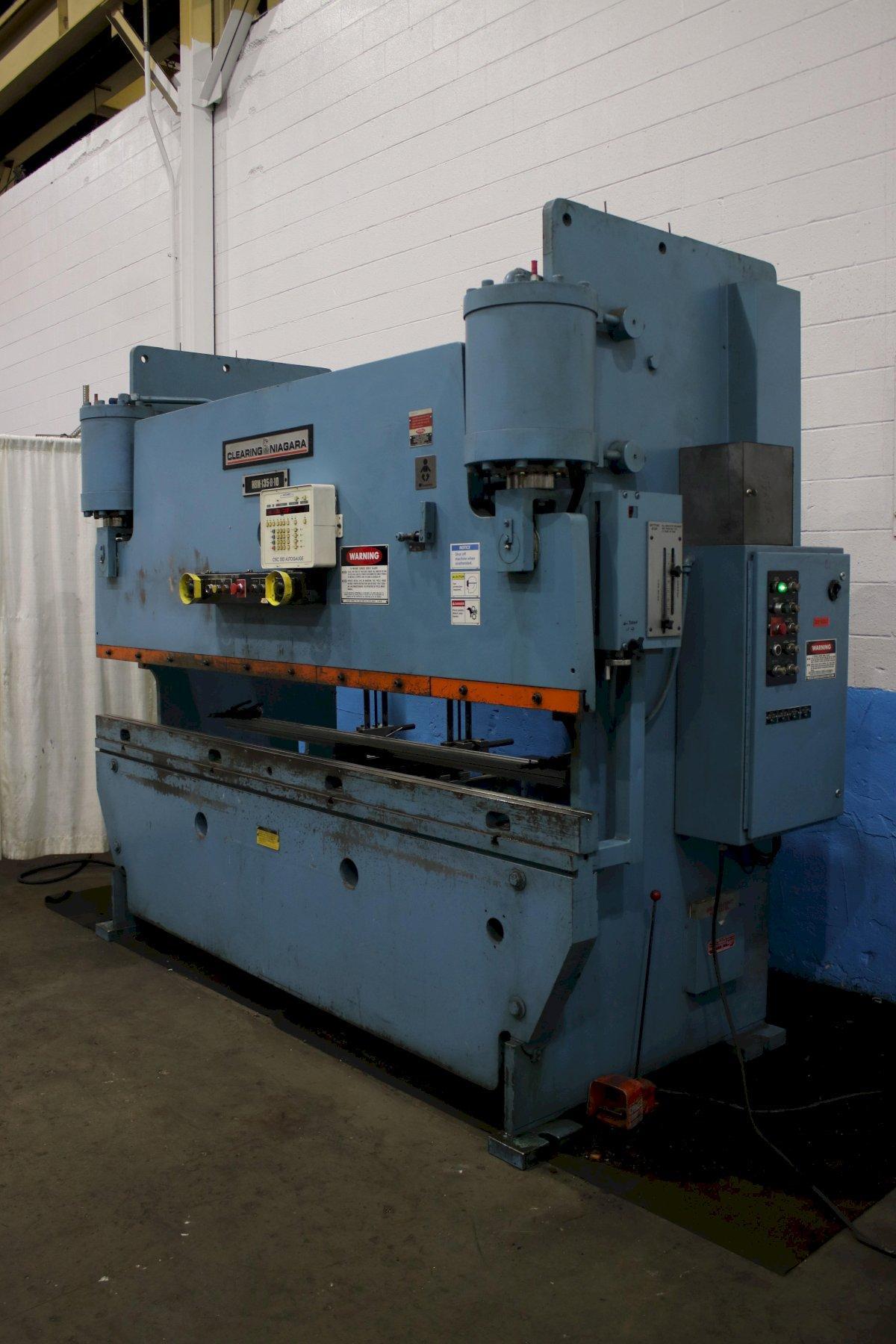

135 TON X 10' NIAGARA HYDRAULIC PRESS BRAKE; STOCK #76419
Brand
Category
Type
Model
null
Stock #
76419
Year
Not specified
Condition
Not specified
Location
Ohio
|

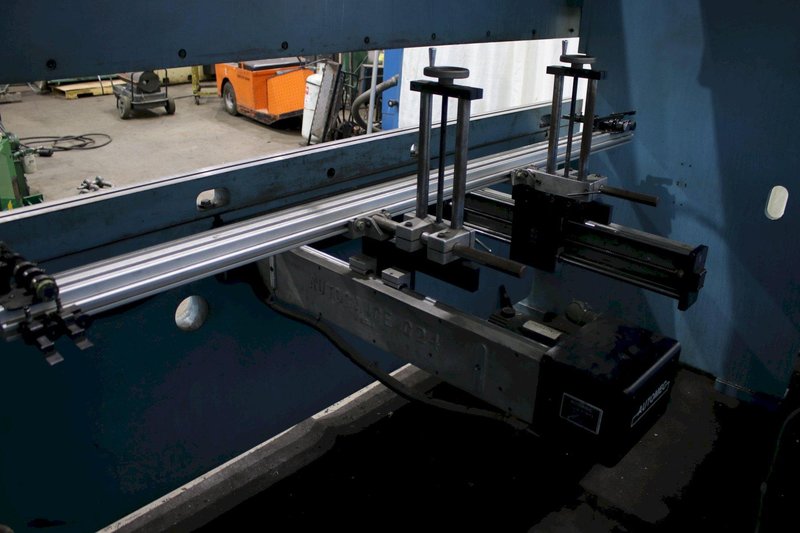

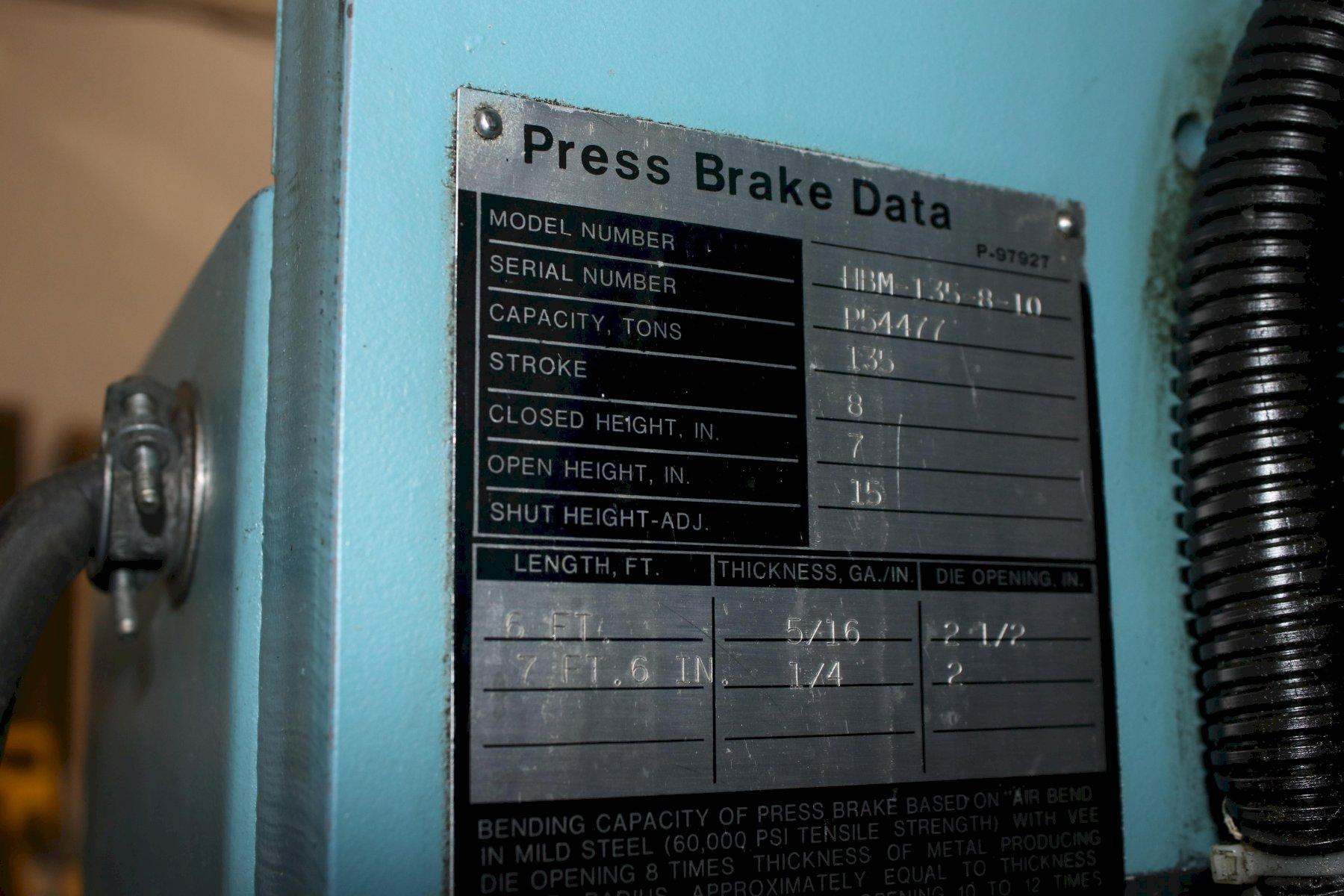

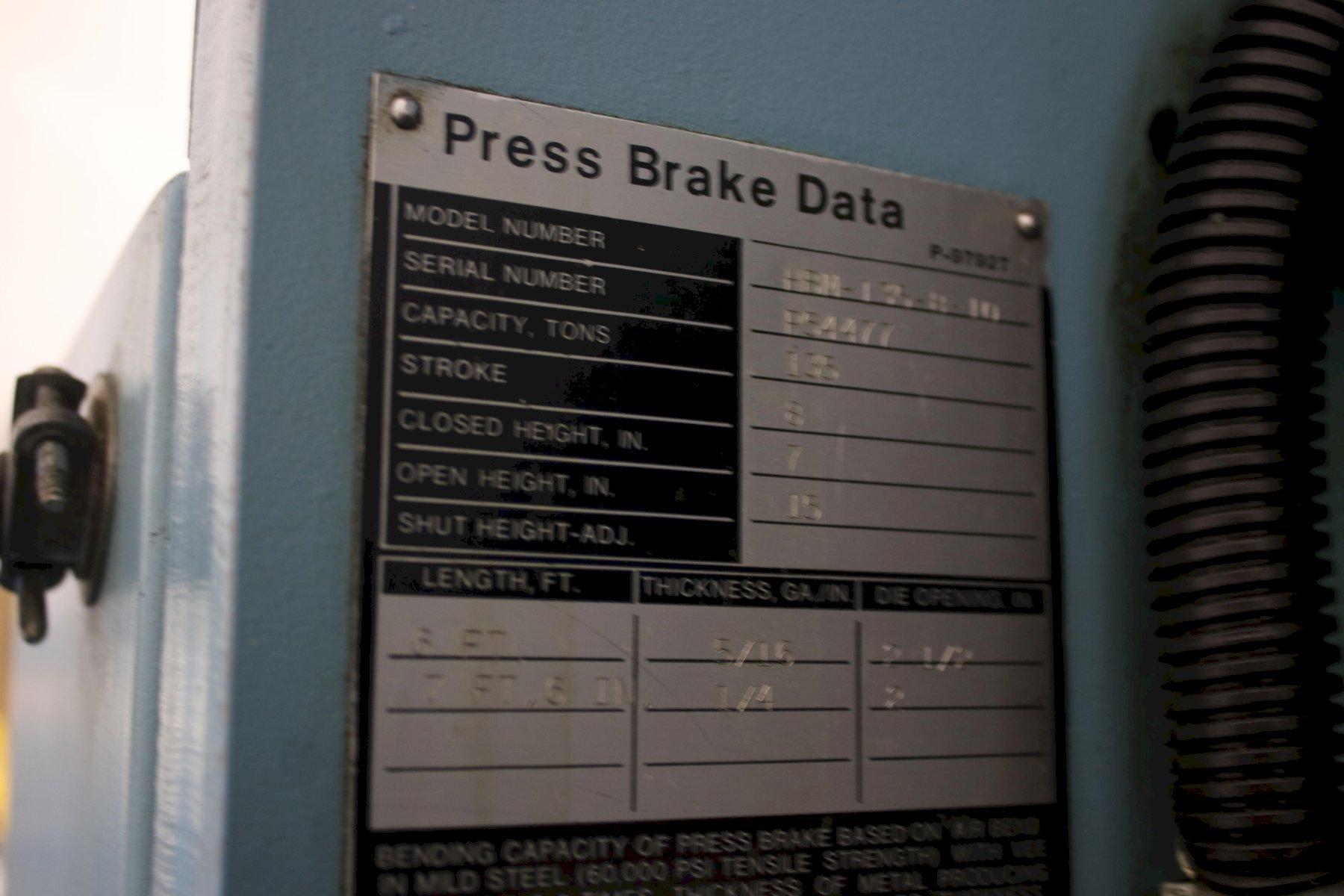

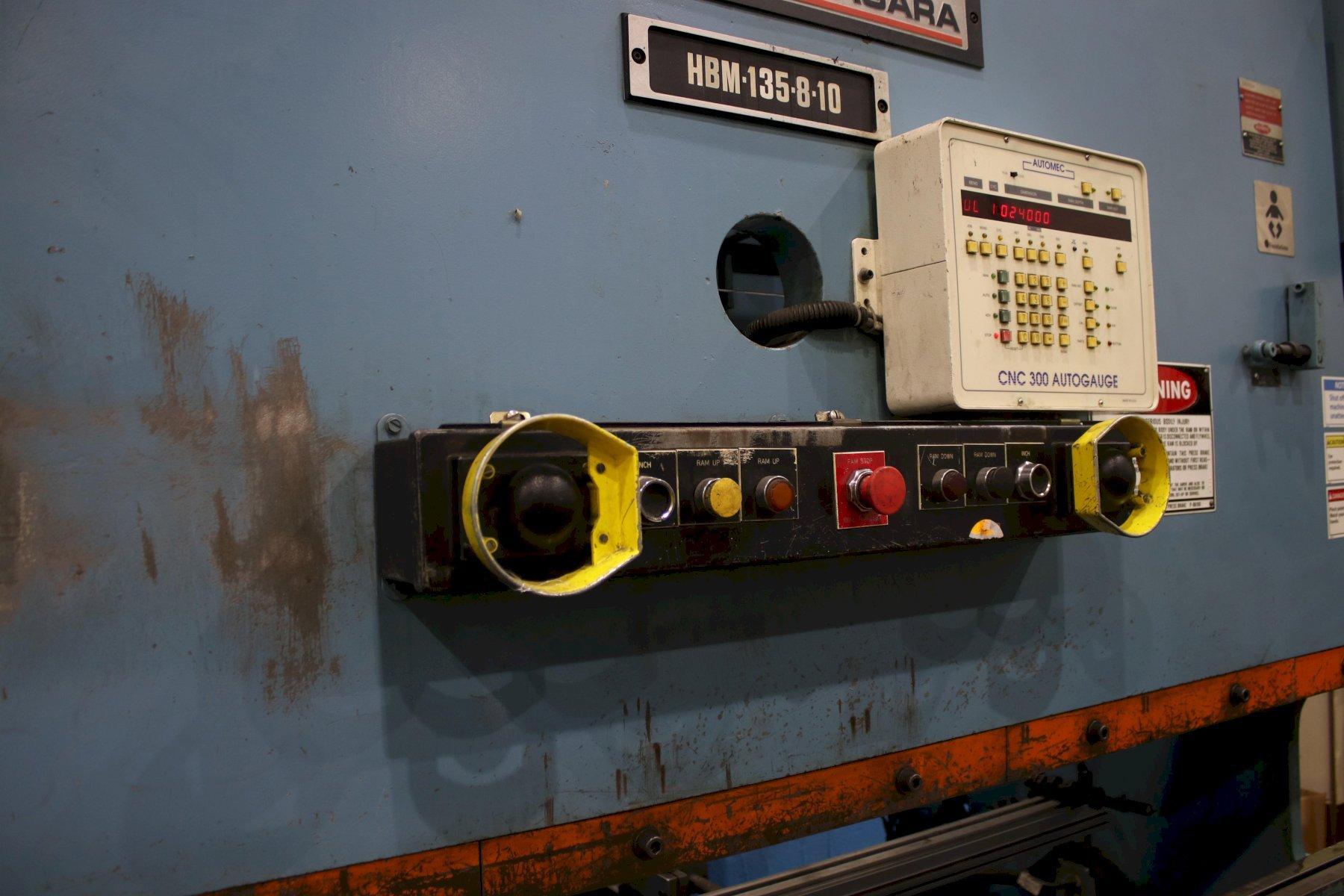

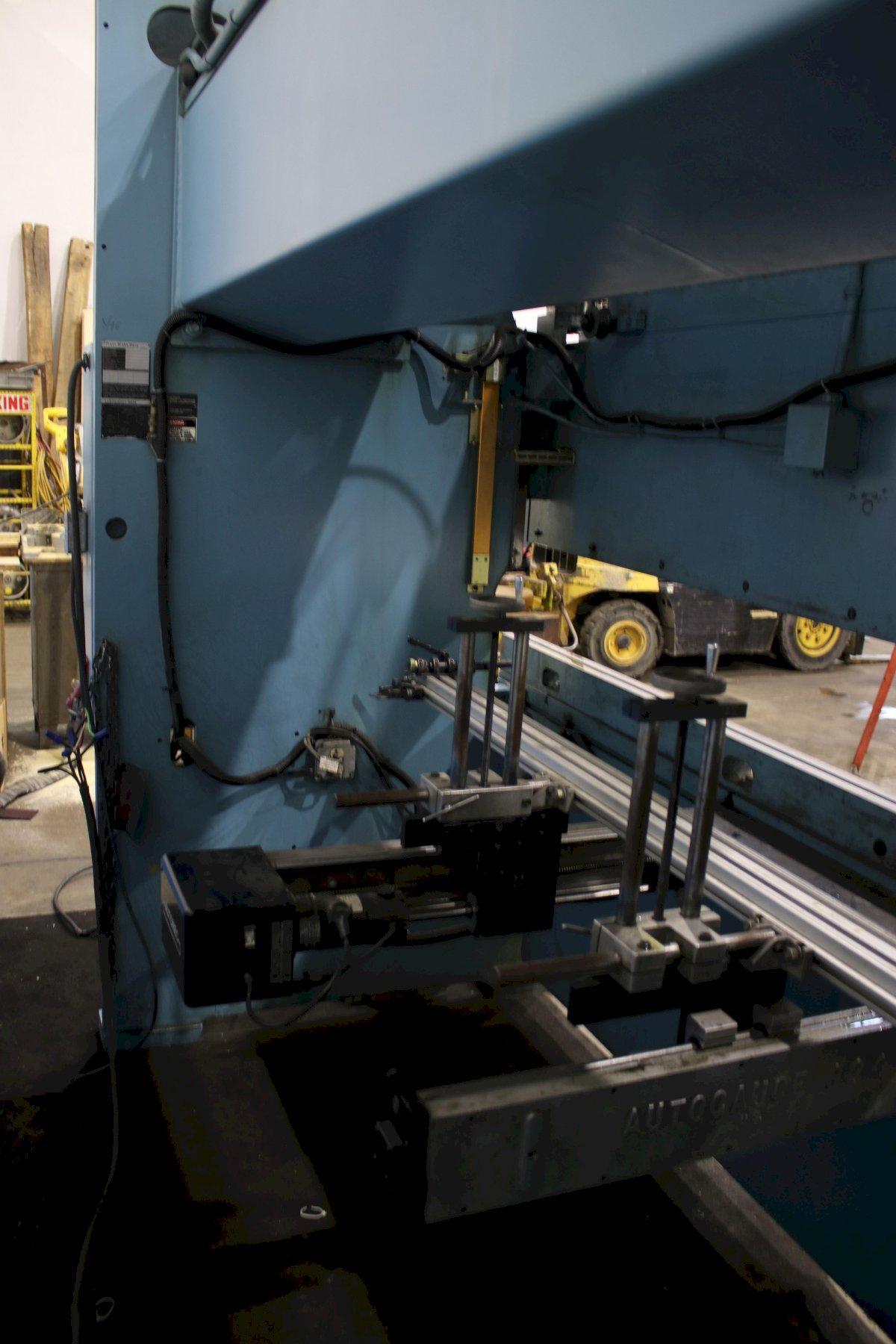

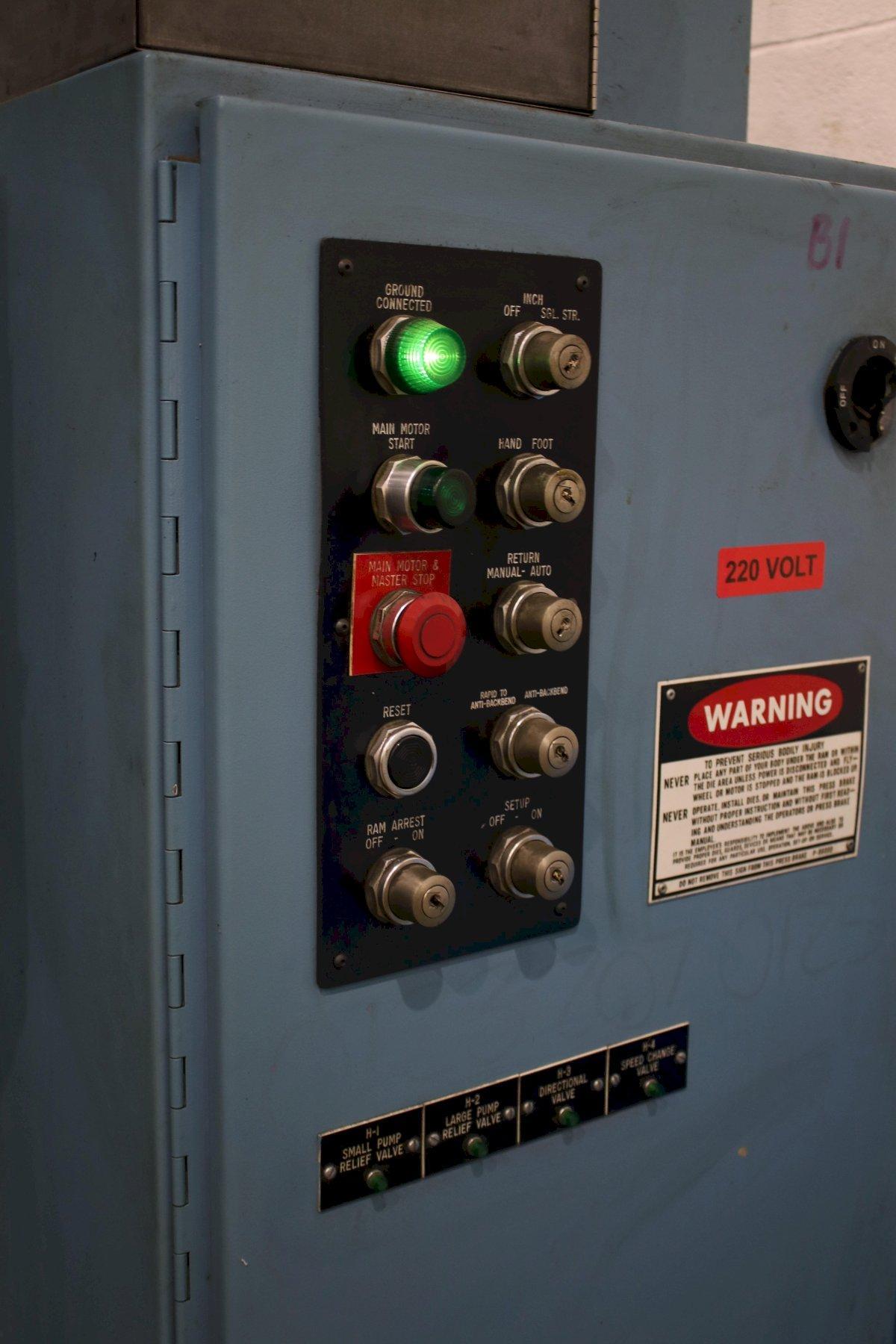

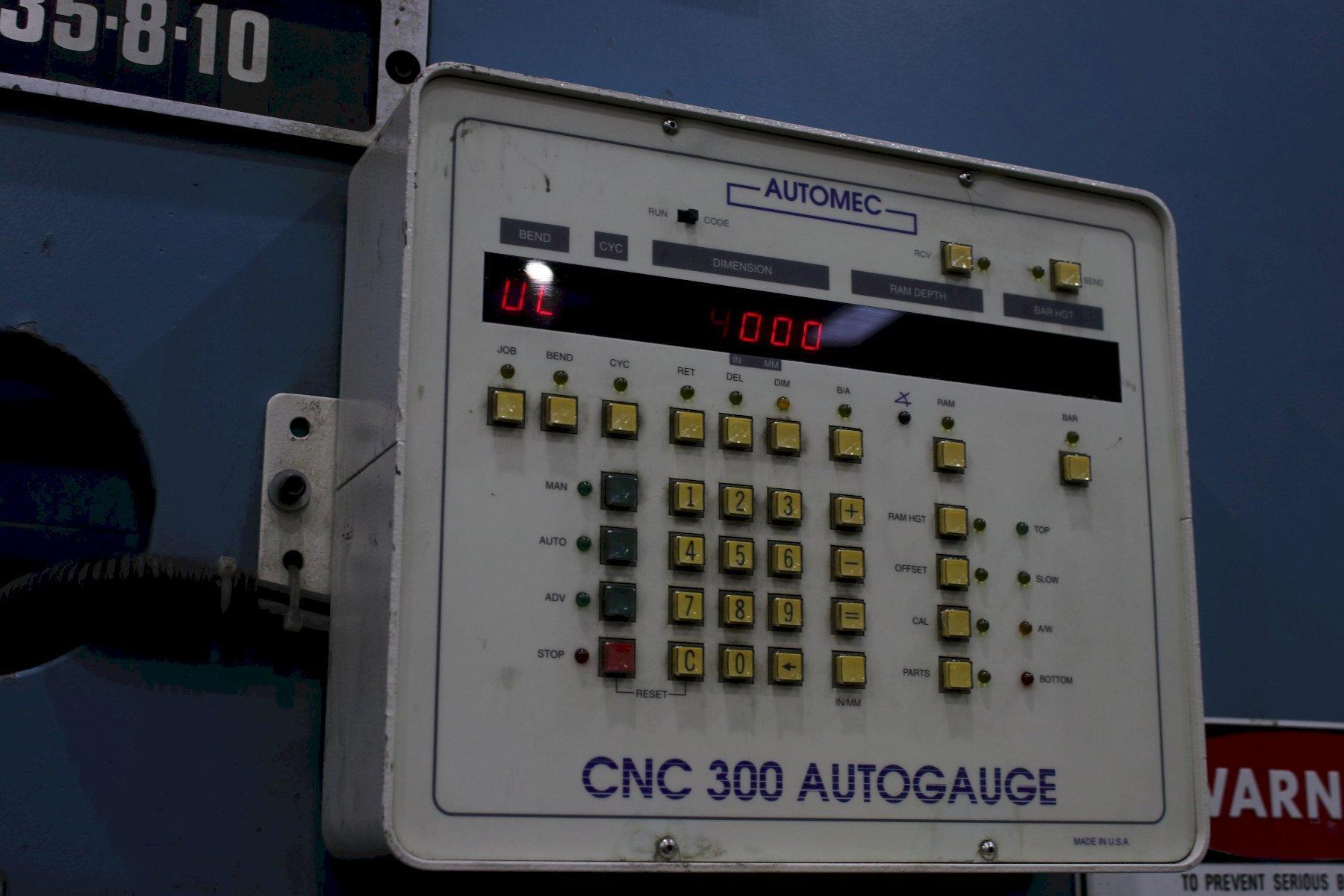

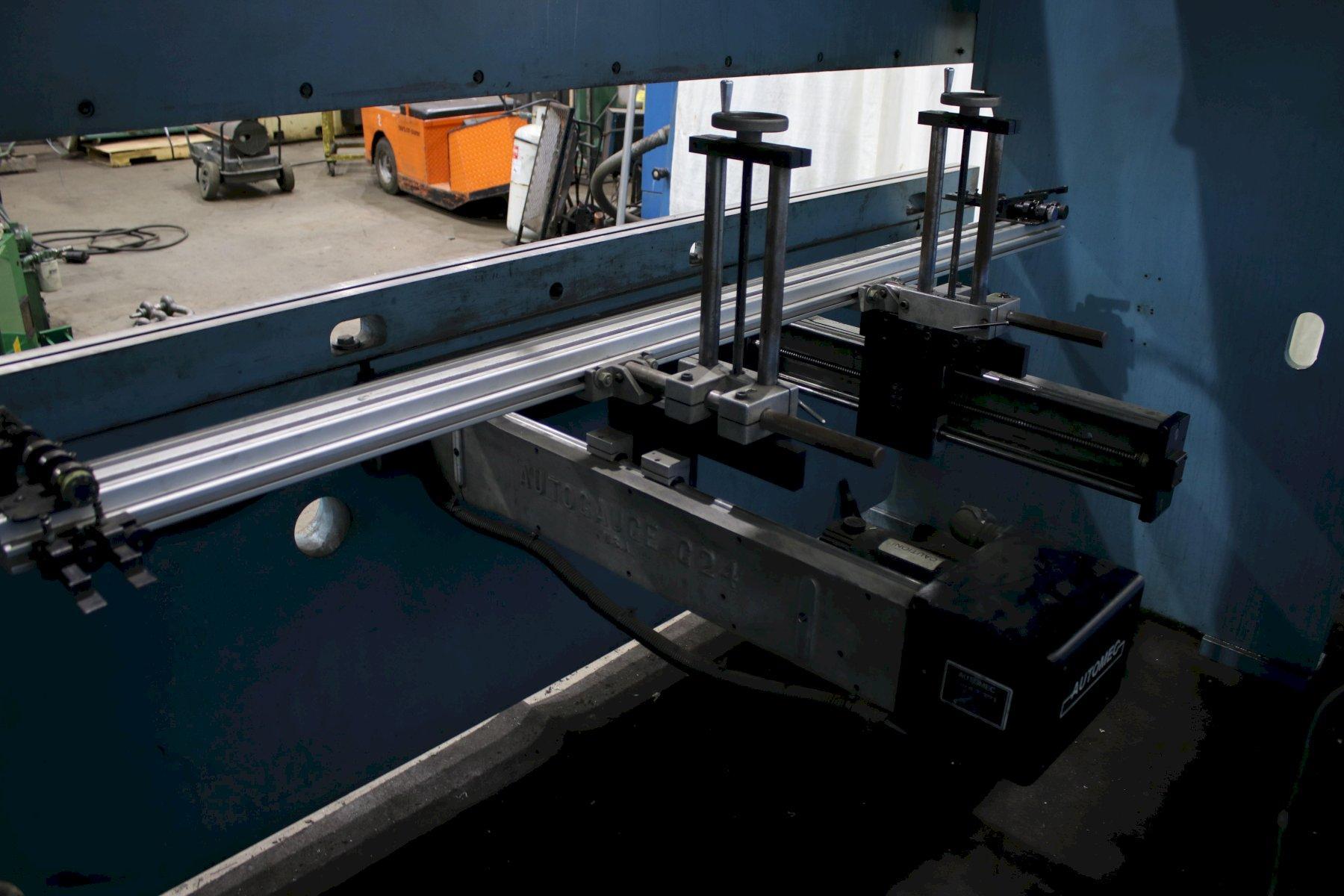

SERIAL .......................... P54477 MODEL ........................... HBM135-8-10 YEAR NEW ........................ 2003 CAPACITY ........................ 135 TONS OVERALL LENGTH OF BED & RAM ..... 120" DISTANVE BETWEEN HOUSING ........ 102" STROKE .......................... 7" OPEN HEIGHT ..................... 14" CLOSED HEIGHT ................... 7" RAM SPEED - MAXIMUM TONNAGE ..... 30 TO 50 IPM RAM SPEED - FAST PRESS .......... 98 IPM RAM SPEED - FAST RETURN ......... 100 IPM DISTANCE BETWEEN HOUSINGS ....... 102" THROAT .......................... 8" FLOOR TO BED .................... 33-1/2" AUTOMEC CNC BACKGAUGE ........... 300 AUTOGAUGE PRESS BRAKE CONTROLS ............ INCH-SINGLE-HAND-FOOT ELECTRIC FOOT TRIP/ PALM BUTTONS YES FLOOR STANDING .................. YES HYDRAULIC MOTOR ................. 20 HORSEPOWER |
