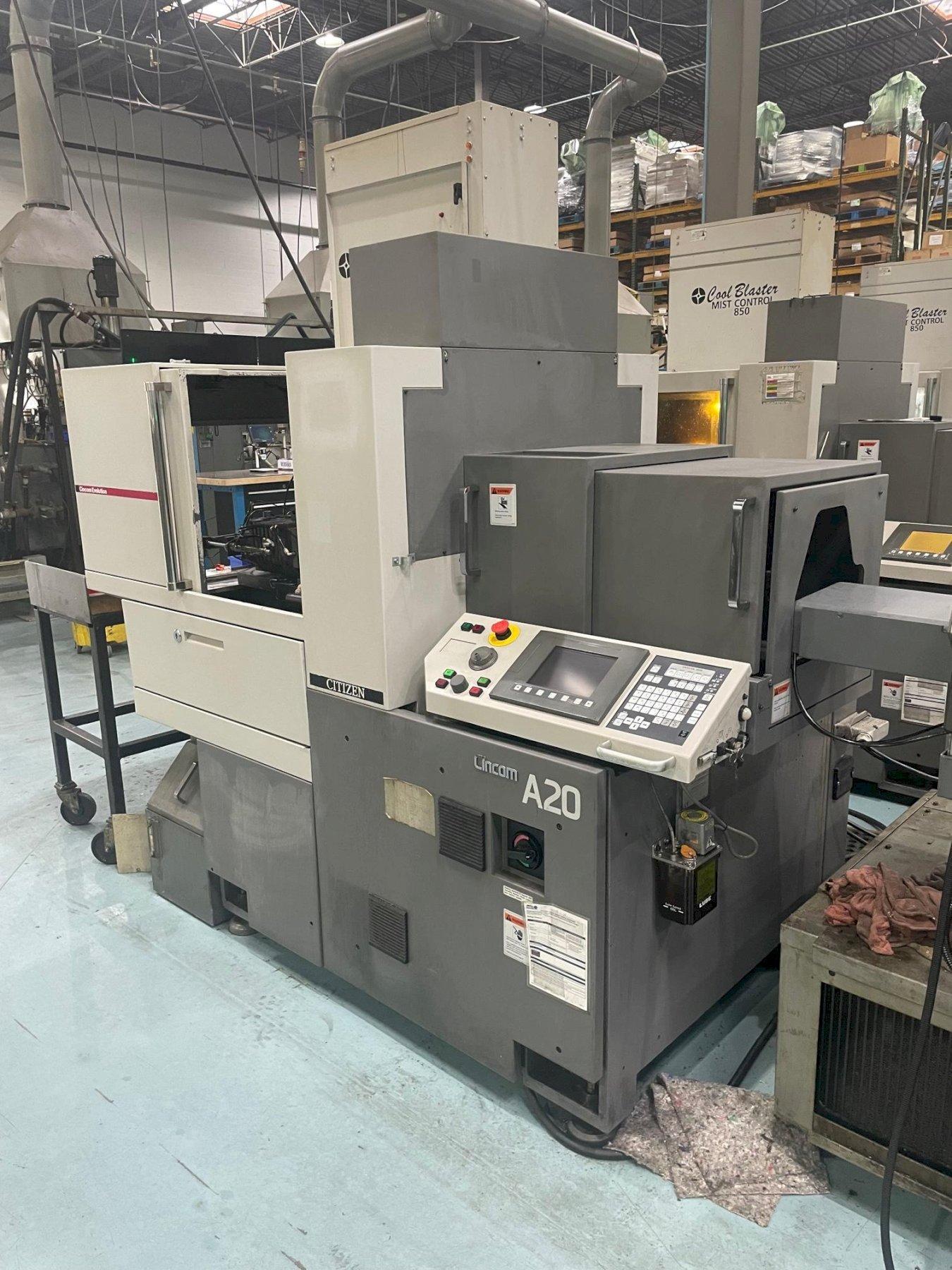

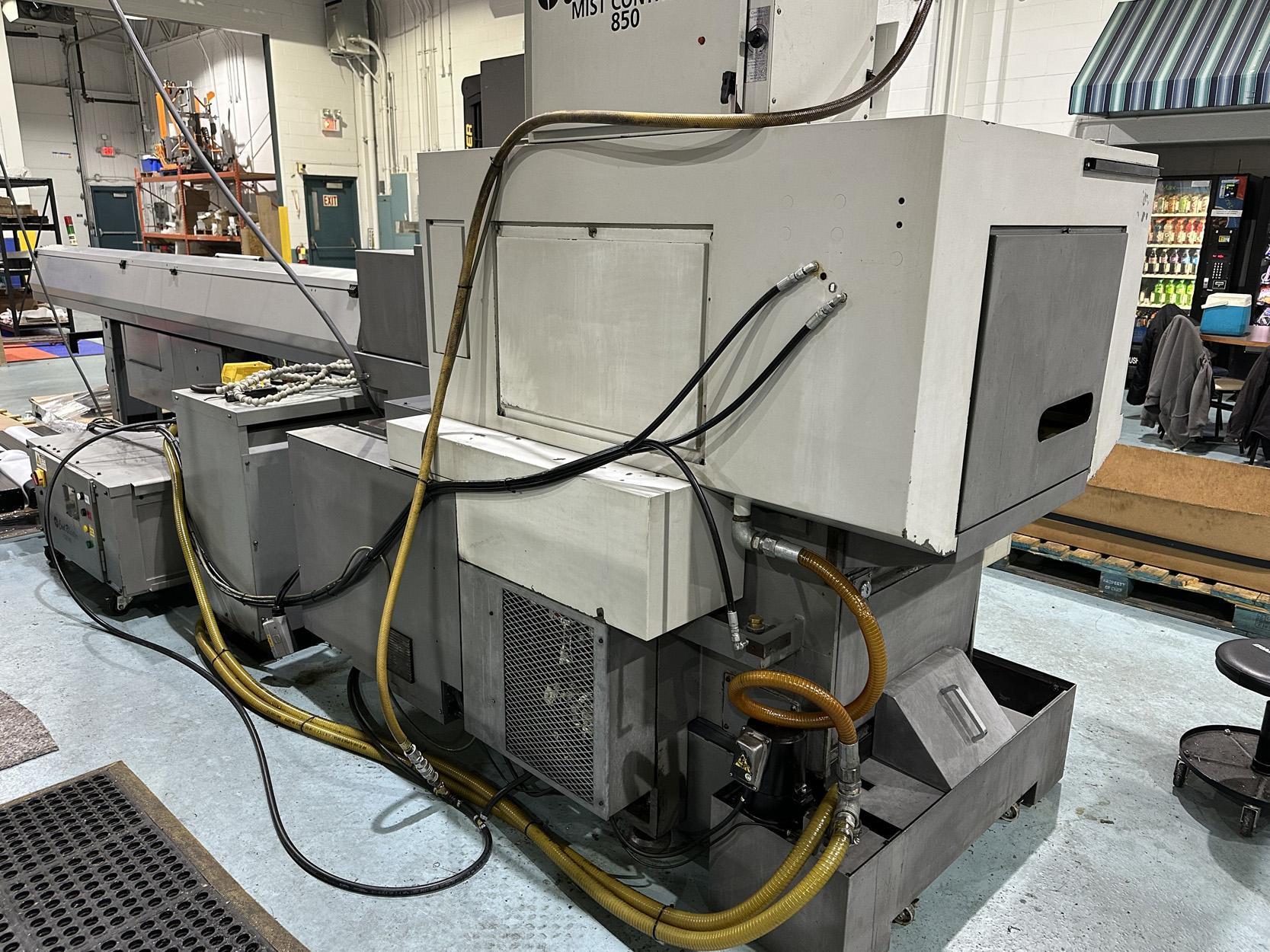

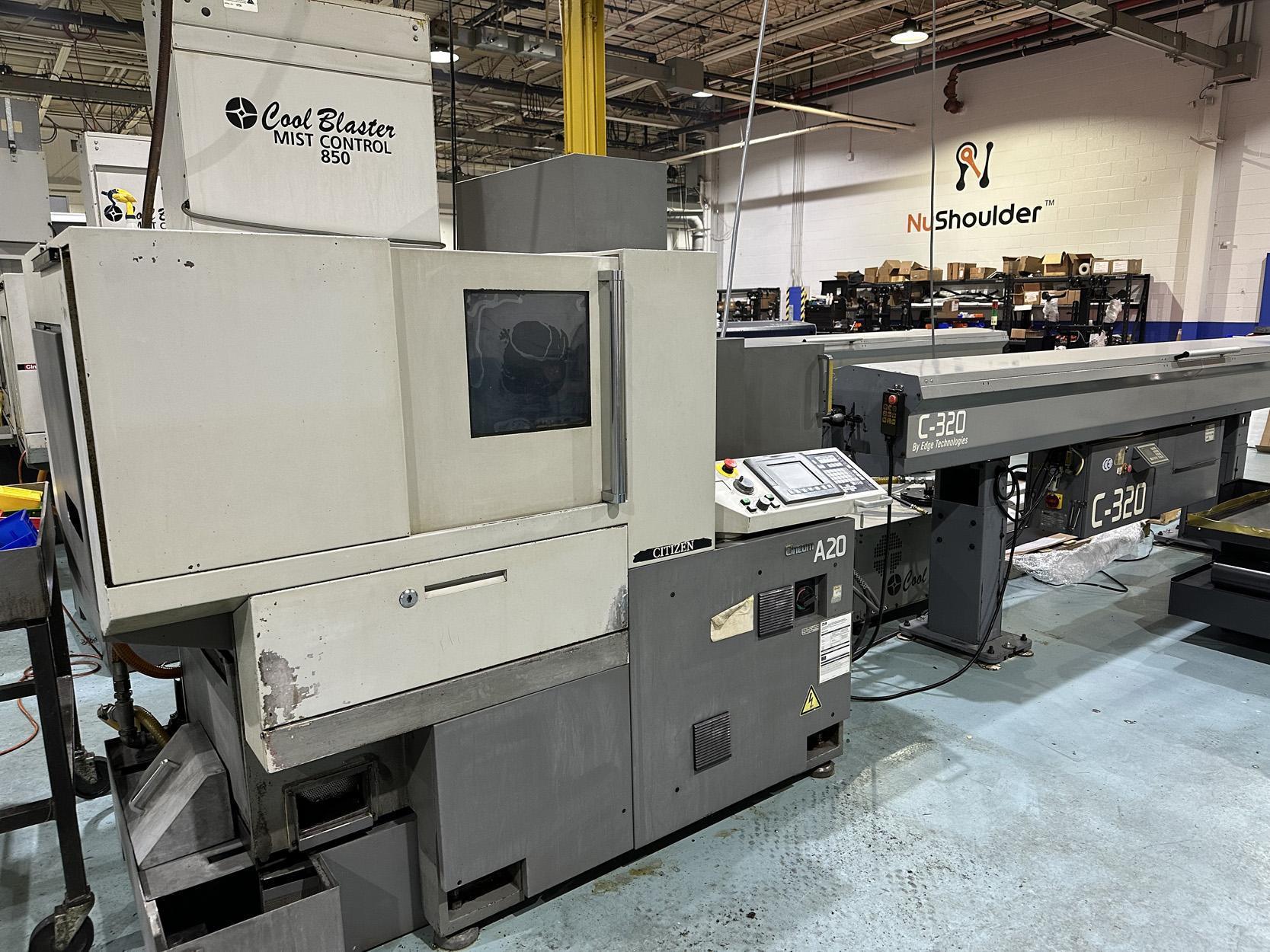

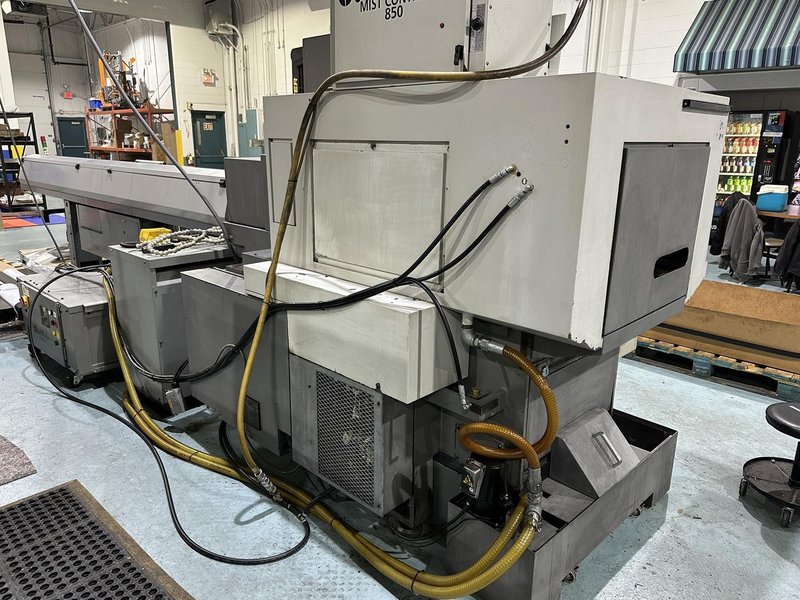

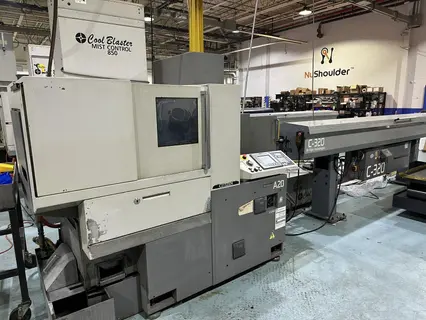

Citizen A20VII CNC Swiss Lathe, New in 2010

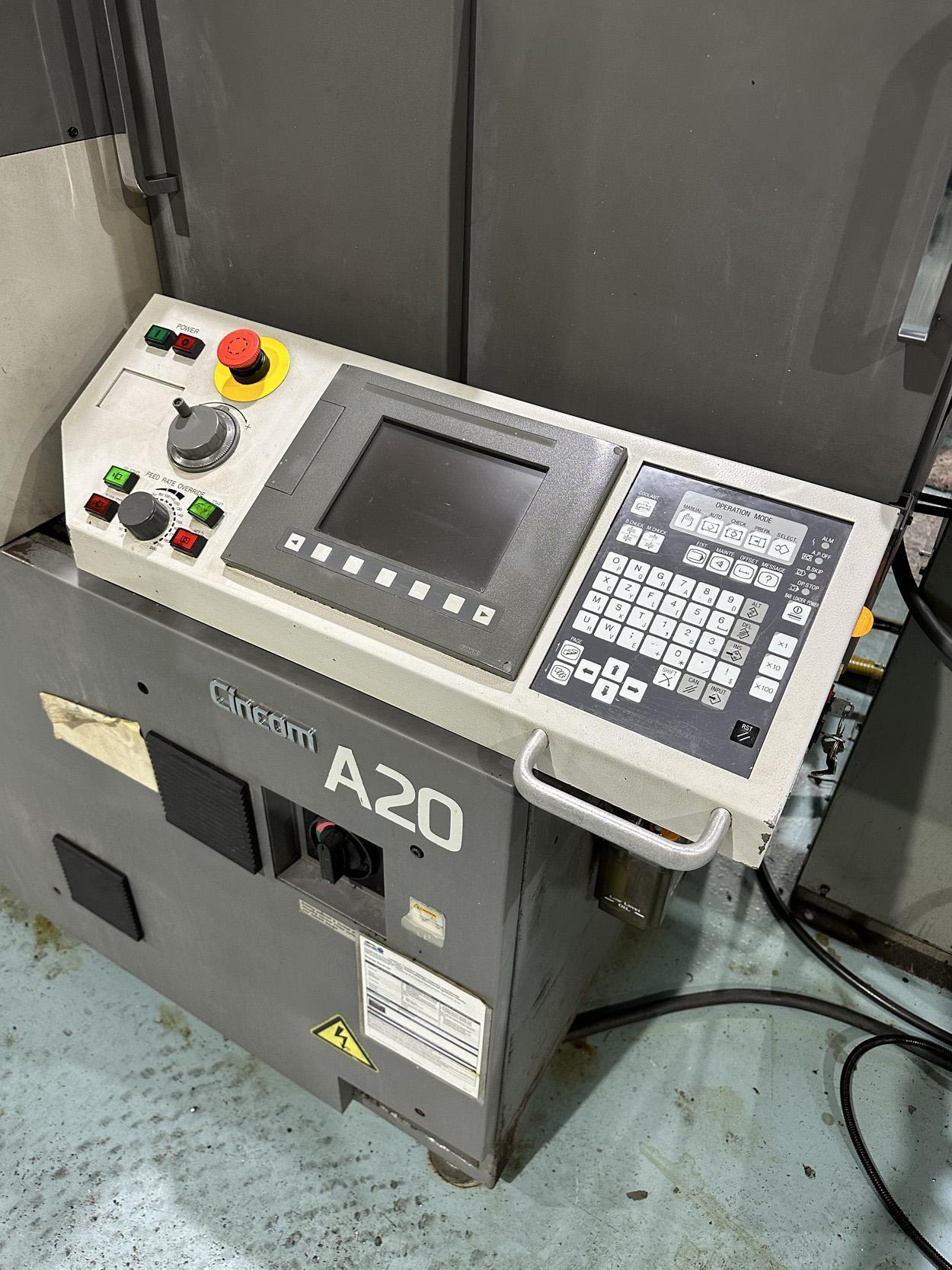

Fanuc 32i CNC Control

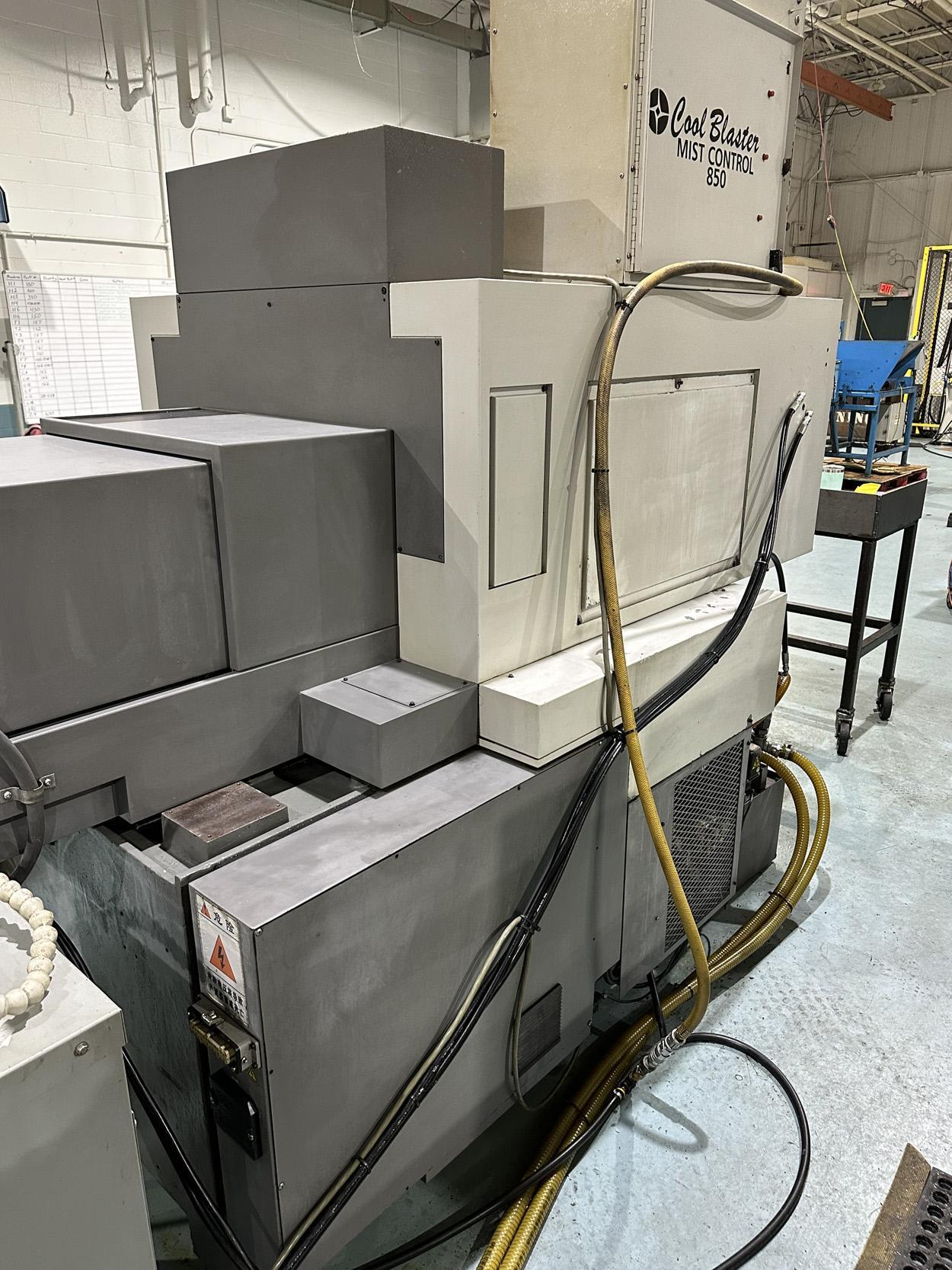

Cool Blaster 850 Mist Collector
Cool Blaster CB510 High Pressure Coolant System

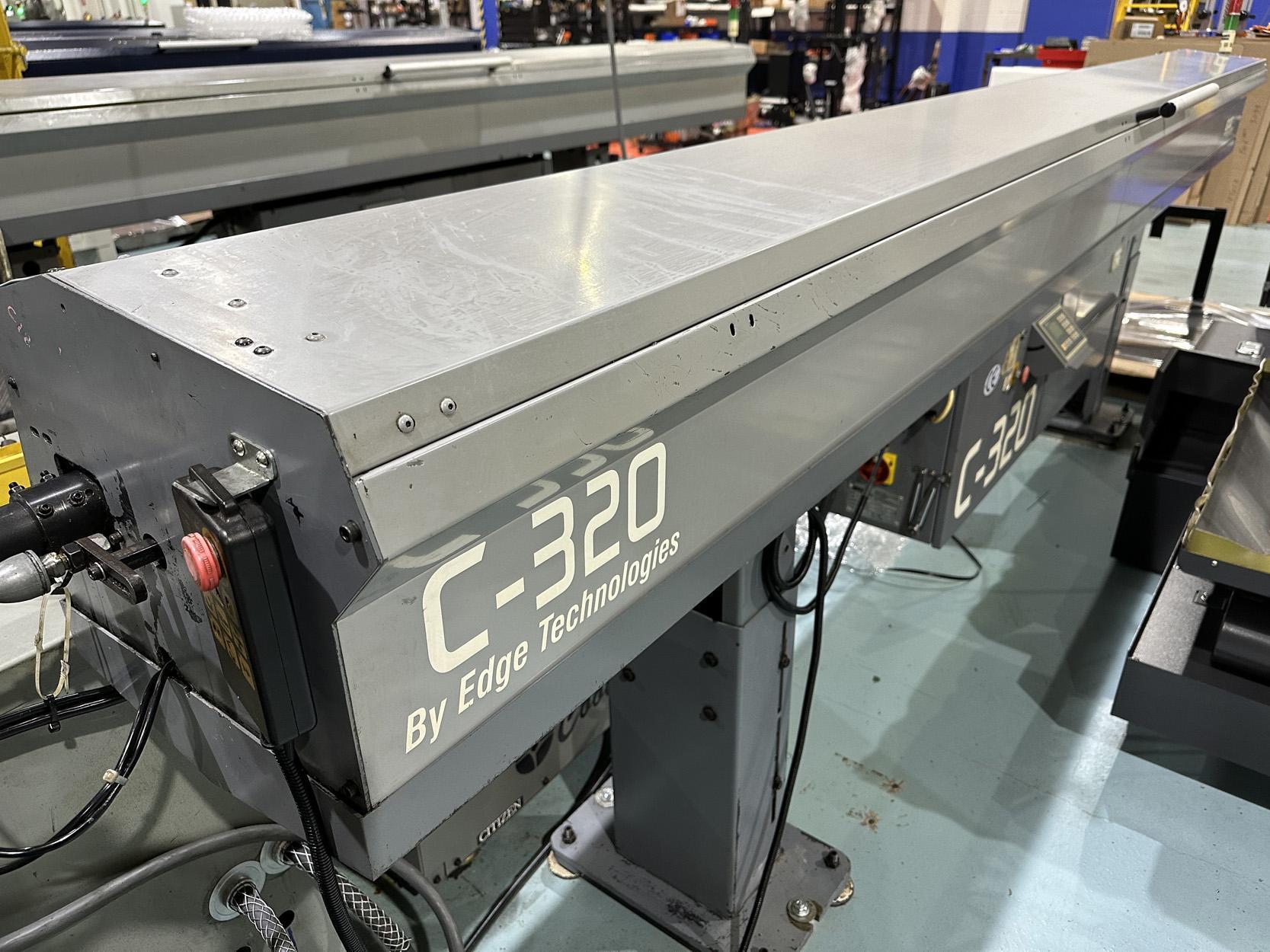

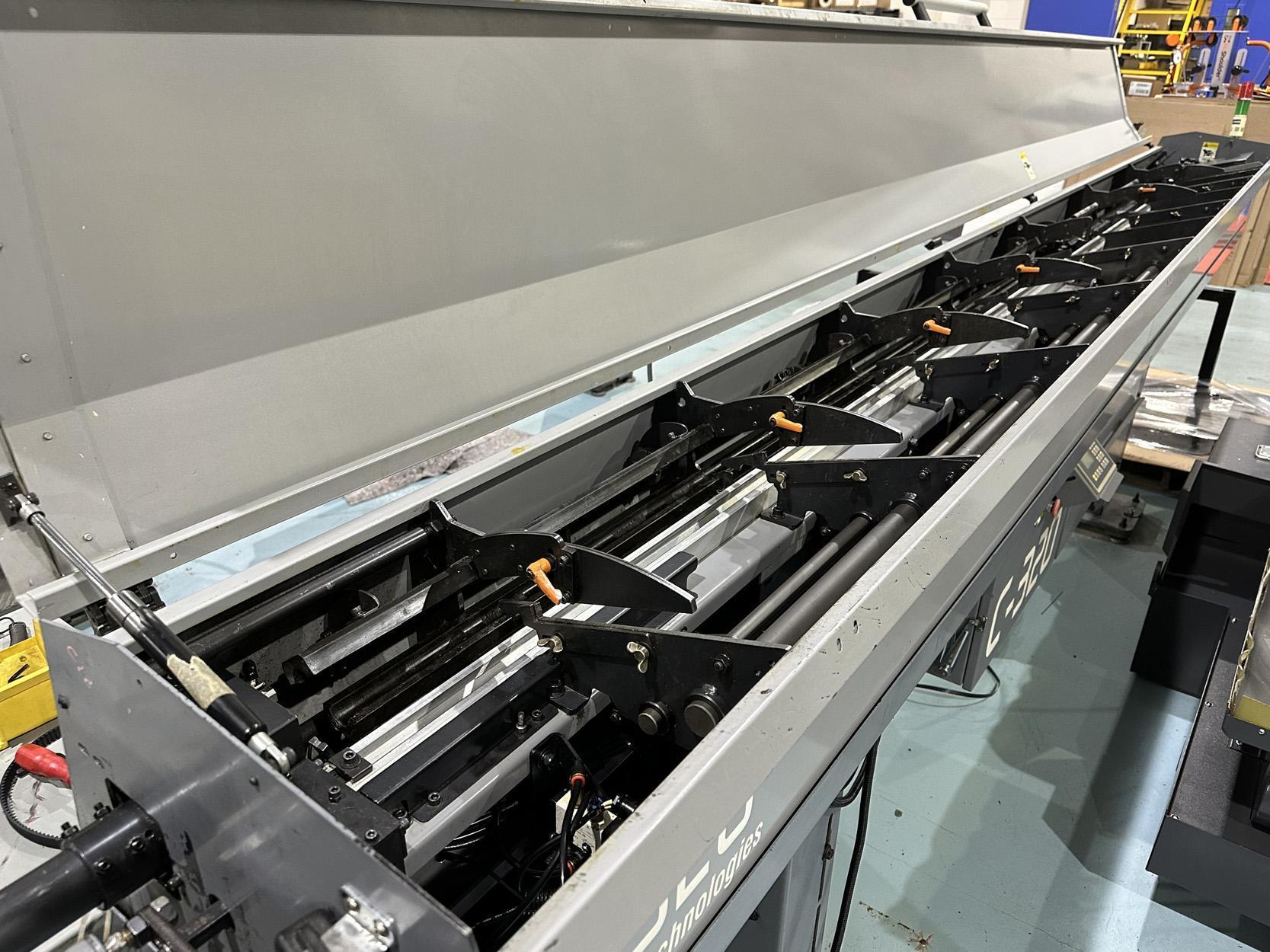

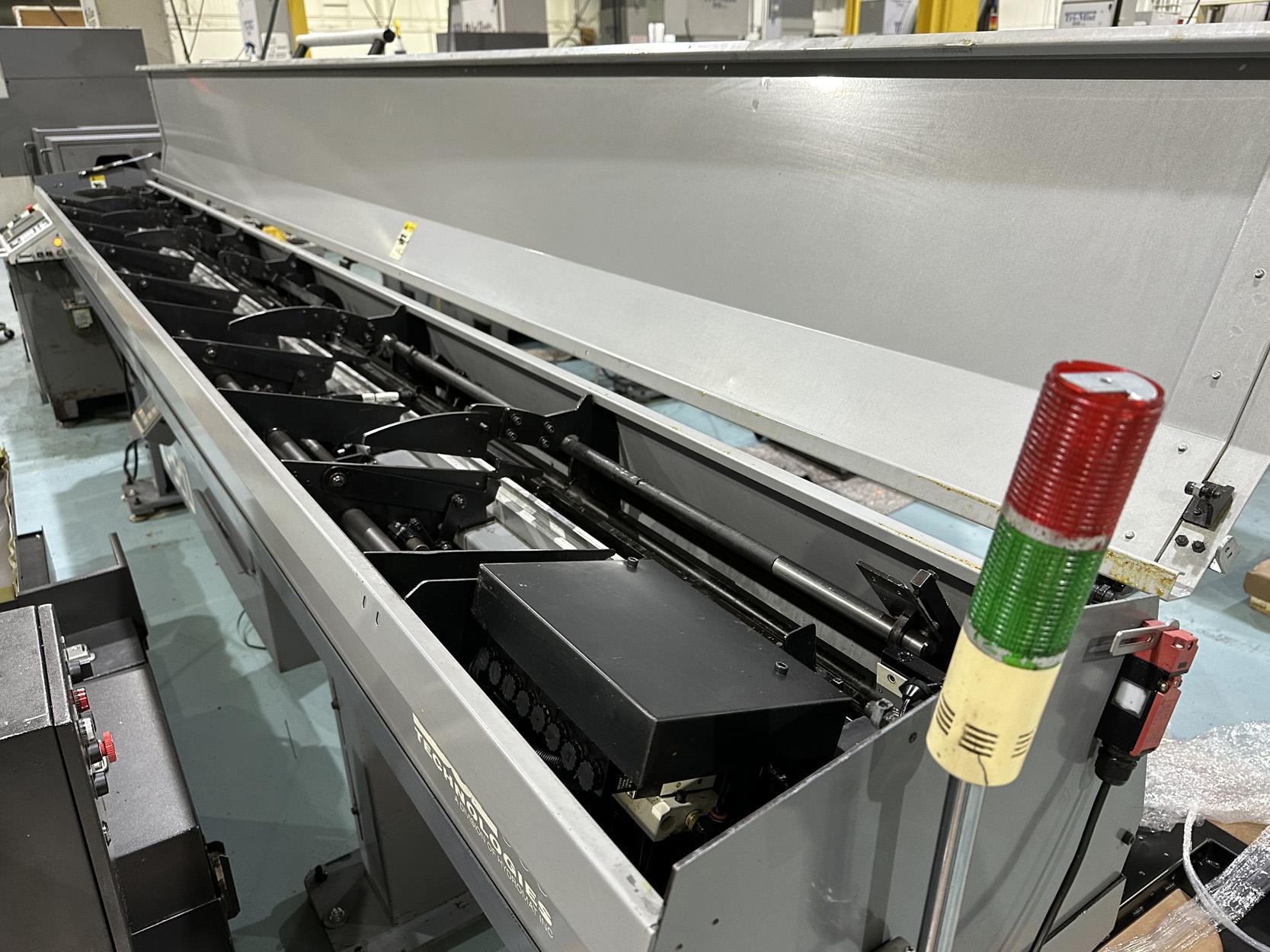

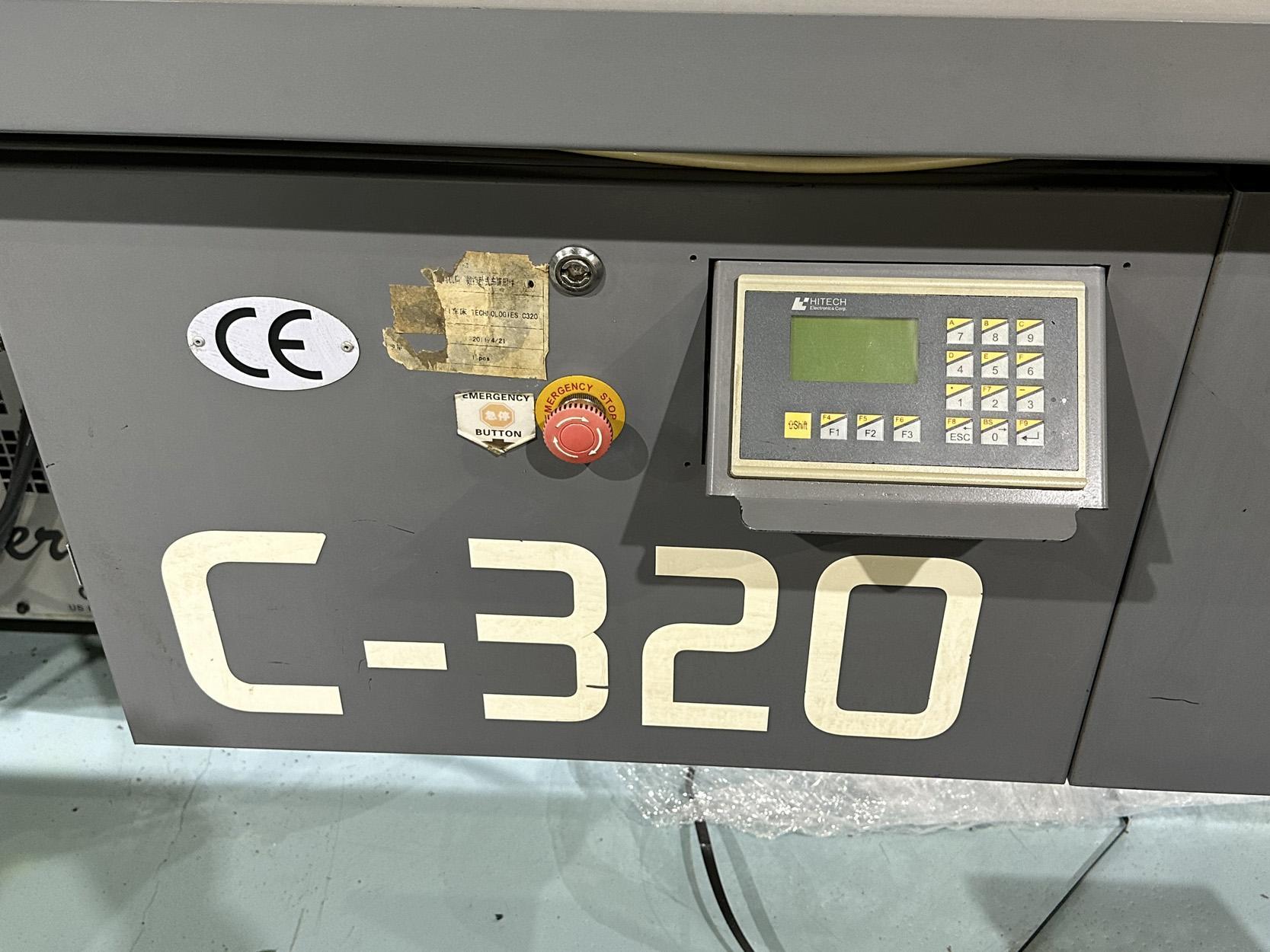

Edge Technologies C-320 Magazine Bar Feed (2010, s/n:C1200733072)
Lubrication System

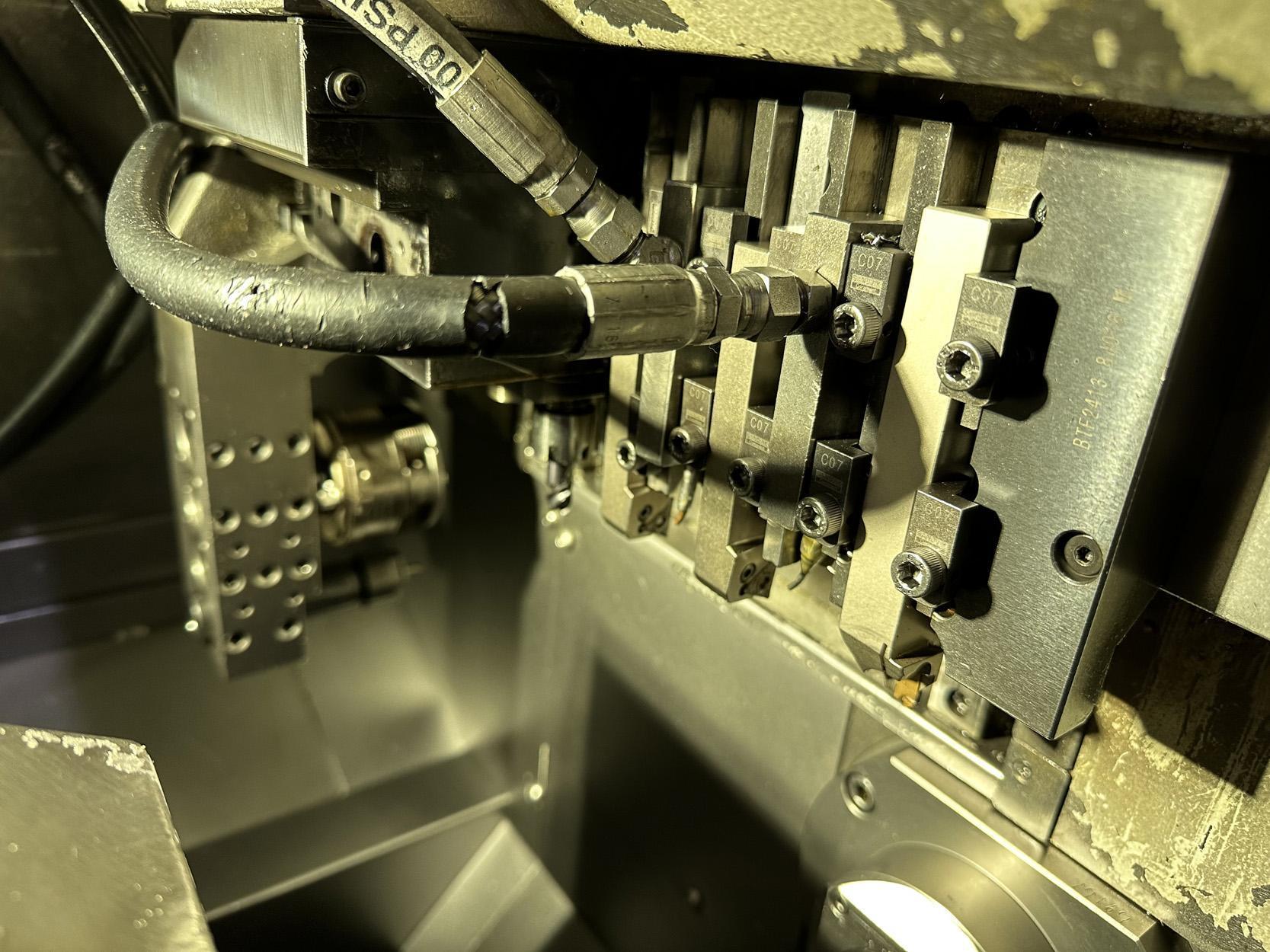

(7) Tools
Ports

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Machine Diameter:                              3/4" (20 mm)
Machine Length:                                6 1/2" (165 mm)
Front Drilling Diameter:                       1/4" (10 mm)
Front Tapping Diameter:                        M8
Spindle Hole:                                  1 1/4" (31 mm)
Main Spindle Speed:                            8,000 RPM
Live Tool RPM:                                 6,000 RPM
Chuck Dia (Back Spindle):                      3/4" (20 mm)
Back Spindle Speed:                            8,000 RPM
# of Tools Mounted:                            21
Turning Tools on the Gang Post:                5
Rotary Tools for Cross Machining:              4
Tools for Front Drilling:                      4
Tools for Back Drilling:                       8

Machine Dimensions:                            8.5' x 5.8' x 6'
Machine Weight:                                5,600 lbs
