160 ton Aida (Metric) Used Metal Stamping Press Model# NC2-160 (1) Double Crank Gap Press For Sale, Year 1995
Brand
Category
Model
NC2-160 (1) Double Crank Gap Press
Stock #
2827
Year
1995
Condition
Used
Location
Michigan
Price
$119,500.00
| Tonnage | 160 |
| Stroke | 5.12 inches |
| Shut Height | 18.4 inches |
| Adjustment | 3.9 inches |
| Bed Size | 75" LR x 27.6" FB |
| Ram Area | 59" LR x 22.8" FB |
| SPM | 40-85 VSPM |
|

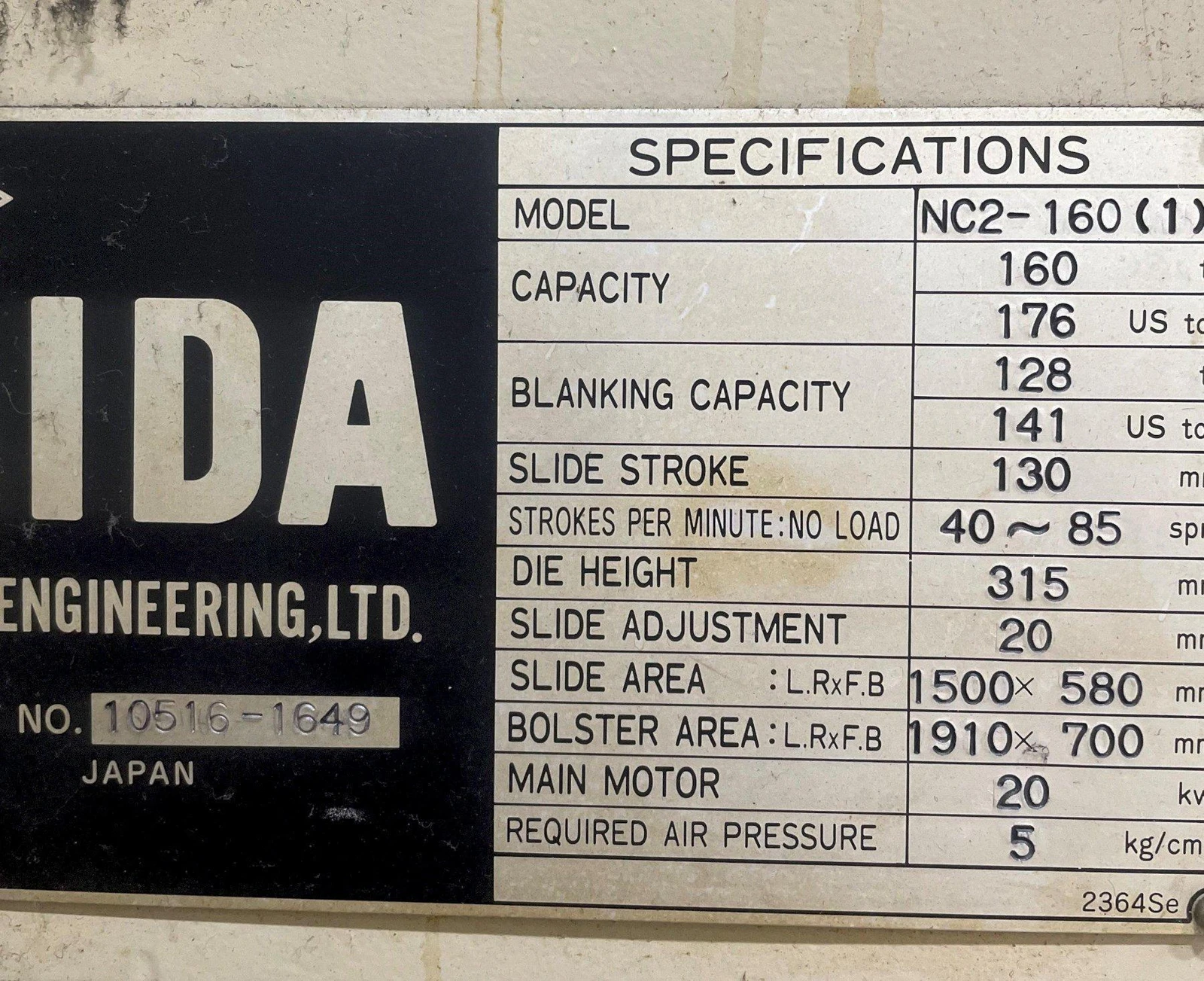

Standard Specifications
Used Aida Press Model NC2-160 (1) 160 ton Capacity (Metric) 5.12" Stroke 18.9" Shut Height on Bed 12.4" Die Height on Bolster .78" Motorized Adjustment 75.2" LR x 27.6" Bed Area 59" LR x 22.8" FB Slide Area 40-85 VSPM Equipment and Features Crank Motion 2 Point Press Air Counterbalances Recirculating Lube System Aida Wet Clutch and Brake 6-Point Full Length Bronze Hydraulic Overloads 6.5" Bolster Plate Flush Floor Mount INCLUDED NEW: Wintriss WPC 2000 Press Controls Max. Overall Height 10' 2" Tall
Used Metal Stamping 160 ton Aida Double Crank Gap Press can be inspected in the S&G Press Livonia Michigan Warehouse!! Boost your production with this used Aida Press Model NC2-160, a reliable 160-ton capacity metal stamping press. Featuring a robust 2-point crank motion design and Aida's renowned wet clutch and brake system, this press is built for durability and high performance. The 75.2" LR x 27.6" FB bed area provides ample space for large dies, while the new Wintriss WPC 2000 Press Controls offer modern safety and operational features. This used Aida press is equipped with hydraulic overloads, a recirculating lube system, and 6-point bronze gibs, ensuring long-term precision. This exceptional used metal stamping press can be inspected in our Livonia, Michigan warehouse. Contact S&G Press today to schedule your inspection! |
|
