Title: 160 ton Aida (Metric) Model # NC2-160 (1) Double Crank Gap Press, New 1995
Type: Presses, Gap Frame, Double Crank
Brand: AIDA
Model: NC2-160 (1) Double Crank Gap Press
Year: 1995
Message
Information

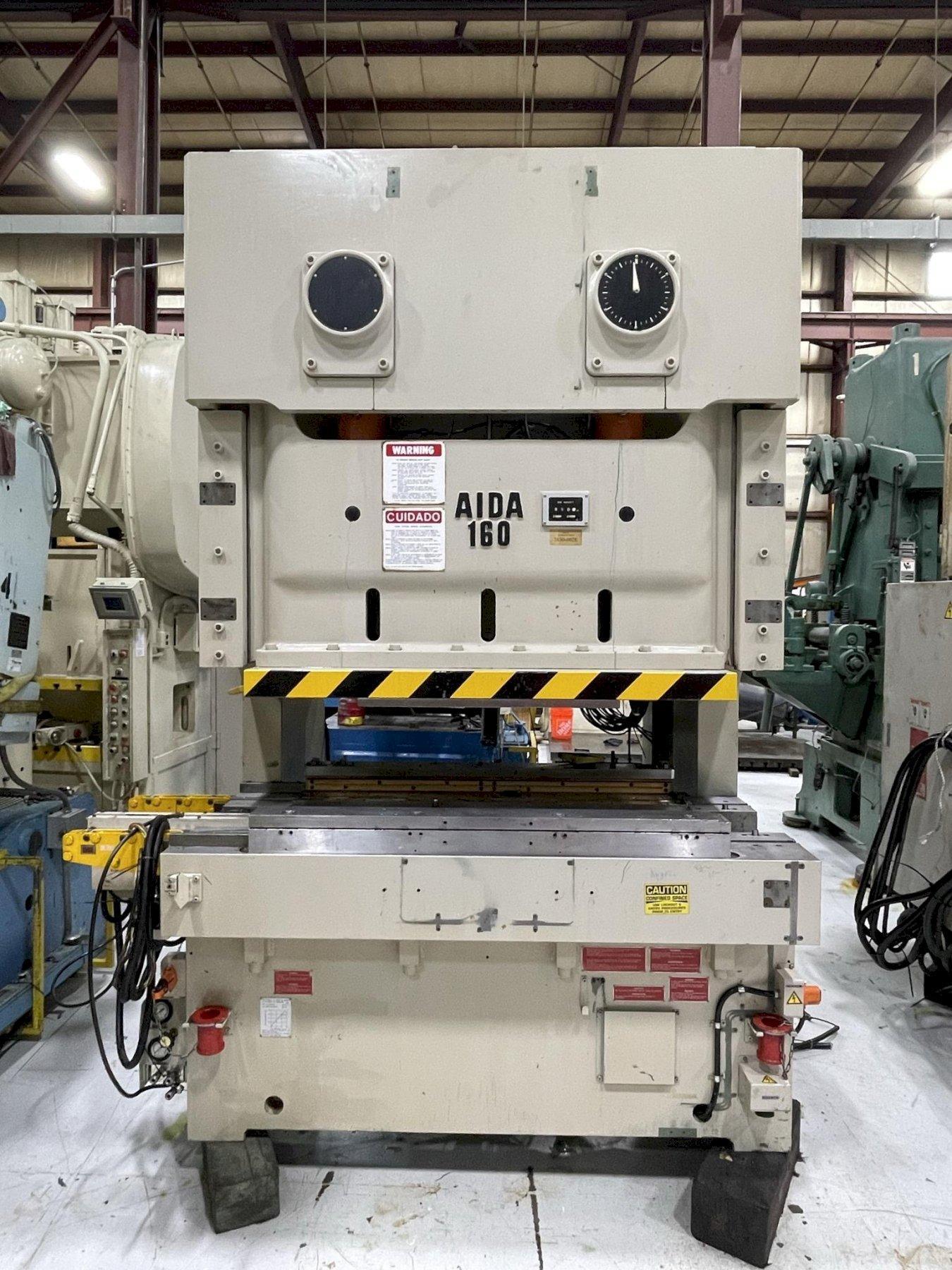

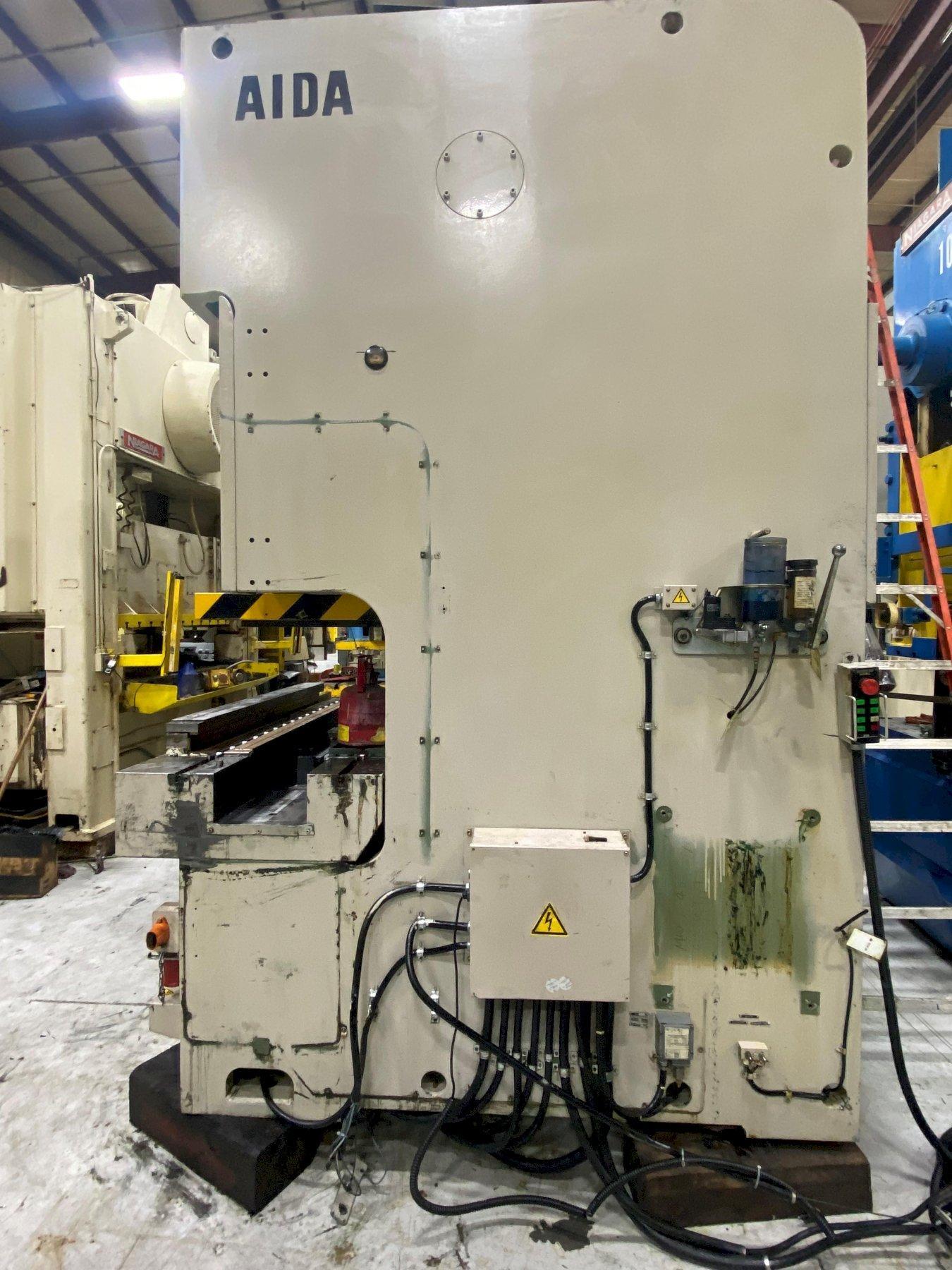

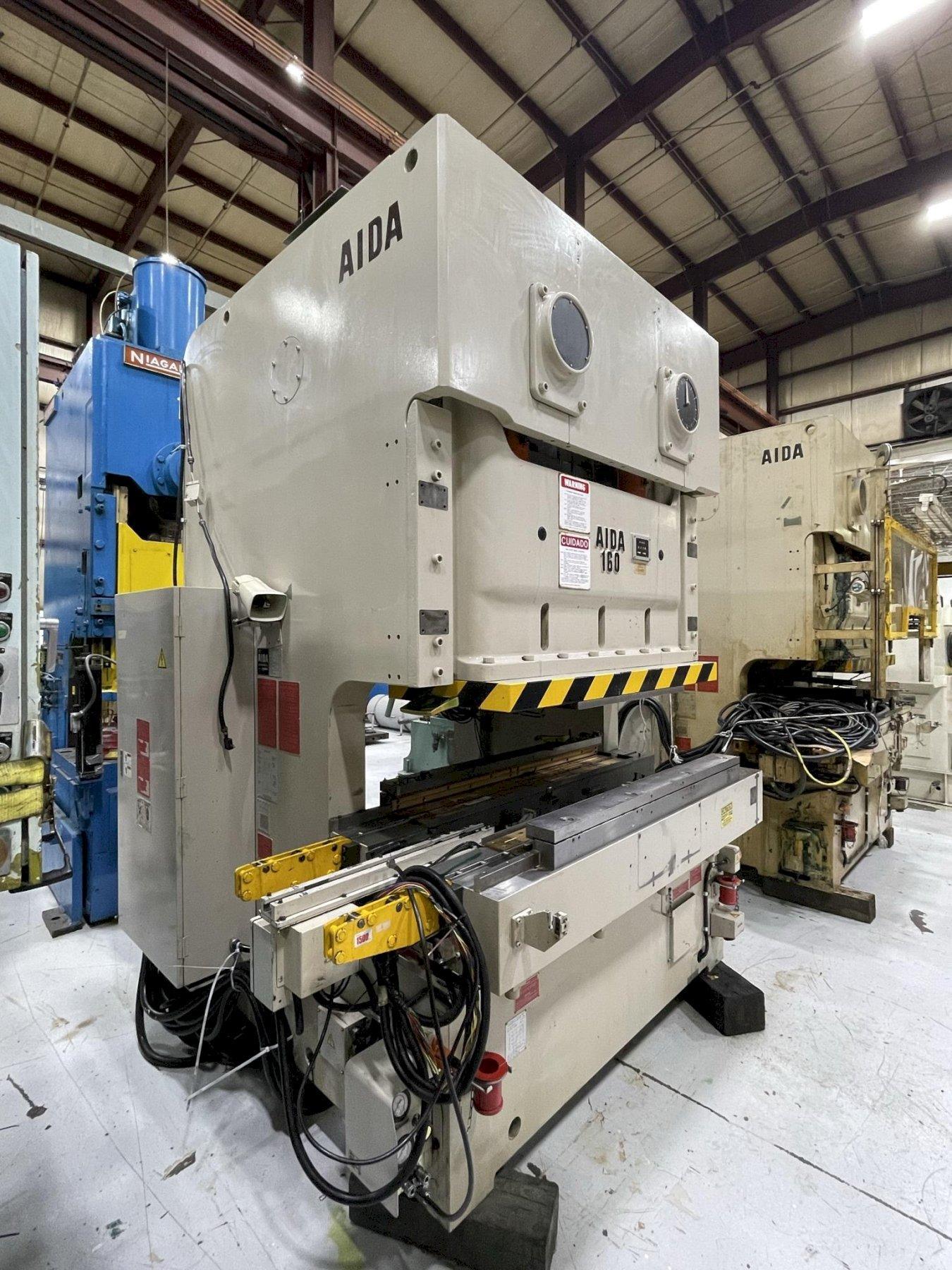

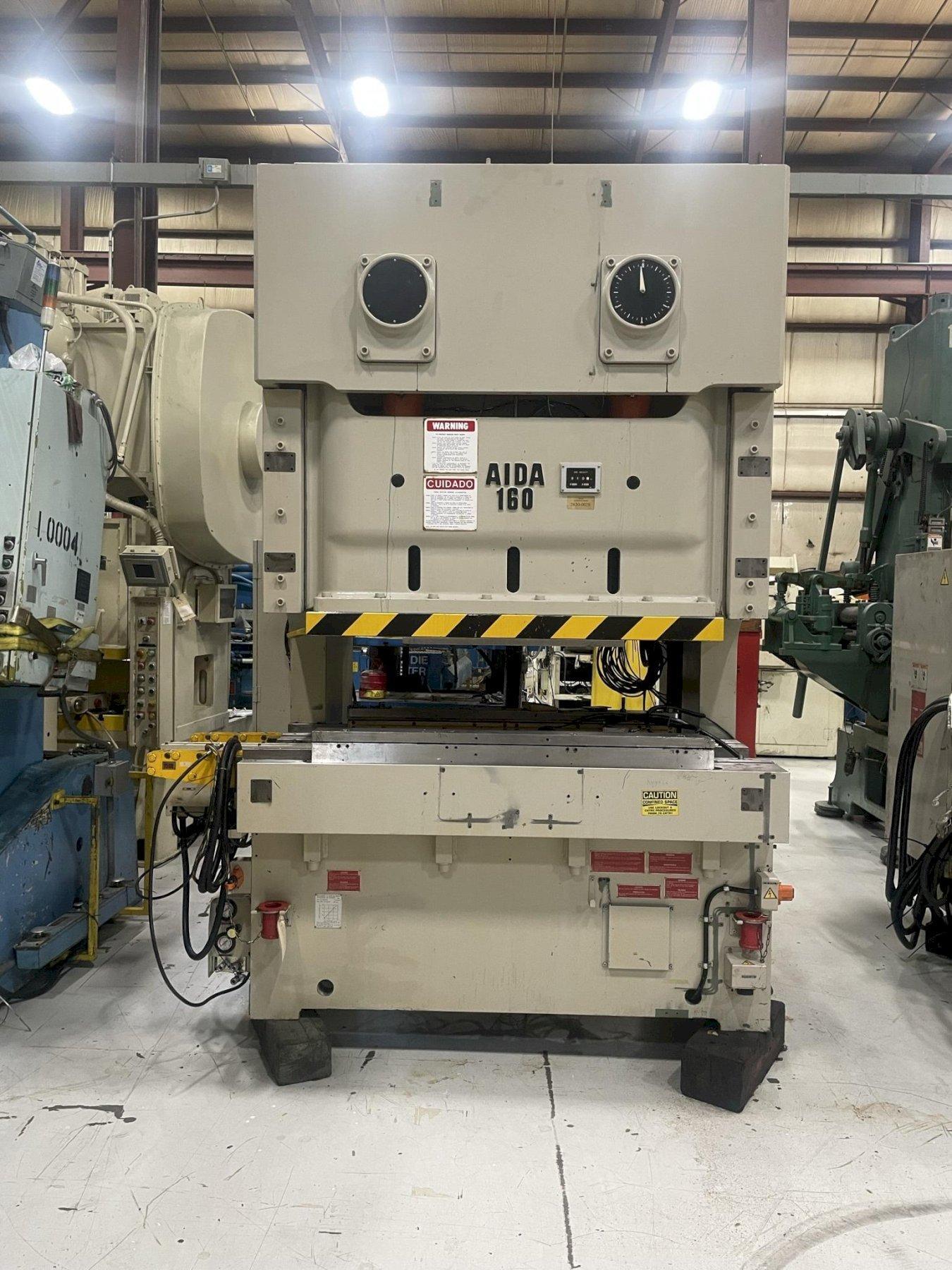

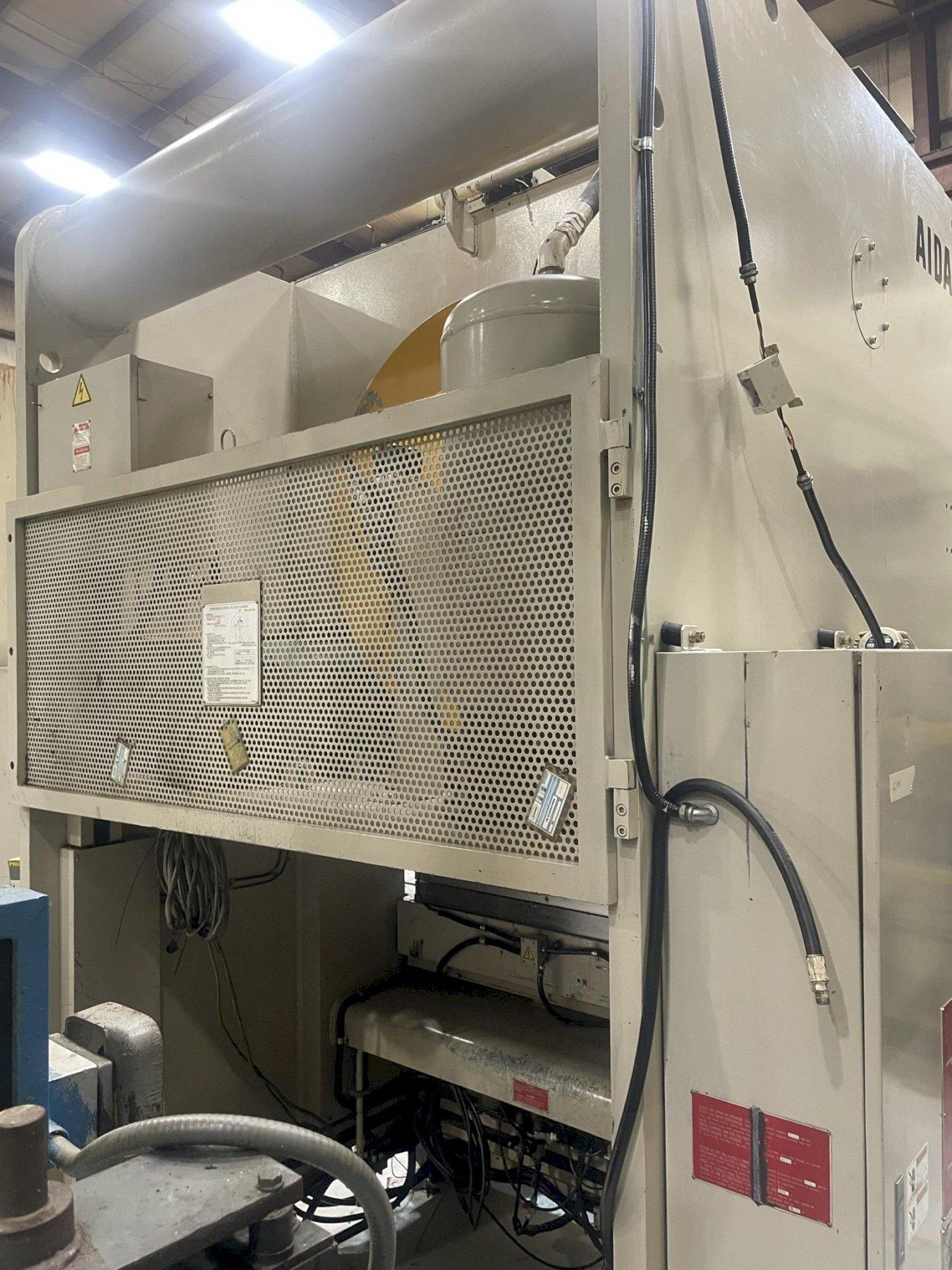

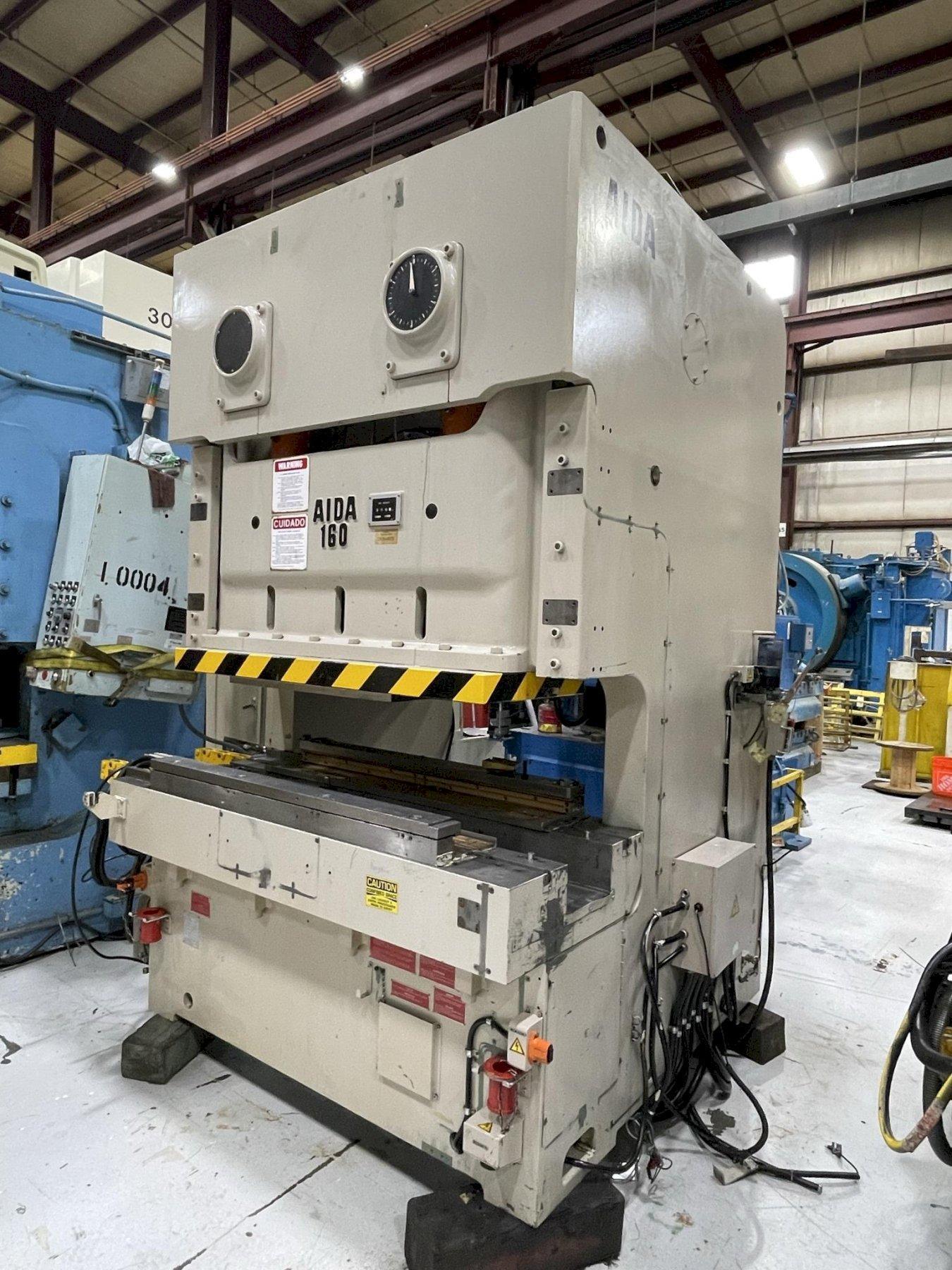

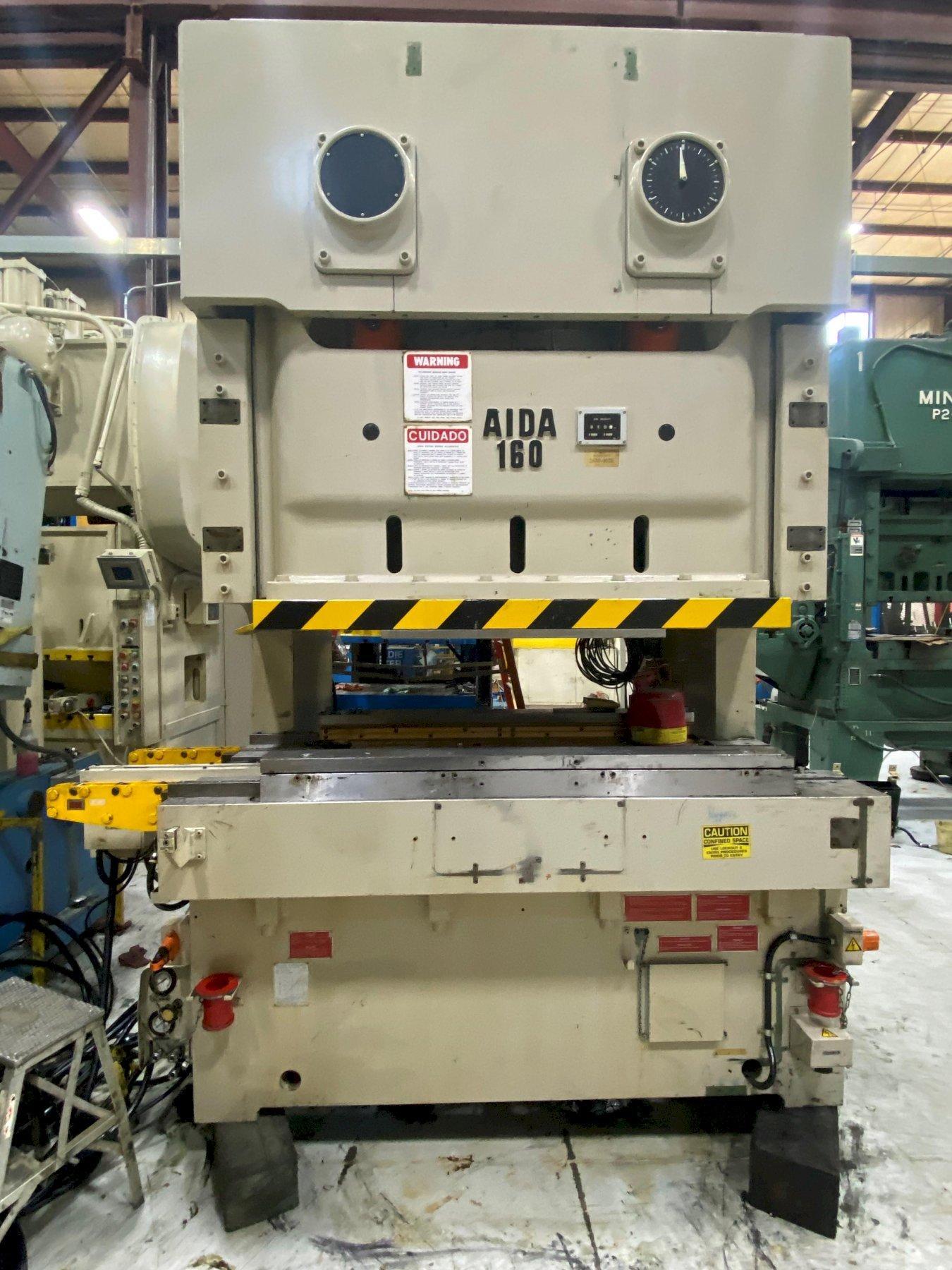

160 ton Aida (Metric) Model # NC2-160 (1) Double Crank Gap Press, New 1995

Brand
Model
NC2-160 (1) Double Crank Gap Press
Stock #
2825
Year
1995
Condition
Not specified
Location
Michigan
Tonnage 160
Stroke 5.12 inches
Shut Height 18.4 inches
Adjustment .78 inches
Bed Size 75" LR x 27.6" FB
Ram Area 59" LR x 22.8" FB
SPM 40-85 VSPM

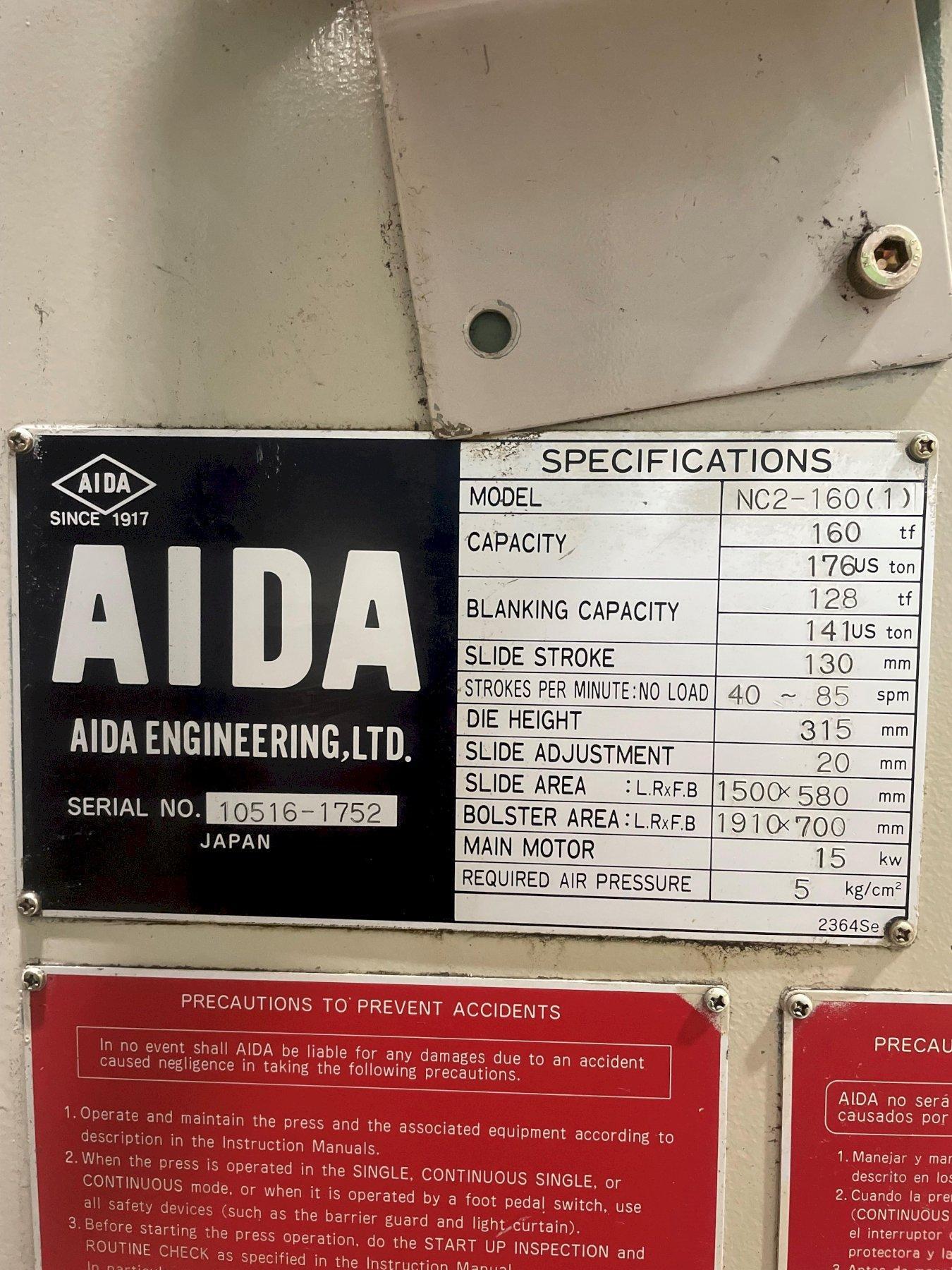

Standard Specifications
160 ton Capacity (Metric)
5.12" Stroke
18.9" Shut Height on Bed
12.4" Die Height on Bolster
.78" Motorized Adjustment
75.2"  LR x 27.6" Bed Area
59" LR x 22.8" FB Slide Area
40-85 VSPM

Equipment and Features
Crank Motion 2 Point Press
Air Counterbalances
Recirculating Lube System
Aida Wet Clutch and Brake
6-Point Full Length Bronze
Hydraulic Overloads
6.5" Bolster Plate
Flush Floor Mount
