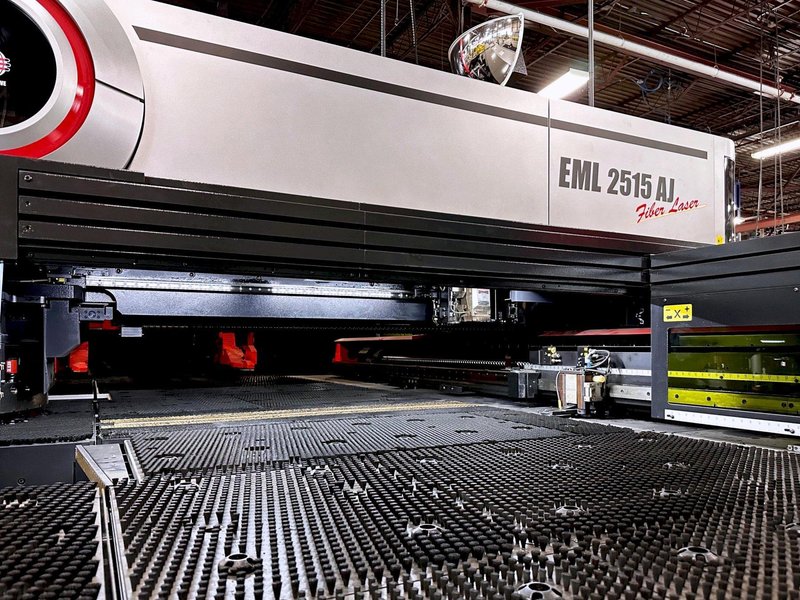

Punching Force | 33 Tons |

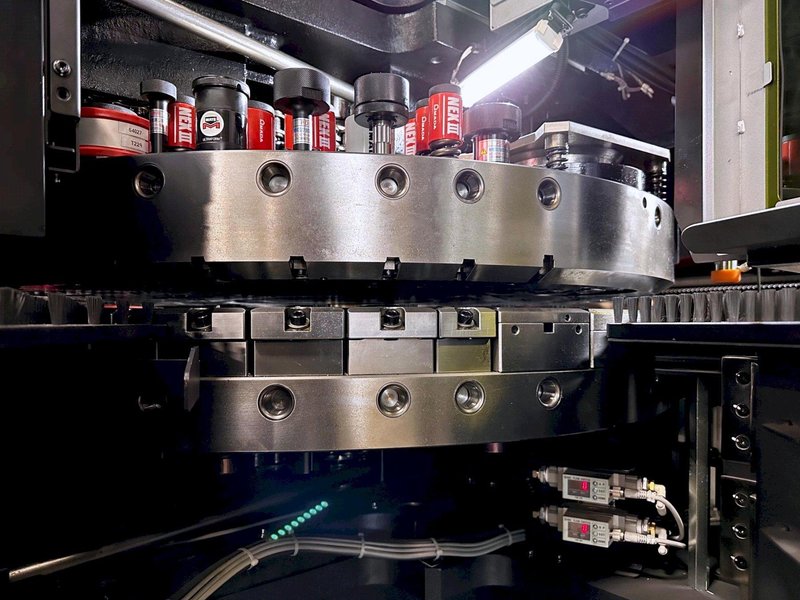

Tool Stations | 55 |

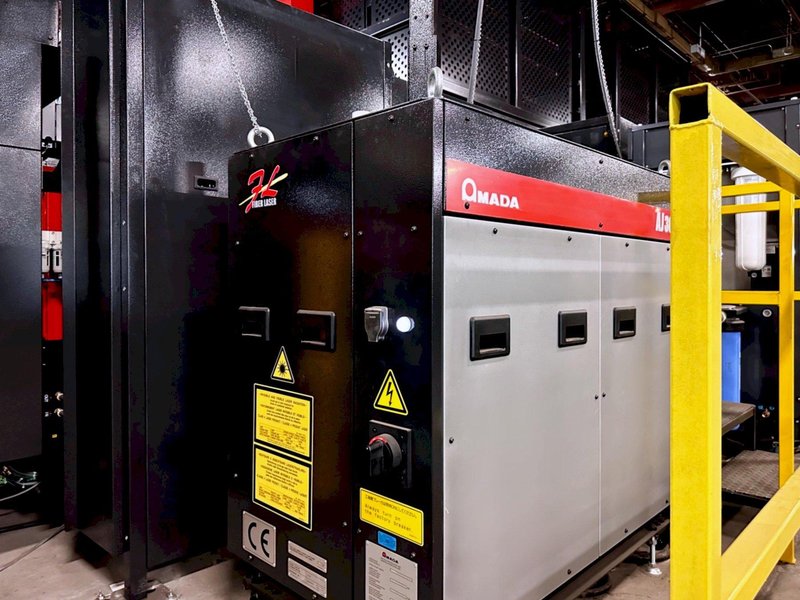

Continuous Laser Output | 3 KW |
Type | AJ 3000 Fiber |
Punching Operation (X/Y) | 120” x 60” |
Laser Operation (X/Y) | 100” x 60” |
Combined Working Area w/ Repo. | 60” x 120” |
Z Axis Laser | 14.9” |
Max. Material Thickness | .250” |
Table Loading Weight | 480 Lbs. |
Traverse Speed (X/YP) | 3.937/3.149 IPM |
Assist Gas Change | Automatic |
Laser Axis (YL) | 3,149 IPM |
Axis Simultaneously | 5,031 IPM |
Z Axis Simultaneously | 2,362 IPM |
Punching Accuracy | +/-0.0027” |
Included Rotation Stations | 4 |
Stroke (Adj. to Suit Application) | 1.5” |
Punch Rate (On I" Centers) | 500/min. |
In Marking Mode | 1850/min. |

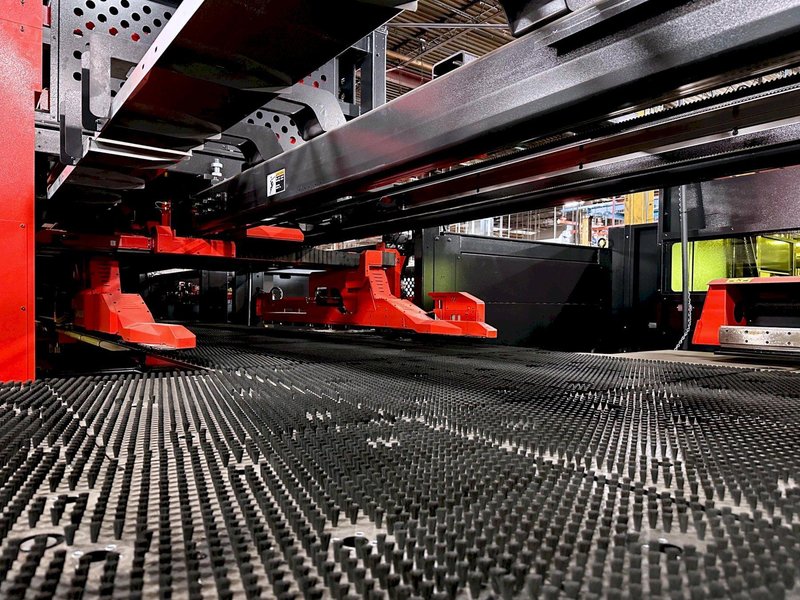

Table Design | Brush Table |
Parts Chute | 15.75” x 60” |
Machine Frame | Bridge Frame |
Press Drive | Servo Electric Drive |
Turret /Table Drive | AC Servo Motors |

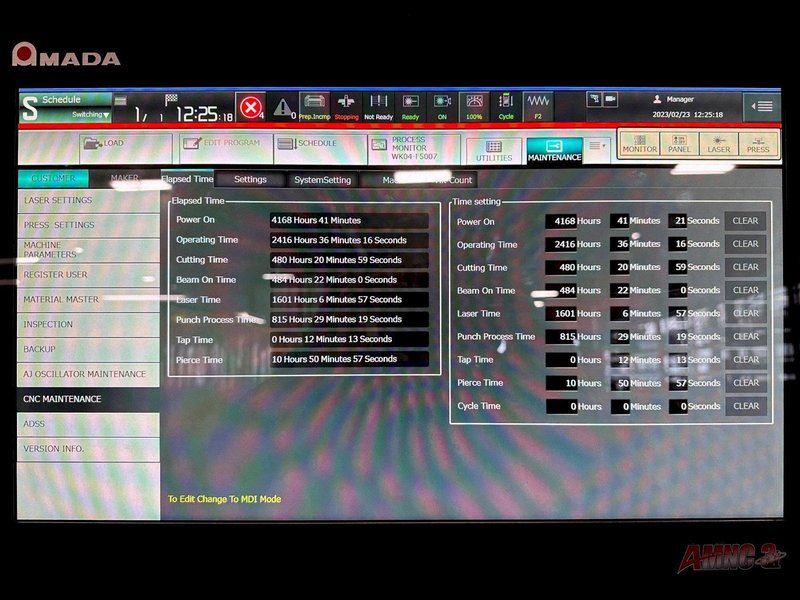

Control | AMNC 3i |
Storage Capacity | 440kB |
Number of Controlled Axes | 6 |
Machine Weight | 33 Tons |
Equipped With:

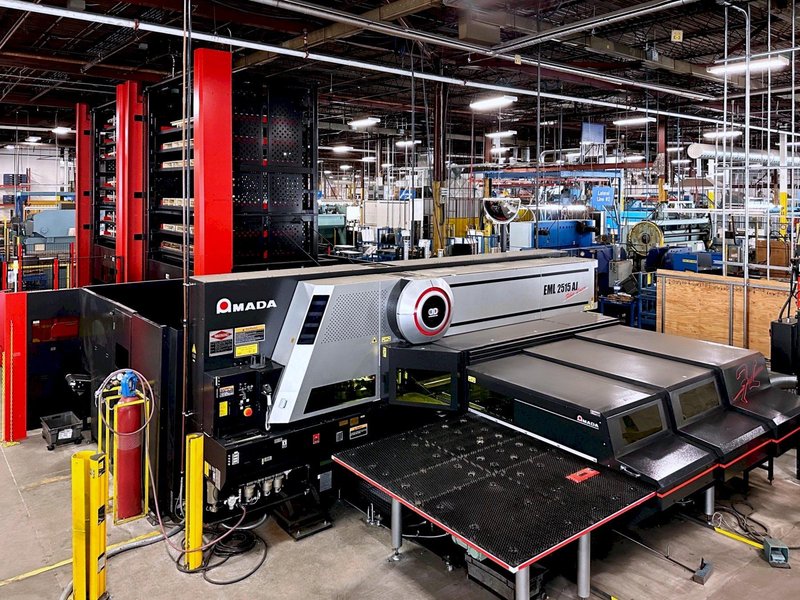

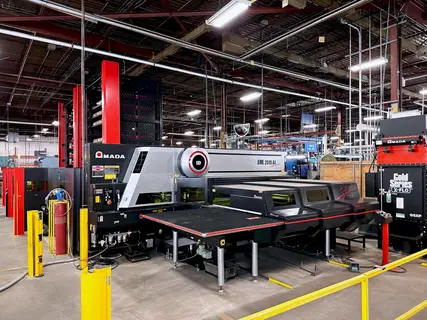

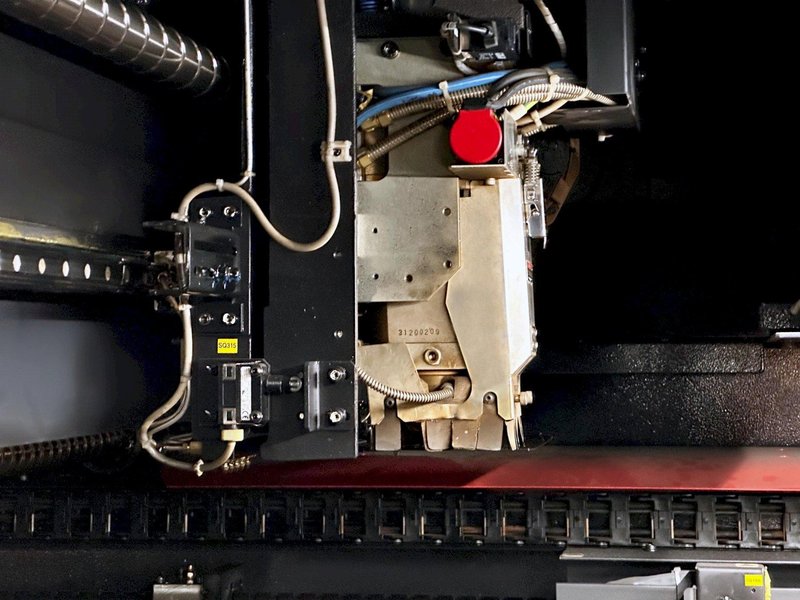

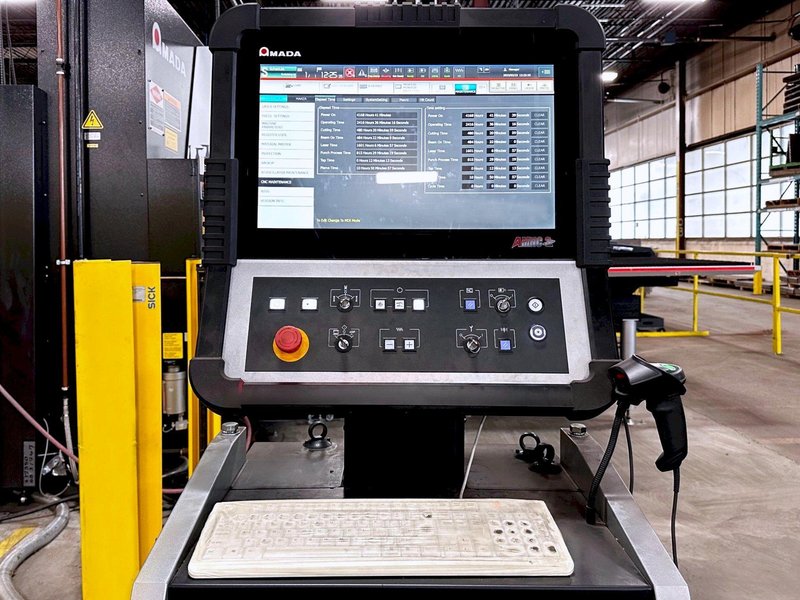

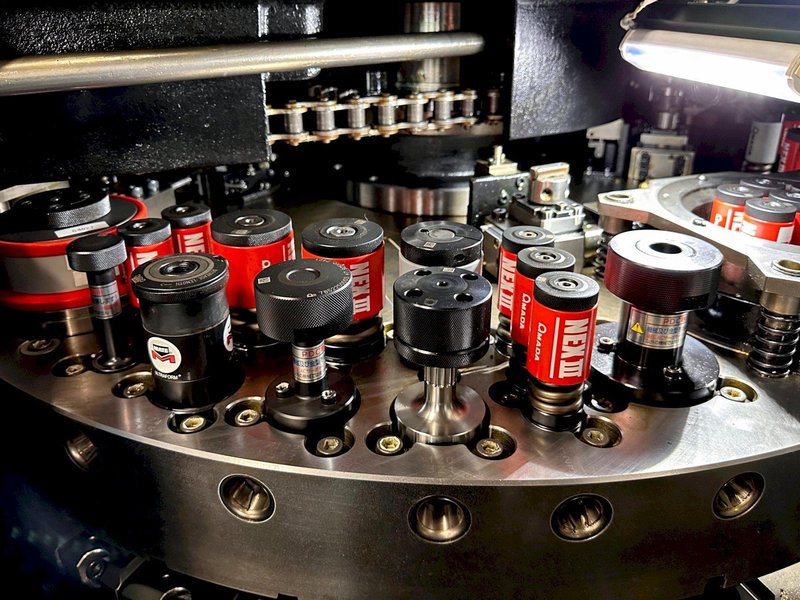

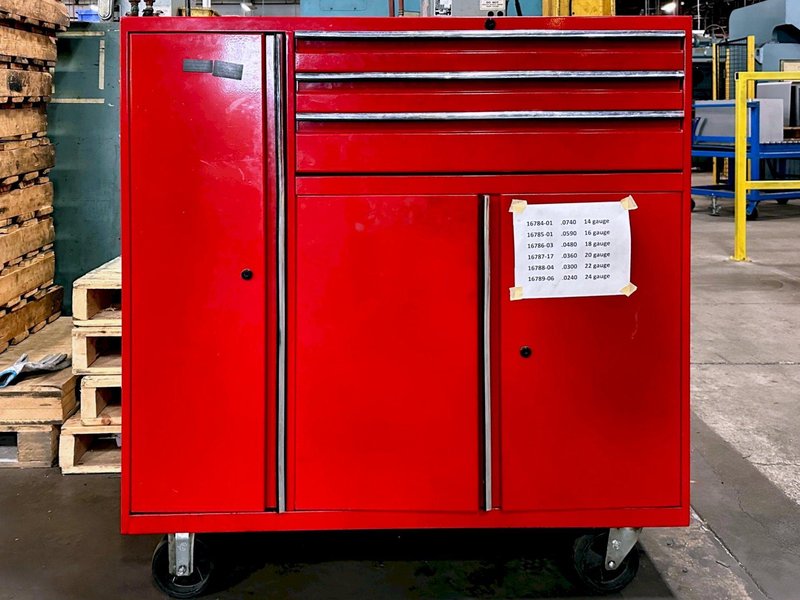

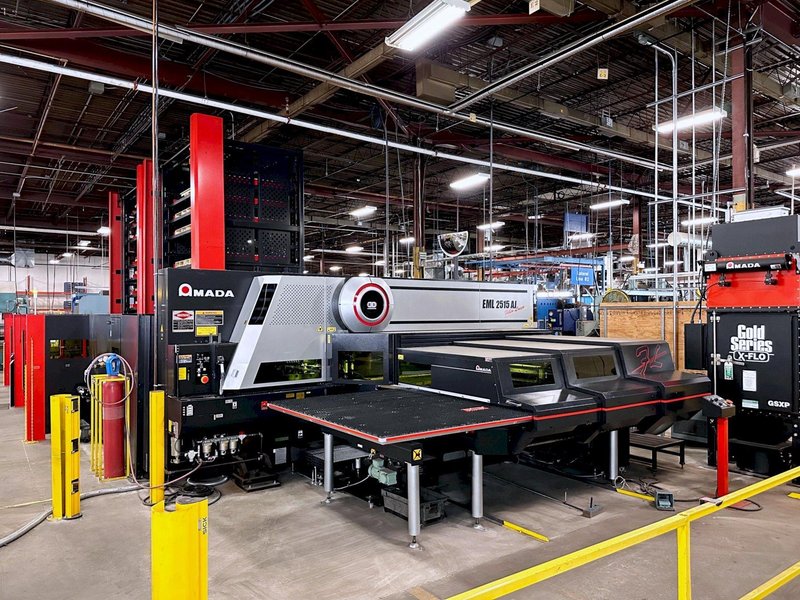

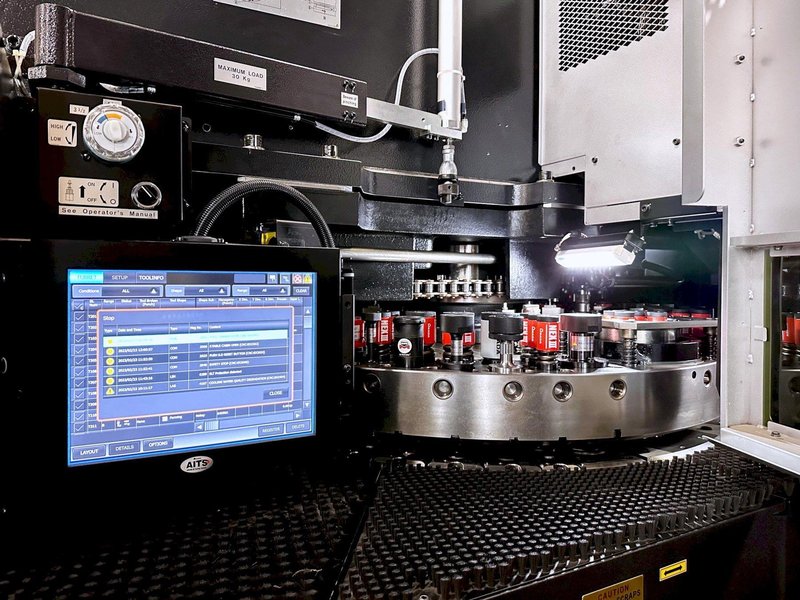

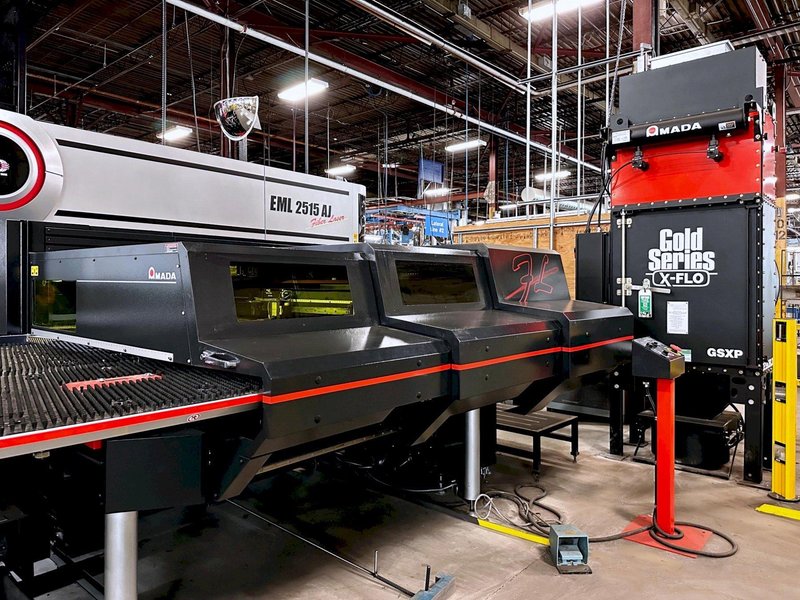

Punch / Laser Combo Amada Multi-Touch AMNC 3i Controller Bar Code Reader 3KW AJ Fiber Engine Auto Nozzle Cleaner & Changing Station 33 TNF (US) Dual AC Servo Ram Drive 55 Station MPT Triple Track Turret Nylon Brush Table Punch & Form Feature 4 Tapping Stations Air Blow Power Vacuum Die Automatic Work Chute Scrap Conveyor High Density Nylon Brush + Pneumatic Roller Ball Table Interlocked Perimeter Safety Guarding Transformer Unit (75 KVA) Integrated Chiller System Camfil Gold Series X-Flow GSXP Dust Collector Punch Tooling Package ($45,000) Punch Tooling Cabinet

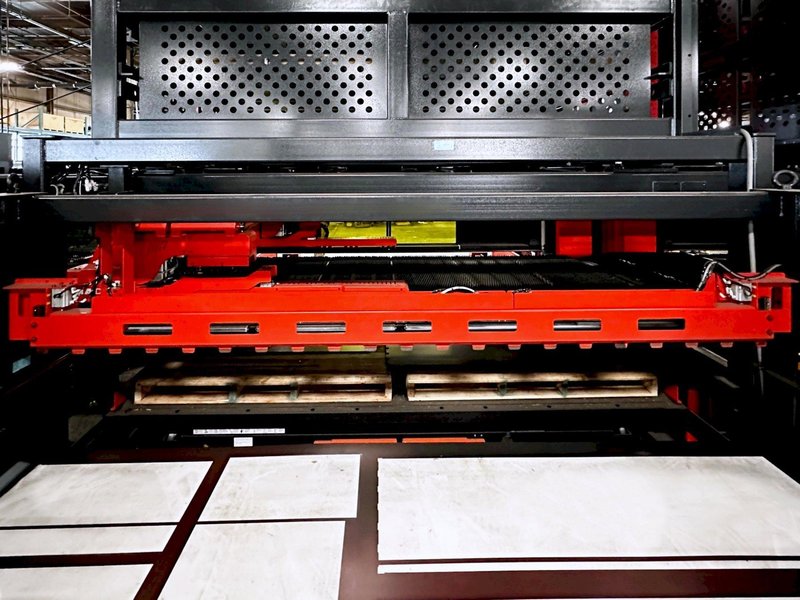

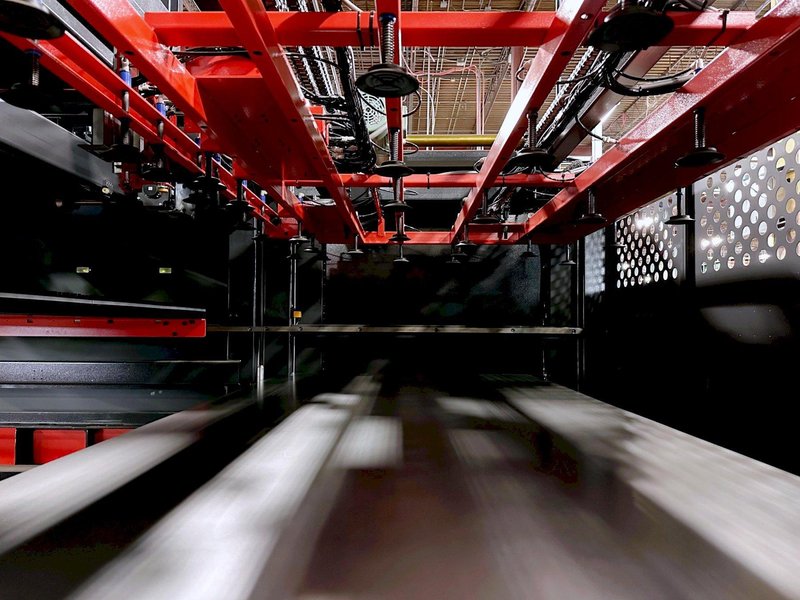

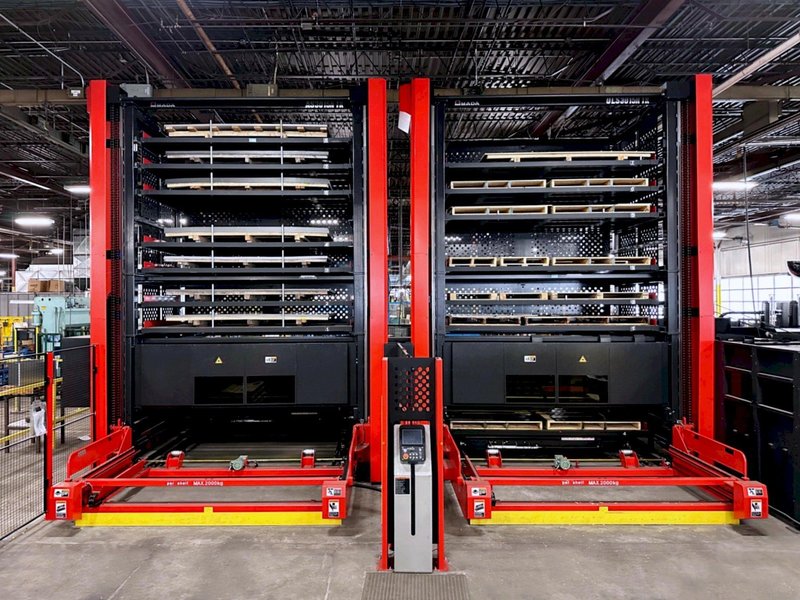

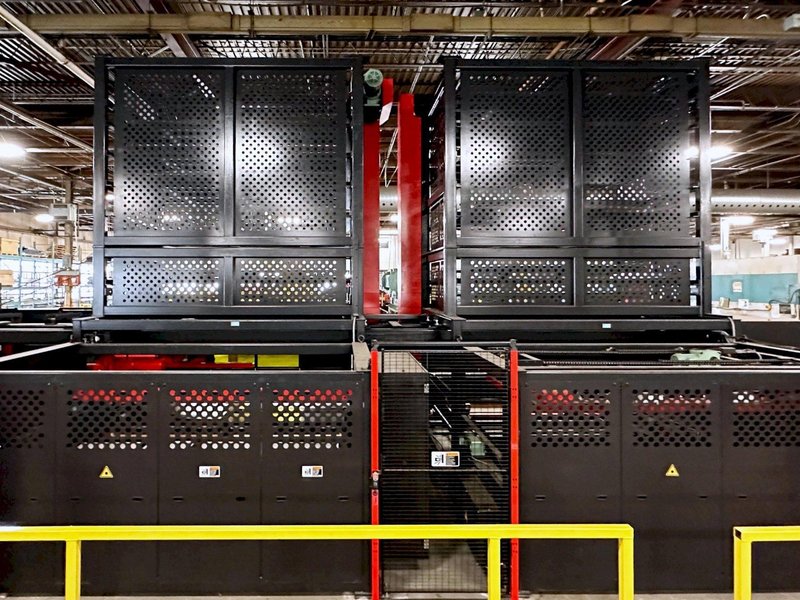

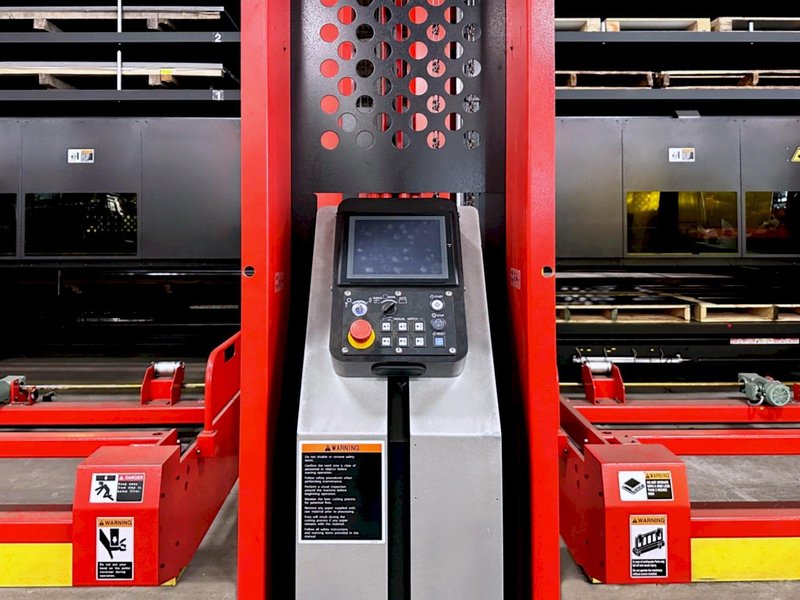

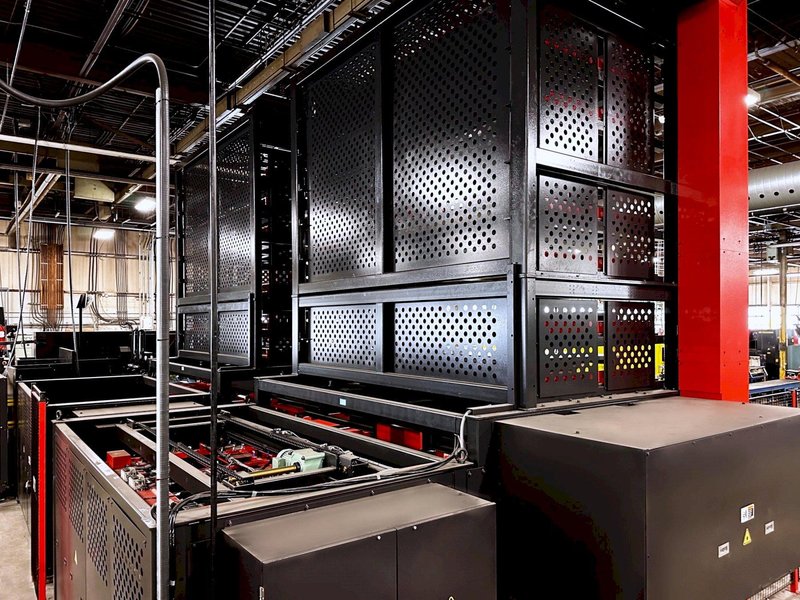

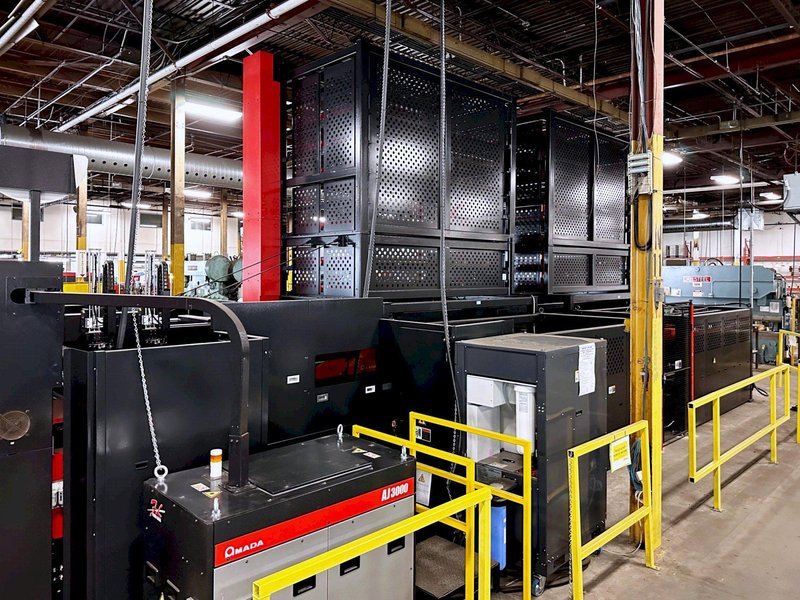

Automation: Amada ASR3015N+ULS3015N-TKPK - 16 Shelf Load / Un-Load Automation + Robotic Part Picking, Sort & Stack System (Twin Tower)

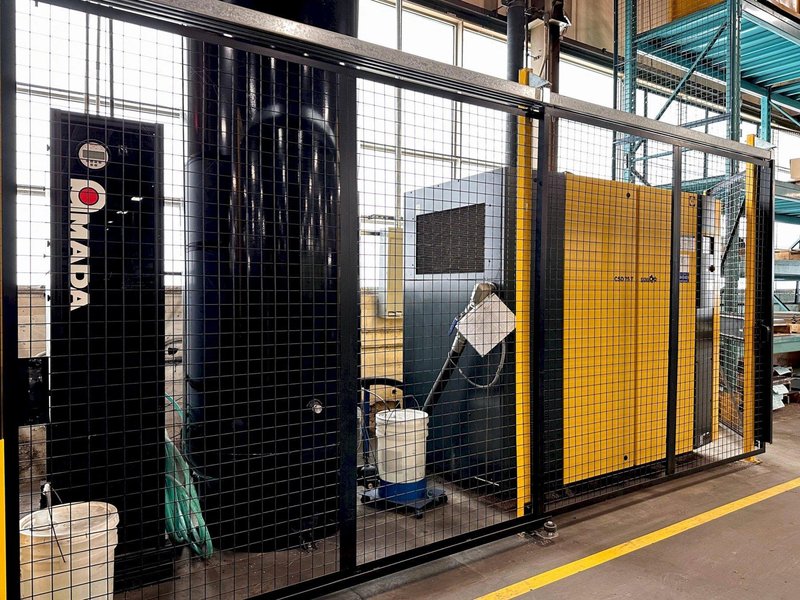

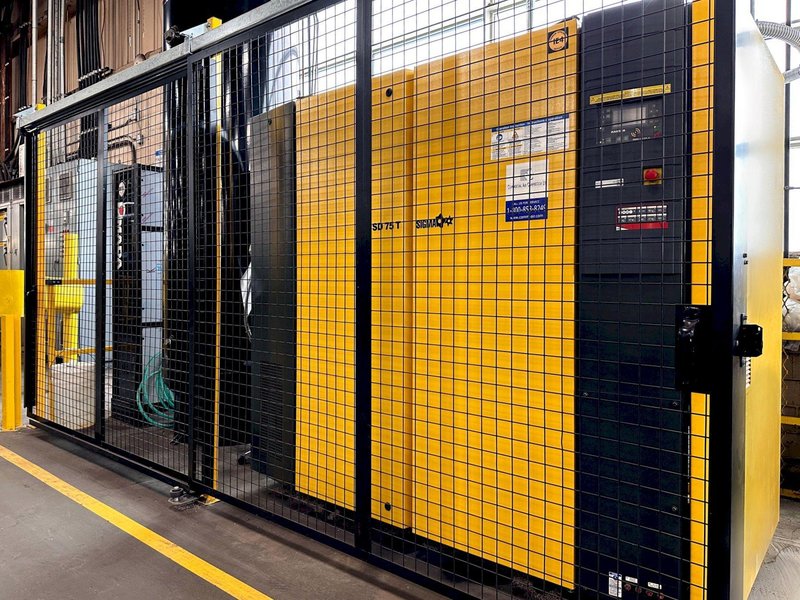

Nitrogen / High Pressure Air System: Amada EZM-1500A / 75 HP Nitrogen Generation Assist Gas / High Pressure Air System (N2 Gen w/75 HP Comp, 2000 SCFH @ 99% pure - 5000 SCFH @ 95% pure, 1800 SCFH Dry Air Assist Gas, 205 PSI delivery, 600 Vac 3PH) Includes Transformer

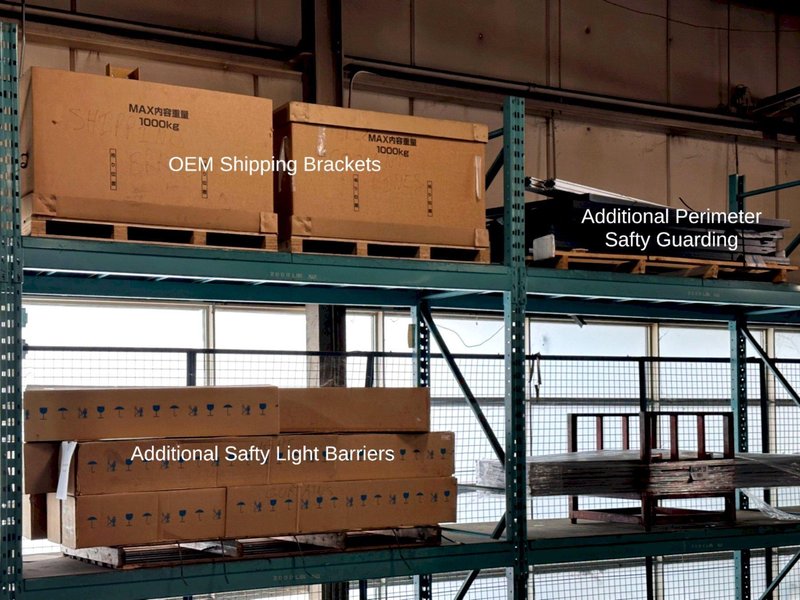

Additional Items Included: Sick Safety Light Barriers Perimeter Safety Guarding OEM Shipping Brackets Full Set of OEM Operating Manuals Laser & Turret Spare Parts Laser Consumable Nitrogen / High Pressure Air System Spare Parts Nitrogen / High Pressure Air System Consumables
|
