DCP 500-Ton Cold Chamber Die Cast Machine

Brand
Model
500 TON
Stock #
115650
Year
Not specified
Condition
Used
Location
Not specified

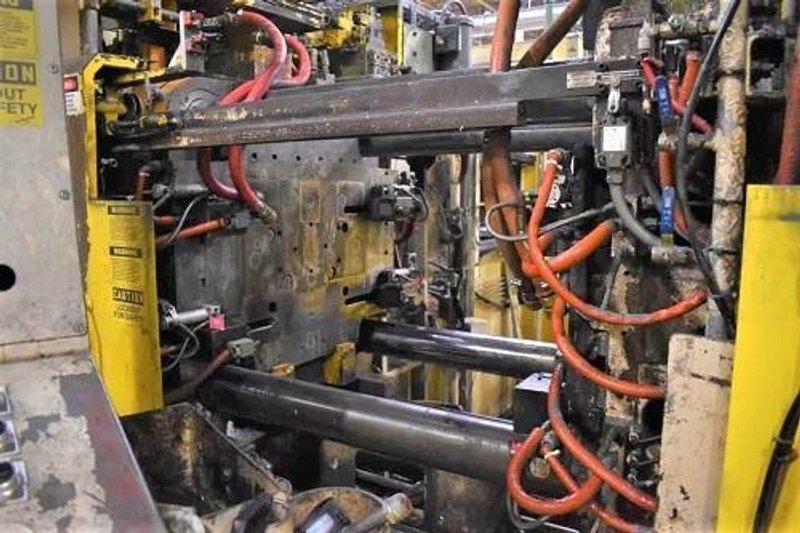

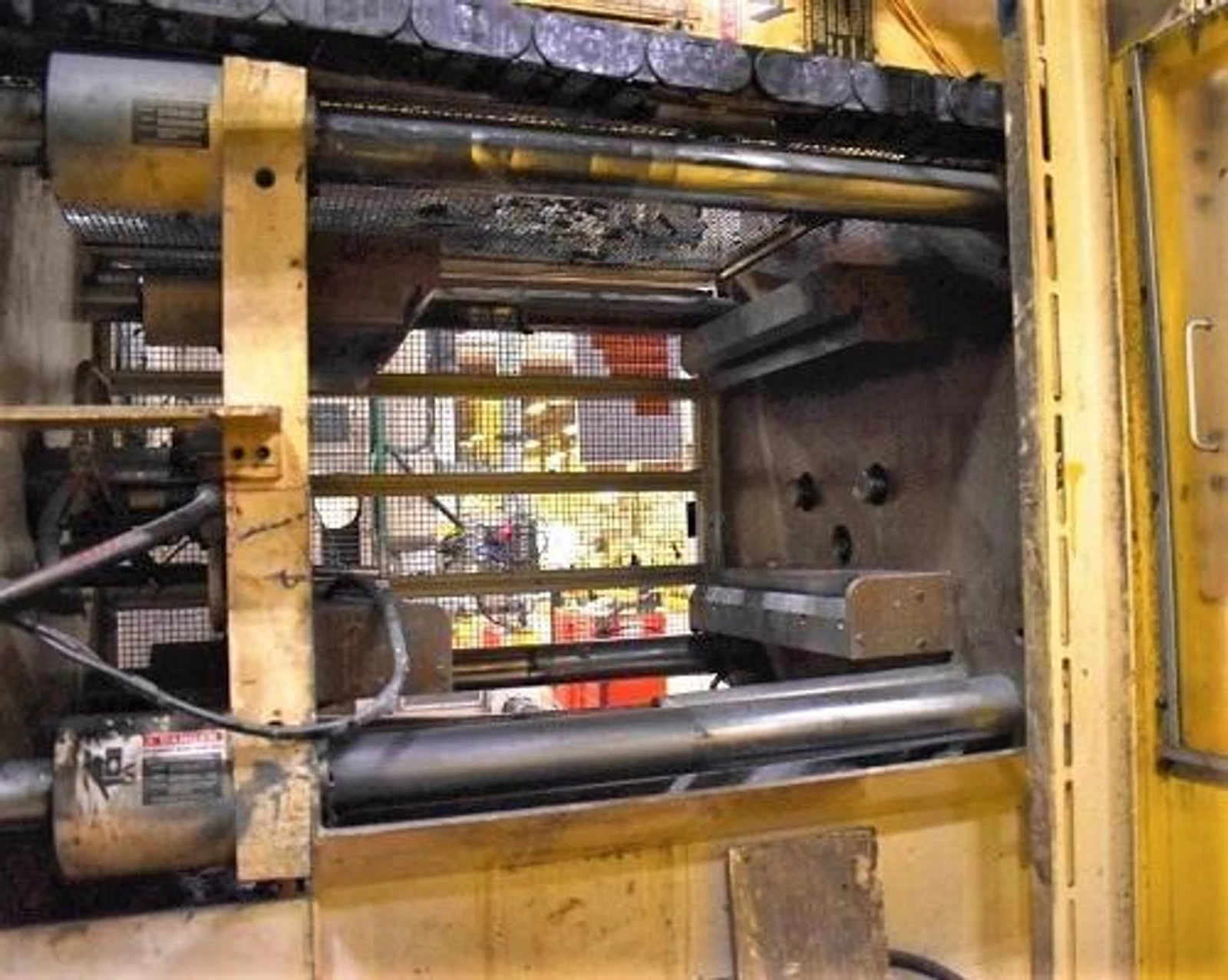

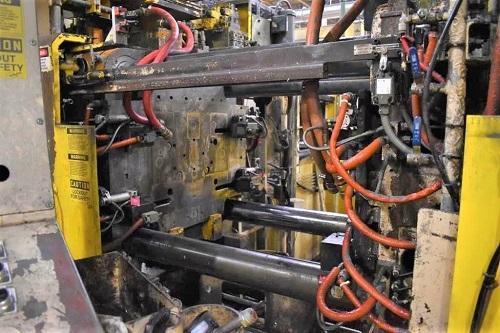

DCP 500-Ton Cold Chamber Die Cast Machine (New 2016)


UBE AS-5-22.8-40-V 500-Ton Die Cast Machine,
(WO# 14121; Rebuilt by DCP in 2016),
Nomial Locking Force: 500-Ton,

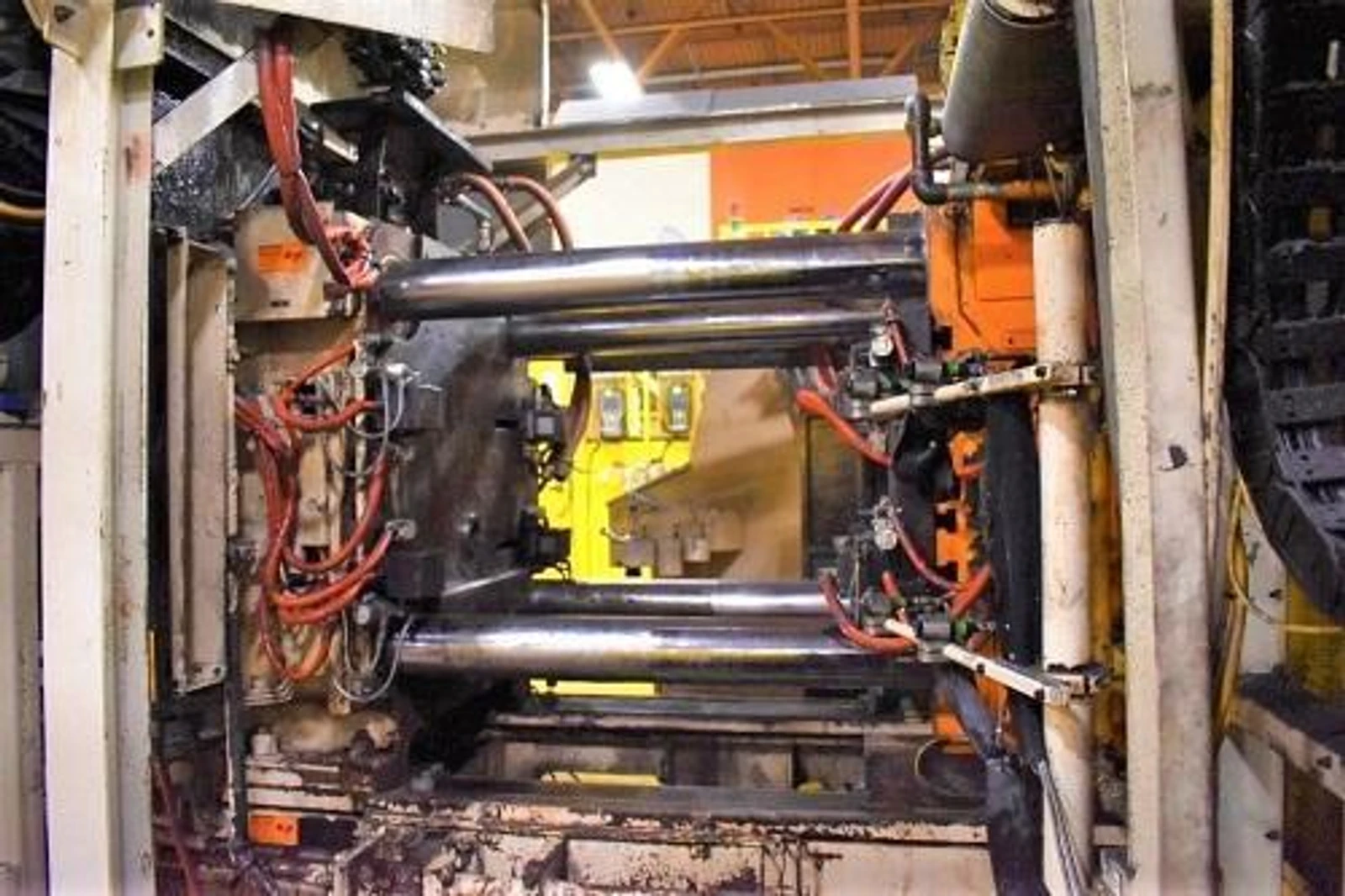

Distance Between Tie Bars: 26" x 26" (660mm x 660mm),
Platen Dimensions: 42" x 42" (1070mm x 1070mm),
Tie Bar Diameter: 5.5" (140mm),

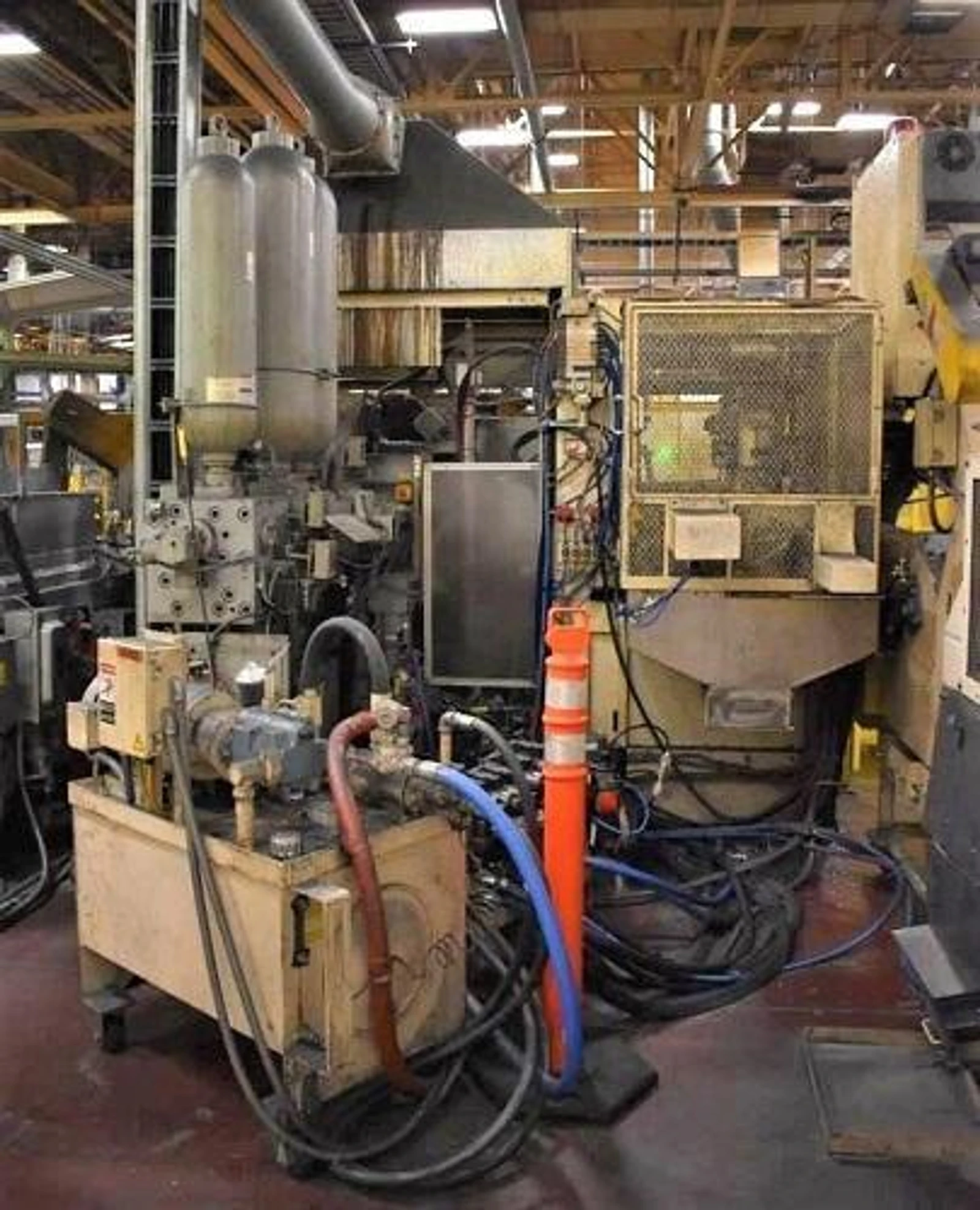

Pump Motor: 50-HP (460-Volt),
Die Thickness: 12" - 32" (310mm to 810mm),
Die Stroke: 22" (560mm),

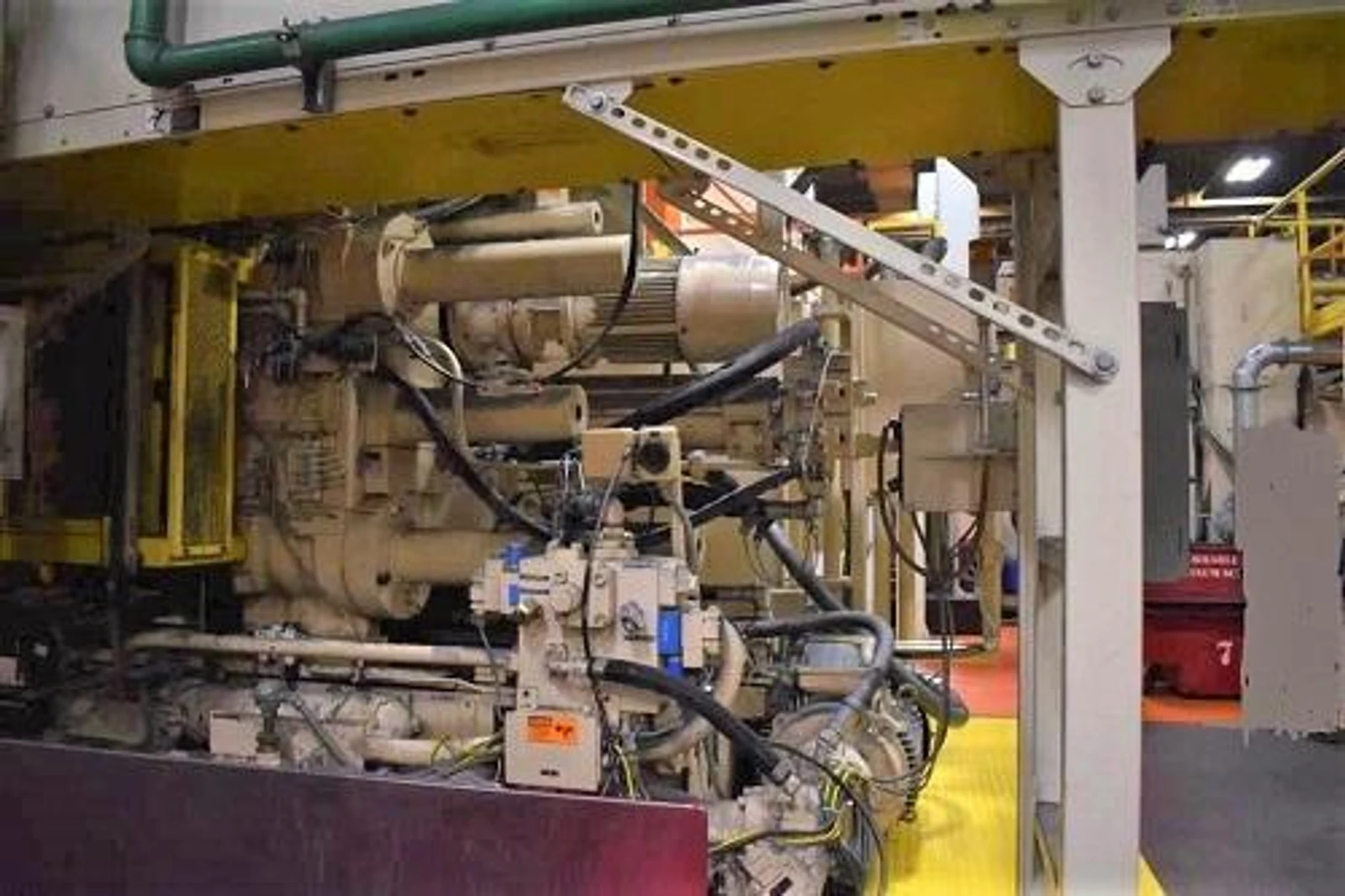

Shot Cylinder Stroke: 16.8" - 22.8",
Shot Cylinder: 5" Bore,
3.5" Rod,
Shot Position: 7" (175mm),
Ejection Cylinder: 6.7"
Bore x 3.15" Rod; 4.1" Bore x 4.3" Rod,
Initial Shot Cylinder Force (@ 1500-PSI: 14.5-Ton, Final (Intensified)
Shot Cylinder Force (@ 4500-PSI): 44-Ton,

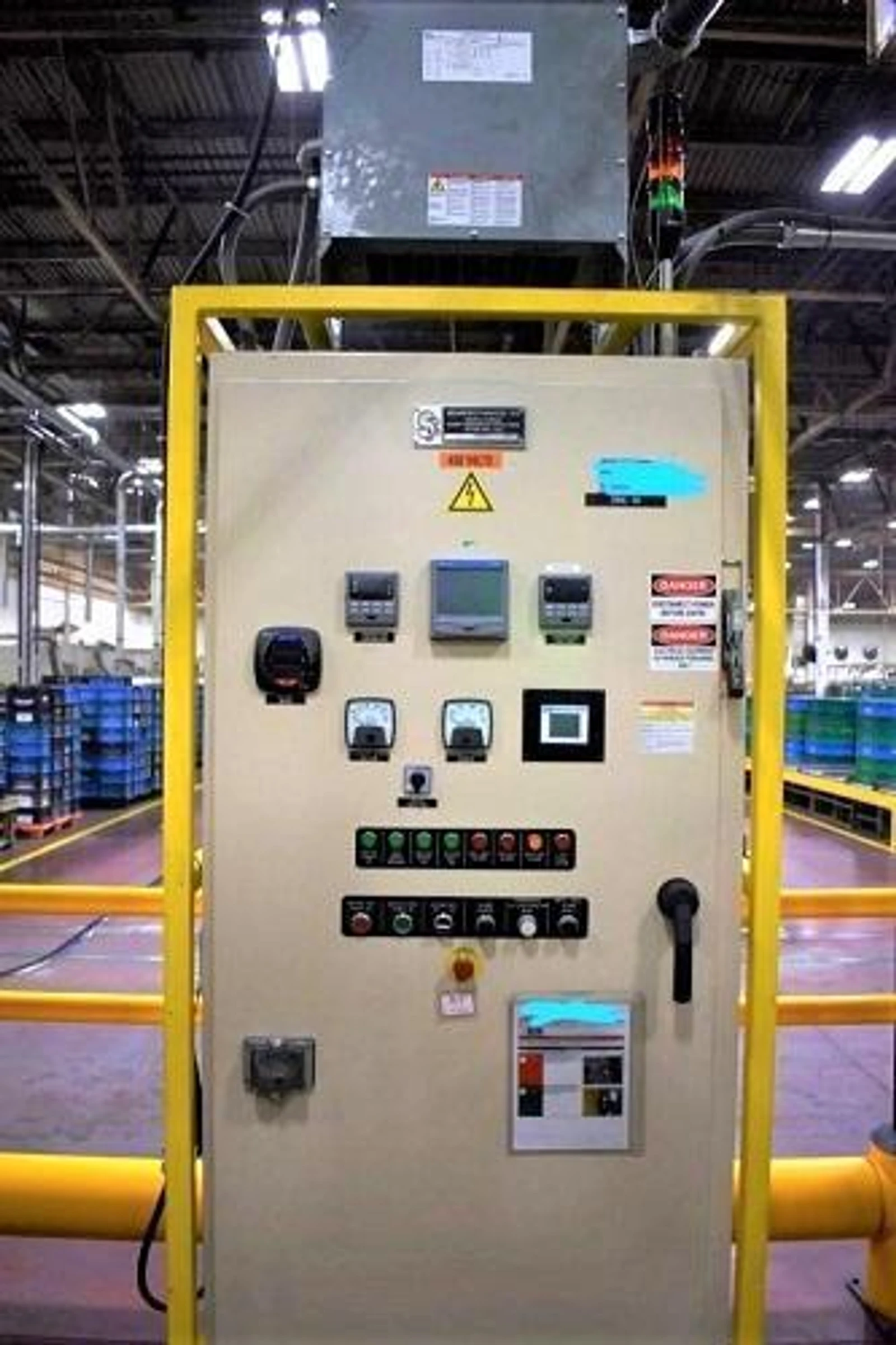

Ejection Force: 24-Ton, with Schaefer Melt Furnace (S/N 7-1019-1148; New 2020;
Asset #PDC-1865),

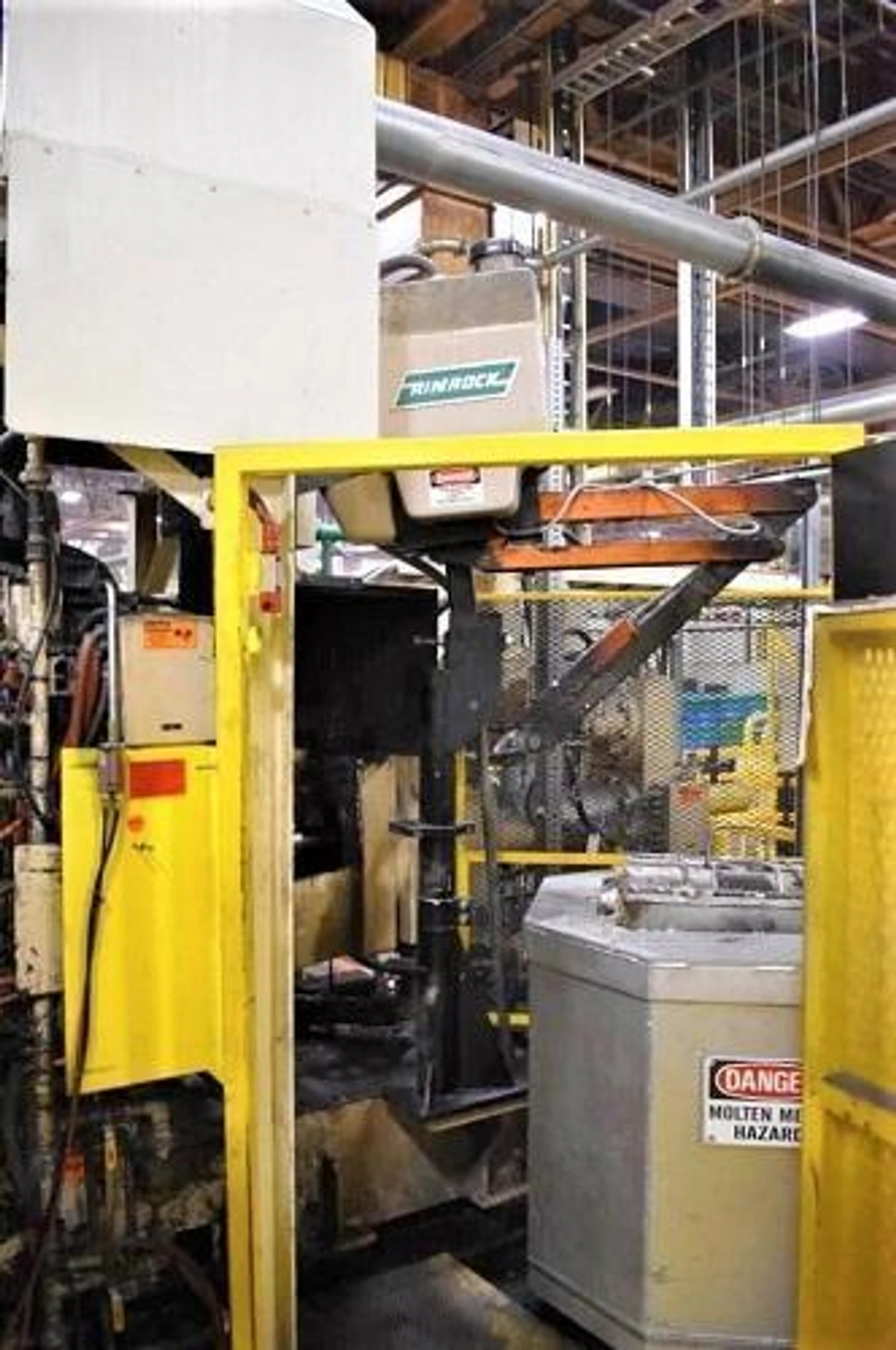

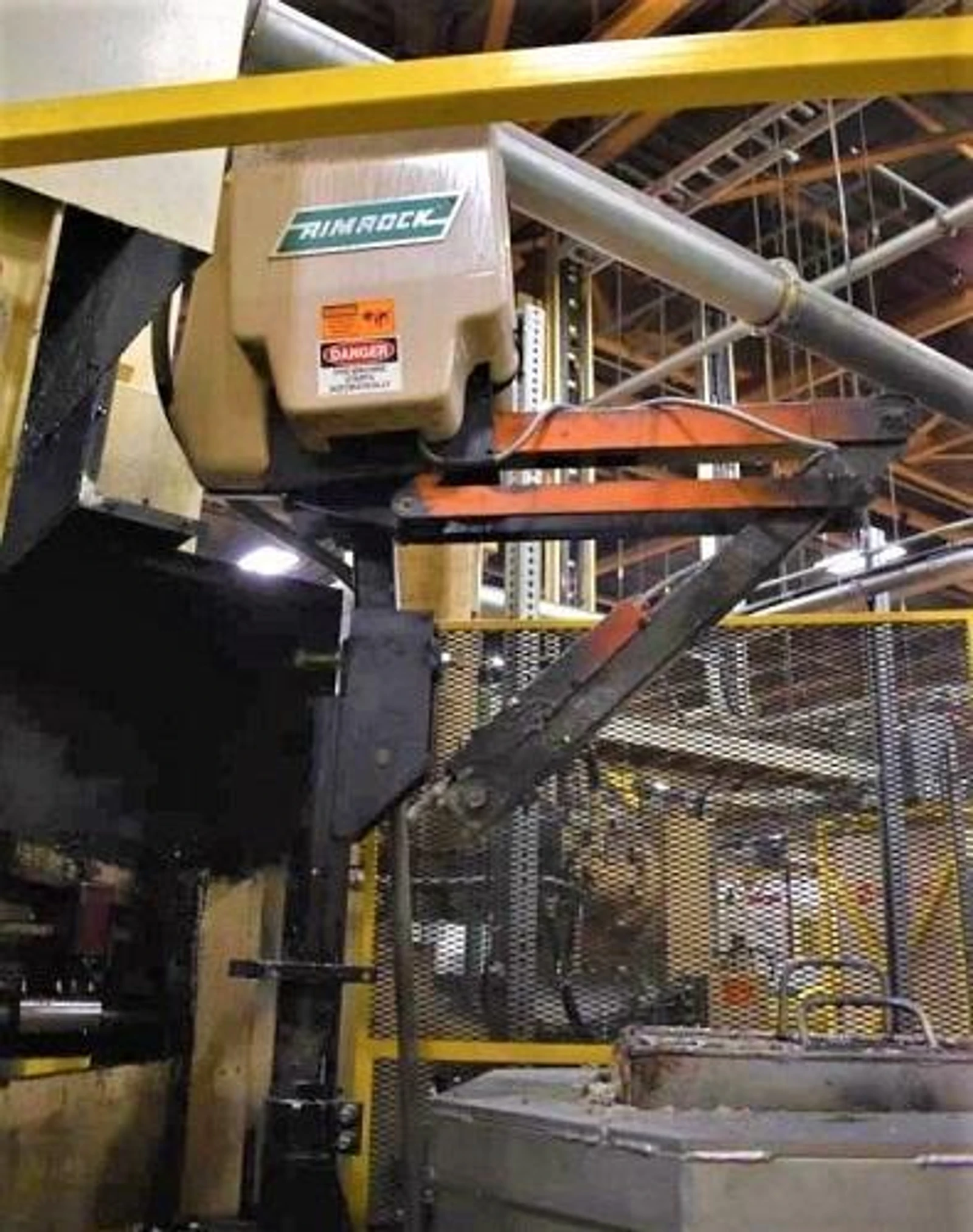

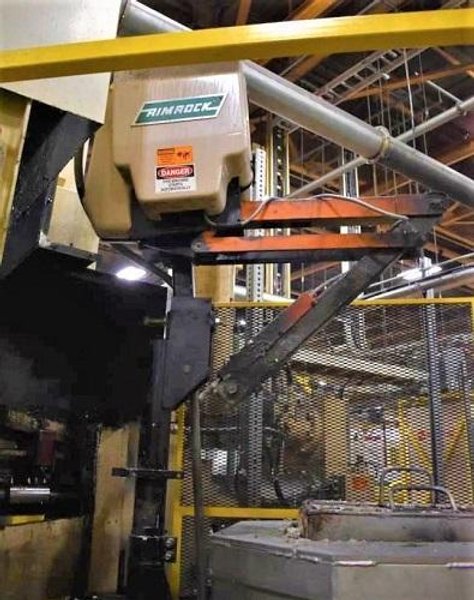

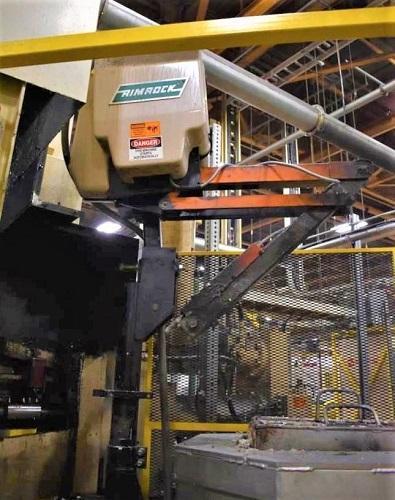

Rimrock Ladler,
(2) Motoman DX100 / MH50 CNC Spray & Extraction Robots,
Neff Hydraulic Trim Press (S/N 12813),
Shotblast, Donaldson Torit Mist Collector,
Overall Dimensions: 28'6"L x 7'6"W x9'H; Weight (Dry): 22-Ton
