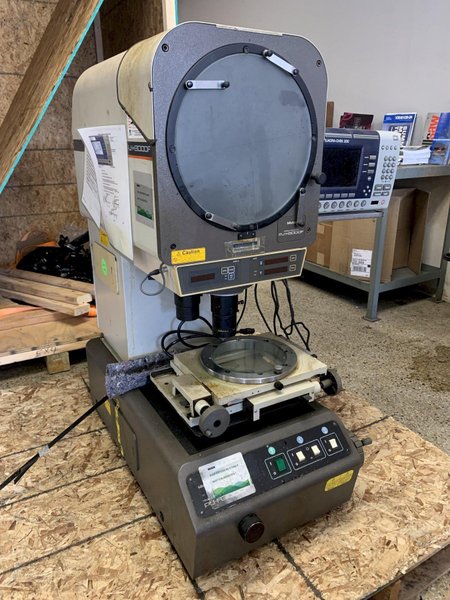

12" Mitutoyo Model PJ-H3000F Bench Top Vertical Beam Optical Comparator

Model
PJ-H3000F
Stock #
34612
Year
Not specified
Condition
Used
Location
Ohio
Specifications:
Screen Effective Diameter - 12"
Overall Table Size - 11.81" x 9.45"
Effective Area of Table (Glass Insert) - 7" diameter
XY Measuring Range - 4" x 2"
Focus Travel - 4.13"
Max Workpiece Height - 4.1"
Chart Rotation - 360 Degrees
Light Sources - Halogen 24v, 150w
Image Type - Erect
Display Resolution - 0.0001"
Comparator Dimensions - 23" LR x 33" FB x 45" H
Comparator Weight, Approx - 415 Lbs.
Gross Shipping Weight, Approx - 700 Lbs.

Equipped with:

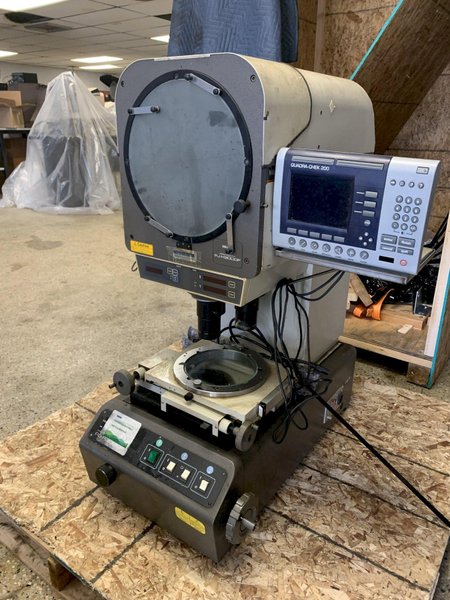

Quadra Chek 200 Computational Digital Readout
Built-in Linear Scales - 0.0001" Resolution
Digital Angle Display
Built-in Rotary Table
3 Position Lens Turret
10, 20, 50x Lenses Included
Power Focus Adjustment
Surface Reflection
Visor

Note - New arrival. Availability pending. Machine needs serviced.
Lead time approx 5 weeks after receipt of order.
