Noise Level | 77 DBA @ 5” From Exhaust |
Inlet: | At Bottom Of Unit Through Inlet Plenum |
Exhaust | Out Top Of Unit |
Motor | 7.5 HP, 208-230.460V, 60 HZ, 9-Phase, TEFC Motor |
Blower | Belt Driven, 15-11 Forward Inclined Blower |
Drive System | Low, Medium, Or High Static Pulley Combinations Available |
Input Voltage Options | 7.5 HP |
Max Current | 7.5 HP, 230.460V 18.6 / 9.4 AMP |
Air Volume | Up To 6,000 CFM Nominal |
Filter Change Indicator Options | 0-5” Magnehelic Gauge Std. |
Oil Drain | 1” NPT Pipe Coupling (Female) |
Filter Access | Side Load Through Hinged Door |

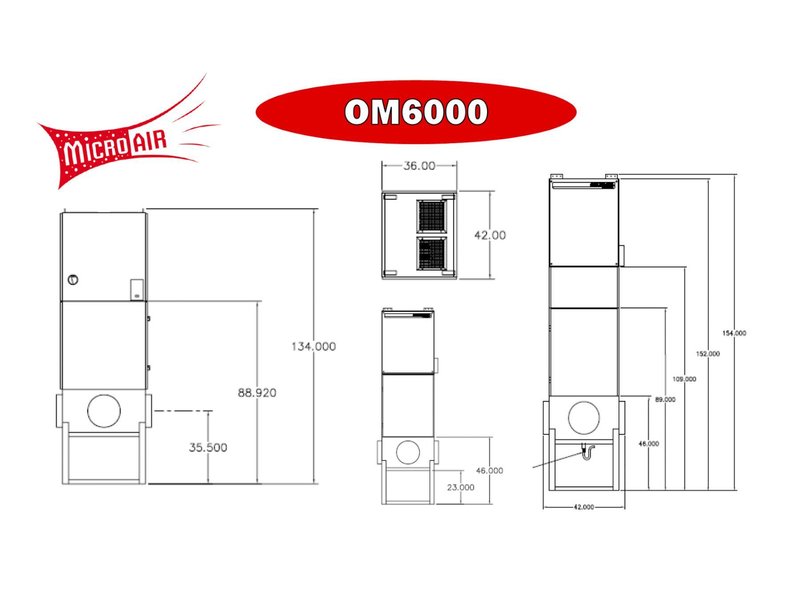

Dimensions | H 134” X W 36” X L 42” (With Floor Stand) |
Weight | 1,825 Lbs. |
Equipped With:
6,000 CFM Nominal
Up To Four-Stage Filtration Side Load, Easy Filter Access Cam-Lock Positive Filter Sealing Heavy Duty Blower Positive Sealing Cabinet Floor Stand |
