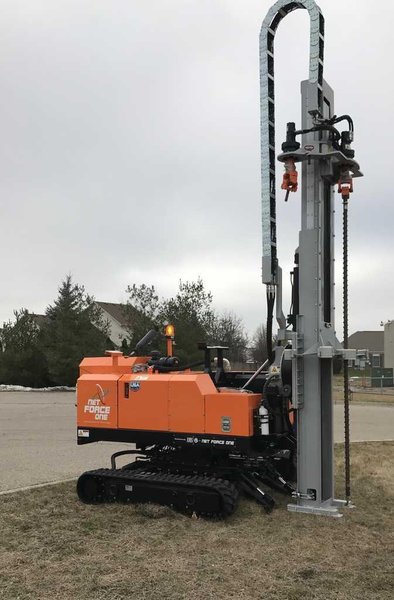

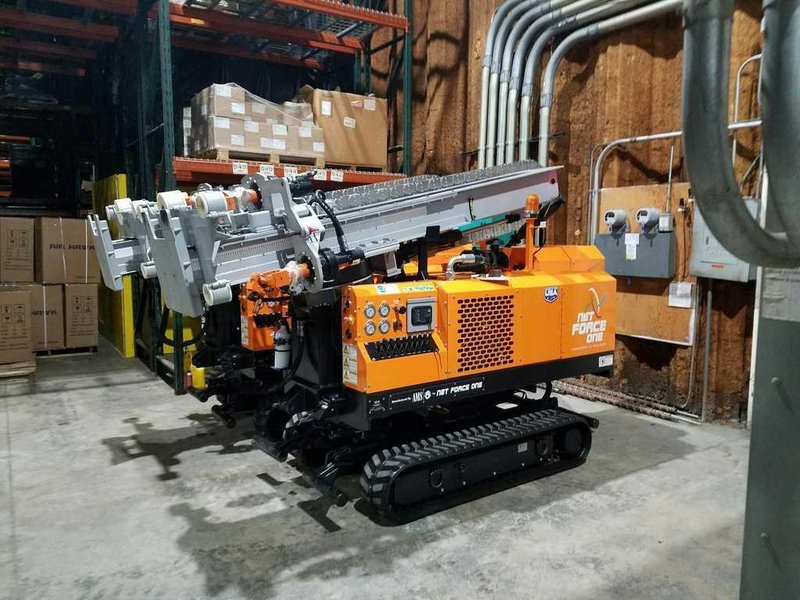

NETFORCE ONE DRILL RIG #3363

Brand
Not specified
Model
Not specified
Stock #
3363
Year
Not specified
Condition
Good
Location
Ohio
Model:  NF1-03T

Power Unit:                  Kubota Turbo V2403M
Power Rating:                44KW (59 HP) @ 2700 RPM
Battery:                     12 Volts DC

Dimensions (Transport):
Track Width:                 1.33 m (52.375")
Track Width (Extended):      2.00 m (78.75")
Track Length:                1.89 m (74.50")
Deck Height:                 0.79 m (31")

Dimensions (Netforce One Drill Rig)
Length:                      3.45 m (136")
Length (Transport):          3.53 m (139")
Width:                       2.00 m (79")
Width (Transport):           1.50 m (59")
Height (Elevated):           3.78 m (149")
Height (Transport):          2.29 m (90")
Weight:                      4,127 kg (9,100 lbs.)

Hydraulic Operation:
Down Force:                  2,267 kg (5,000 lbs.)
Pull Up Force:               4,535 kg (10,000 lbs.)
Outriggers Qty:              4 with 101 mm (4") Stroke
Foot Vertical
Stroke:                      508 mm (20")
Head Travel
Speed:                       152 mm (.5 ft/sec)
Feed Cylinder
Stroke:                      3.96 m (156")
Body Turret:                 180 Degree Total Slew
                             Drive Swing
Mast Oscillation:            80 Degree Total Slew
                             Drive Swing

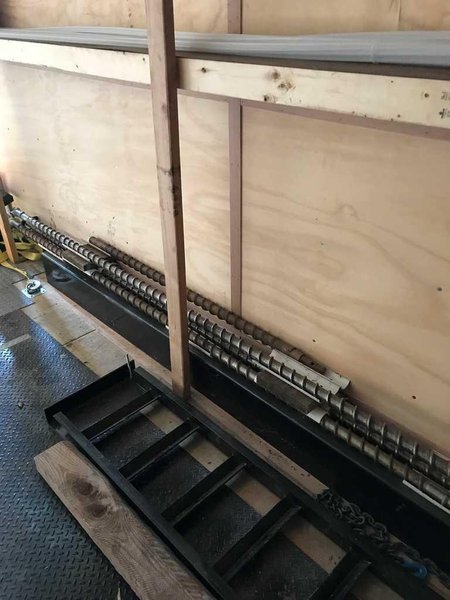

Auger:
Center Auger
Torque:                      1 220 N-m (900 ft-lbs) at 54 RPM
Outside Augers
Torque:                      1 016 N-m (750 ft-lbs) at 54 RPM

Hydraulics:
Oil Pressure:                152 Bar (2,200 psi)
Oil Flow:                    132 IPM (35 GPM)
Hydraulic
Cooler:                      26.4 kwh (90,000 BTU)
Hydraulic Tank
Capacity:                    150 Liter (40 Gal)
Diesel Tank
Capacity:                    75 Liter (20 Gal)

*Optional at an Additional Cost of $15,000

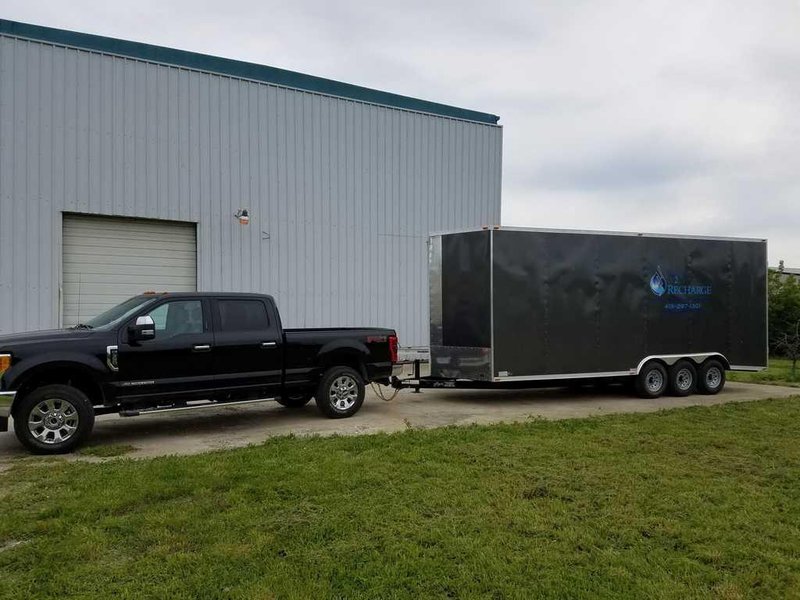

24' Custom Enclosed Type Trailer with Ramps
No files or videos to display

Want to request a quote from the owner of this listing?
