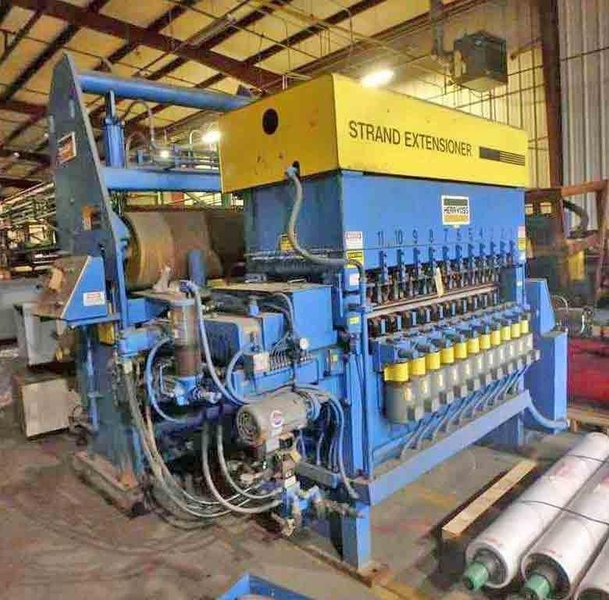

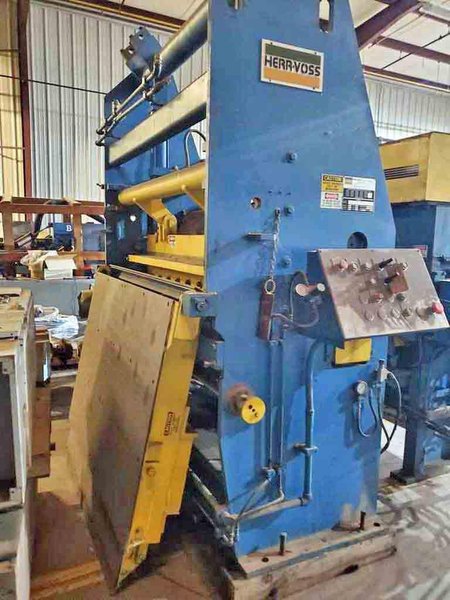

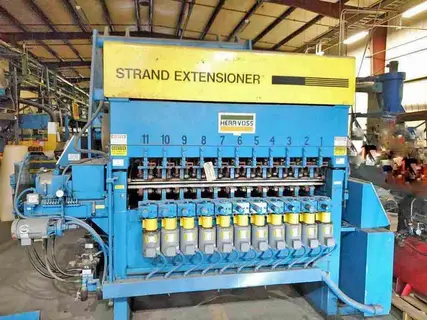

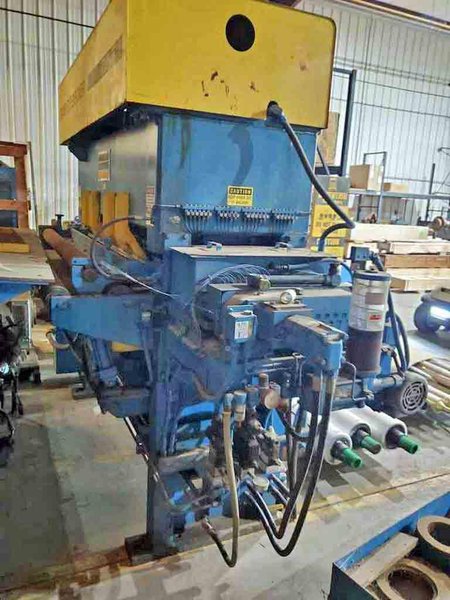

62" x 0.076" HERR VOSS,STRAND EXTENSION, 5 HI #3335
Brand
Category
Type
Model
Not specified
Stock #
3335
Year
Not specified
Condition
Good
Location
Ohio
|

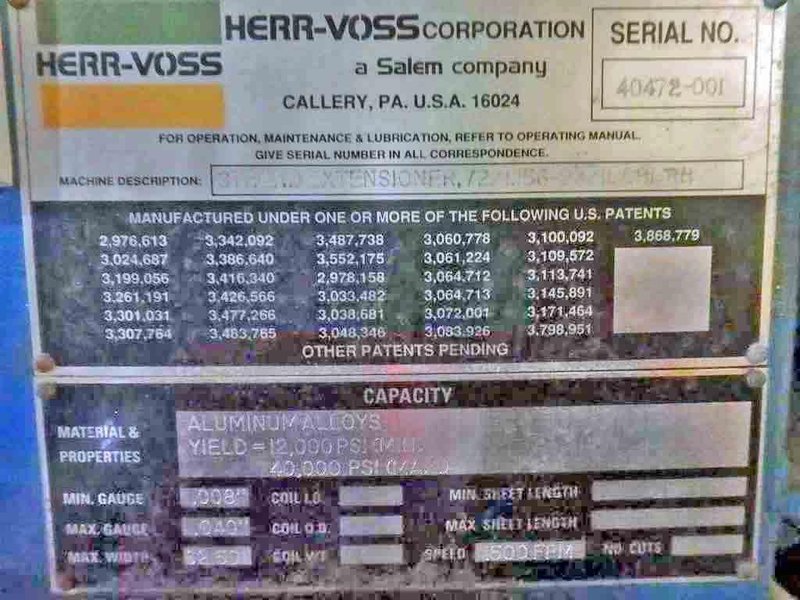

MAKE .......................................... HERR VOSS
WIDTH CAPACITY ................................ 62.5" INCHES WORK ROLLS .................................... 23 (11 OVER 12) MINIMUM COIL THICKNESS ........................ 0.008" INCH MAXIMUM COIL THICKNESS ........................ 0.040" INCH MAX LINE SPEED ................................ 1500 FPM MATERIAL YIELD STRENGTH ....................... 12,000 TO 40,000 PSI ROLL FACE ..................................... 72" INCHES ROLL DIAMETER ................................. 1.1560" INCH MOTORIZED BACKUPS ............................. 11 FLIGHTS HYDRAULIC MOTOR DIVE WITH PINION BOX .......... YES LUBE SYSTEM ................................... YES OPERASTORS PANEL WITH JOYSTICK CONTROLS ....... YES PASSLINE ...................................... APPROX 52" INCHES LINE DIRECTION ................................ RIGHT TO LEFT EXIT UNIT ..................................... YES DEFLECTOR ROLL ................................ 21" INCH DIAMETER X 72" INCH FACE BOTTOM NIP ROLL ............................... 6" INCHE DIAMETER X 77" INCH FACE DRIVEN BY ..................................... HYDRAULIC MOTOR HYDRAULIC CROP SHEAR .......................... YES BLADE LENGTH .................................. 72" INCHES EXIT THREADING TABLE .... YES OPERATIONS TABLE ..... YES (ATTACHED) SPARE ROLLS ...... YES |
