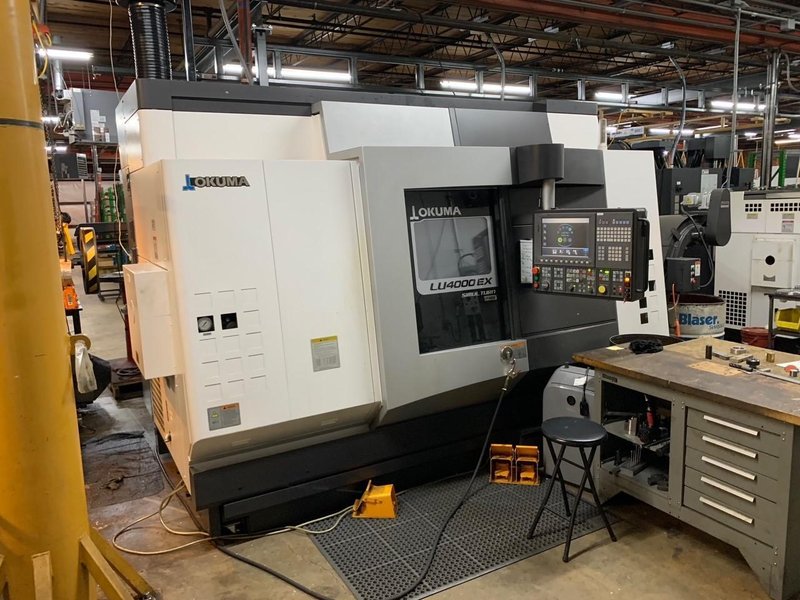

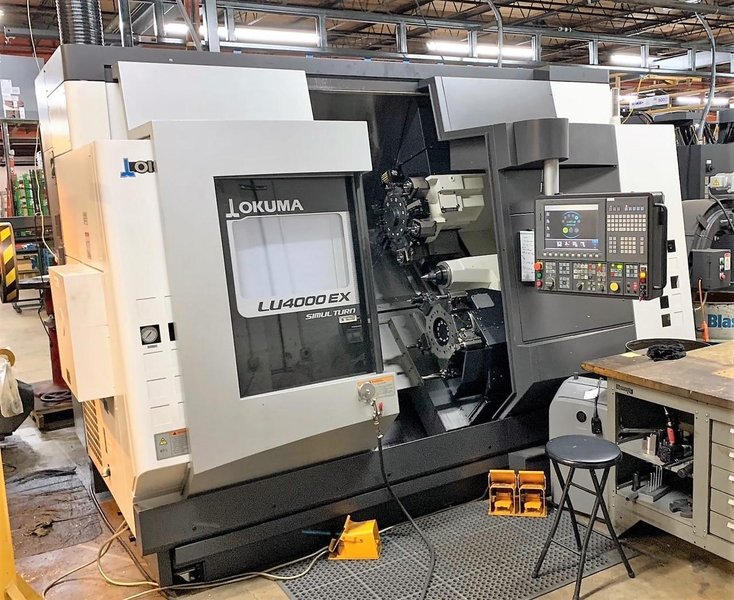

Okuma SIMUL-TURN LU4000 EX MY CNC Lathe, OSP-P300LA, Only 240 Hours, New 2018
Brand
Category
Model
LU4000 EX MY
Stock #
56135
Year
2018
Condition
Like New
Location
Georgia
| CNC Control | yes |
| CNC Control | Okuma OSP-P300LA |
| # Axis | 5 |
| Machine Cutting Hours | 240 |
| Max. Swing over Bed: | 27.36" |
| Max. Turning Diameter: | 11.02" |
| Max. Work Length: | 25.59" |
| X-Axis Travel: | 7.68" |
| Y-Axis Travel: | 5.51" |
| Z-Axis Travel: | 27.56" |
| C-Axis deg. (.0001 increments): | 360 (minimum control angle - 0.001increments) |
| Spindle Speed: | 30-3000 RPM |
| Spindle Speed Range: | Two Auto Ranges |
| Spindle Nose: | A2-11 |
| Spindle Bore Diameter: | 3.59" |
| Chuck Size: | 12" |
| Sub Spindle | no |
| Turret Type: | U: Multitasking V12/L:V10 (L-Radial) |
| Turret - Number of Tools: | 2-Turrets: U:12 (L/M): L:10 |
| Turret - OD Tool Shank Size: | 1" |
| Turret - ID Tool Shank Diameter Size: | 1.57" |
| Turret - Rotation: | 0.1 sec/index |
| Live Tooling | yes |
| Milling Tool - Spindle Speed: | 45 to 6000 RPM |
| Milling Tool - Speed Range (Infinately Variable): | Infinately Variable |
| Feedrate - Rapid Traverse: | X-984 IPM & Z-1181 ipm |
| Feedrate - Tailstock Rapids: | 472 ipm |
| Feedrate - Rapid C-Axis: | 200 ipm |
| Feedrate - Cutting (X,Z - IPR): | 0.00004 - 39.37 ipr |
| Tailstock | yes |
| Tailstock Taper: | MT 5 (revolving center) |
| Tailstock - Quill Travel: | 5.91" |
| Motors - Main Spindle: | 43/20 HP |
| Motors - Milling tool spindle: | 7.5/4.3 HP |
| Motors - Axis Drive: | 4.7HP / 4HP / 4.7HP / 6HP / 6HP (Xa,XB,Ys, ZA, ZB) |
| Motors - Coolant Pump: | 0.07HP |
| Dimensions | 140.55" L x 90.94" W x101.85 HT |
| Weight | 22400 Lbs. |
|

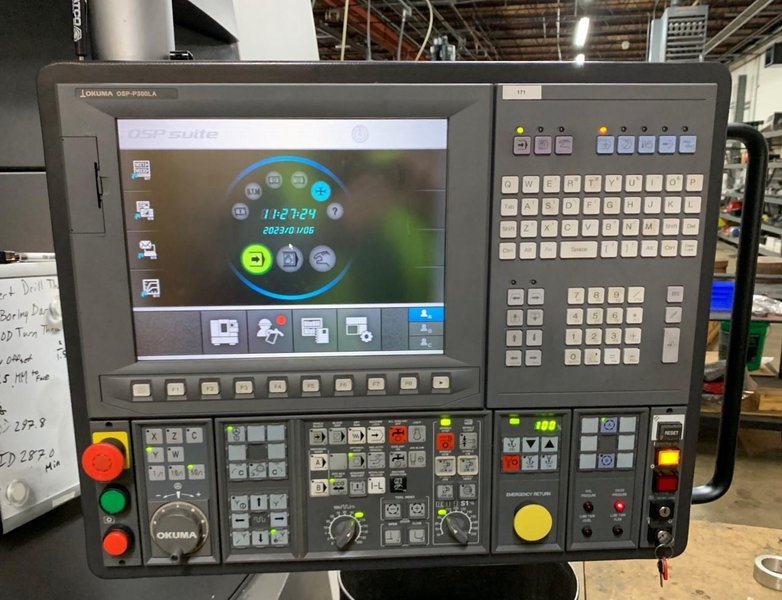

Control: OSP-P300LA
Tool Eye Presetter Chuck - (2) Foot Switches 2-Turrets: Upper w/ Milling (Y-Axis), Lower: Turning: ID/OD work Live Milling on Turret Y-Axis Chip Conveyor Coolant System Chuck - 3-Jaw (12") Mist Collector Air Hose Manuals and Documents **AVAILABLE IMMEDIATELY - 2023 *To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase. |
|
