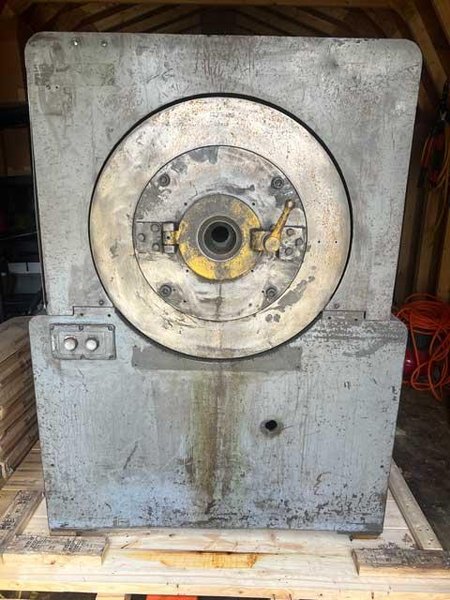

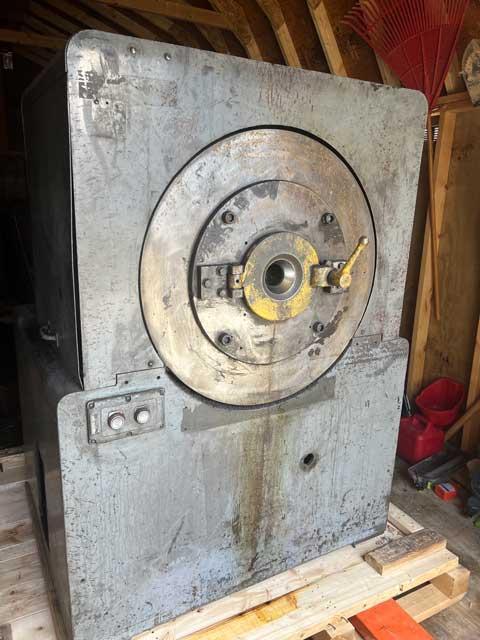

2-1/4" TORRINGTON MODEL 433 2 DIE ROTARY SWAGING MACHINE (14125)

Model
433 2 DIE
Stock #
14125
Year
Not specified
Condition
Not specified
Location
Not specified
Capacity, Solids 5/8
2-1/4" (57mm) TORRINGTON MODEL 433 2 DIE ROTARY SWAGER (14125)


 MACHINE # 14125

 Manufacturer: Torrington Manufacturing
 Model No.: 433
 Type: Rotary Swager
 Number of Dies: 2
 Capacity tubing: 2 1/4" (57.15mm)
 Capacity solids: 5/8" (15.875mm)
 Longest possible taper in one operation: 2 7/8" (73.025mm)
 Die size: 2.687" W (68.25mm) x 1.920" H (48.768mm) x 3" Long (76.2mm)
 Backer size: 2.687" W (68.25mm) x 1.750" H (44.45mm) x 3" Long (76.2mm)
 Rolls: 12
 Roll size: 2" (50.8mm) Dia. x 3 3/8" (85.725mm) Long
 Diameter hole through spindle: 2" (50.8mm)
 Motor: 5 HP
 Approx. size: 57" (1447.8mm) H x 43" (1092.2mm) W x 42" (1066.8mm) Length

 **Temporary Specifications Subject to Revisions**

 **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

 **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
