Max Weight of Coil | 70000 ounces |

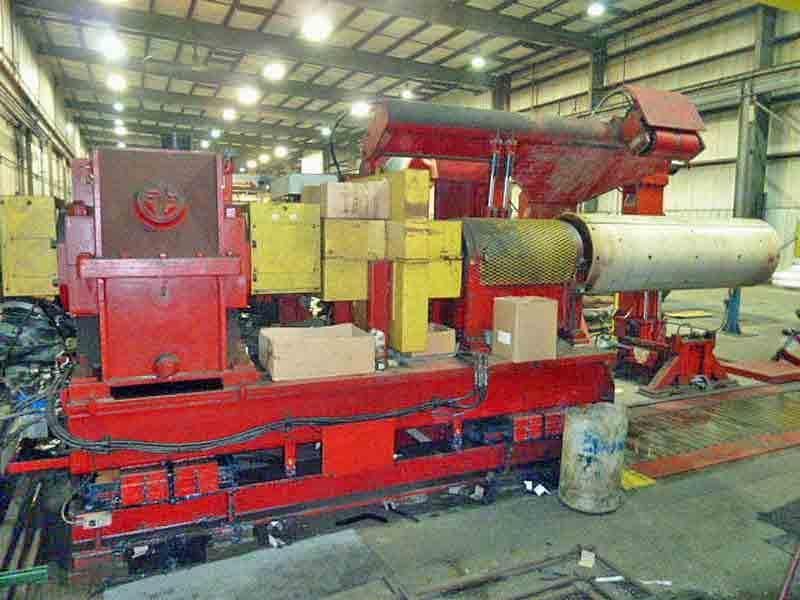

70,000# x 72" Red Bud Recoiler and Coil Car

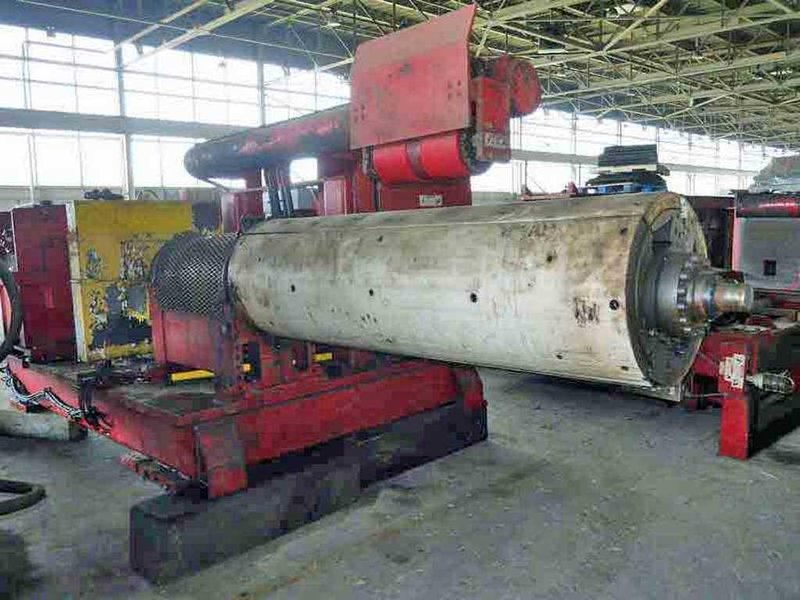

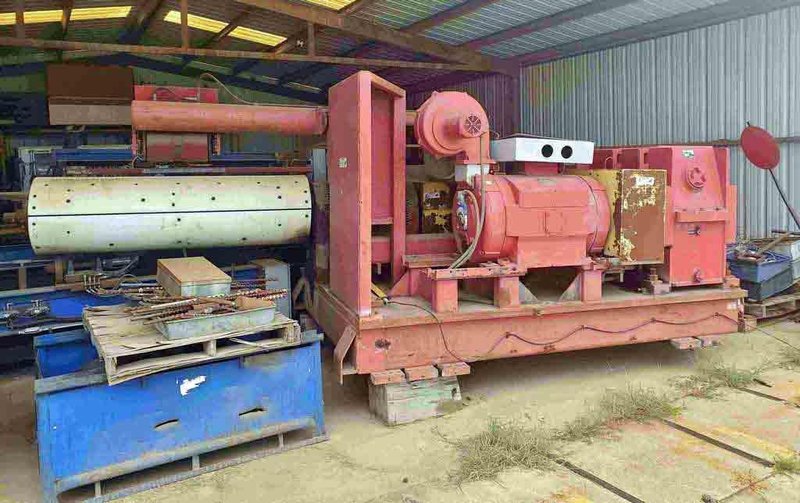

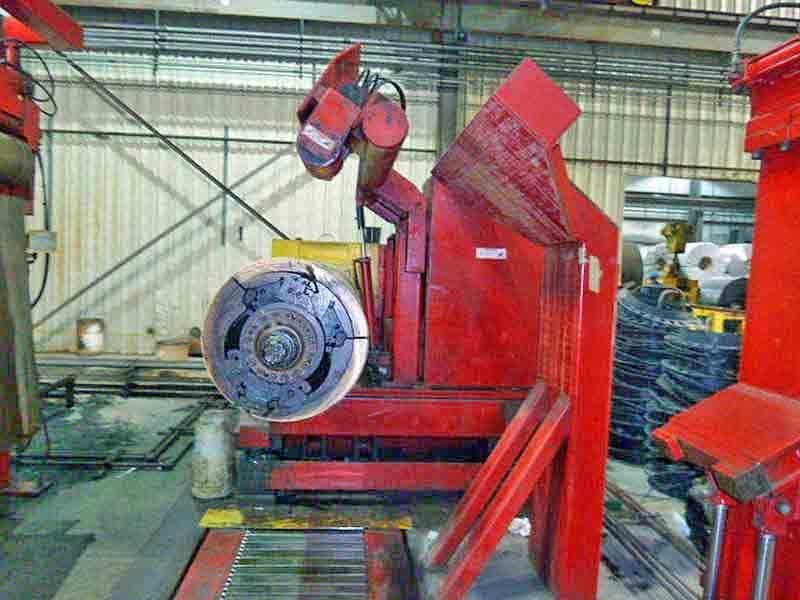

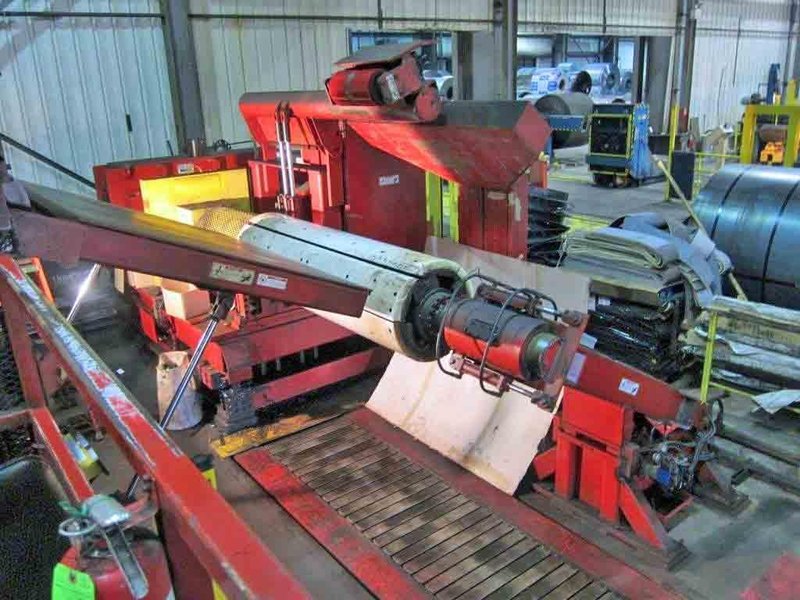

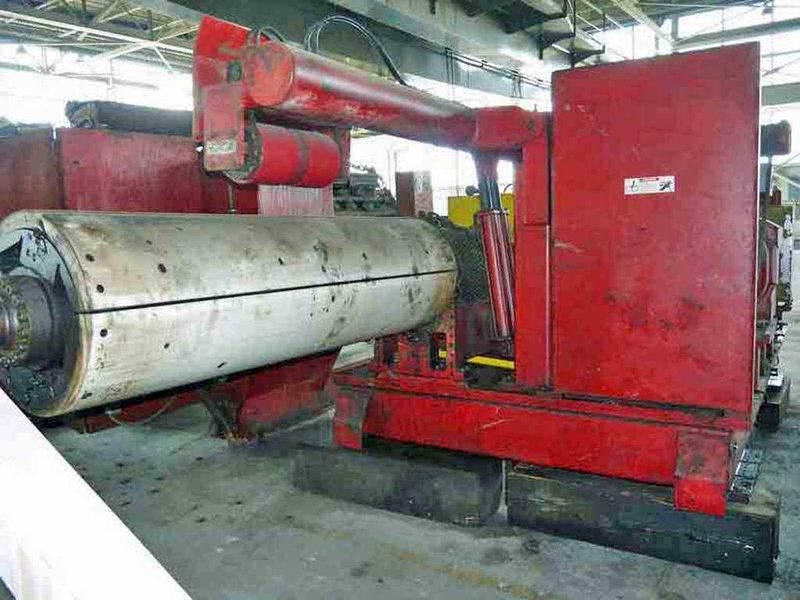

-Recoiler:
Model: RC 39-80

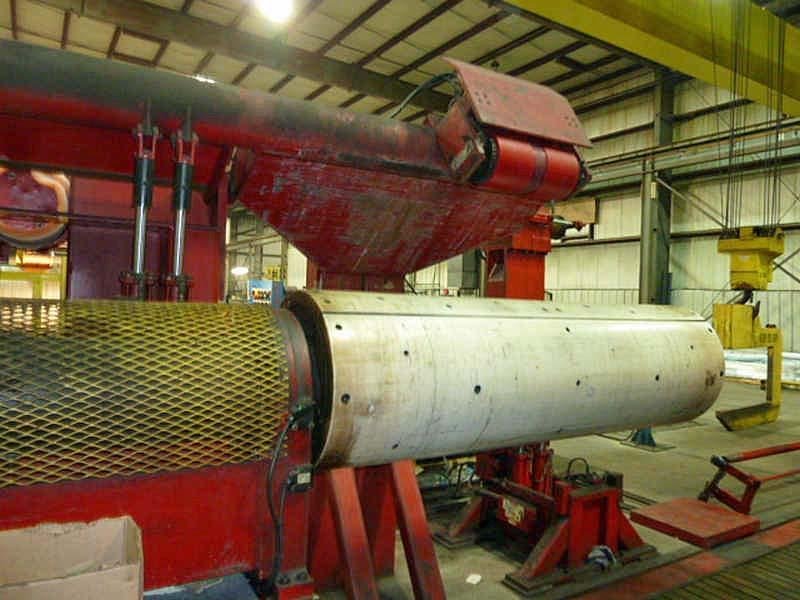

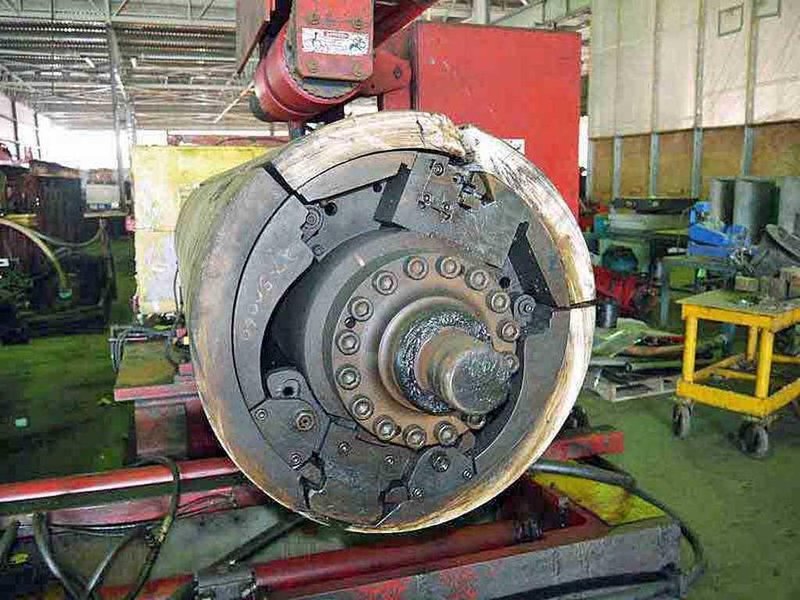

20" Dia. x 79.5" Face Drum
Pads For 24" I.D.
Hydraulic Grip & Expand

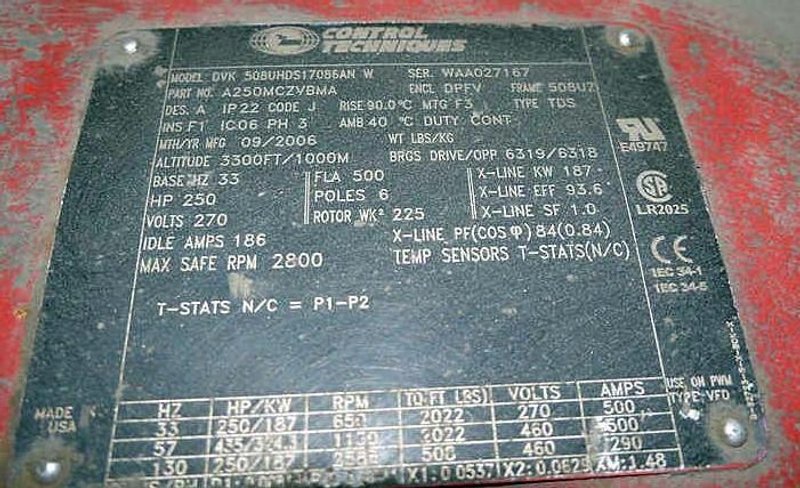

250 Hp DC Motor
With Parker 400 HP Rated Solid State Drive

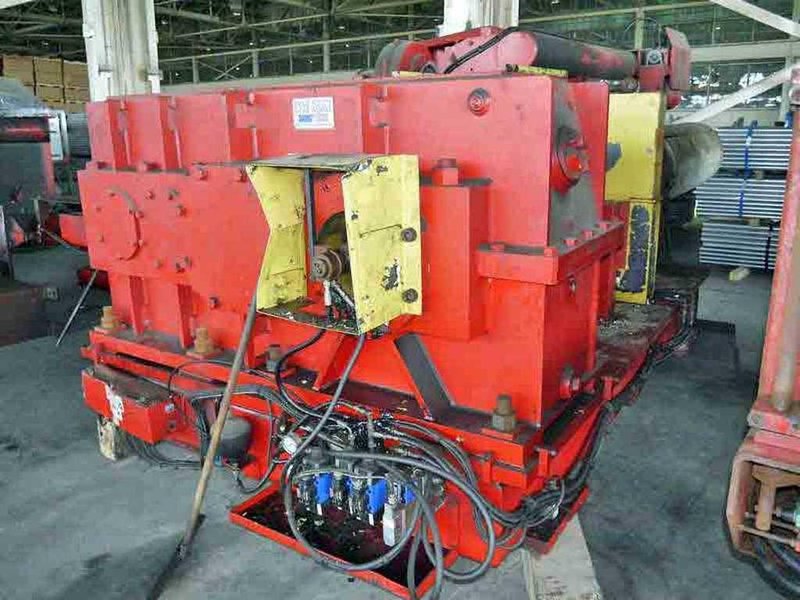

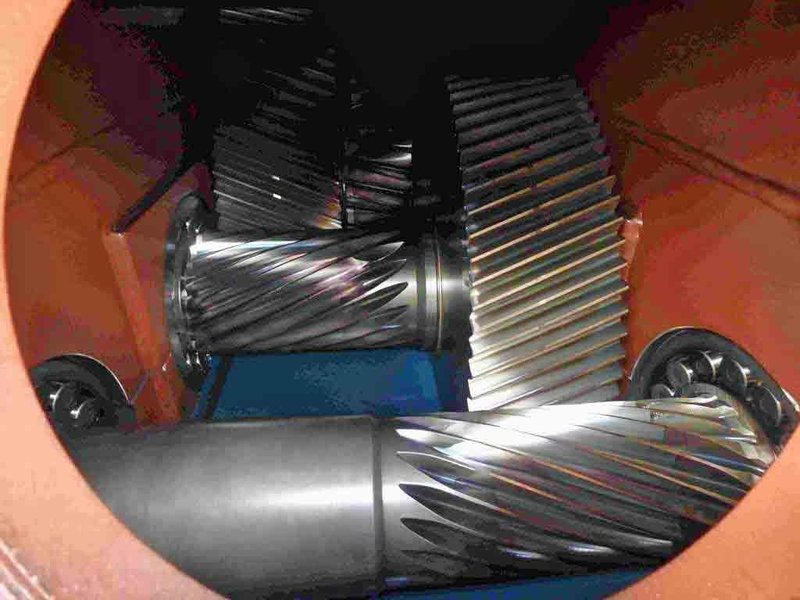

Brad Foote Reducer Rated At 300 Hp, 91.19:1 Ratio
Powered Holddown Roll
Sliding Base
Outboard Support Unit

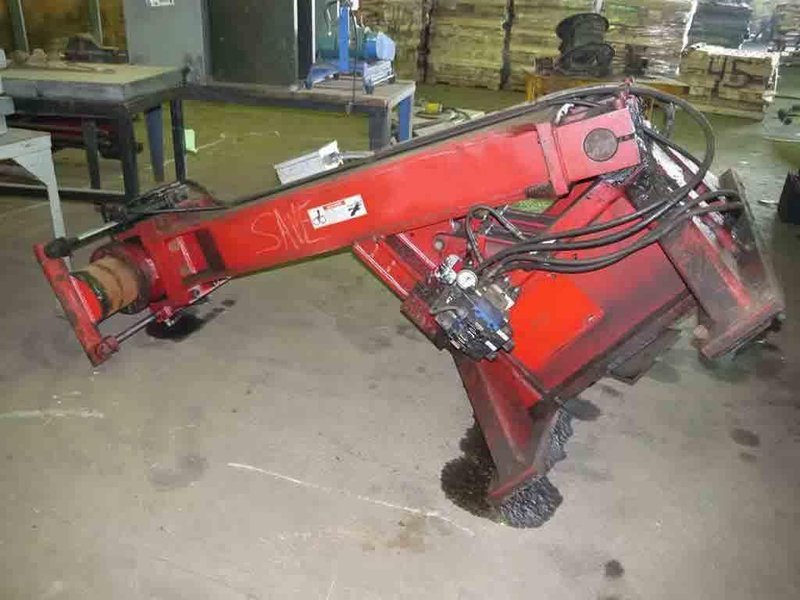

Overarm Hold Down Roll
Passline: Approx. 58" from floor to center of Drum
Line Direction: Left to Right
Overall Size: 225" L x 96" W x 100" High

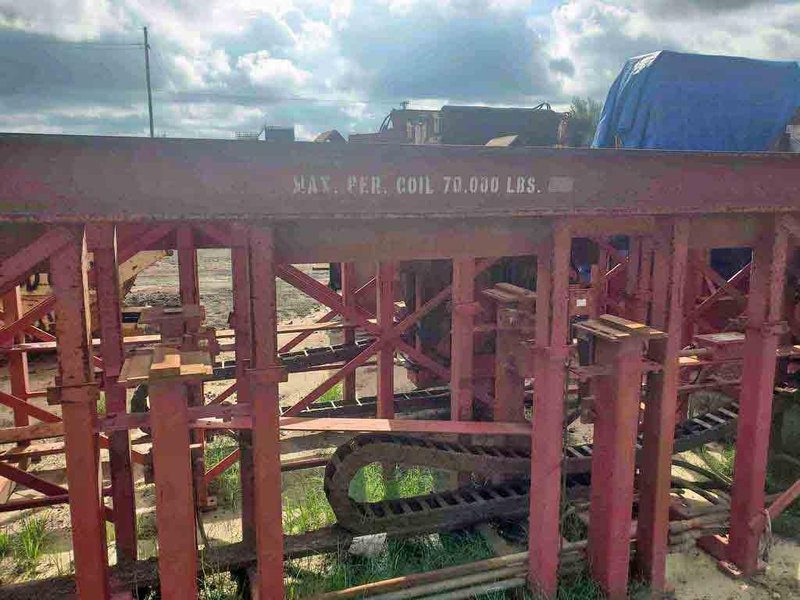

-Exit Coil Storage Ramp:
Ramp has 3 storage stops
-Exit Coil Car:
70,000 lb Coil capacity
Hydraulic lift
Hydraulic motor travel
Accepts Coils from the ramp
-Removed and in Storage: |
