Preliminary Specifications

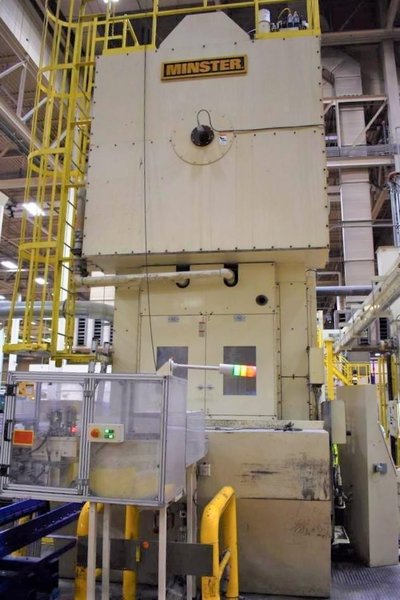

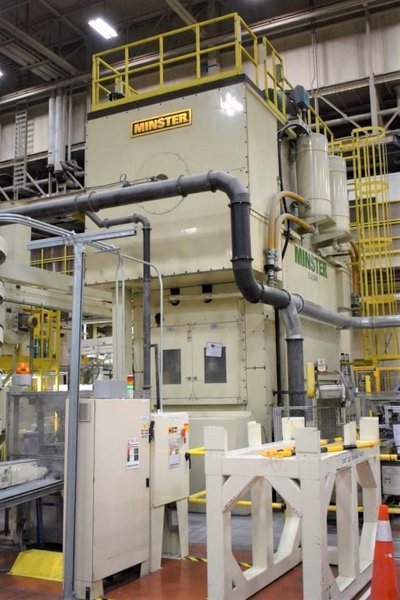

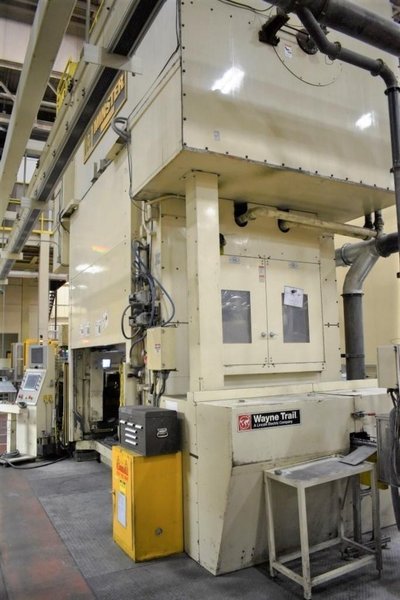

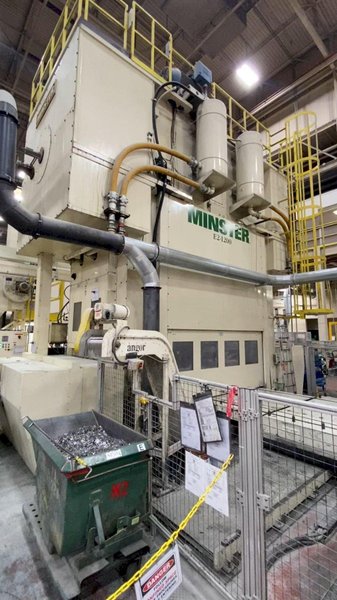

Minster 2 Point Eccentric Shaft Straight-Side Transfer Press
Model: E2-1200-120 x 60
Mfg Year: 2011

1200 Ton Capacity
12" Stroke (305 mm)
44" Shut Height (SDAU) (1118 mm)
12" Slide Adjustment (305 mm)

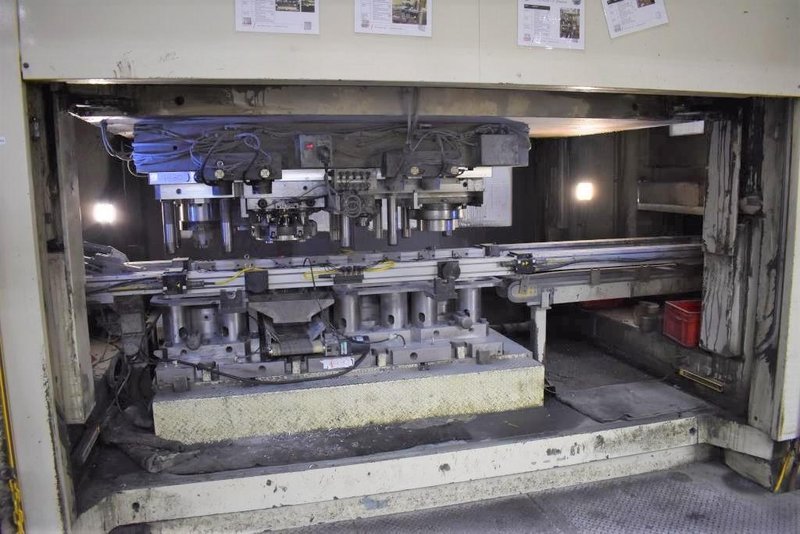

120" LR x 60" FB Bed Area (3048 mm x 1524 mm)
25-45 SPM Variable

Equipment & Features:
10.8" bolster plate(275mm)

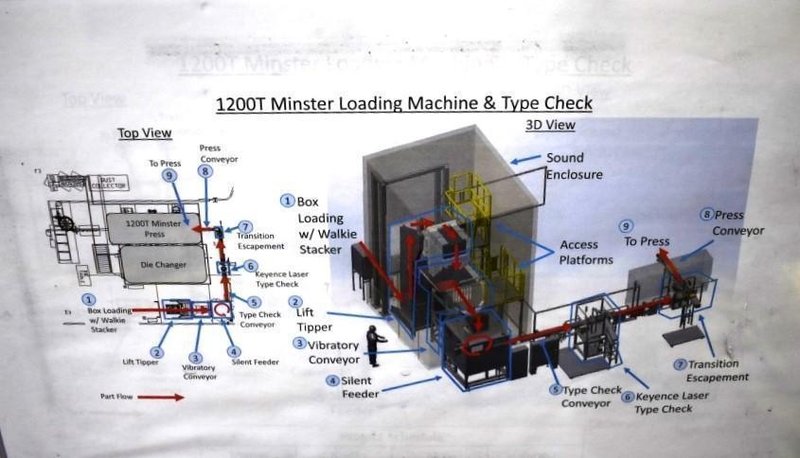

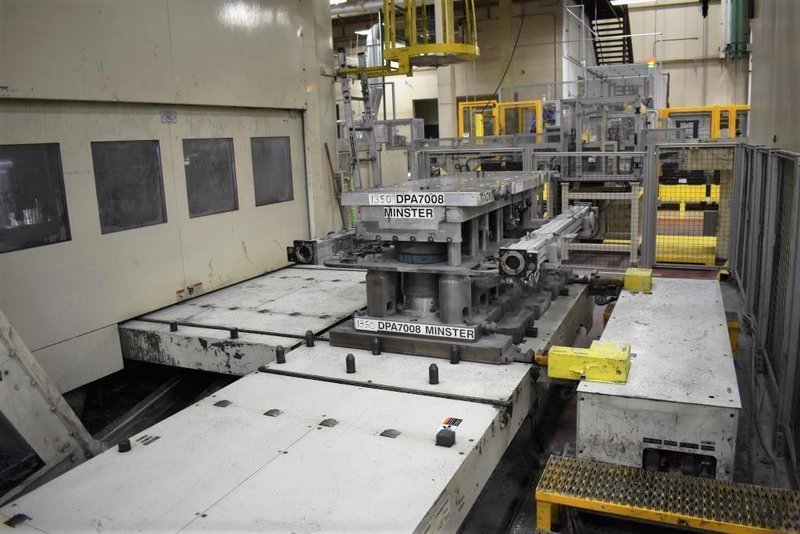

Wayne Trails Model WTTS-II Servo Transfer
Air Clutch & Brake
Hydraulic overload protection
63"(1600mm) wide windows
Automatic counter balance adjustment
Pnuematic Bed Knockout system
Slide knock out cylinders
30 Ton Dayton Pnuematic Draw cushion
Adjustable die safety blocks
Wayne Trails Transfer feed
(4) Vibro-Dynamics Isolator mounts
Press is pit mounted.

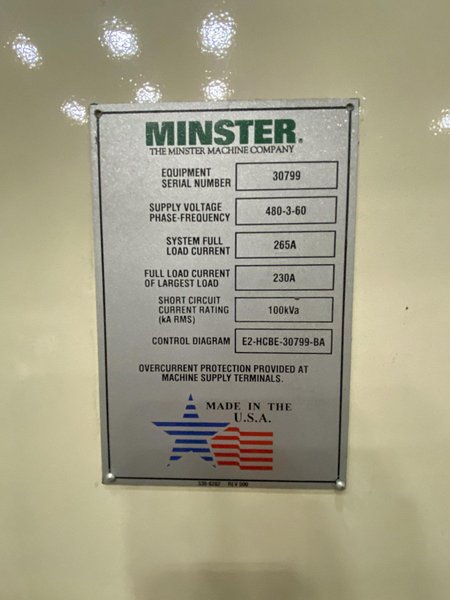

200 H.P. 1800 RPM Main Drive motor. 480/3/60

overall estimated weight , Crown #145,000 lbs,Bed #142,000 Lbs, Slide # 92,200 LBS, Uprights,#86,000, = total 455,000 LBS

This Press is a rare find. From Running service.Please don't hesitate to call for an early inspection. Currently dismantled in Warehouse.

Specifications Subject To Verification; Subject To Prior Sale & Price Change
