Dimensions | 36" X 23" X 28" |

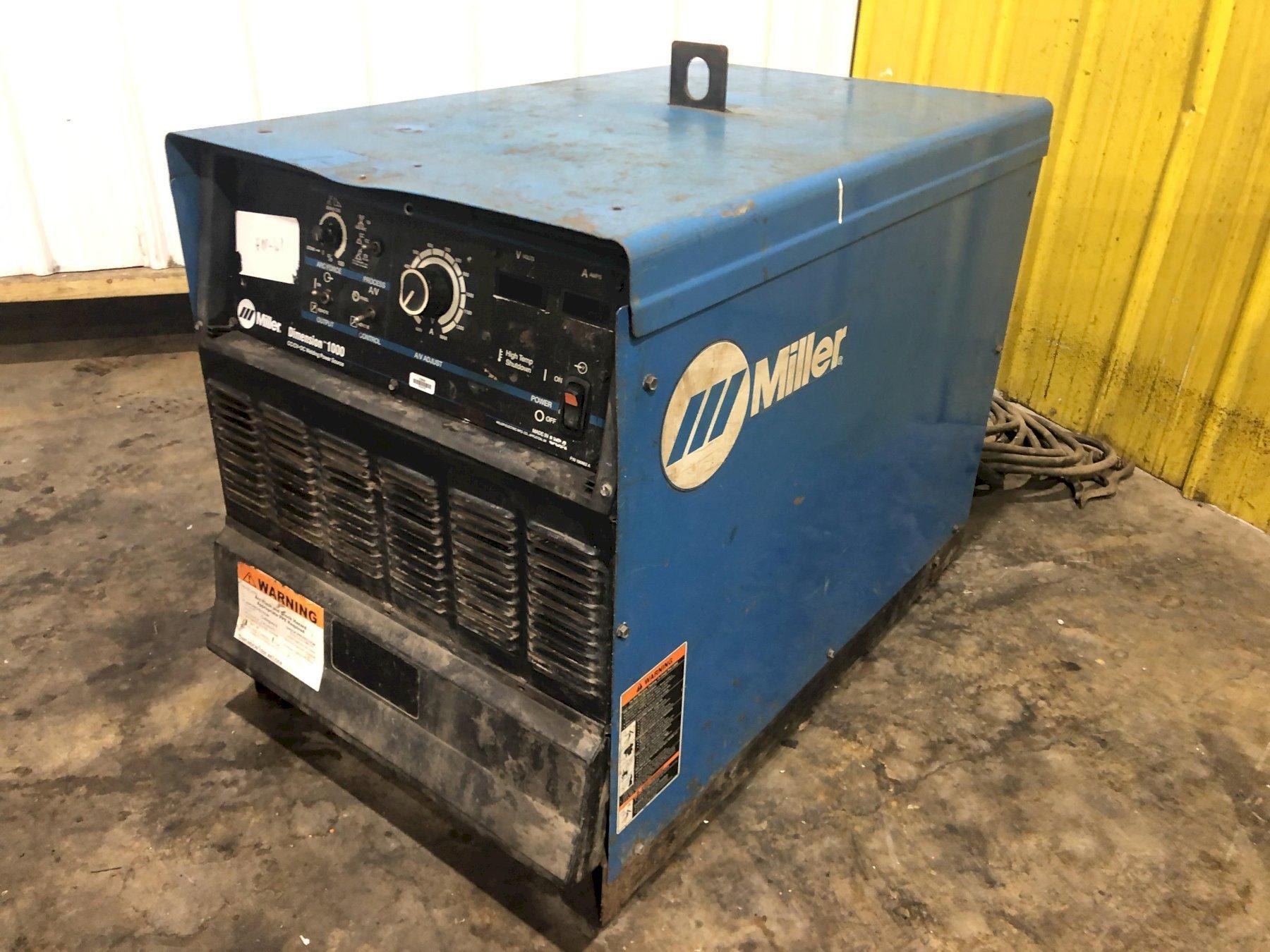

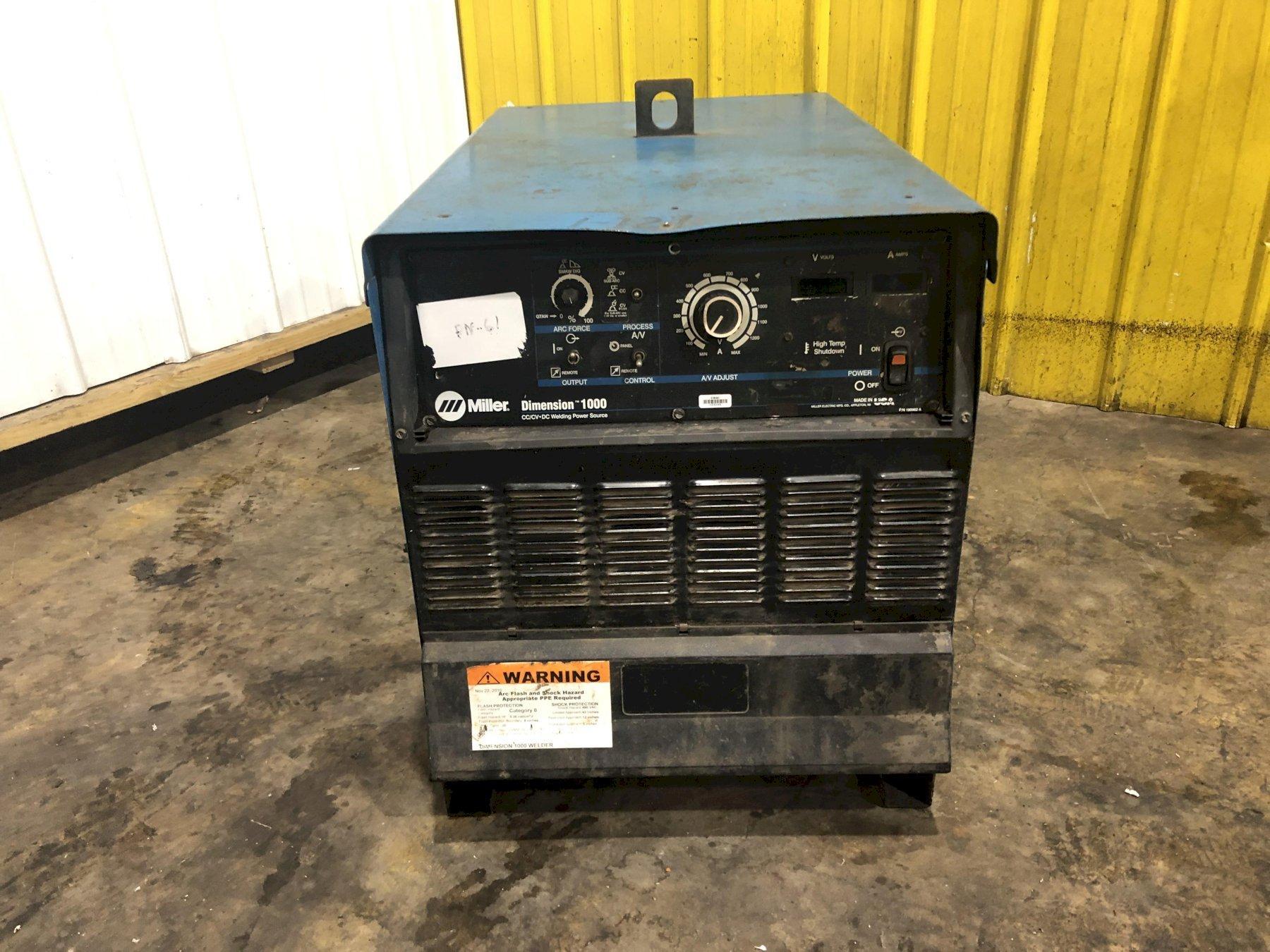

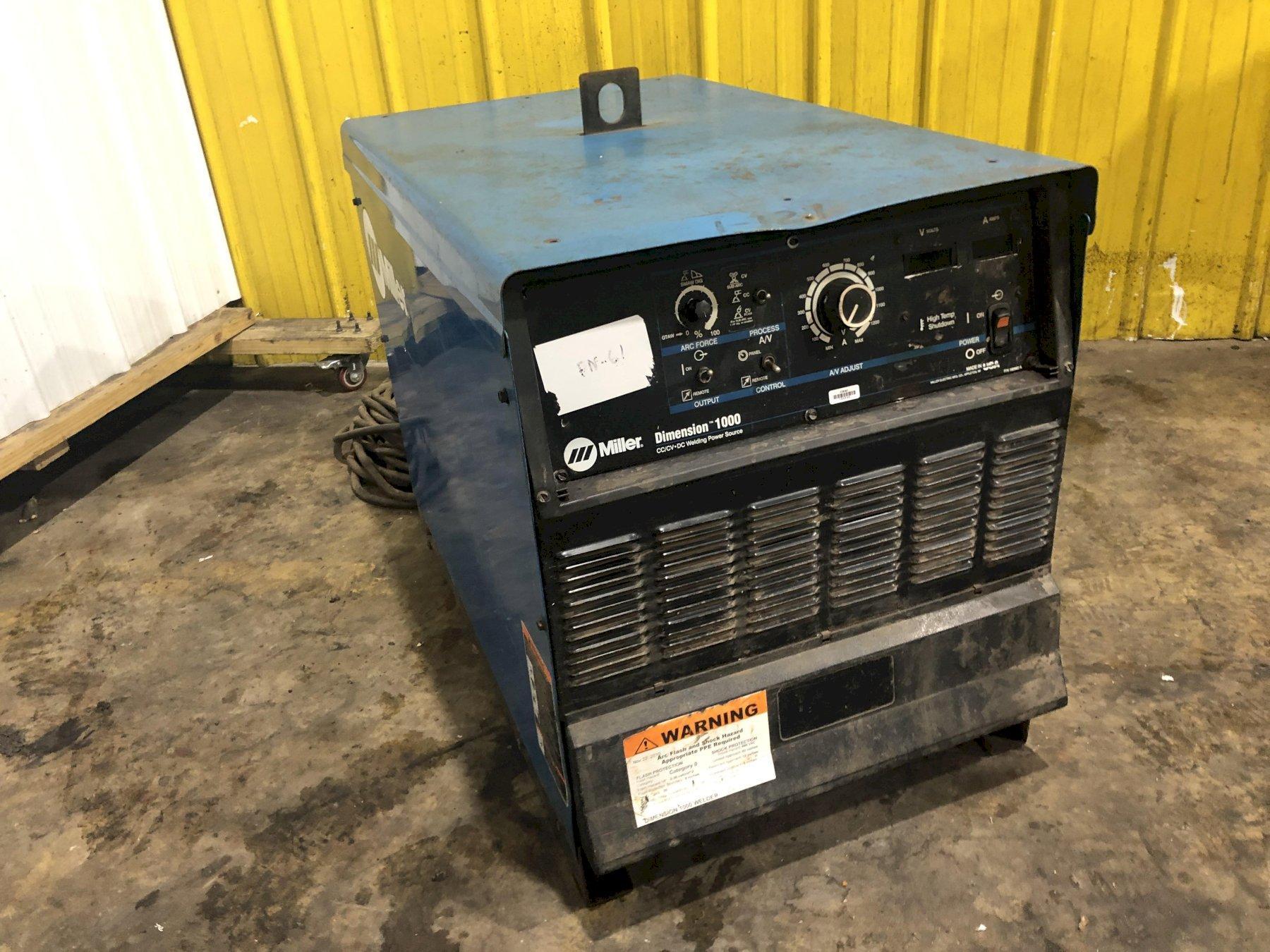

MILLER DIMENSION 1000

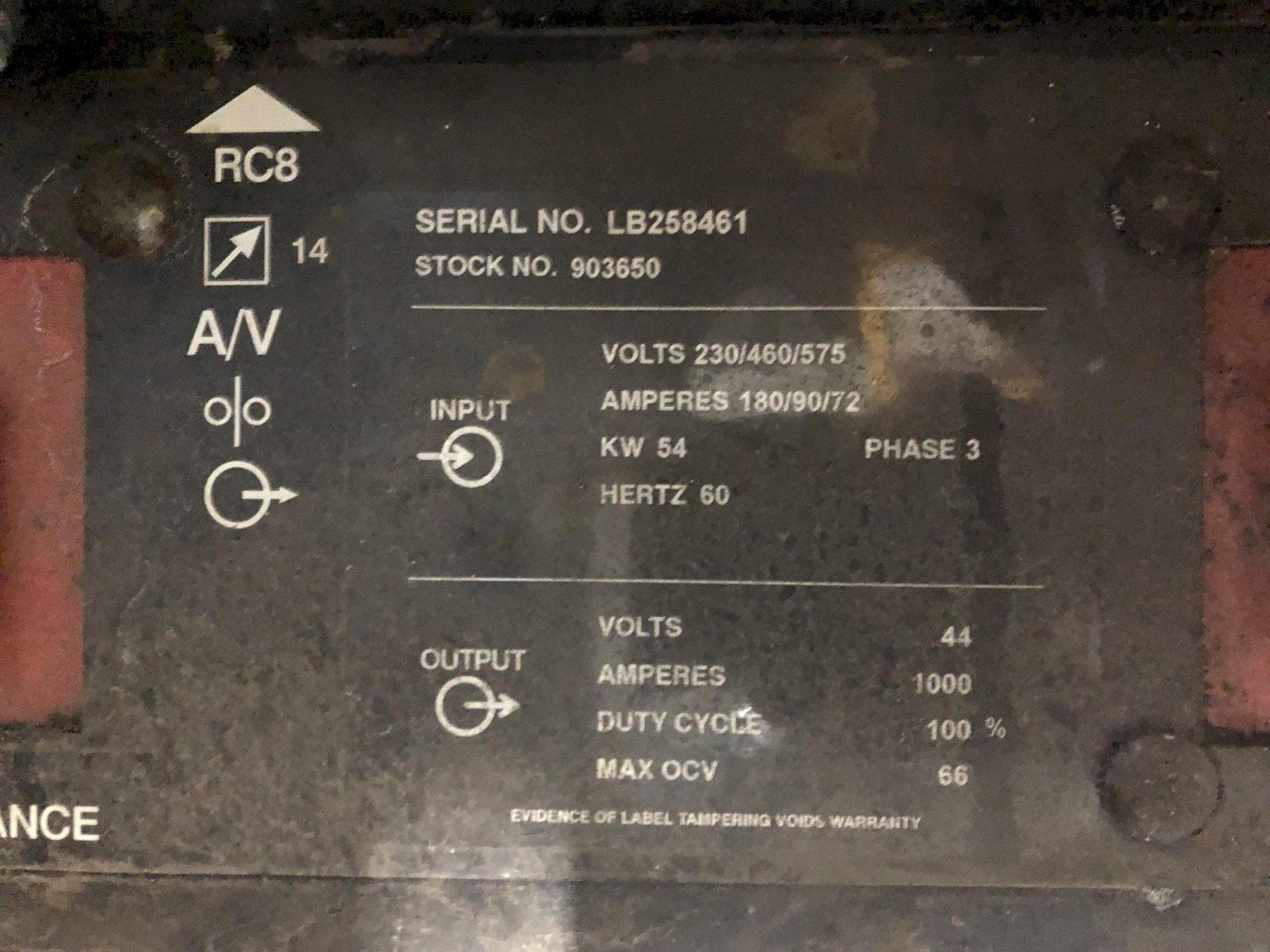

SERIAL ............. LB258461
STOCK .............. 903650 INPUT VOLT ......... 230/460/575V
INPUT AMP .......... 180/90/72
INPUT HERTZ ........ 60HZ
OUTPUT VOLT ........ 44V
OUTPUT AMP ......... 1000AMPS

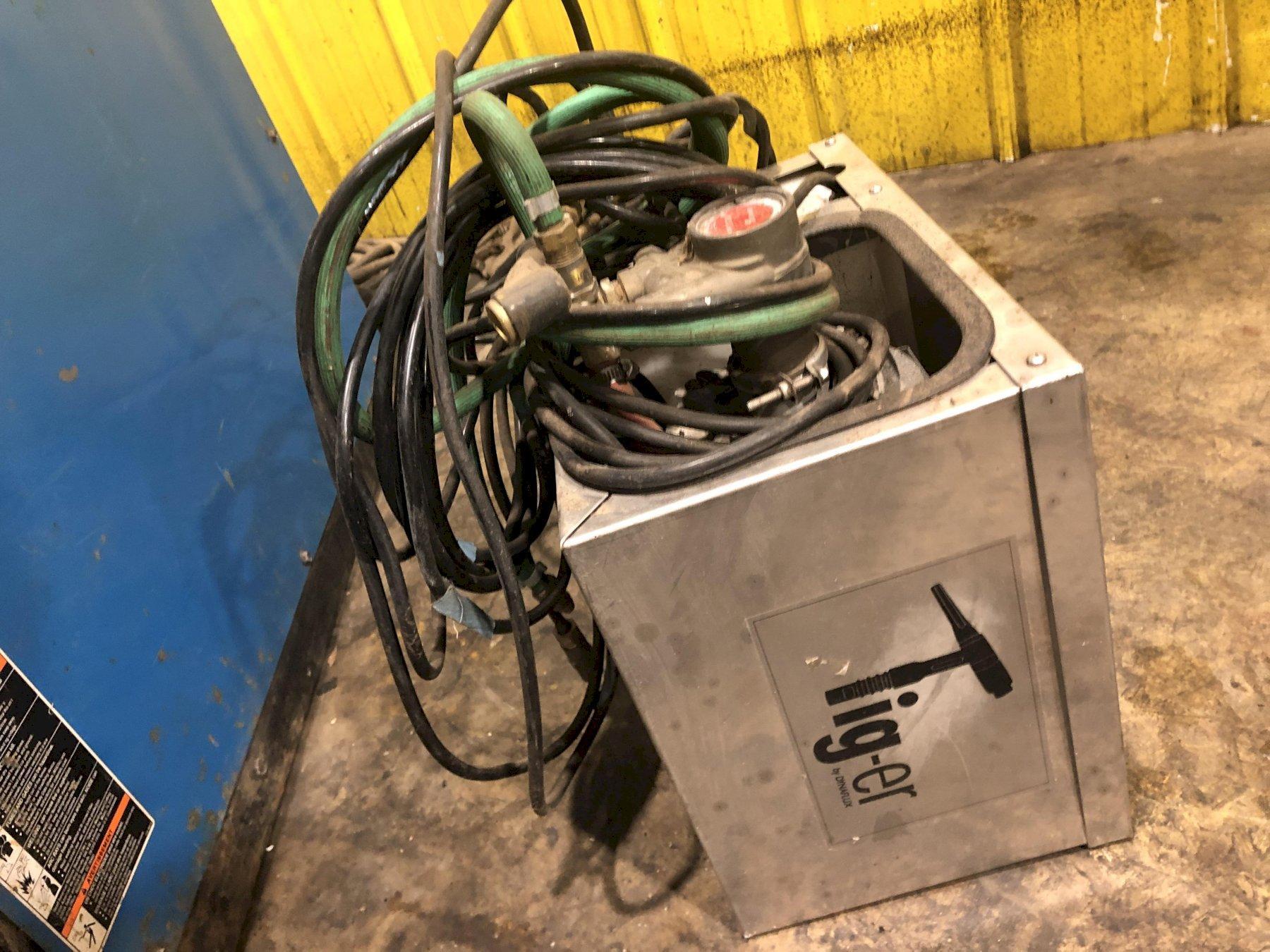

DYNAFLUX TIG TORCH COOLING SYSTEM
MODEL .............. TIG-ER
WATER CAPACITY ..... 2 GALLON RESERVOIR
INPUT POWER ........ 115 OR 230 VAC / 1 PH – 50 / 60 HZ
INPUT POWER ........ 3.2 / 1.5 AMP : 60 HZ
ENERGY CYCLE ....... 10,000 BTU
FLOW RATE .......... 0.8 GPM @ 50 PSI
T.I.G. TORCHES ..... 250AMP
M.I.G. GUN ......... 250AMP |
