54" (1400mm) x 60,000# KAWASAKI-MITSUBISHI DOUBLE MANDREL CAROUSEL RECOILING
Brand
Category
Type
Model
Not specified
Stock #
115571
Year
Not specified
Condition
Used
Location
Not specified
|

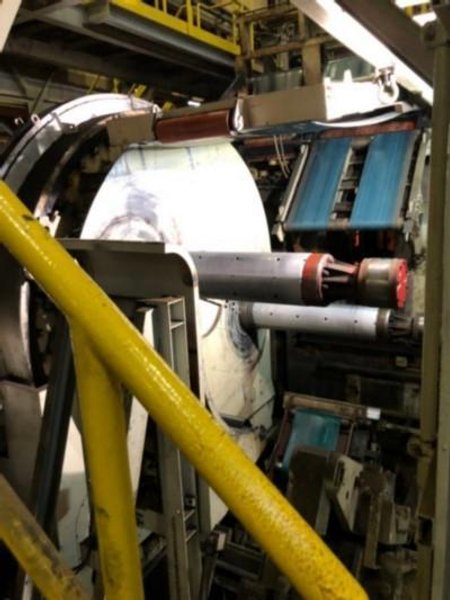

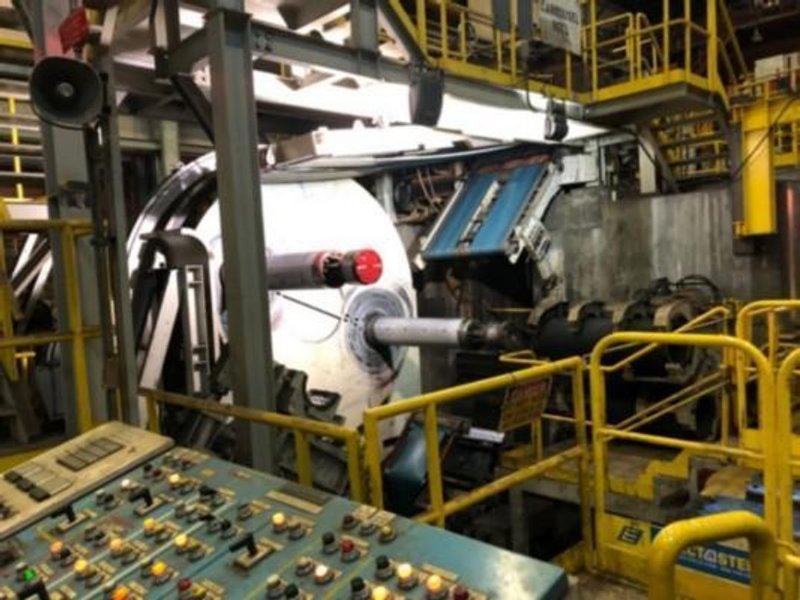

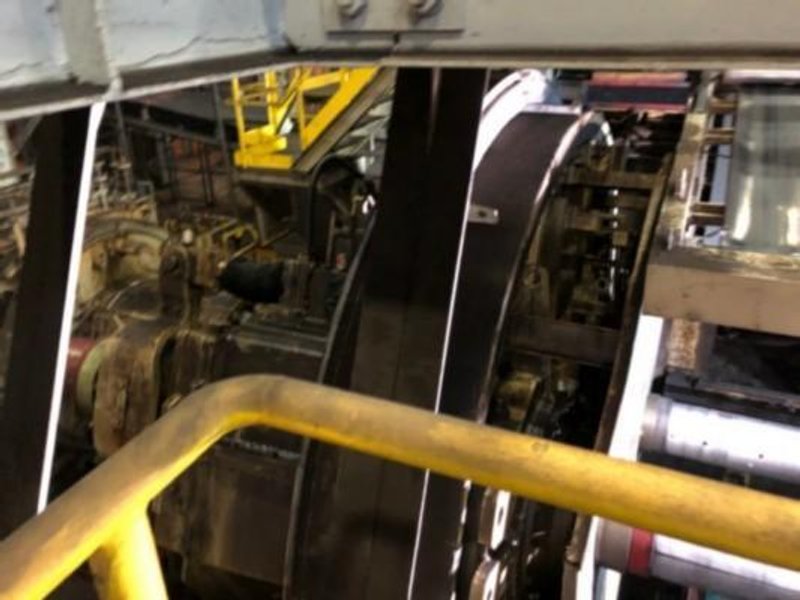

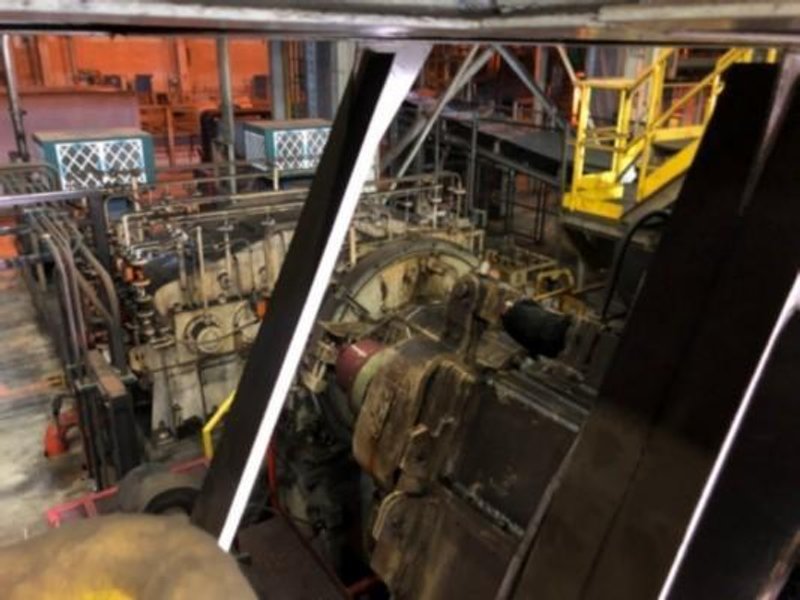

THIS DOUBLE MANDREL CAROUSEL RECOILING SYSTEM ENABLES A PROCESS LINE TO RUN CONTINUOUSLY AND EFFICIENTLY ALLOWING FOR A FINISHED COIL TO BE WOUND ON THE FIRST RECOIL MANDREL AND COIL REMOVED AS THE SECOND MANDREL IS POSTIONED TO RECEIVE THE INCOMING COIL. DOUBLE MANDREL CAROUSEL SYSTEM IS CURRENTLY INSTALLED ON CONTINUOUS ANNEALING LINE FOR TINPLATE AND SHEET STEEL PRODUCTION.
GENERAL DESCRIPTION:
MANUFACTURER - KAWASAKI MITSUBISHI
EXIT SPEED TIN PLATE - 2300 FPM
EXIT SPEED SHEET - 12078 FPM
TINPLATE THICKNESS RANGE - 0.203MM - 0.381MM
SHEET THICKNESS RNAGE - 0.305MM - 1.626MM (DQSK/DDQ - 0.305MM - 1.2MM)
WIDTH TINPLATE - 635-1016MM
WIDTH SHEET - 609.6 - 1371.6MM
COIL WEIGHT MAX - 30 TON
COIL ID - 420MM - 508MM (WITH RUBBER SLEEVE)
COLLAPSED ID - 387.5MM
COIL OD MAX - 1981MM
COIL OD MIN TINPLATE - 1019MM
COIL OD MIN SHEET - 838MM
LINE DIRECITON - RIGHT TO LEFT
GENERAL COMPONENT LIST FOR DOUBLE CAROUSEL RECOILING SYSTEM
ROCKING TYPE FLYING EXIT SHEAR W/ PINCH ROLL
150 HP/110 KW, 515 RPM DC MOTOR W/ GEARBOX AND COUPLING
80MM STROKE
30-500 MPM
SCRAP DISPOSAL SYSTEM
EXIT DEFLECTOR ROLL W/ EXIT CONVEYOR
RUBBER SPOOL
TRAVELING BELT WRAPPER
CAROUSEL TENSION REEL W/ TWO MANDRELS
300 KW DC MAIN TENSION REEL DRIVE MOTOR & 2 SPEED GEARBOX ASSEMBLY
(2) 90KW DC MANDREL REEL MOTORS WITH GEARBOX ASSEMBLY , 850 INPUT RPM
OUTBOARD BEARING SUPPORT
SNUBBER ROLL
EXIT COIL CAR, COIL CAR CONVEYOR & BANDING UNIT
(8) COIL STORAGE POSITIONS
838MM - 1981MM COIL OD BANDING CAPABILITY
420MM OR 508MM COIL ID BANDING CAPABILITY
609MM - 1371MM COIL WIDHT BANDING CAPABILITY
0.203MM - 1.626MM THICKNESS CAPABILITY
UP TO 30 TON COIL WEIGHT BANDING COIL CAR, CONVEYOR AND BANDING CAPABILITY |
