10,000 lbs x 36" Littell Coil Reel and Powered Straightener
Brand
Category
Model
90-36 and 638-7PD
Stock #
2807
Year
Not specified
Condition
As-Is
Location
Michigan
| Coil Weight | 10000 pounds |
| Coil Width | 36 inches |
| Coil Thickness | .080 inches |
|
Littell Coil Reel and Powered Straightener Combination Specifications:
Coil weight capacity: 10,000 Lb
Stock width capacity: 36"
Stock thickness capacity: .080" x 36" Wide
Stock thickness capacity: .187" x 12" Wide
Expansion range: 20" - 24"
Coil O.D. capacity: 60"
Littell Coil Reel and Powered Straightener Equipment and Features:

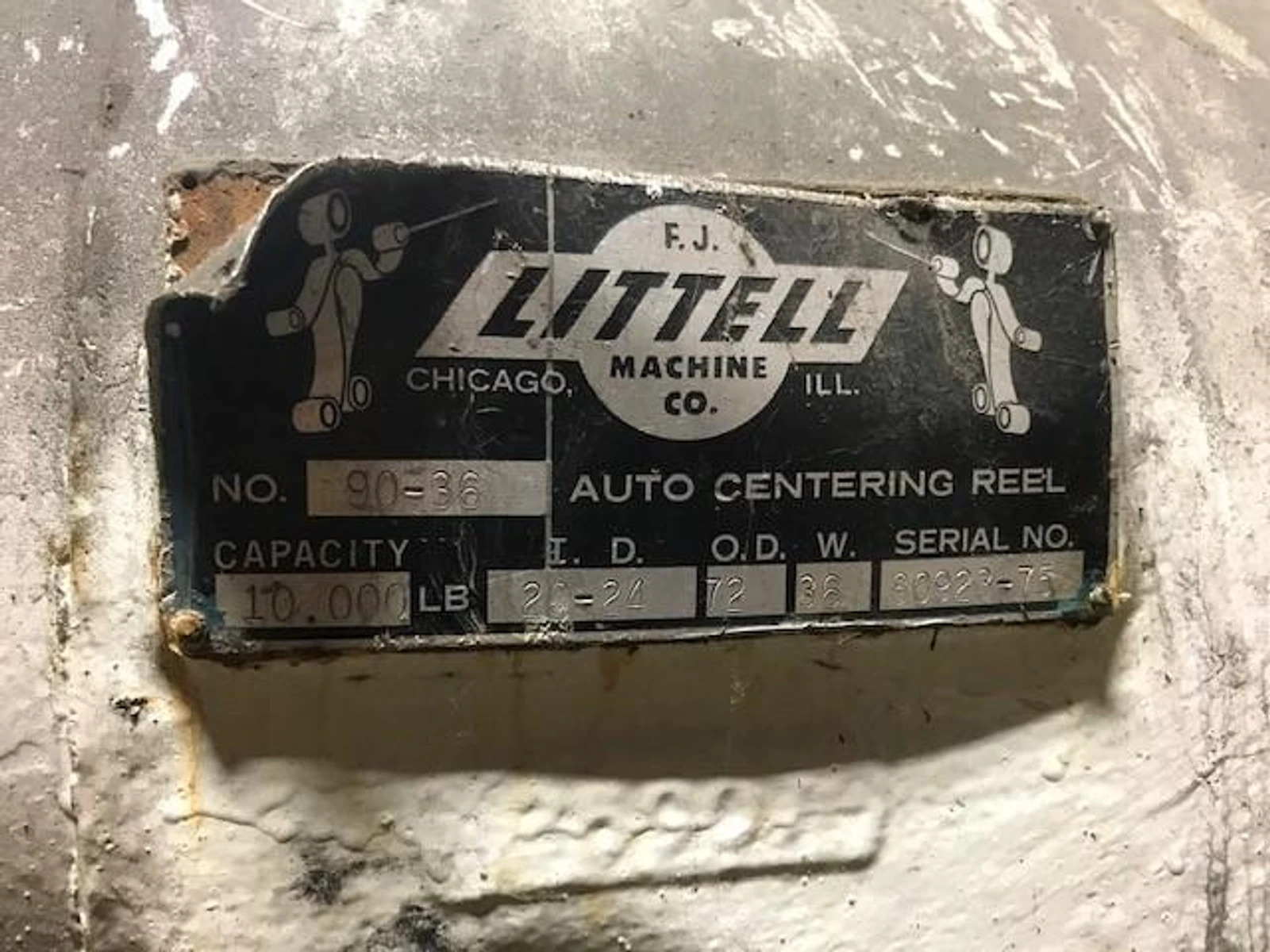

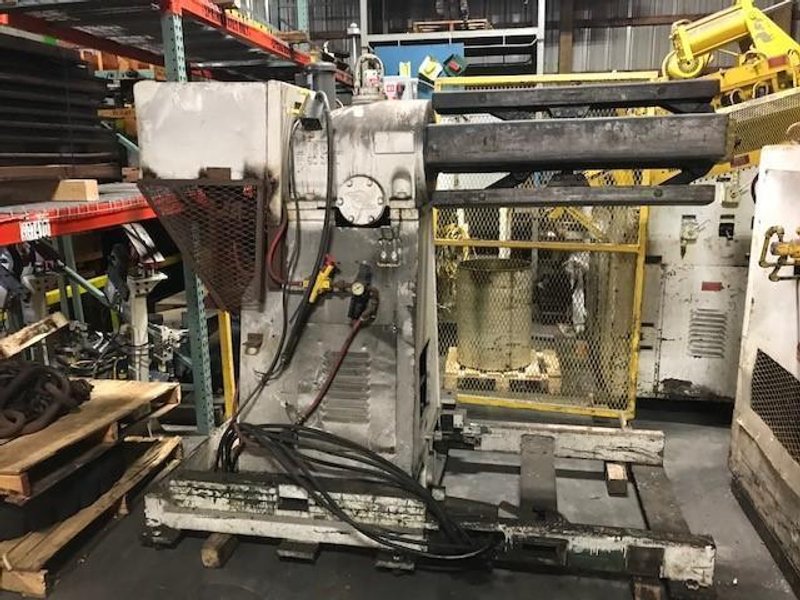

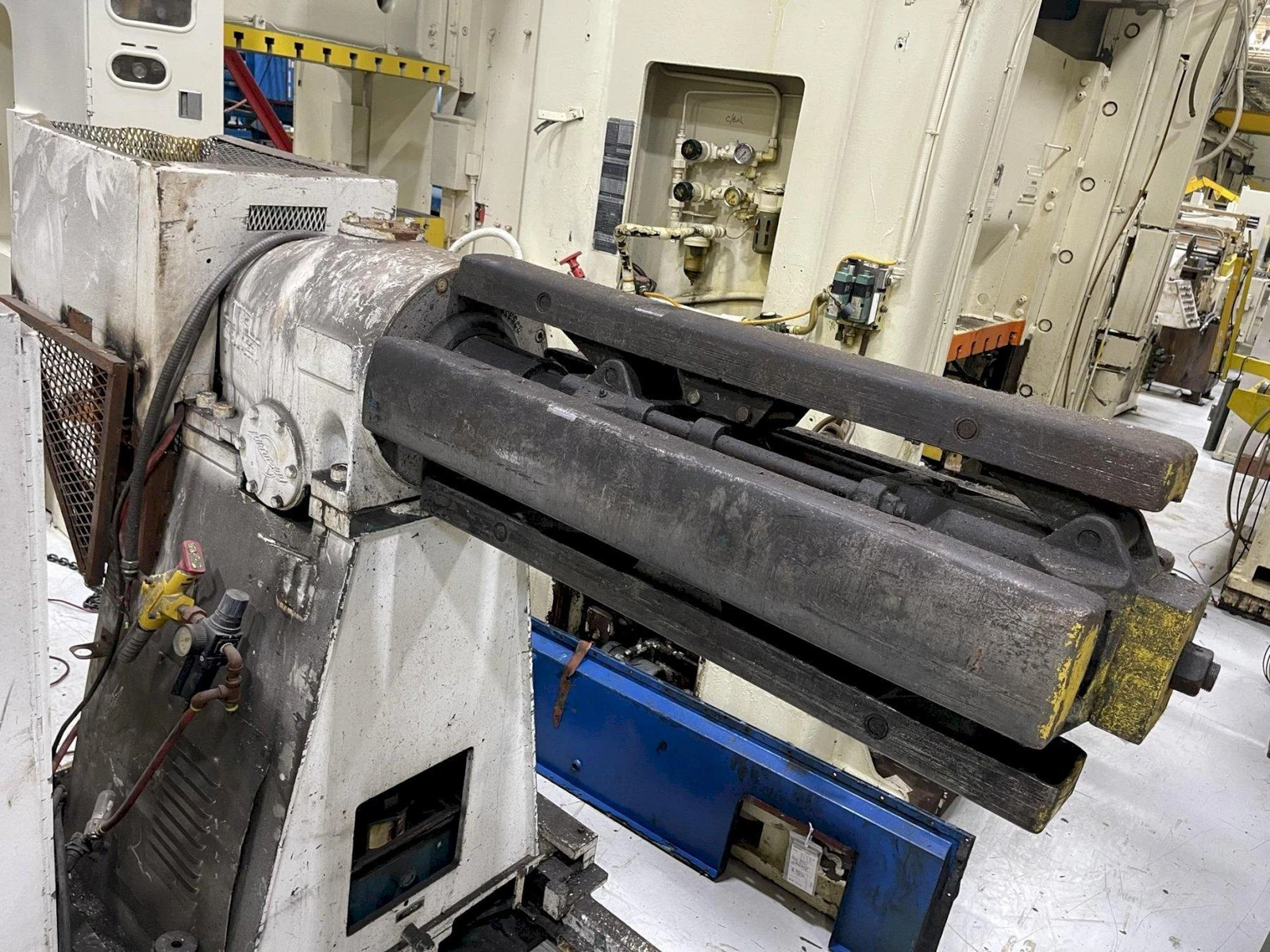

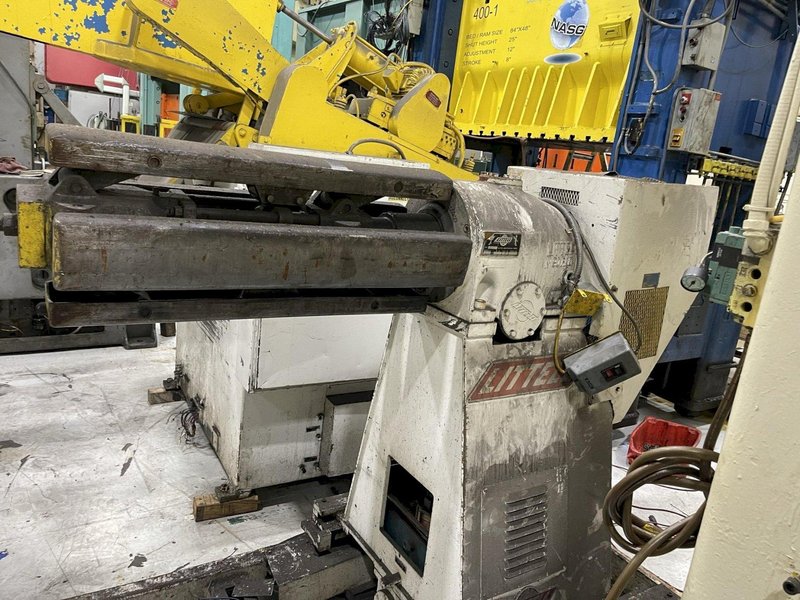

Littell Pull Off Coil Reel Uncoiler, Model No.: 90-36
Serial No.: 80923-75 Four leaf mandrel with hydraulic expansion
Adjustable coil keeper arms
Air brake mounted on main spindle
Adjustable pull off tensioning
Threading drive for jog forward and reverse
Self contained hydraulic unit
Littell Powered Coil Straightener Model No. 638-7PD
Serial No.: 80922-75 Entry and exit powered coil straightener pinch rolls with manual adjustment
Seven powered coil straightening rolls
Motorized individual or unison upper powered coil straightener roll adjustments
Air operated coil hold down arm with motorized cat track
Adjustable stock width edge guides
Exit cascade loop support rollers
Lubrication system
Variable speed
Remote hand held pendant control for jog forward and reverse
Auto/Run cycle
Loop control |
|
