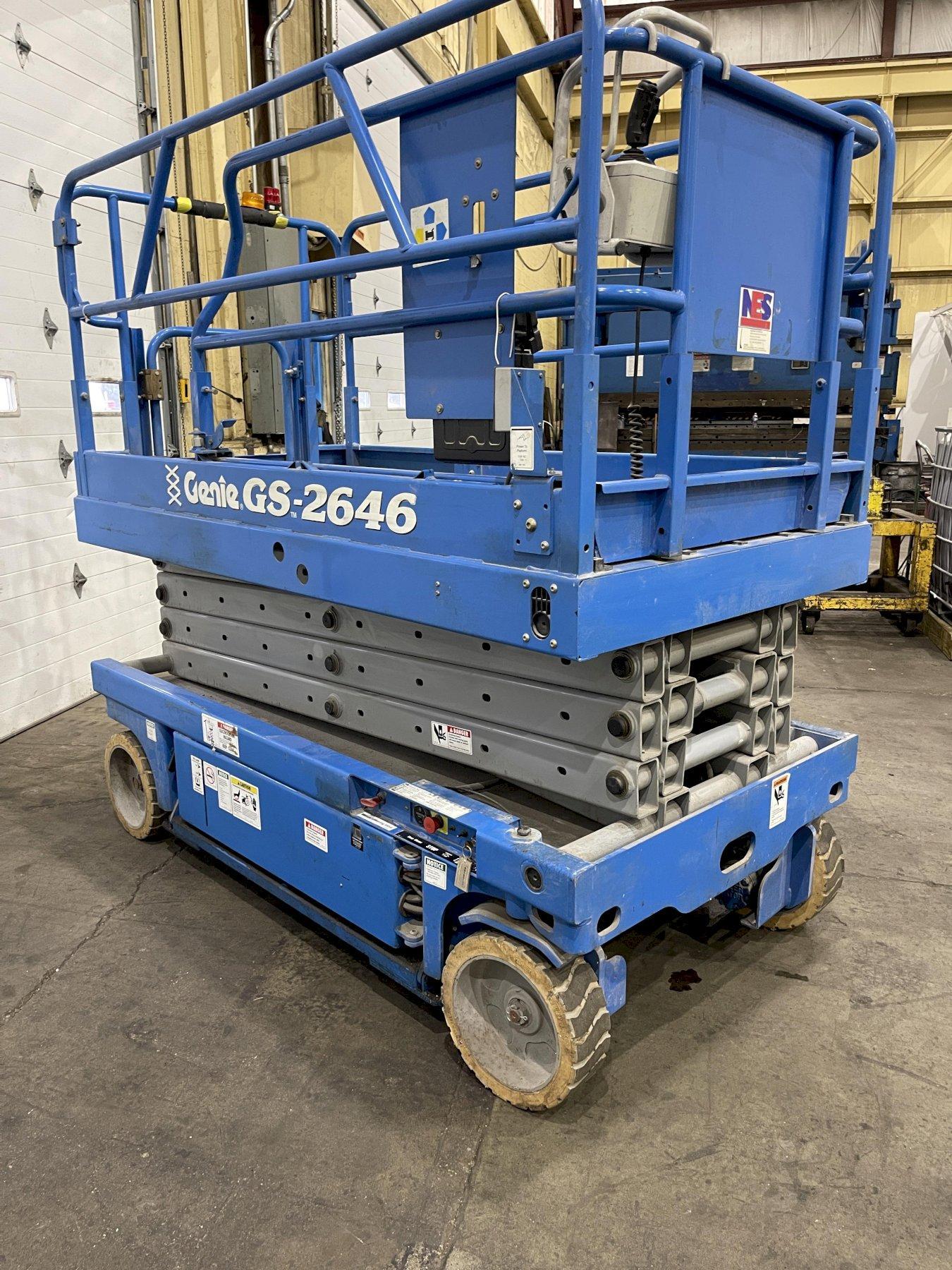

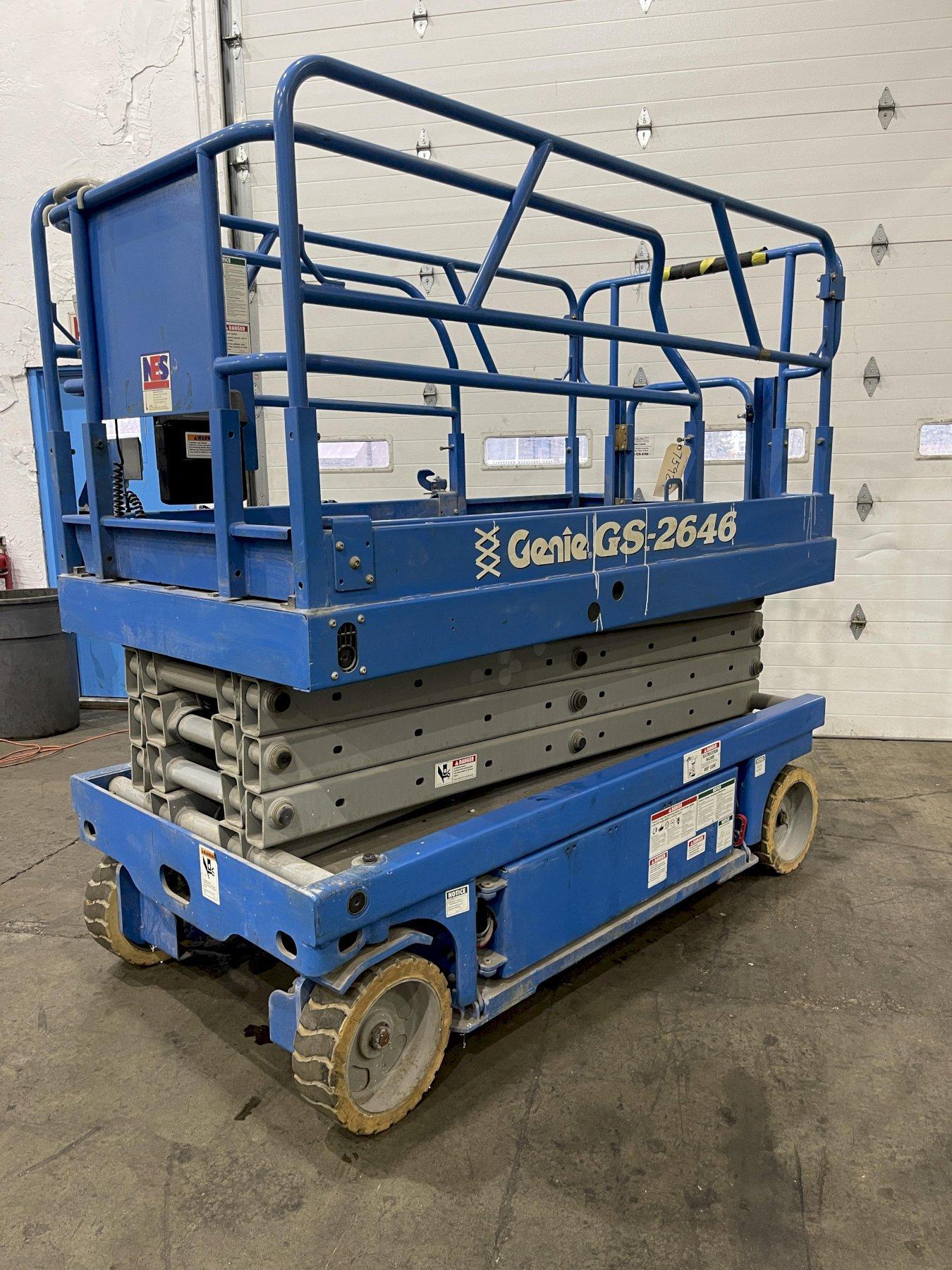

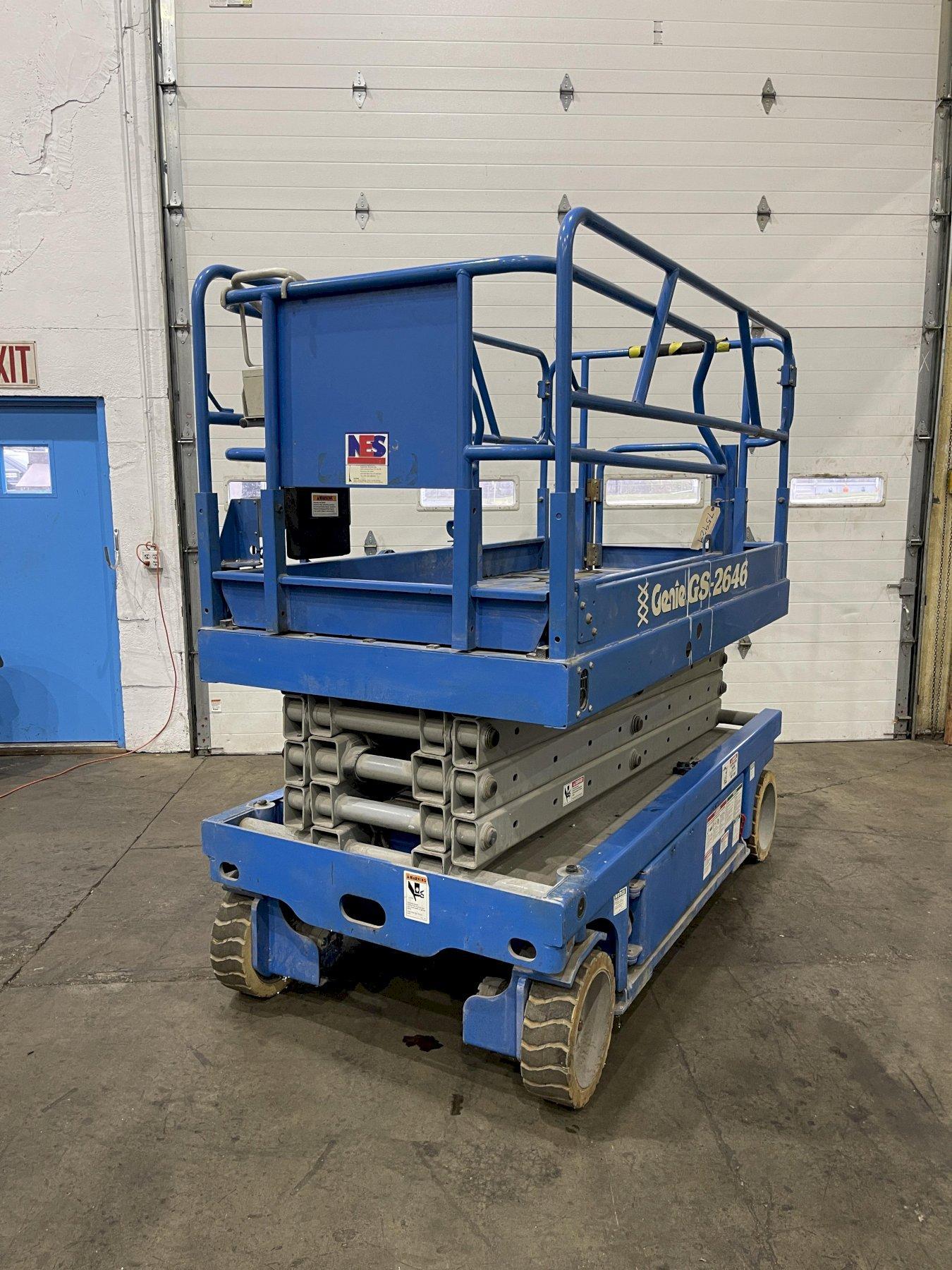

GENIE MODEL #GS-2646 MANLIFT: STOCK #75929

MODEL ............................. GS2646

WORKING HEIGHT MAXIMUM INDOOR ..... 32'1"

PLATFORM HEIGHT MAXIMUM ........... 26'1"'

PLATFORM OCCUPANCY (3) ............ 1000 LBS

PLATFORM DIMENSION ................ 7-5" X 42

PLATFORM STOWED HEIGHT ............ 7'11"

PLATFORM LENGTH EXTENDED .......... 10'5"

TIRES NON MARKING ................. 15" X 5" X 11"

DUAL FRONT WHEEL DRIVE ............ YES

RAISE /LOWER SPEED ................ 30/38 SECONDS

TURNING RADIUS .................... 7'6"

SPEED STOWED ...................... 2.2 MPH

SPEED EXTENDED .................... 0.5 MPH

WIDTH OF LIFT ..................... 3'10"

WHEEL BASE ........................ 6' 1"

BATTERY ........................... (4) @ 6 VOLTS

CHARGER ON BOARD .................. YES

HOURS ON LIFT ................. 19
