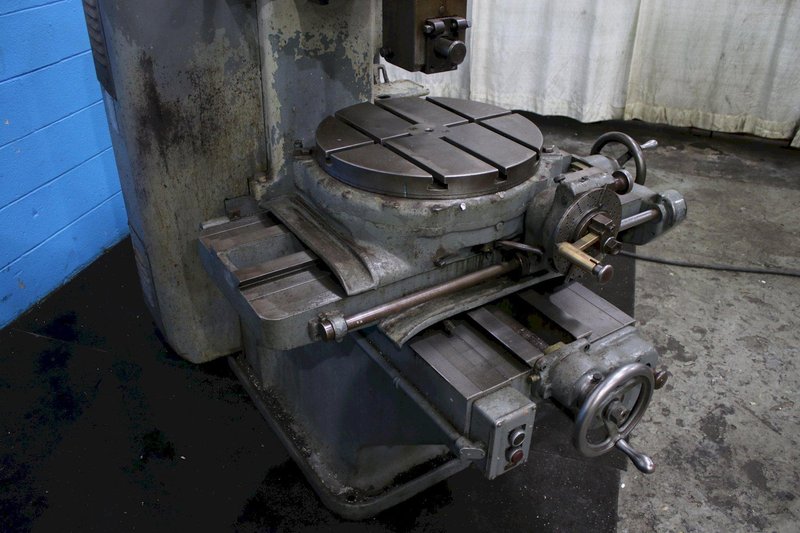

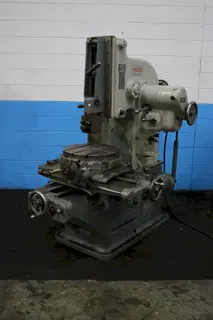

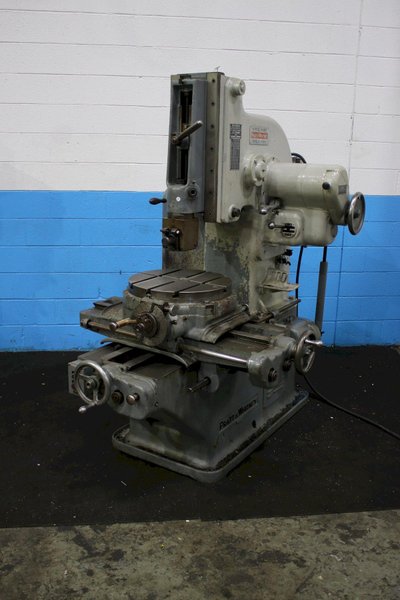

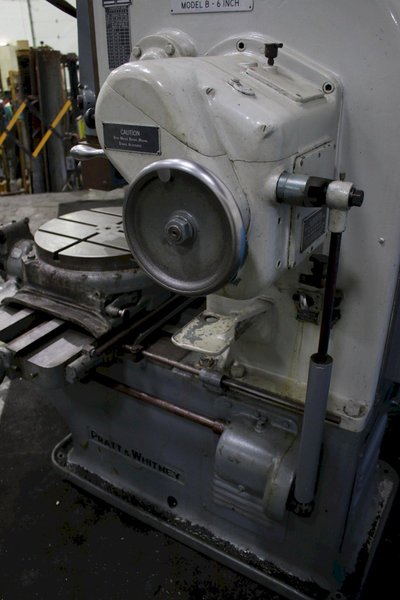

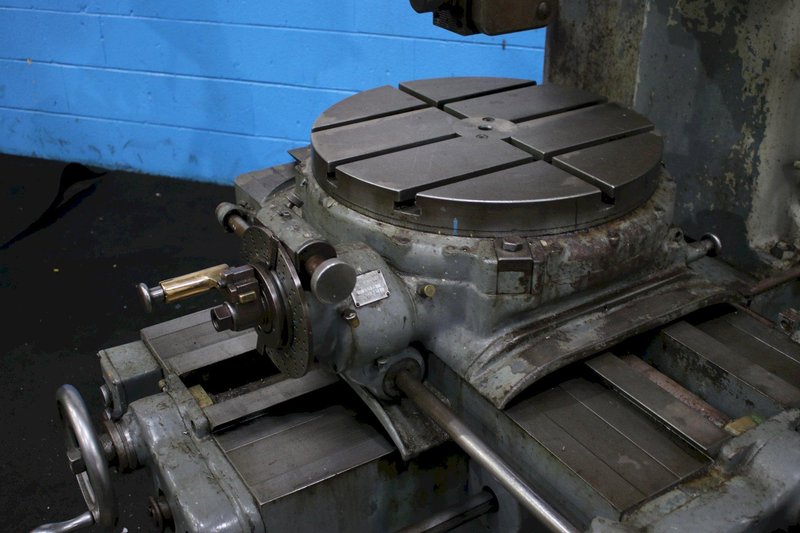

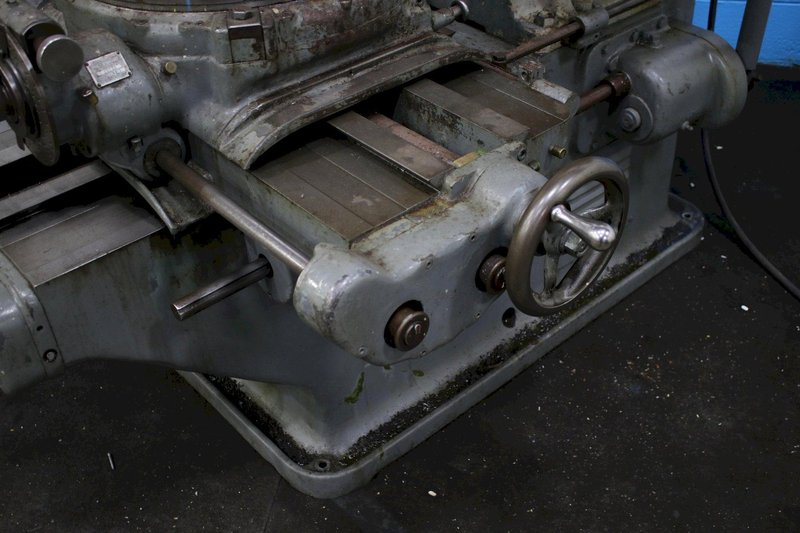

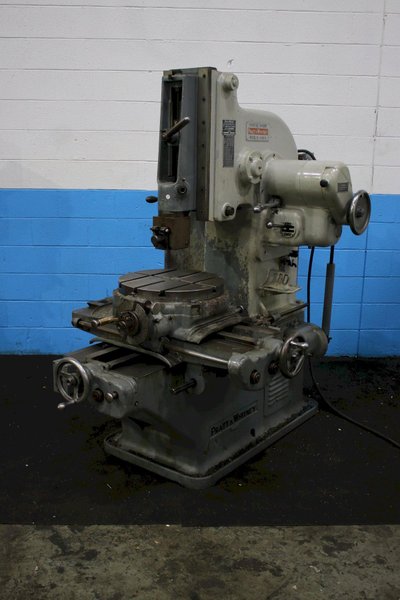

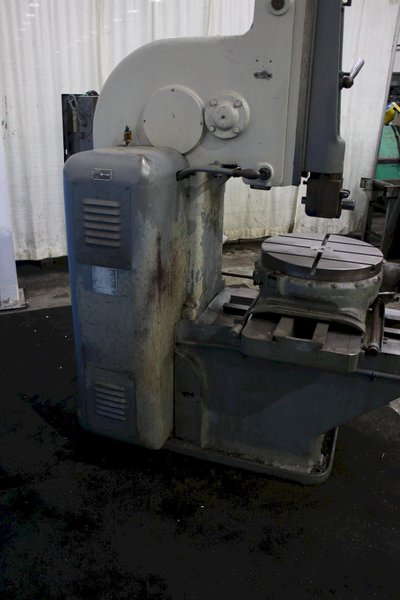

6" PRATT & WHITNEY VERTICAL SLOTTER: STOCK 75849
Brand
Category
Type
Model
B-6
Stock #
75849
Year
Not specified
Condition
Not specified
Location
Ohio
|

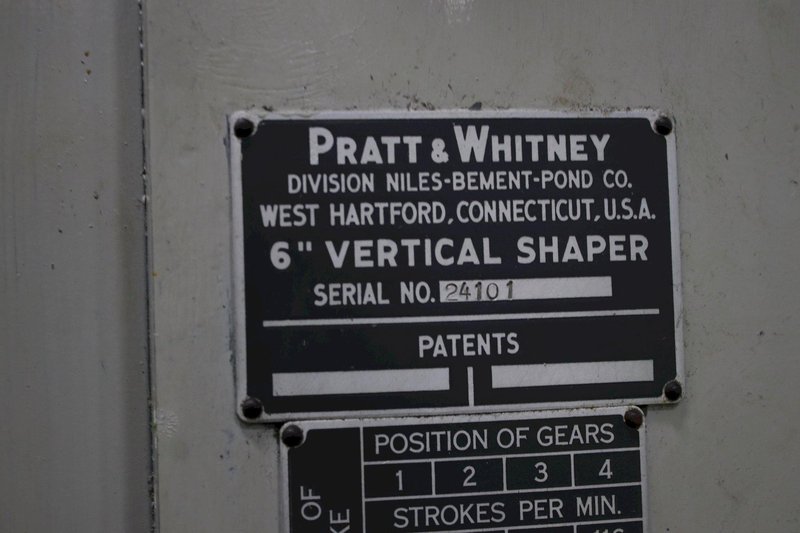

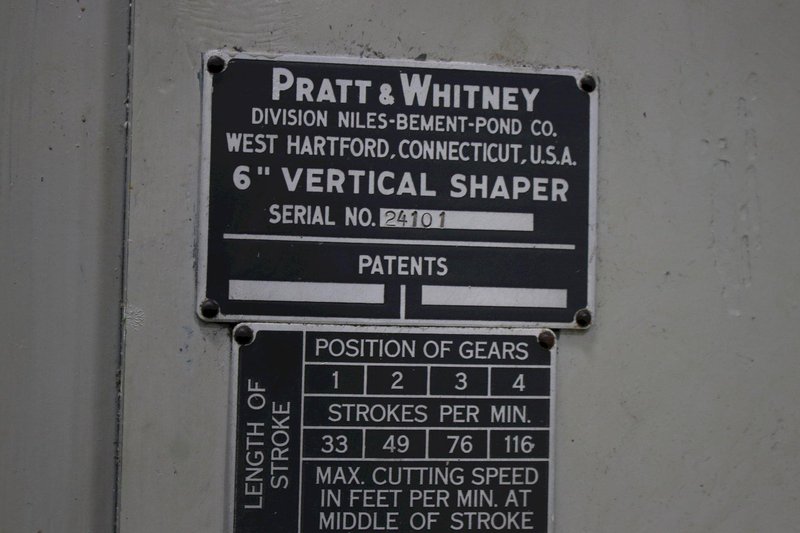

SERIAL ............................... 24101 MODEL ................................ B-6 LENGTH OF STROKE ..................... 0 TO 6" TABLE TO RAM (MAXIMUM) ............... 15" VERTICAL ADJUSTMENT OF RAM ........... 10" ROTARY TABLE DIAMETER (T-SLOTTED) .... 19-1/2" STROKES PER MINUTE ................... 33 - 49 - 76 - 116 LONGITUDINAL TABLE TRAVEL ............ 25" CROSS TABLE TRAVEL ................... 20" LONGITUDINAL & CROSS TABLE FEEDS ..... .0027" TO .0243" PER STROKE ROTARY TABLE FEED .................... .009" TO .085" PER STROKE COLUMN TO RAM CENTERLINE ............. 18-3/4" ANGULAR RAM ADJUSTMENT ............... 0 TO 5 DEGREES FLOOR TO TABLE ....................... 37" MOTOR ................................ 3 HORSEPOWER |
