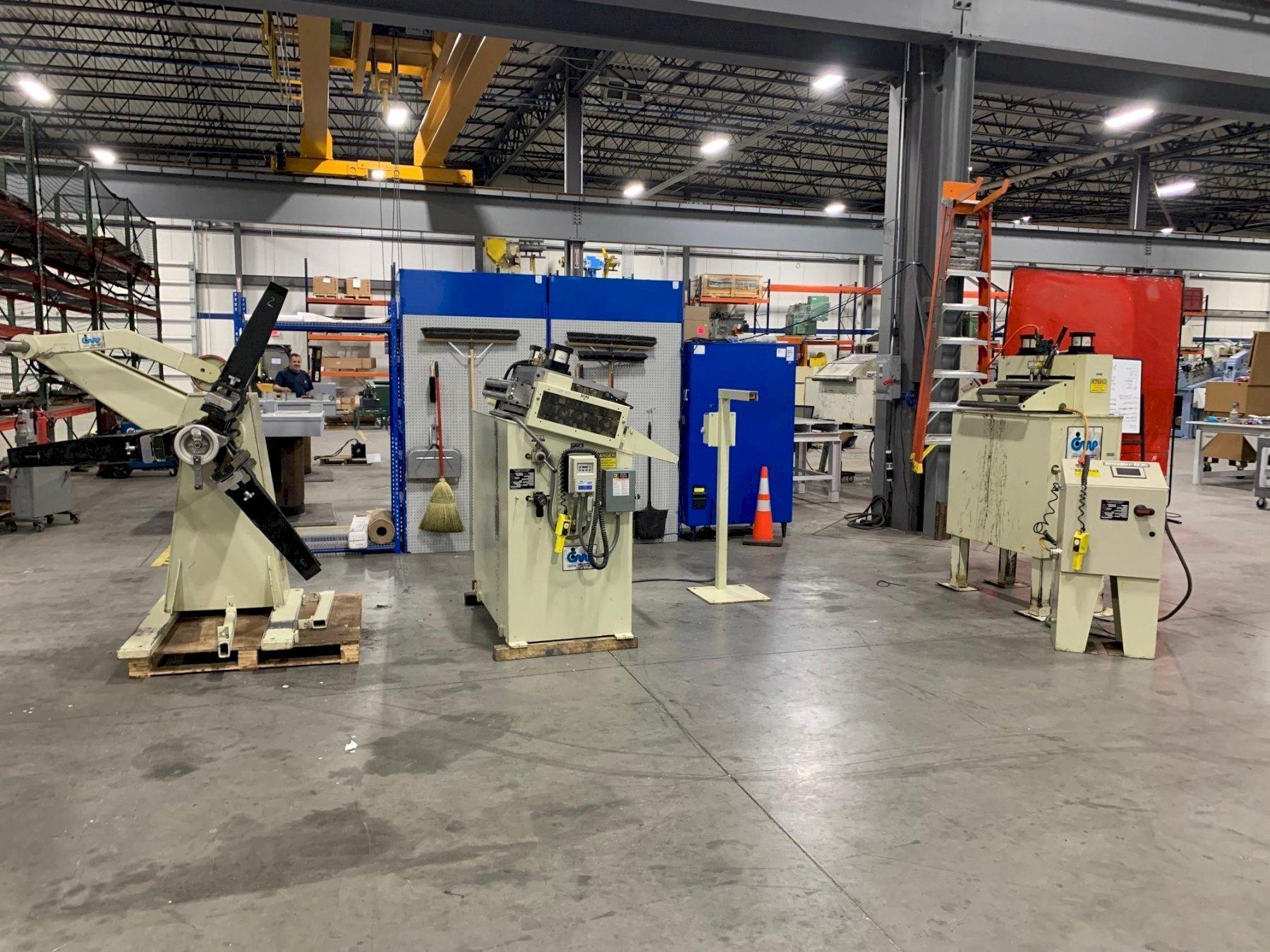

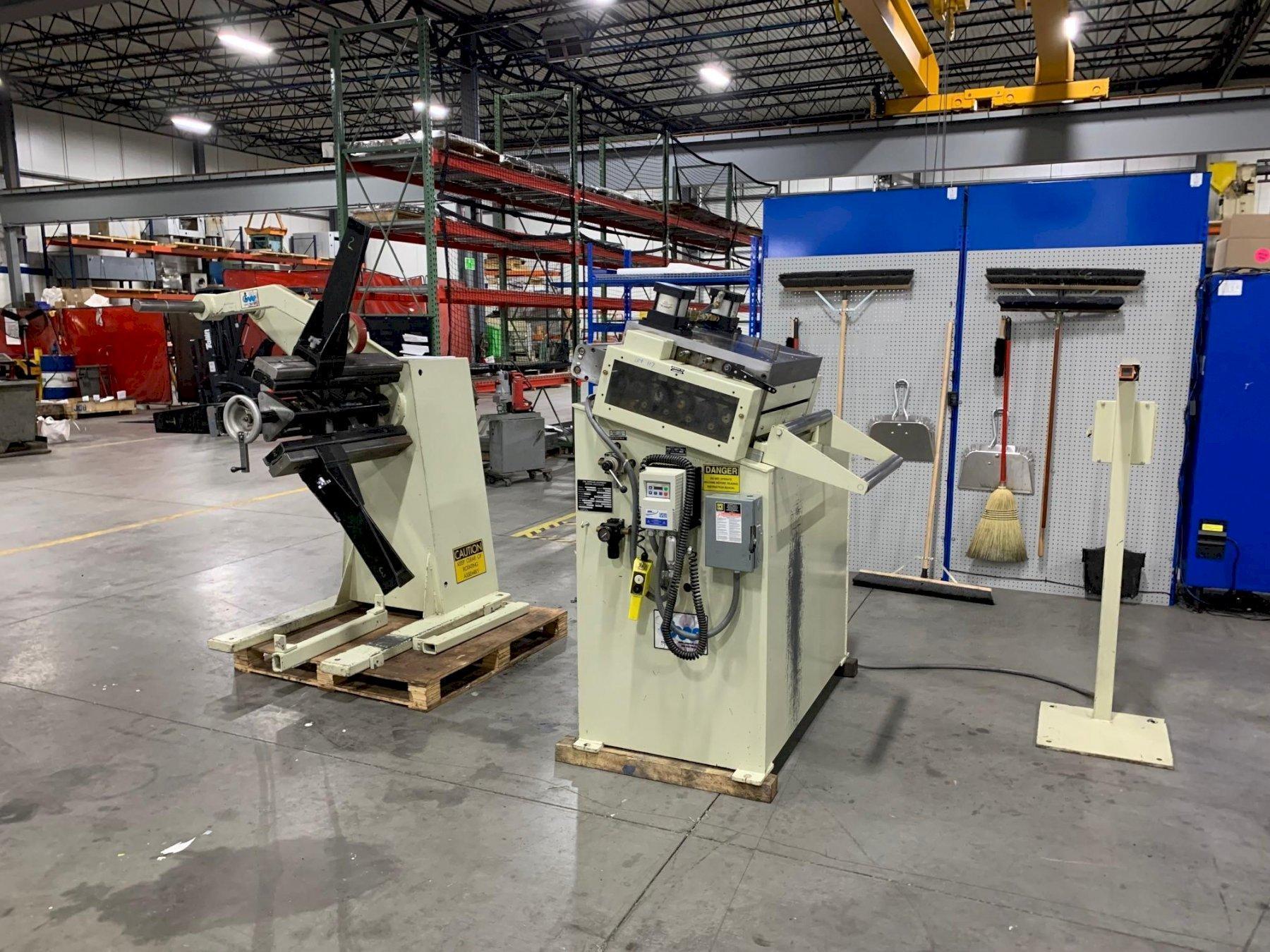

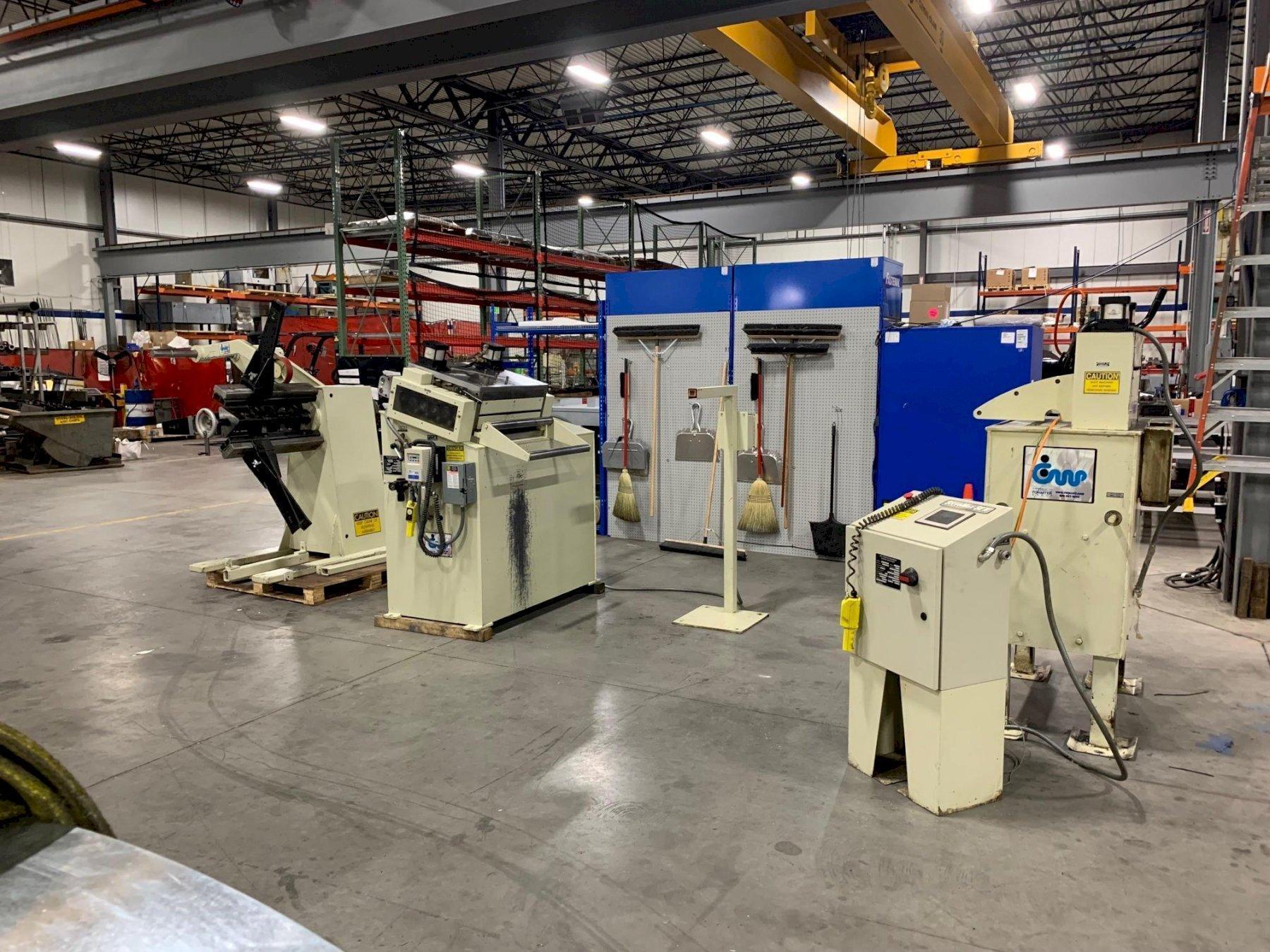

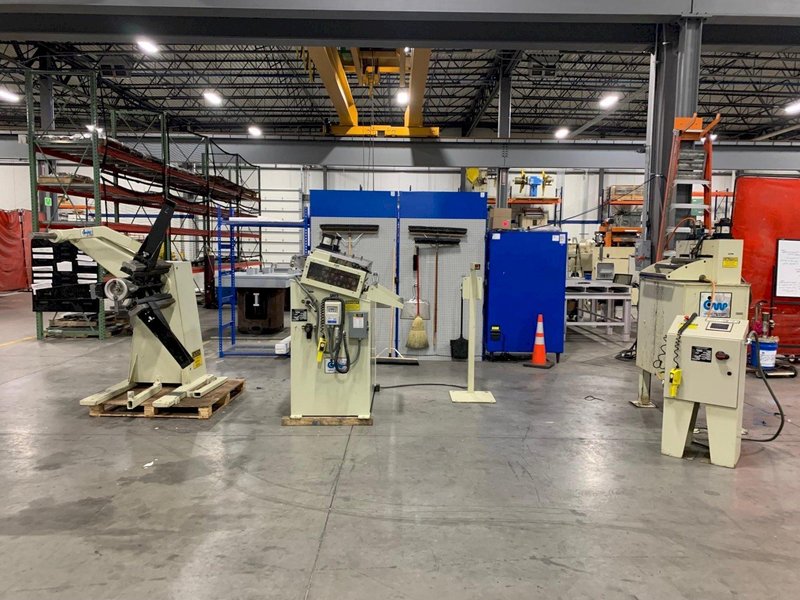

6,500 lbs x 24" Wide Cooper-Weymouth Peterson Conventional Coil Feed Line
Brand
Category
Type
Model
24CRS
Stock #
2786
Year
Not specified
Condition
Not specified
Location
Michigan
| Coil Weight | 6500 pounds |
| Coil Width | 24 inches |
| Coil Thickness | .125 inches |
|
Conventional Coil Feed Line General Specifications

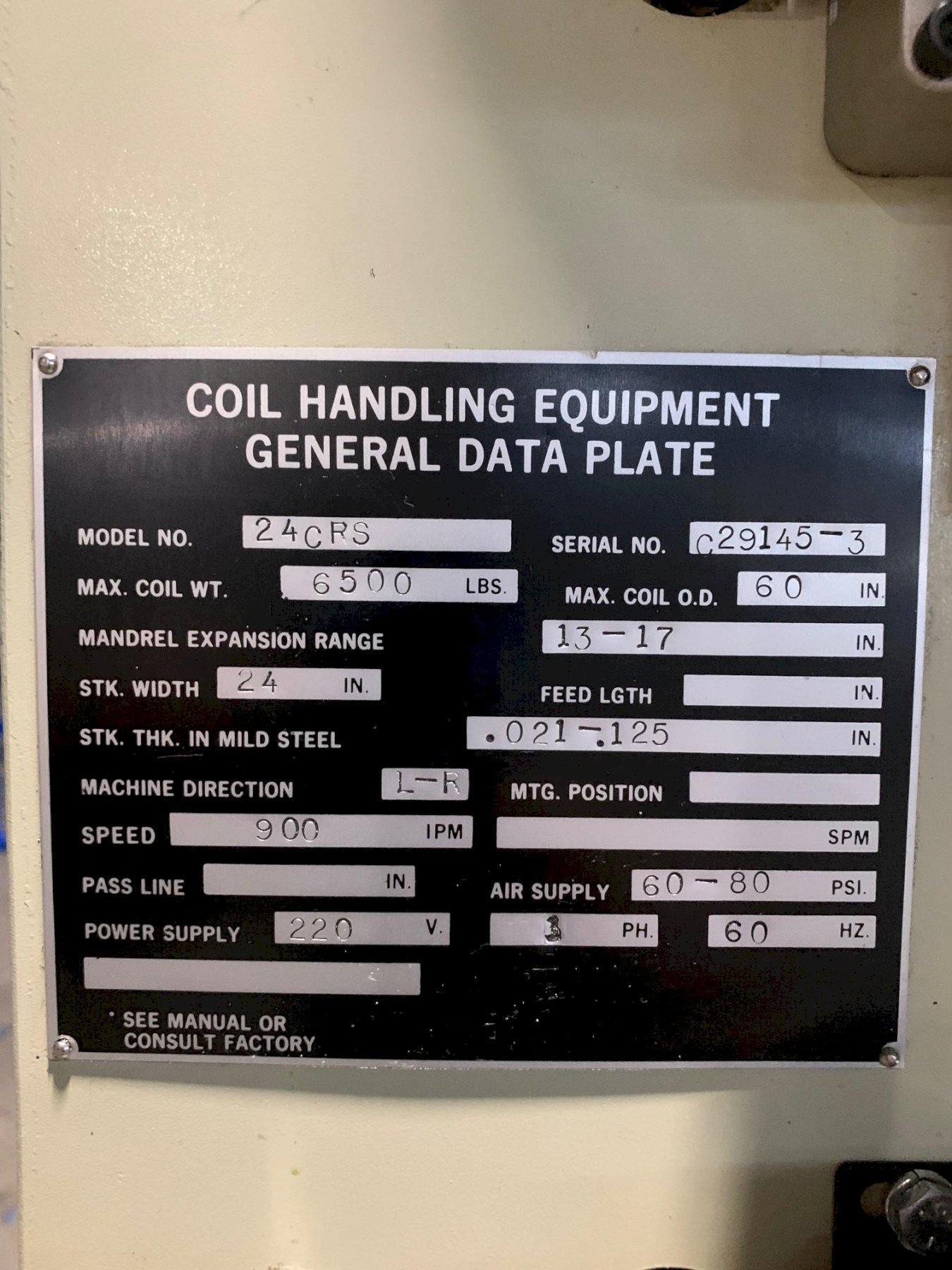

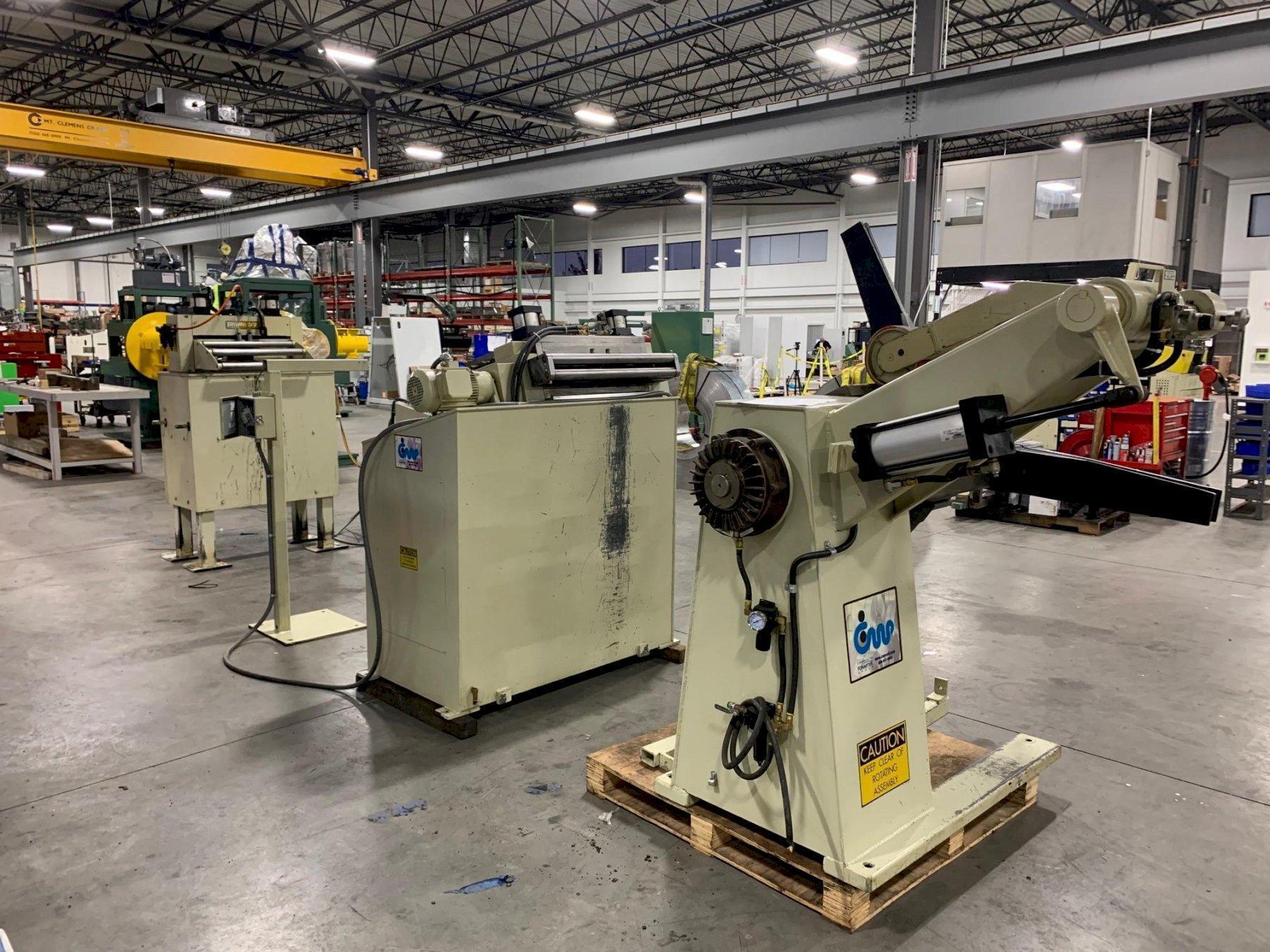

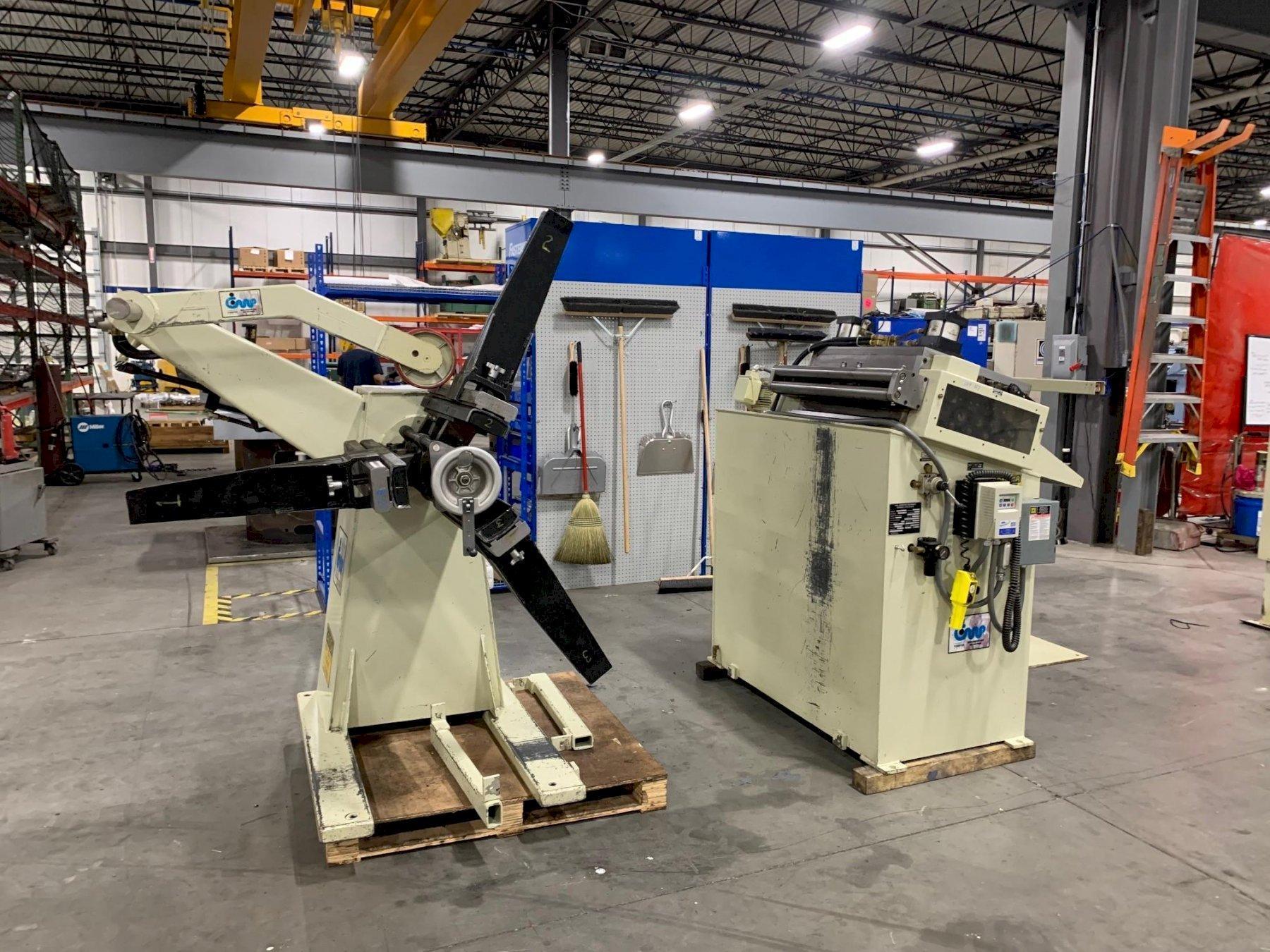

6500 lbs Max Coil Weight 24" Max. Coil Width .125" Max. Stock Thickness at Full Width 60" Max Coil O.D. 13-17" I.D. Range Coil Feed Line Equipment and Features: Cooper-Weymouth, Peterson Uncoiler Model# 4R-24 Serial Number C29145-2 Three Leaf Mandrel Coil Reeel Manual Coil Reel Mandrel Expansion Air operated coil hold down arm (air actuated) Air drag brake mounted on main coil reel spindle Adjustable brake - Pull off Tension Cooper-Weymouth, Peterson Powered Coil Straightener Model# 24CRS Serial Number C29145-3 Entry and exit powered coil straightener pinch rolls Air operated entry powered coil straightener pinch roll adjustment Manual exit upper powered coil straightener pinch roll adjustment
Seven coil straightening rolls x 2.75" diameter
Manual individual upper coil straightening roll adjustments
Entry stock width edge guides
Hand held pendant control for jog forward and reverse
Variable speed powered coil straightener drive system
Exit cascade loop support rollers

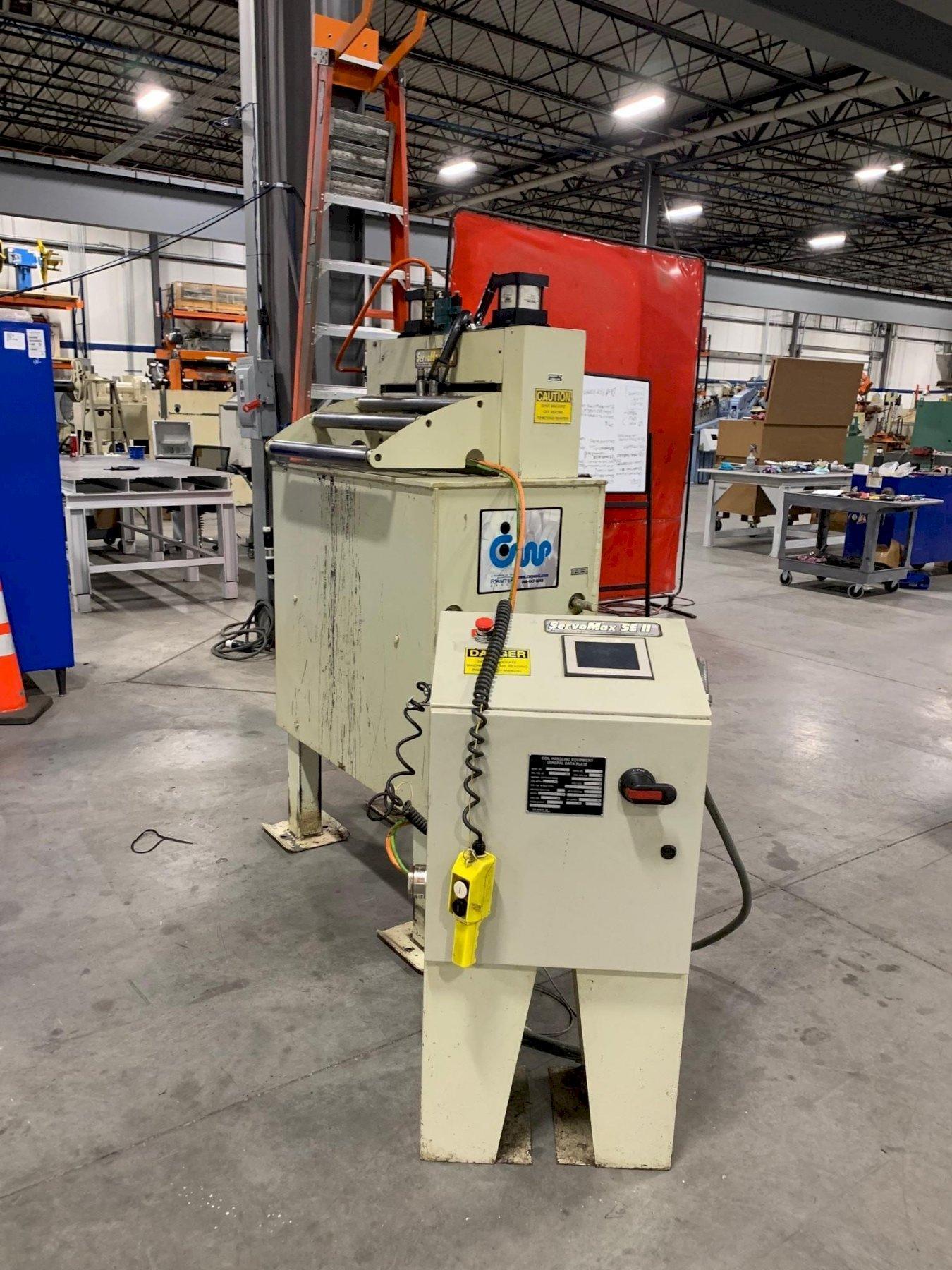

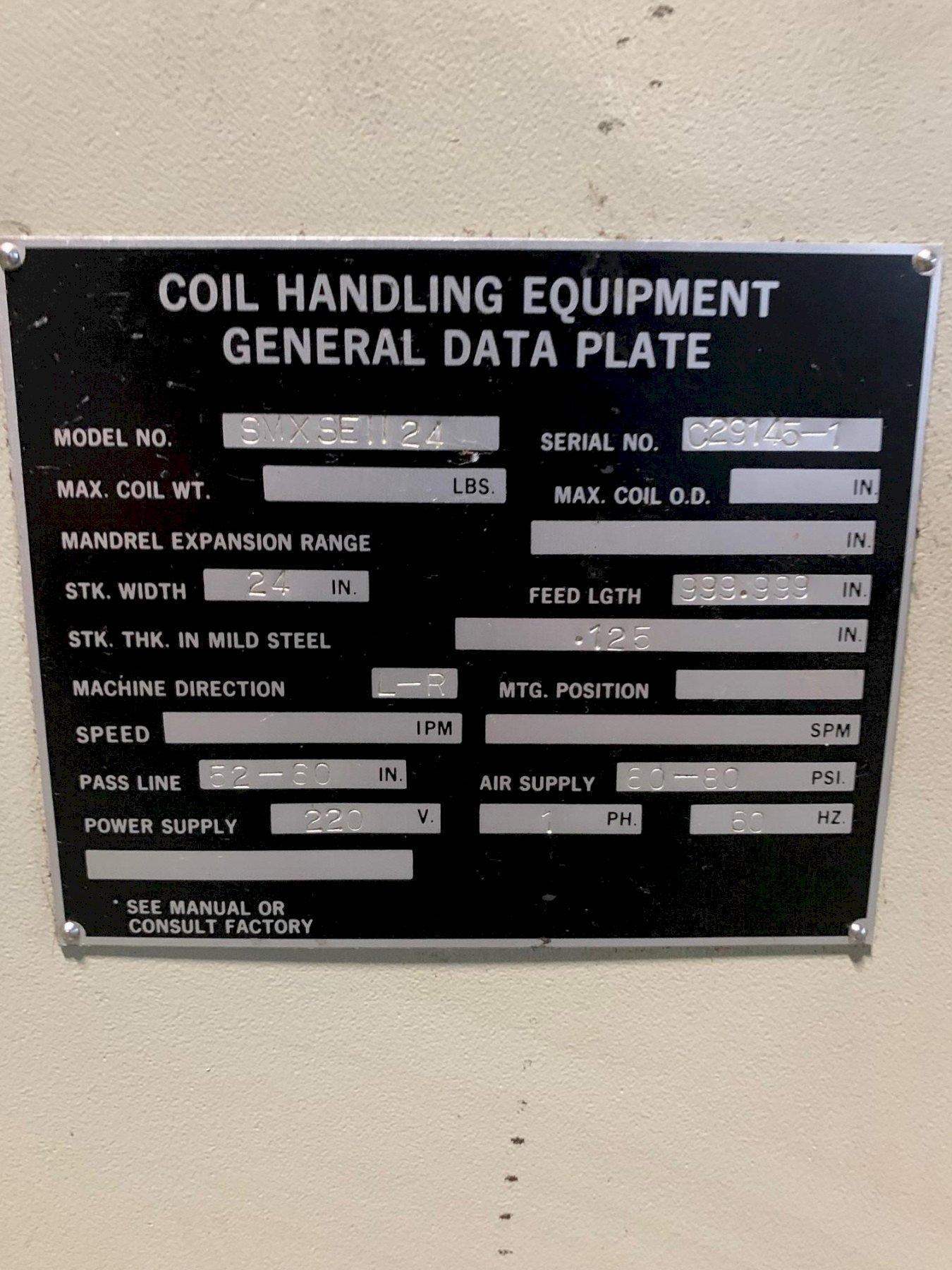

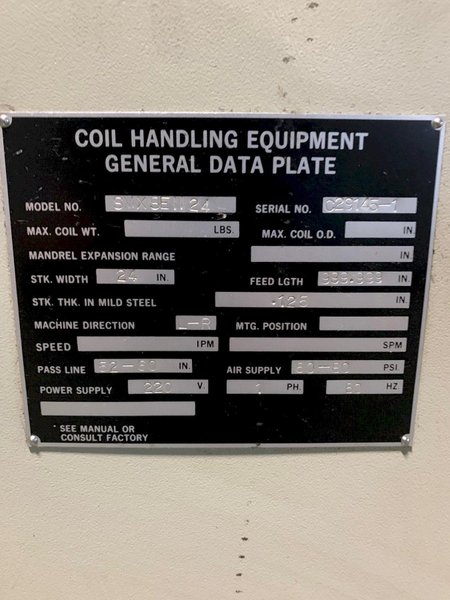

Loop control Cooper-Weymouth, Peterson Coil Servo Roll Feed Model# SMXSEII24 Serial Number C29145-1 2.75 inch diameter upper and lower servo feed rolls
Air operated upper servo feed roll lift/pilot
Adjustable stock width edge guides
Entry cascade loop support rollers
Free standing base with adjustable pass line height
AC servo roll feed drive and controls
Job memory micro adjust batch count etc
Pilot pin mode
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
Can be seen under power upon request! |
|
