COLT Coil Cradle Straightener Combination 8,000 Lbs x 12" Wide
Brand
Category
Model
CSHCE-80-12
Stock #
5404
Year
Not specified
Condition
Used
Location
Michigan
| Coil Weight Capacity: | 8000 pounds |
| Stock Width Capacity | 12 inches |
| Max Stock Thickness Capacity At Full Width | .190 inches |
| Coil O.D. Capacity: | 60 inches |
|
Colt Coil Cradle Straightener Combination Uncoiler Specifications:

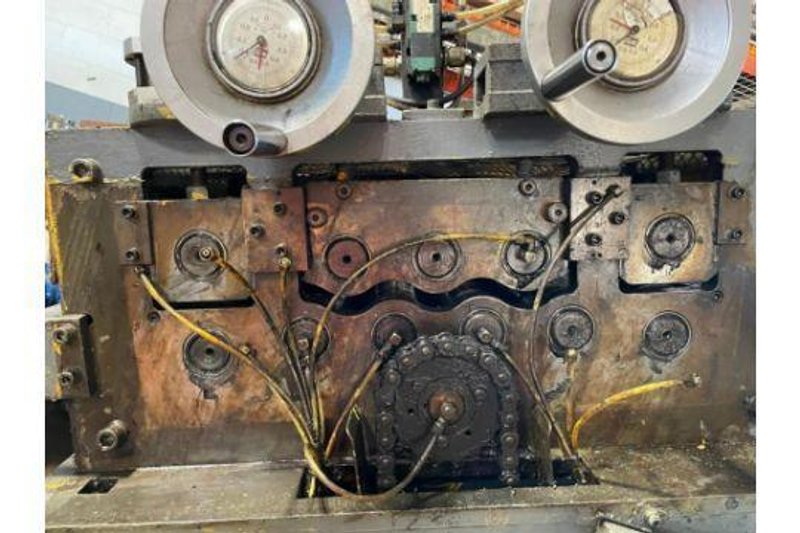

Coil weight capacity: 8,000 Lbs. Coil width capacity: 12" Stock thickness capacity: .190" x 12" Wide Stock thickness capacity: .250" x 06" Wide Coil O.D. capacity: 60" Colt Coil Cradle Straightener Combination Uncoiler Equipment and Features: Entry and exit coil cradle straightener pinch rolls x 5" diameter Air operated upper entry and exit pinch roll adjustment Seven coil cradle straightening rolls x 4" diameter Bank type upper straightening roll adjustments Inclined coil cradle straightening head Adjustable stock width edge guides Air operated entry coil end-debender Air operated coil hold down arm Exit cascade loop support rollers Adjustable coil side plates Coil storage rack Outboard air pressure regulators and gauges Operator's control console Jog forward and reverse Auto / Run cycle Loop control |
|
