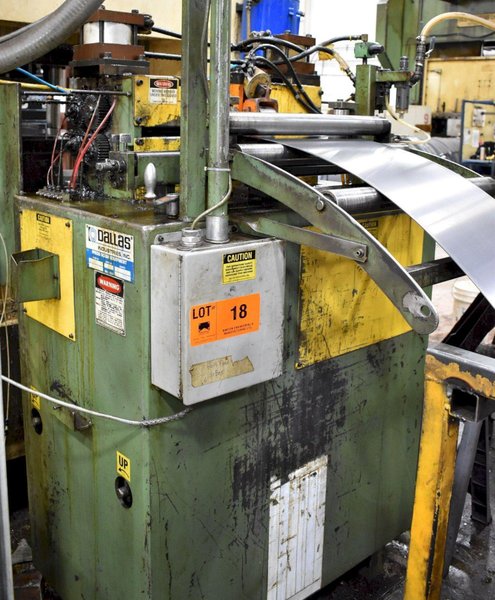

24" Dallas Servo Roll Feed Model DRF-424 on Cabinet
Brand
Category
Type
Model
DRF-424
Stock #
2783
Year
Not specified
Condition
Used
Location
Michigan
| Coil Width | 24 inches |
| Coil Thickness | .165 inches |
|
Standard Specifications

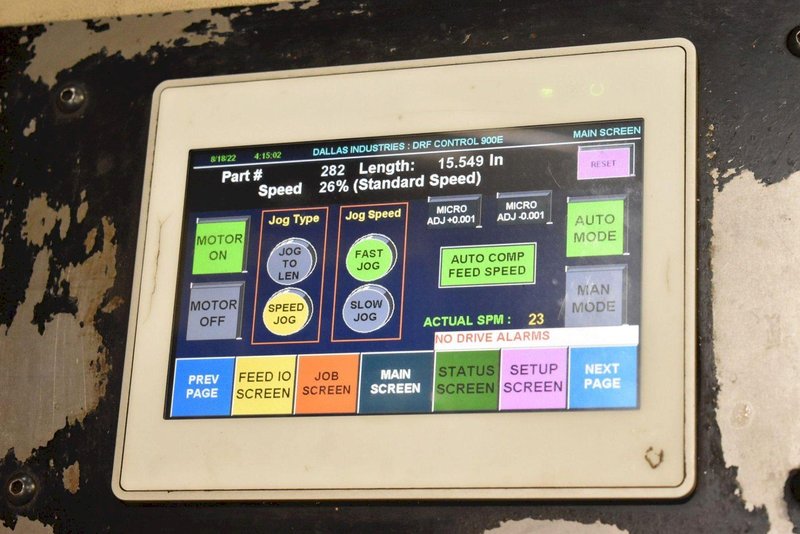

24" Max Coil Width 24" @ .165" Max Coil Thickness at full width 18" @ .194" Capacity 4" Diameter Feed Rolls Upper and Lower matte chrome finished servo feed rolls Four inch diameter servo feed rolls Air operated upper servo feed roll lift / pilot Cabinet base mounted with passline adjustments Hand crank entry stock width edge guides Job memory, micro adjust, batch count, etc Pilot pin mode Free standing sloped front servo roll feed control console Remote pendant control for jog forward and reverse Fused disconnect Good Running, "as taken from service" |
|
