Preliminary Specifications

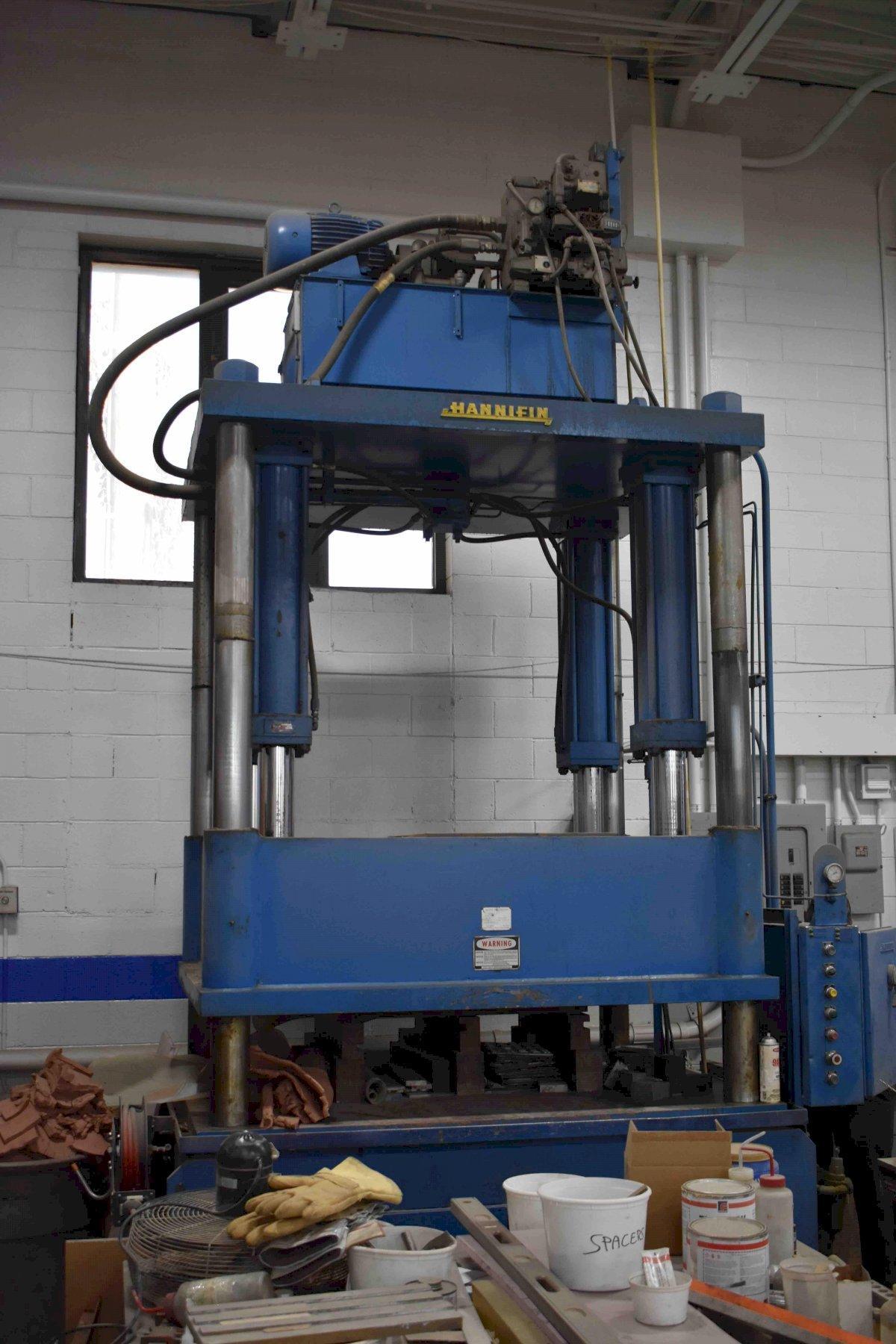

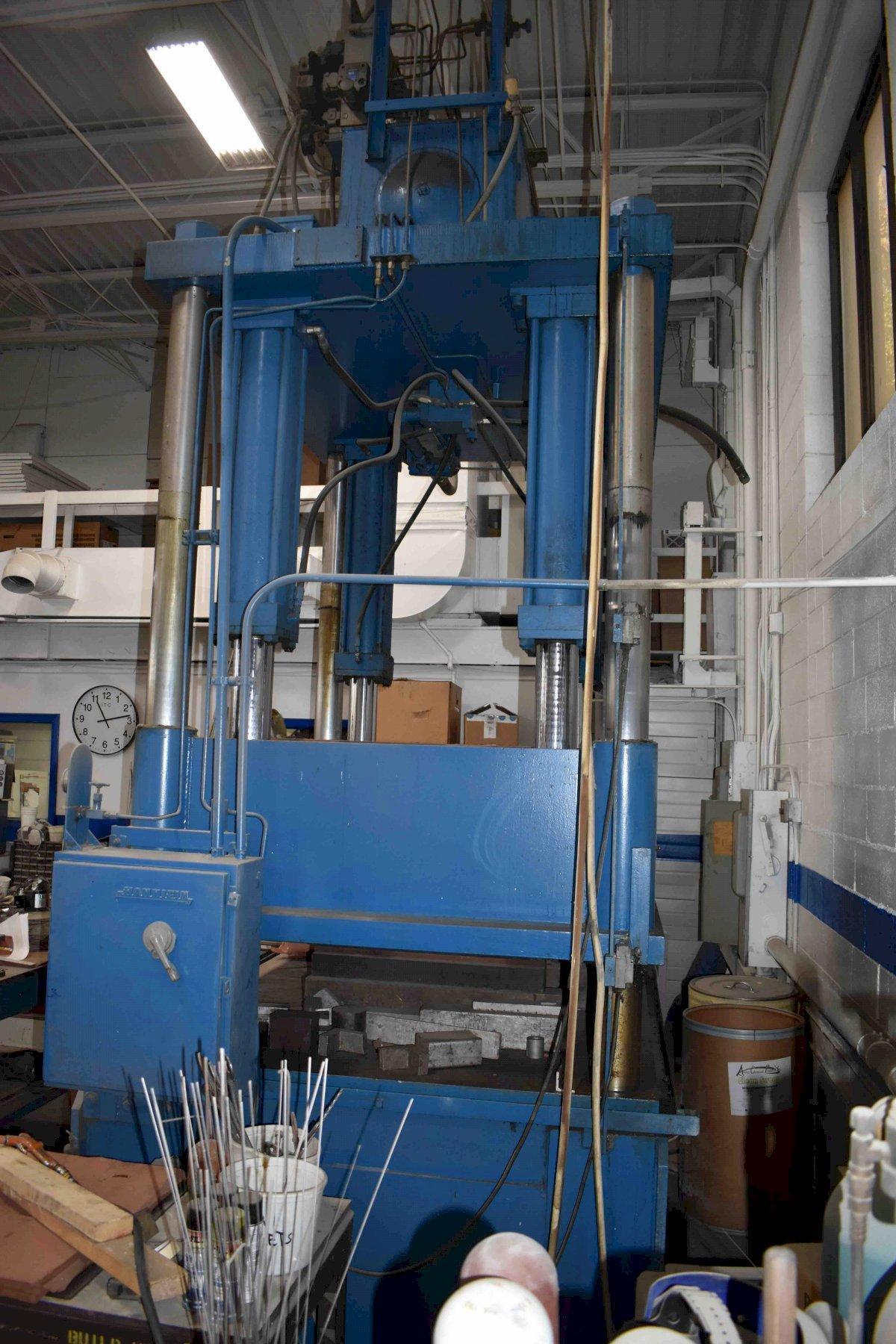

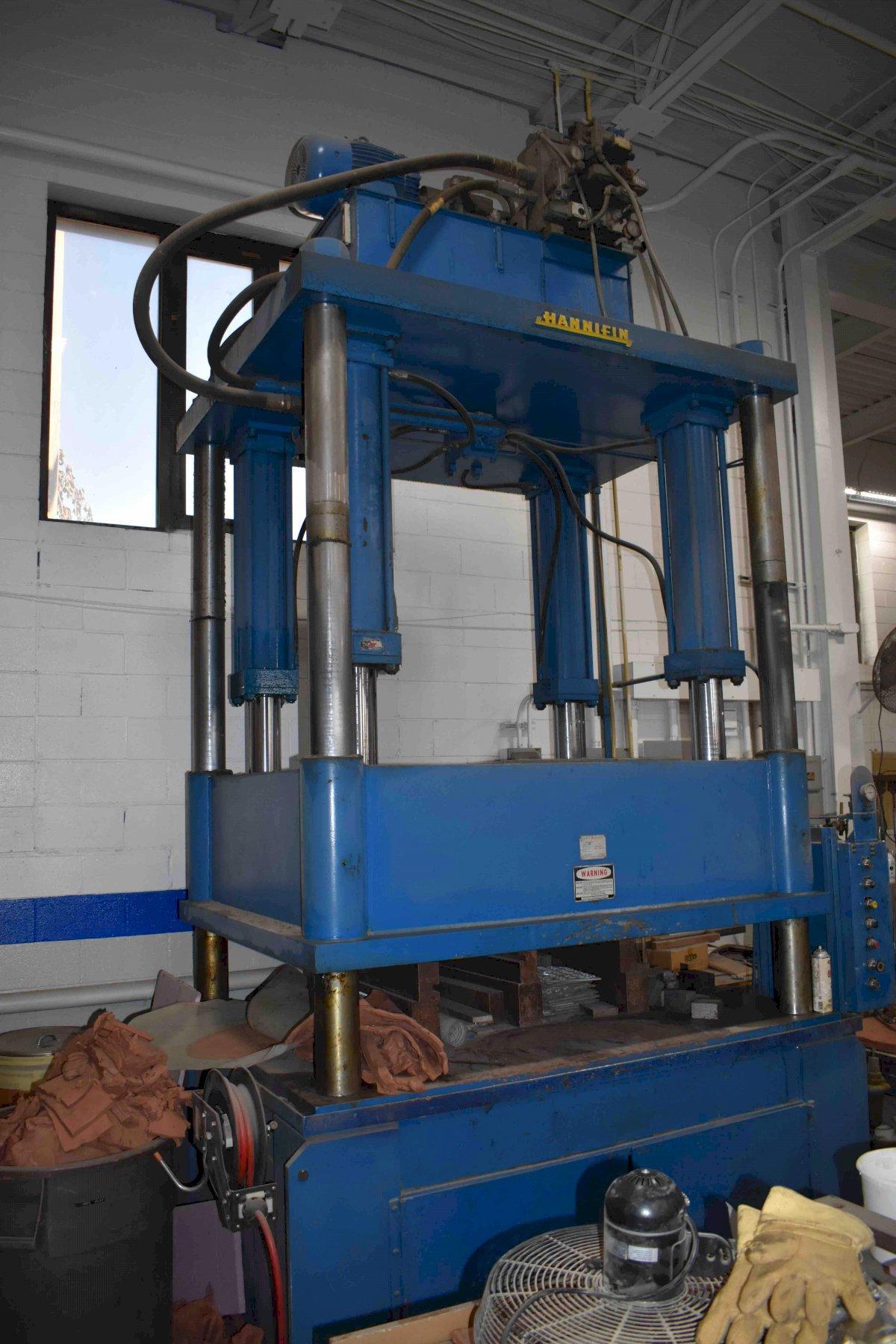

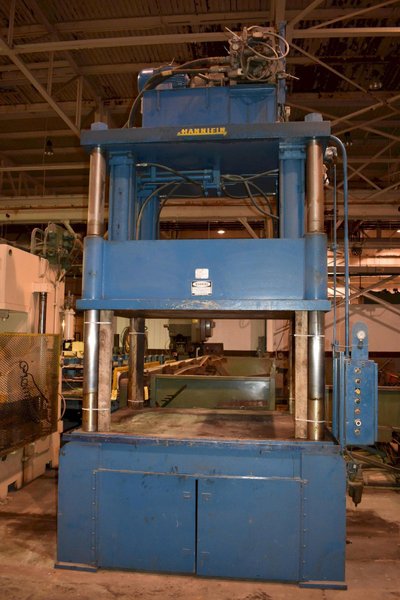

Hannifin 4 Post Hydraulic Down Acting Press
Floor Standing

250 Ton Capacity
30" Stroke
35" Daylight
78" LR x 62" FB Bed
64" LR x 48" FB Between Post Opening

Equipped With

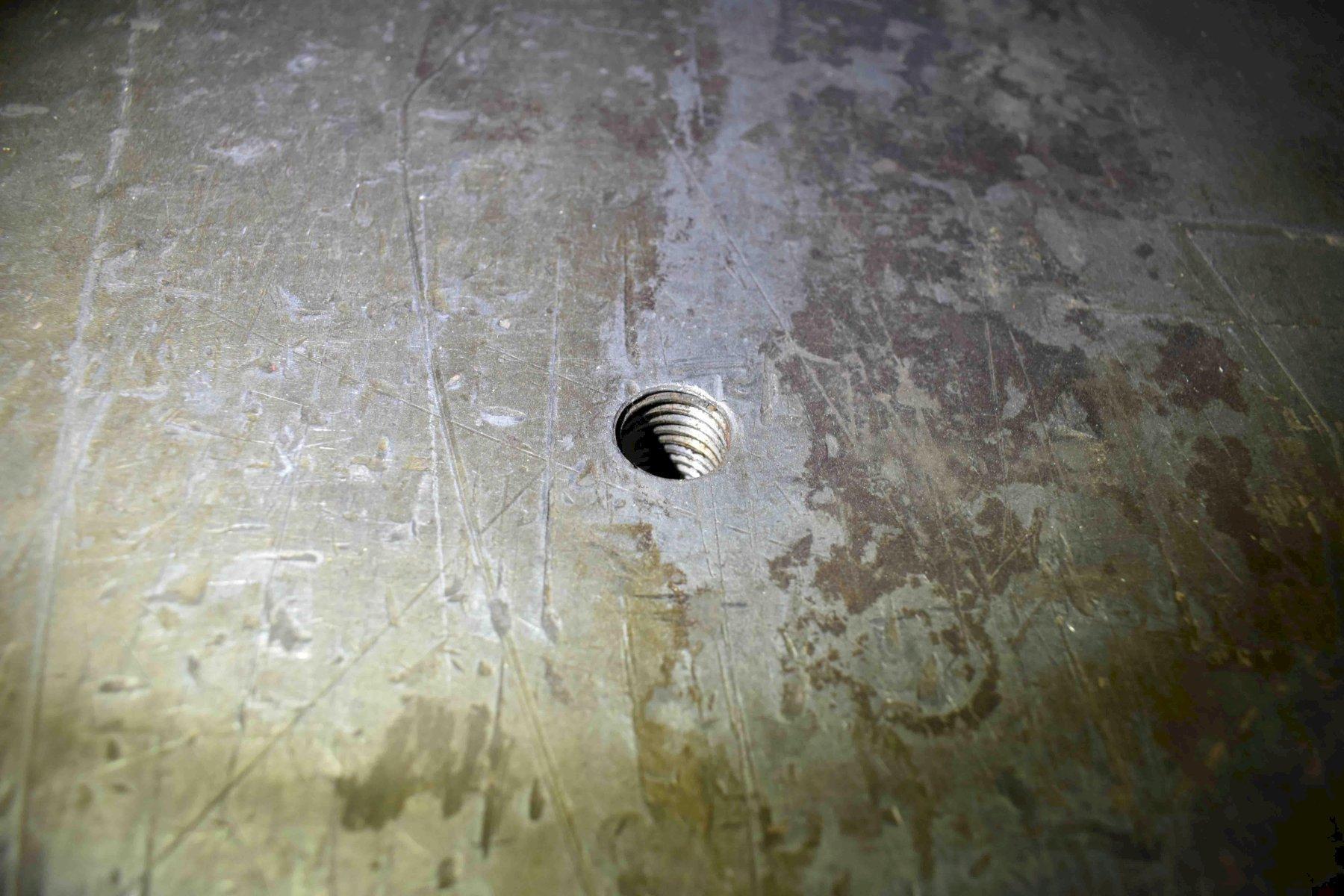

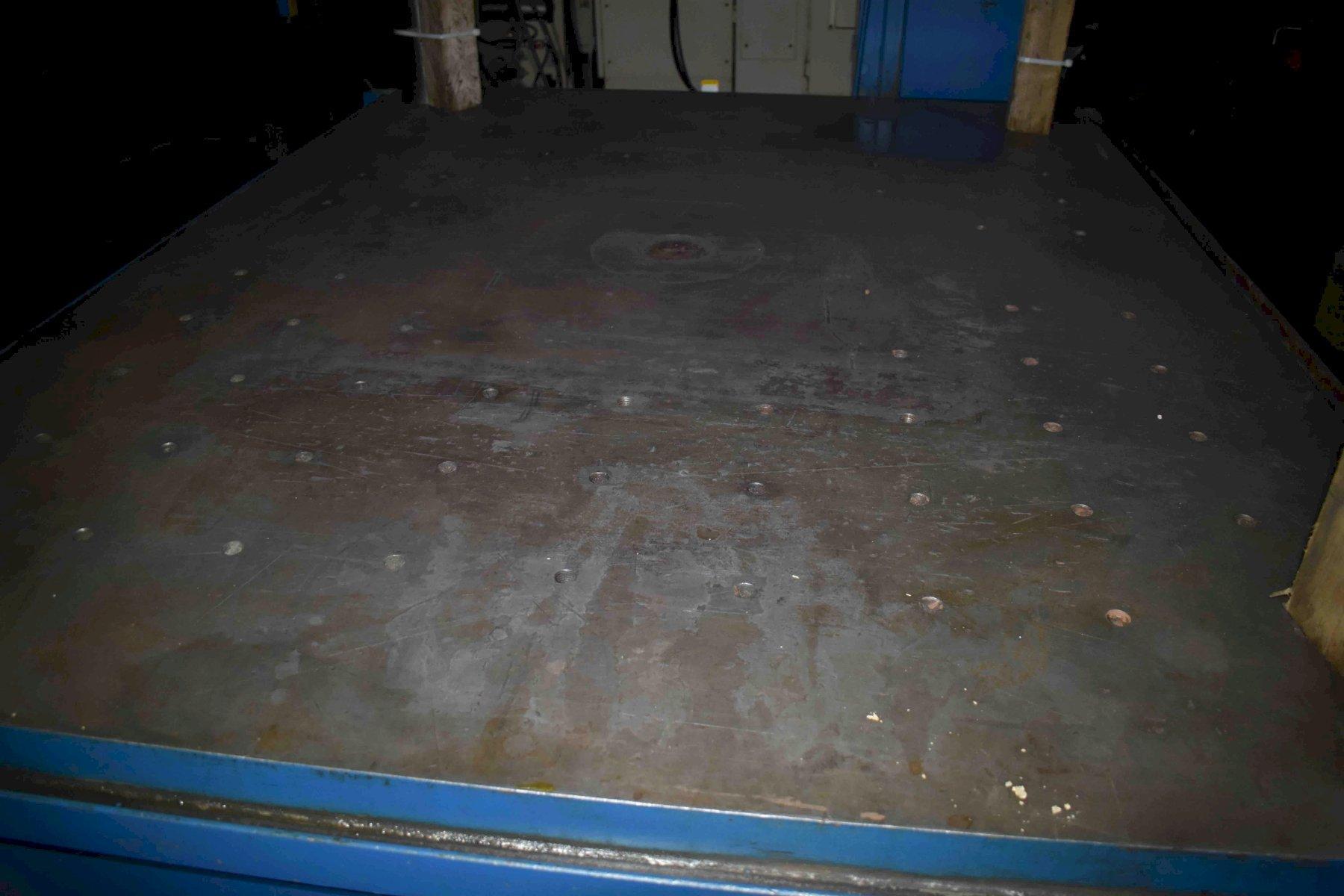

Bolster has (74) Tapped Holes on 6" Center to Center Pattern

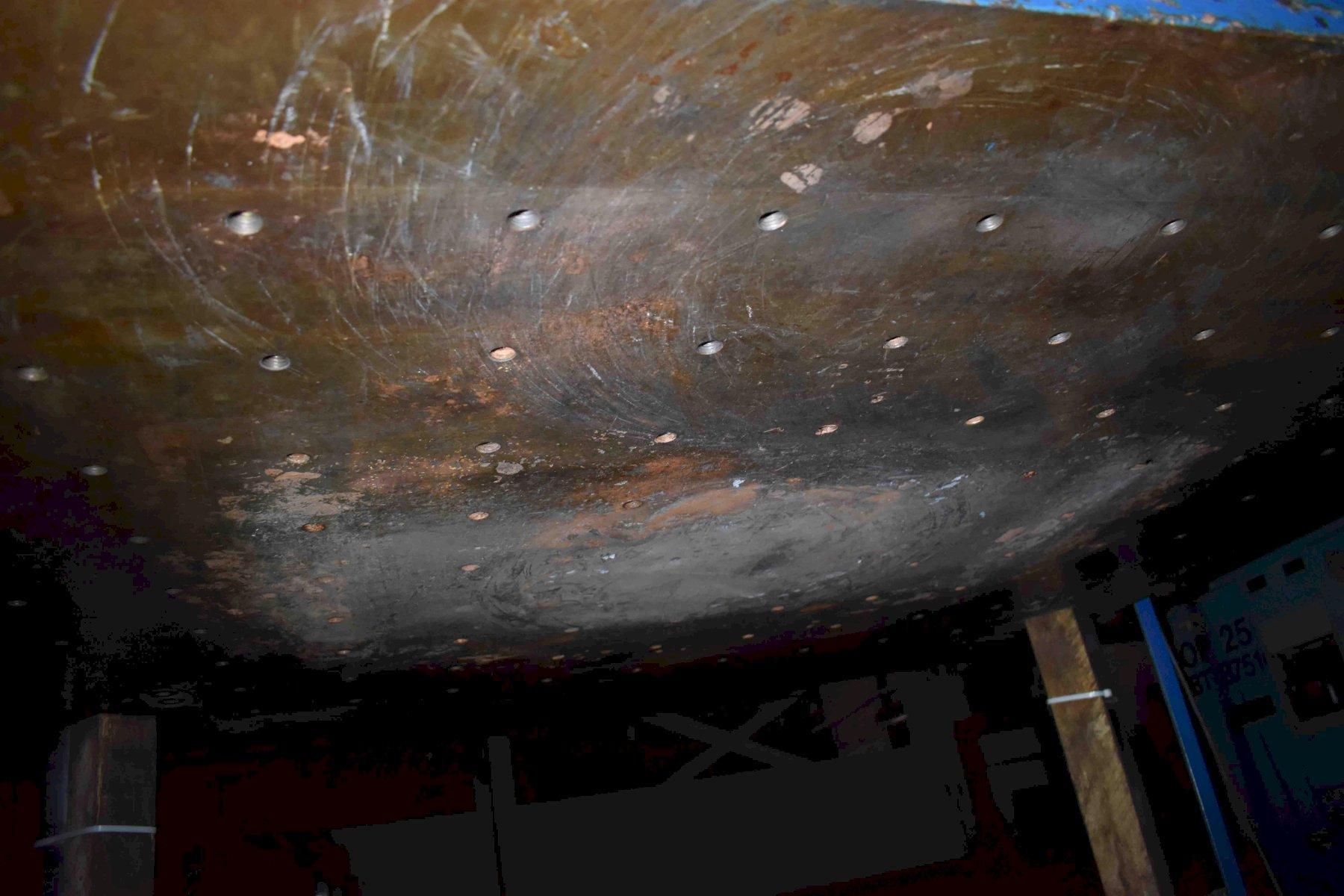

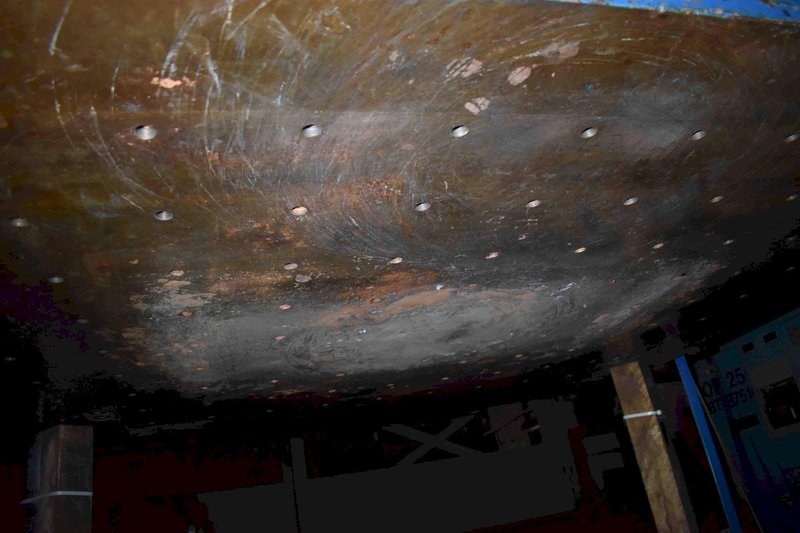

Ram has (90) Tapped Holes on 6" Center to Center Pattern in same location as Bolster
Top Mounted Motor, Hydraulic Pump, & Tank

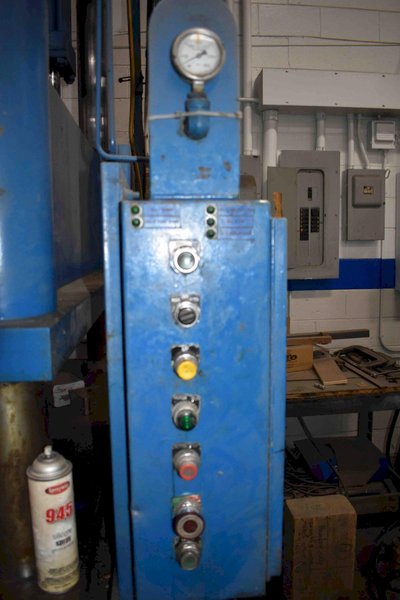

Press Mounted Operator Controls
(4) Down Acting Cylinders 7" Bore, 30" STR, 5" DIA. Rod, 500,000 lbs Force Each
7.5 HP Motor, 1800 RPM

Approximate Speeds
Down-Advance 73 in/min.
Down-Feed 37 in/min.
Return 76 in/min.

Approx. Dimensions 96" LR x 72" FB x 180" H
Estimated Weight 28,000 lbs

Available Immediately, Came out of Running Service, Used for Die Clay Molds!

Specifications Subject To Verification; Subject To Prior Sale & Price Change
