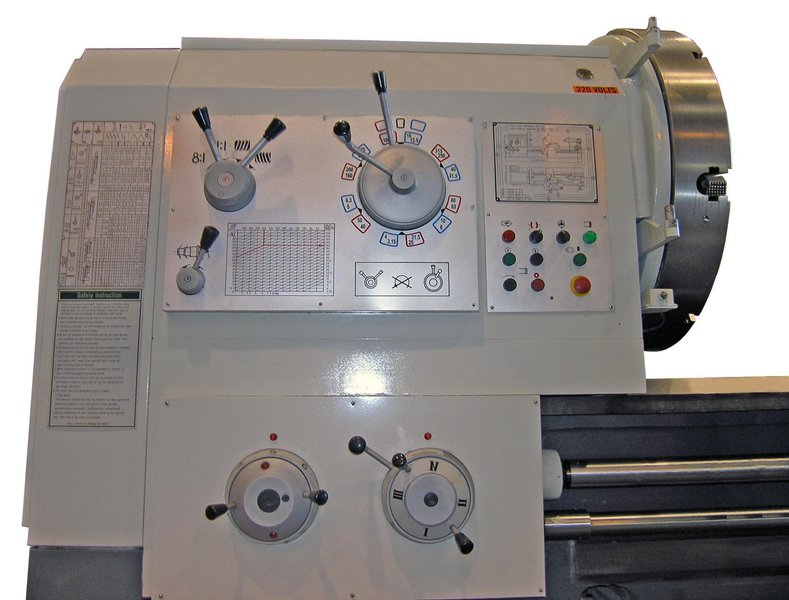

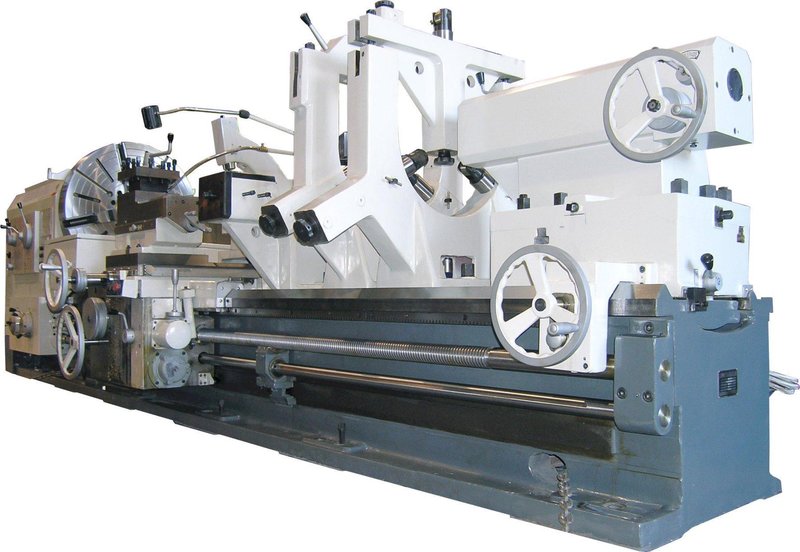

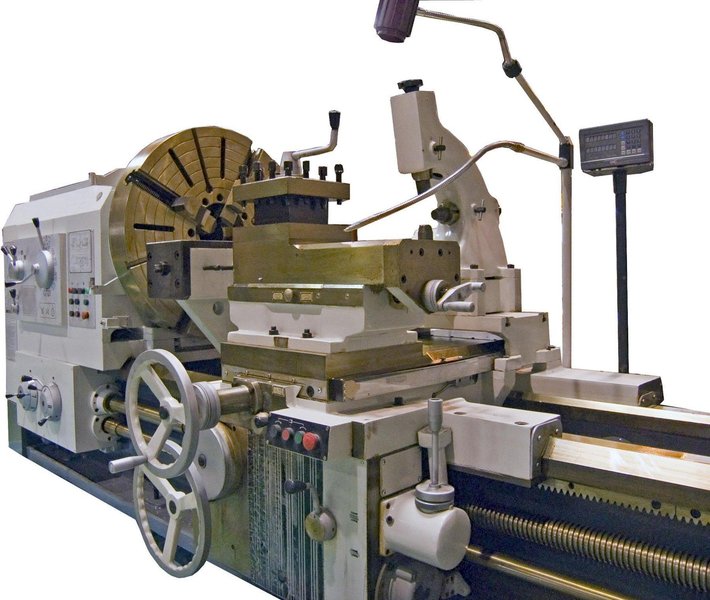

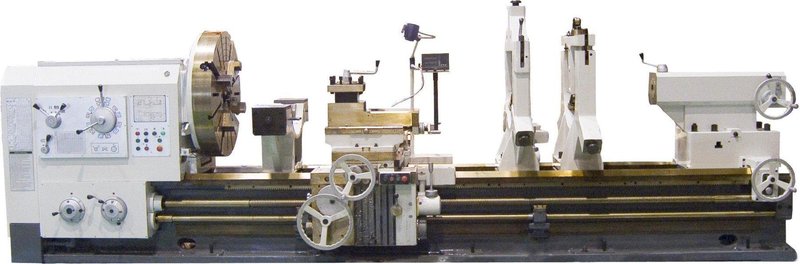

Main specifications
Max. Swing over bed: 1250mm (49.2") Max. Swing over carriage: 900mm (35.4") Width of bed: 755mm (29.7") Max. Length of work-piece: 4000mm (157.4") Max. Supporting weight between two centers: 8000Kg (17,600 Lbs.) Spindle nose/taper in inner taper hole: ISO A2-15 Spindle bore: 130mm (5.1") Range of spindle speed: Normal 3.15 - 315 rpm / Reverse 4 - 315 rpm No. of longitudinal and cross feeds: 97 Kinds Feed range per rev. of spindle: Longitudinal 0.064 to 12mm (0.0025 to 0.472 ipr) / Cross (half of longitudinal feed) 0.032 to 6mm (0.0012 to 0.236 ipr) Compound rest (a quarter of longitudinal feed): 0.016 to 3mm (0.00063 to 0.118 ipr) Metric threads: (45) 1 - 120mm Whitworth threads: (42) 30 to 1/4 TPI Module threads: (46) 0.5 to 60 Diametral pitch threads: (48) 0.5 to 60 Size of tool section & Swing angle of tool post: 45×45mm; ±900 Max. travel of cross slide: 520mm (20.4") Max. travel of compound: 300mm (11.8") Speeds of rapid traverse (mm/min): Longitudinal 3470 / Cross 1870 / Compound rest 935 Power of spindle motor: 22KW Diameter of tailstock sleeve: 200mm (7.8") Taper hole of tailstock sleeve: Morse NO 6 Max. Movement of tailstock sleeve: 300mm (11.8") Machining accuracy: Roundness of finish turning surface: 0.020mm Flatness of finish turning face: 0.033mm/500mm Roughness of finish turning surface: Ra 1.6 Pitch accuracy of finish turning threads: 0.015mm/50mm Accessories supplied with machine: 1000mm 4-jaw chuck Lighting device Cooling device Foundation blocks and screws sets Living center Dead center (2 pcs.) Center sleeve Special tools Optional accessories 1000mm (39") 4-jaw chuck Taper attachment (Length 800mm) 50 - 590mm (2-23") Steady rest 50 - 220mm (2-8.6") Follow rest Live Center Automatic Lubrication Coolant Work Light NOTE: PHOTOS OF MACHINE ARE FOR REFRENCE ONLY. |
