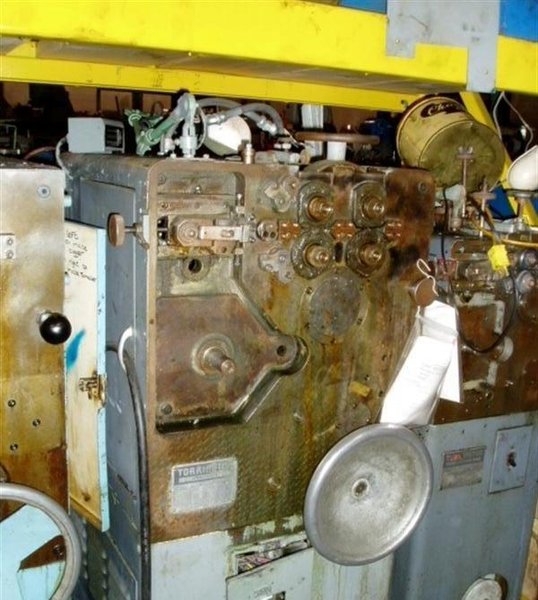

TORRINGTON # W11A SEGMENT TYPE WIRE SPRING COILER

WIRE DIAMETER ........................ .015" MINIMUM
........................ .072" MAXIMUM
WIRE LENGTH .......UP TO............ 104" FOR .035" WIRE
.......UP TO............ 86" FOR .047" WIRE
.......UP TO............ 63" FOR .062" WIRE
.......UP TO............ 42" FOR .072" WIRE
COIL O.D. MAXIMUM .................... 3X
WIRE DIAMETER MAXIMUM ................ 1.56"
PRODUCTION ........................... 20 TO 200 SPRINGS PER MINUTE
SPEED ................................ 300 FEET PER MINUTE
FLOOR SPACE .......................... 35" X 25"
WEIGHT ............................... 1500 LBS.

EQUIPPED WITH: FEED ROLLS,
WIRE GUIDES,
TOOL HOLDER SET FOR RING COILING ONLY.

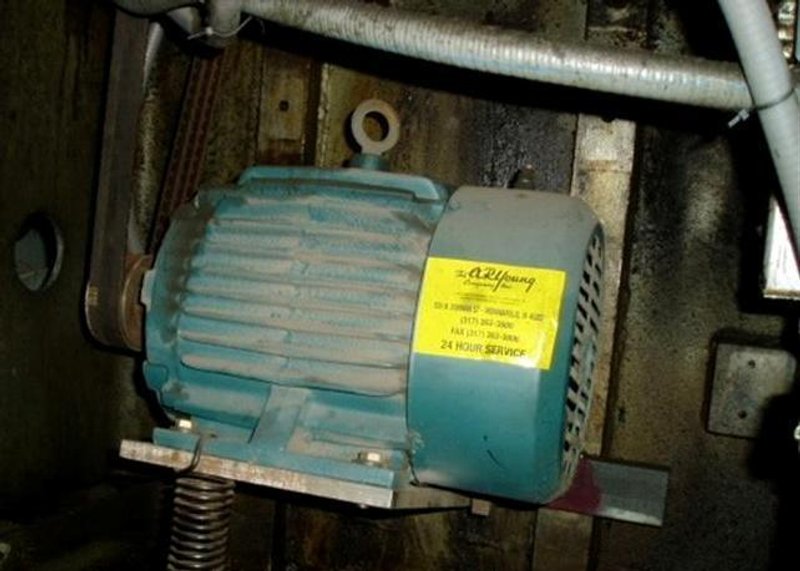

AC VARIABLE FREQUENCY MOTOR
