Width of Roll dies ................................. 60"
Maximum roll die dia. .............................. 44"
Maximum Length rolled section ...................... 82"
Weight, approx. .................................... 160,000#

Equipped With:
Air Clutch
Side Shear
Works 1 x 12" to 8" RCS; 100 ton working pressure
Inboard Type
300 HP G.E Induction Electric Motor; 568 Frame

Total weight, per catalog, is 135,000 lbs.

We estimate the Base Plate - 35,000 lbs
Frame - 45,000 lbs
Rolls - 18,000 each
Elec. panels and Motor - 20,000 lbs

Motor: 86" L x 50" W x 50" H
Main Frame: 14'8" L x 60" W x 95" H
Back Shaft: 10'L x 70" x 70" H

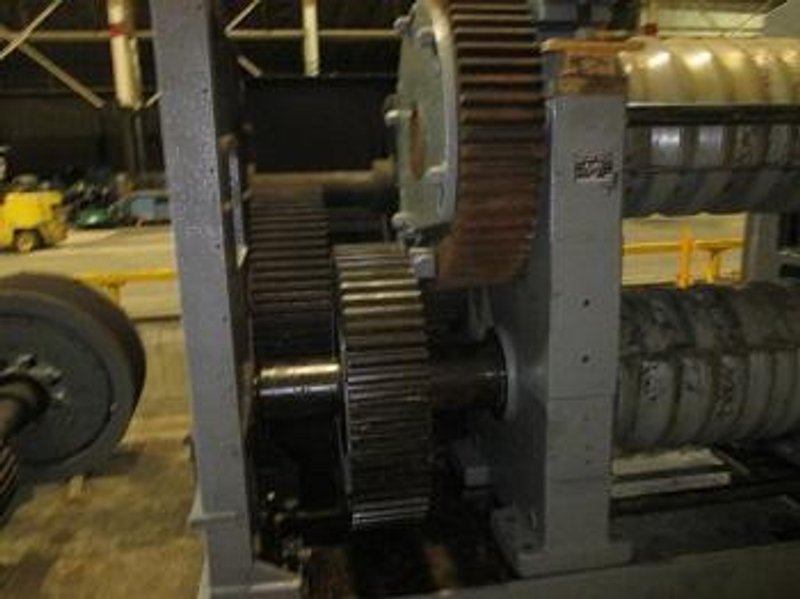

Gear Frame: 135" L x 86" W x 112" H

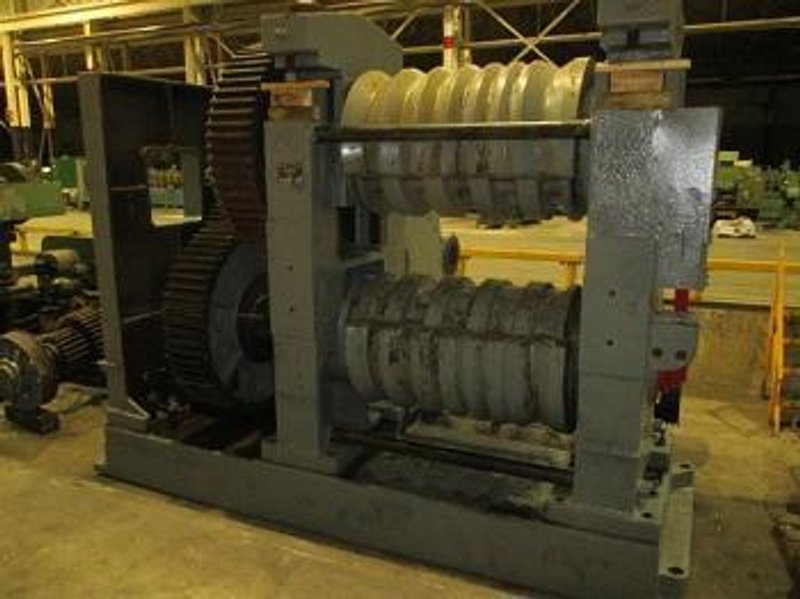

Roll: 124" L x 60" W x 60" H
Base Plate: 176" L x 132" W x 24" H

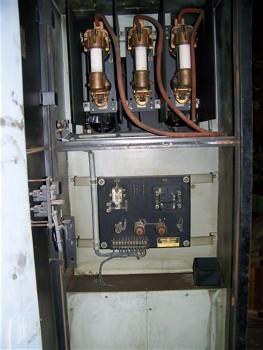

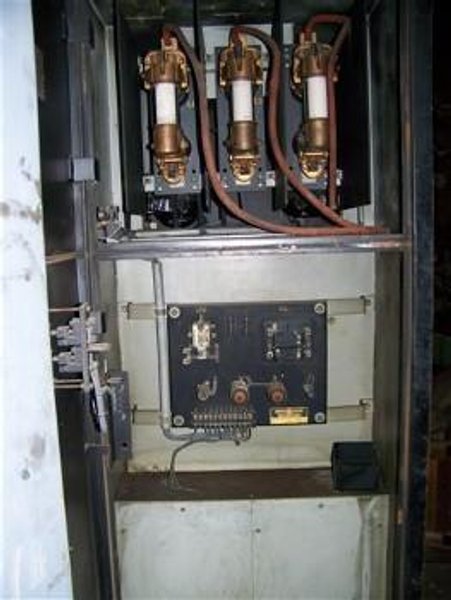

Elec. Panel: 58" x 68" x 92" H
