Specifications:

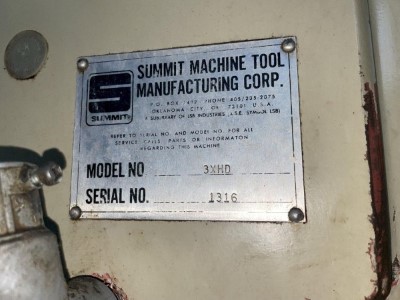

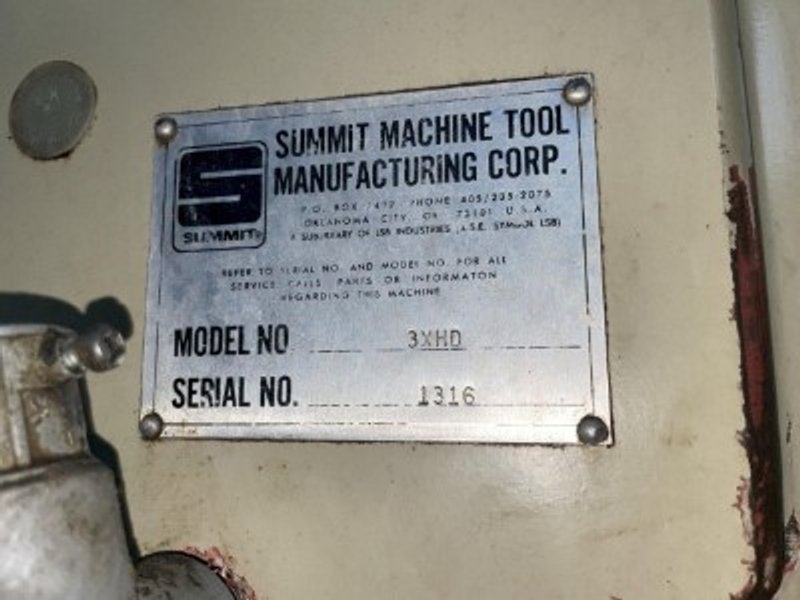

SERIAL ....................... 1316

MODEL ........................ 3XHD

DRILLING CAPACITY ........... 2-1/8" MILD STEEL

COLUMN DIAMETER .............. 7-7/8"

CENTER OF SPINDLE TO COLUMN .. 16-1/2"

MAX DIAMETER OF WORKPIECE .... 31-1/2"

SPINDLE TRAVEL................ 10"

SPINDLE TAPER ................ 5 MT

SPINDLE SPEEDS ............... (12) 40 TO 1065 RPM

SPINDLE FEEDS ................ (4) .013 TO .013 IPR

ARA OF TABLE ................. 22" X 22"

AREA OF BASE ................. 26" X 25"

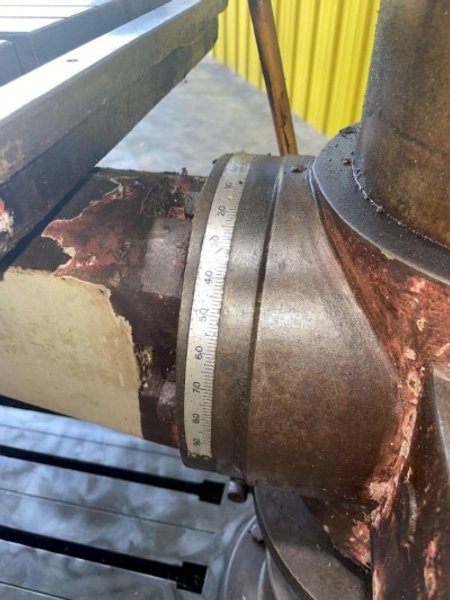

TABLE ROTATES ................ 360 DEGREES

TABLE TURNS .................. 360 DEGREES

SPINDLE NOSE TO TABLE ........ 31" MAXIMUM

SPINDLE NOSE TO BASE ......... 50-3/4" MAXIMUM

COOLANT ...................... YES

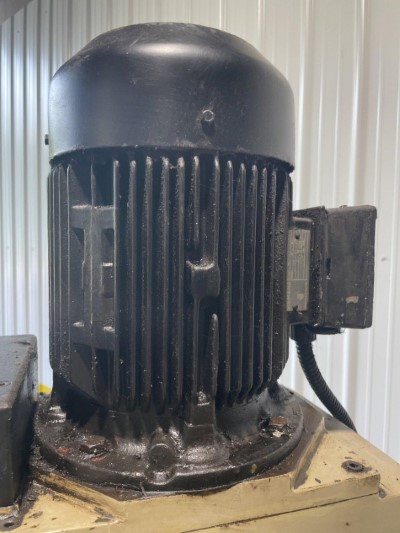

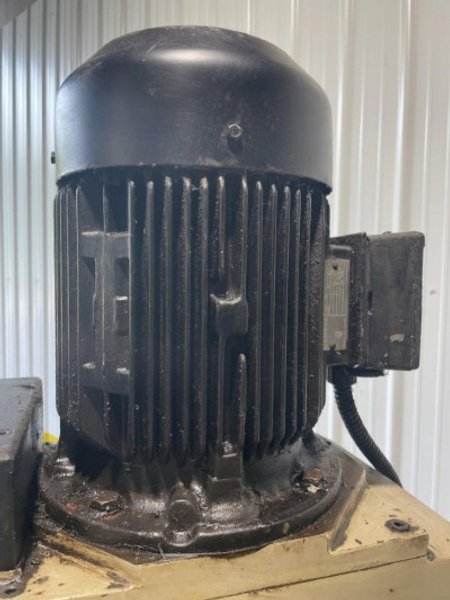

MAIN MOTOR ................... 5-1/2 HORSEPOWER
