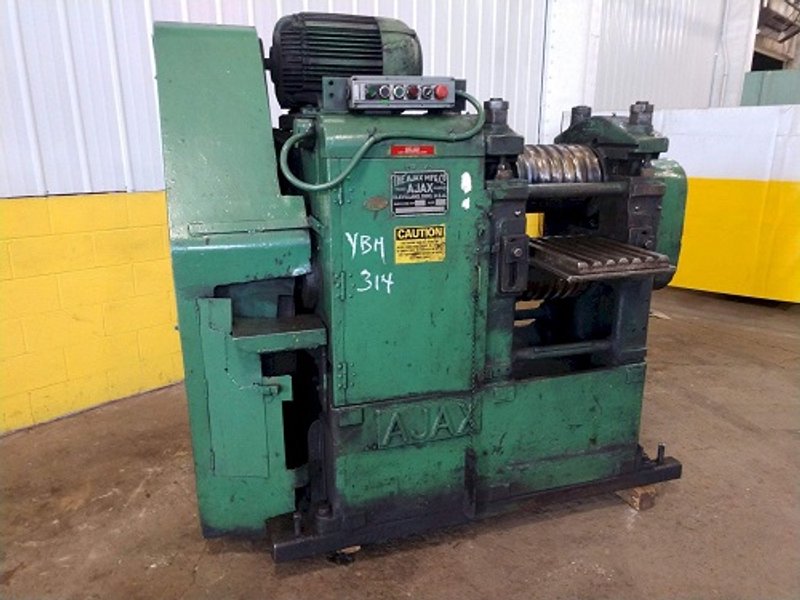

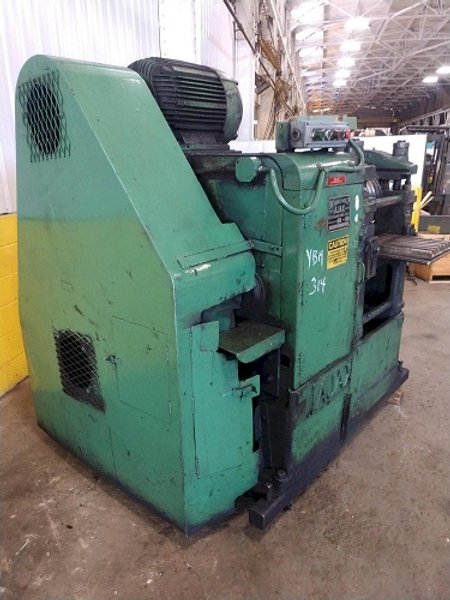

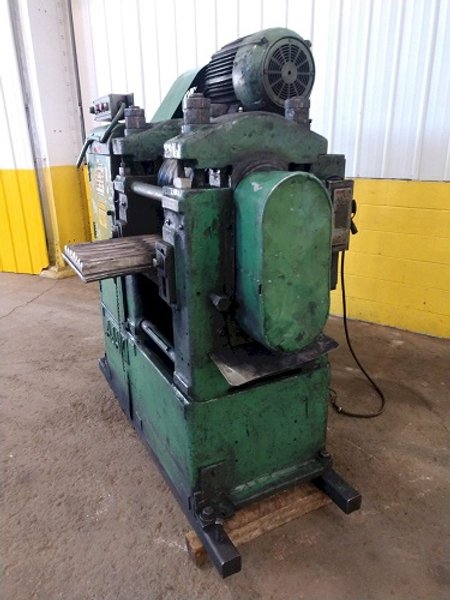

AJAX #O INBOARD OUTBOARD FORGING ROLL



Serial: 9626
Model: #O

Width of Roll Dies
Half Round......................... 14"
Flat Back.......................... 14"
Overhung........................... 6"

Max. Roll Die Dia.
Half Round......................... 12 1/2"
Flat Back.......................... 12 1/2"
Overhung........................... 12 1/2"

Max. Usable Die Periphery
Half Round......................... 19"
Flat Back.......................... 11"
Overhung........................... 30"

Min. Roll Die Dia.
Half Round......................... 10 1/2"
Flat Back.......................... 10 1/2"
Overhung........................... 10 1/2"

Min. Usable Die Periphery
Half Round......................... 16"
Flat Back.......................... 9 1/2"
Overhung........................... 25"

Air clutch
Entry guide chute
