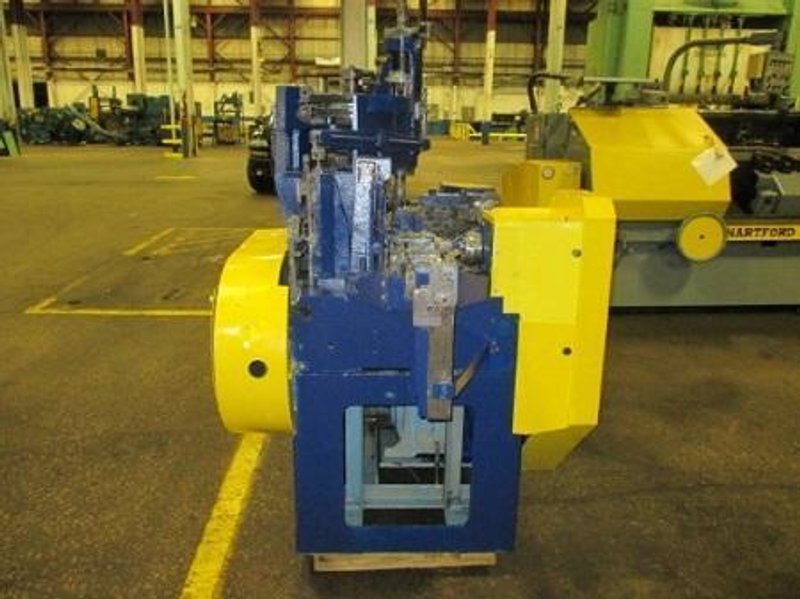

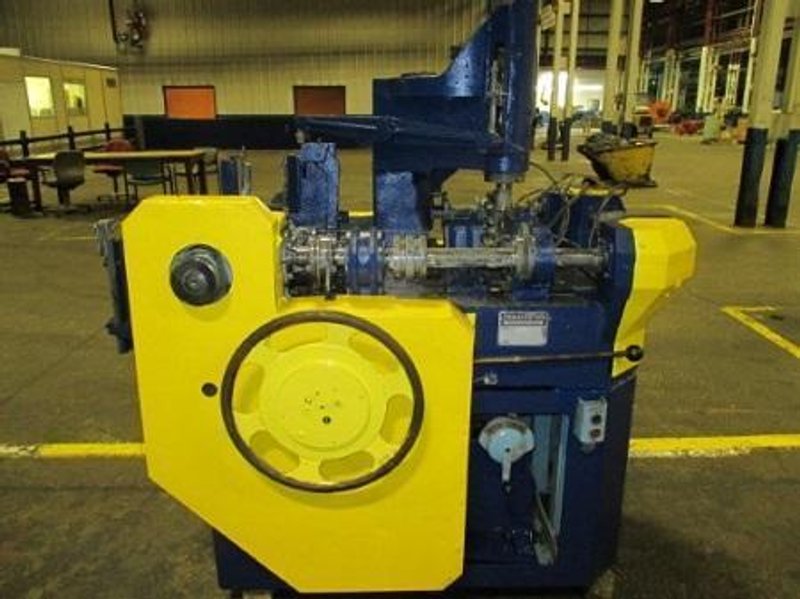

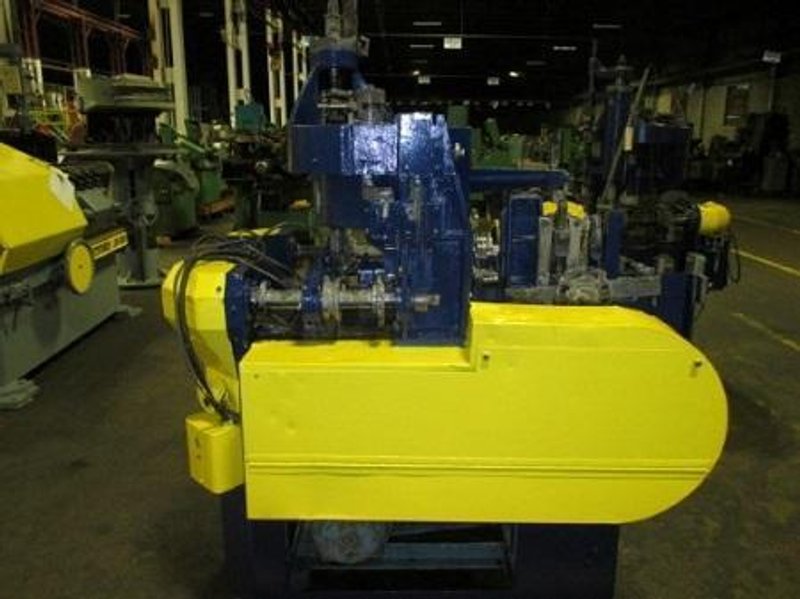

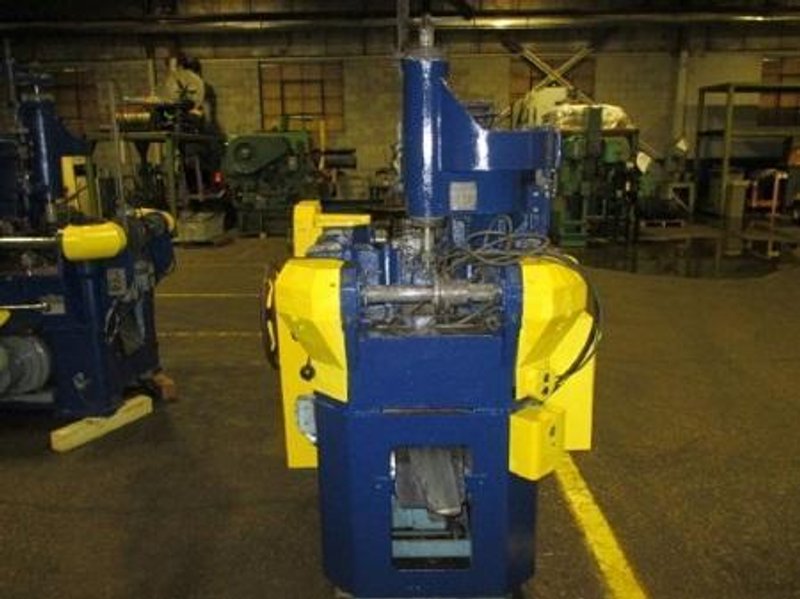

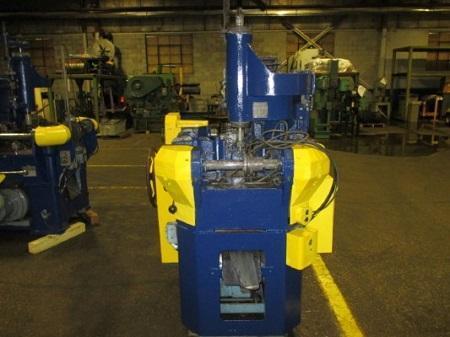

TORRINGTON # W3001 WIRE SPRING TORSION WINDER
Brand
Category
Type
Model
W3001
Stock #
108383
Year
Not specified
Condition
Used
Location
Ohio
|
MAXIMUM WIRE DIAMETER ................ .080" (2.03mm)
MINIMUM WIRE DIAMETER ................ .030" ( .76mm)
RATED CAPACITY: NO TURNS ............. 10
WIRE DIAMETER ........ .080" (2.03mm)
NO TURNS ............. 24
WIRE DIAMETER ........ .062" (1.58mm)
NO TURNS ............. 47
WIRE DIAMETER ........ .047" (1.19mm)
NO TURNS ............. 60
WIRE DIAMETER ........ .030" ( .76mm)
MAXIMUM SPINDLE TRAVEL ............... 2.250" (57.2mm) WIRE FEED MAX ........................ 6.250" (158.8mm) HORIZONTAL SLIDE TRAVEL .............. 1" (25.4mm) VERTICAL SLIDE TRAVEL ................ .750" (19.0mm) CAMSHAFT DIAMETER .................... 1.125" (28.6mm) WIRE LINE HEIGHT ..................... 44" (1120mm) DRIVE ................................ 1 HP POWER REQUIREMENTS ................... 220/440 V, 50/60 Hz 3 PHASE NET WEIGHT ........................... 1150 LBS FLOOR SPACE .......................... 34" x 38" (865mm x 965mm) EQUIPPED WITH: 7 ROLL 2 PLANE STRAIGHTENER WITH MOTOR AND CONTROLS OVERALL DIMENSIONS: 66" L x 44" W x 73" H |
