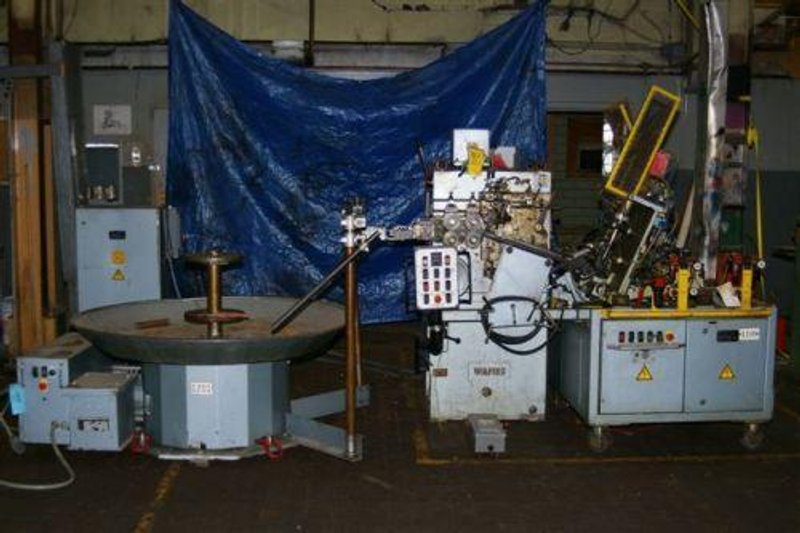

WAFIOS SPRING COILER LINE

CONSISTING OF:

WAFIOS SPRING COILER
MODEL............................. AS41
WIRE DIAMETER..................... 1.0 - 3.6mm
OUTSIDE DIAMETER OF SPRING........ 10 - 30mm
MAX. LENGTH OF FEED WIRE.......... 13000mm
FEED SPEEDS....................... 90 & 75mm/MIN
MAX. OUTPUT AS41 ALONE............ 78 SPRING/MIN.
MAX. OUTPUT COMBINED WITH
FOA41 EYELET MACHINE............. 58 SPRING/MIN.

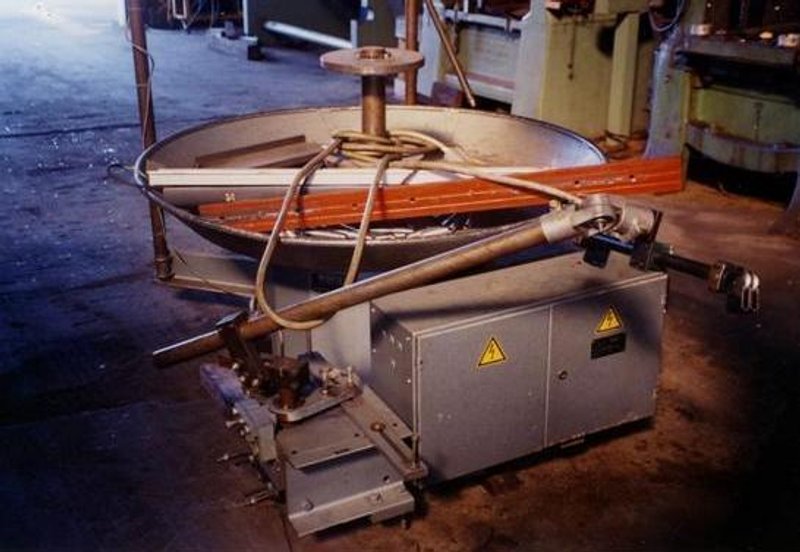

WAFIOS WIRE PAYOFF
MODEL.................. AHL 41D-M2000
DRIVE.................. 4KW, 220/240/440/480V, 3PH, 60/50 CYC.
DANCER ARM FOR SPEED CONTROL
LOAD CAPACITY.......... 1500KG (3300LB)
SUITABLE FOR COILS WITH APPROX. OUTSIDE DIA. OF 850mm (33.5")
WEIGHT................. 750kg (1650LB)

CAGE

BOX OF SPRINGS

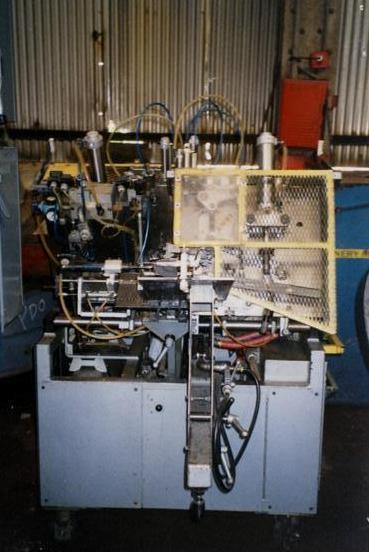

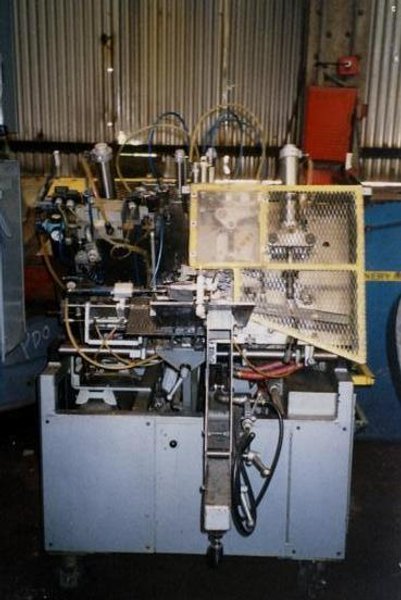

WAFIOS SPRING EYELET MACHINE
MODEL......................... FOA-41
LENGTH OF SPRING BODY......... 1.5mm - 200mm
