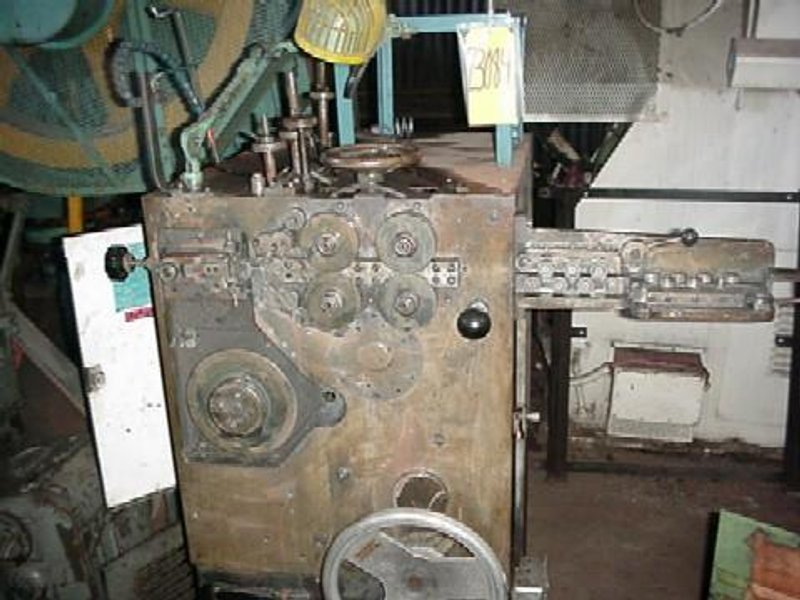

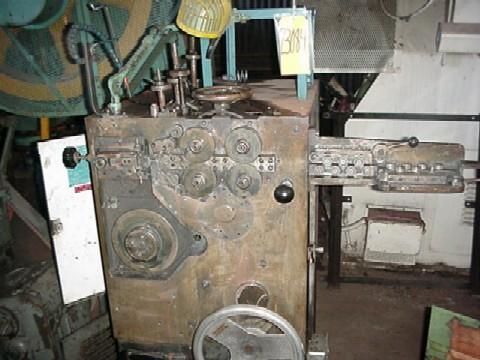

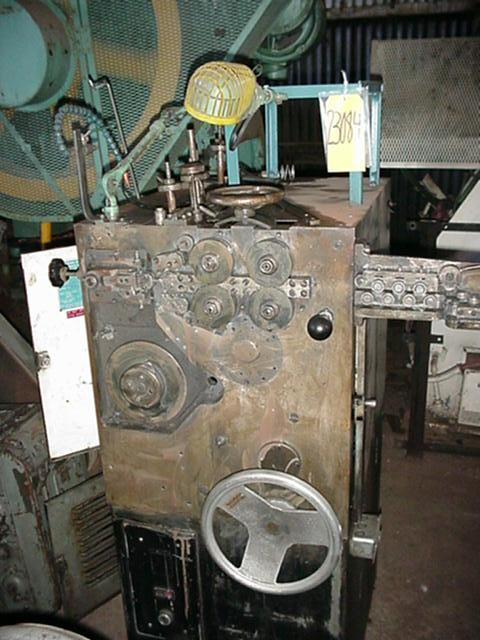

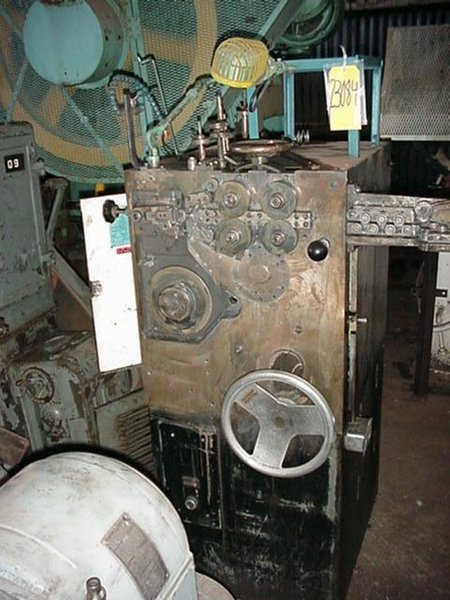

TORRINGTON # W11A SEGMENT TYPE SPRING COILER

WIRE RANGE.......................... .015" TO .072"
CONST. COIL OD. RANGE............... .093" TO 1.562"
SPEED............................... 25 TO 200 SPRINGS/MINUTE
WIRE LENGTH PER SPRING:
STD STROKES PER MINUTE 20 TO 200
FEED LGTH OF WIRE: FOR DIAMETERS OF:
104" .035"
86" .047"
63" .062
42" .072

COIL OD RANGE GUIDELINE -
3X WIRE DIAMETER TO 1 9/16"
SEGMENT MACHINE


EQUIPPED WITH: 7 ROLL VERTICAL
7 ROLL HORIZONTAL
PLANE STRAIGHTENER
EXTRA CAMS, FEED ROLLS AND GEARS
TORSION ATTACHMENT

MOTOR DATA: 2HP, 230/460V, 3PH, 50 CYC, 1140 RPM VARIDRIVE
VARIDRIVE RPM 300 MIN TO 3000 RPM MAX
WITH CONTROLS
