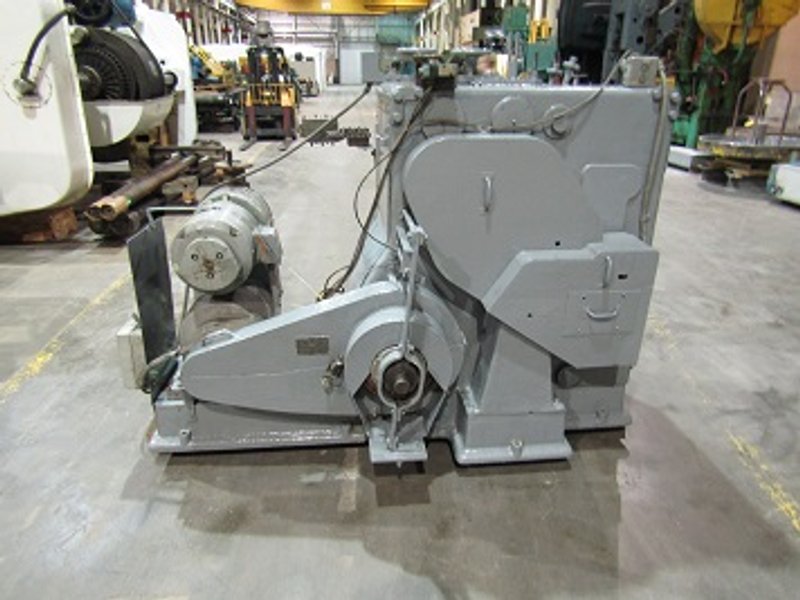

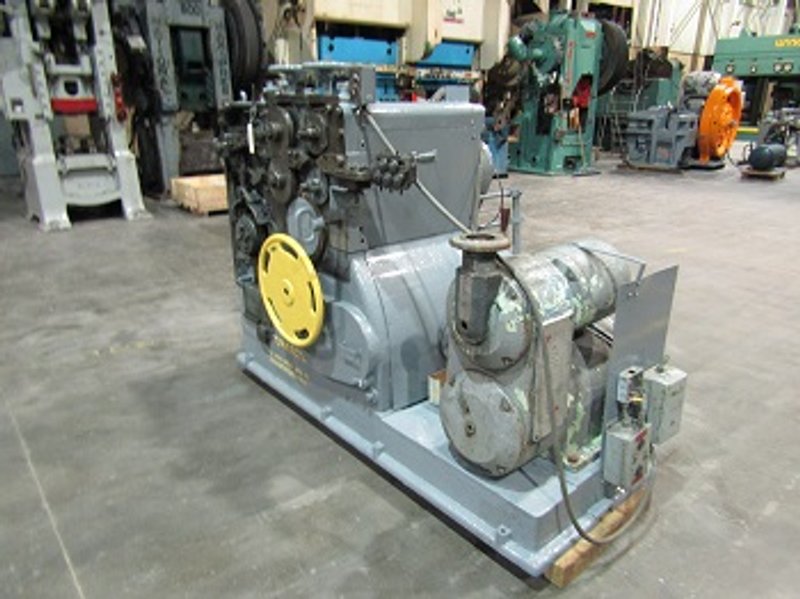

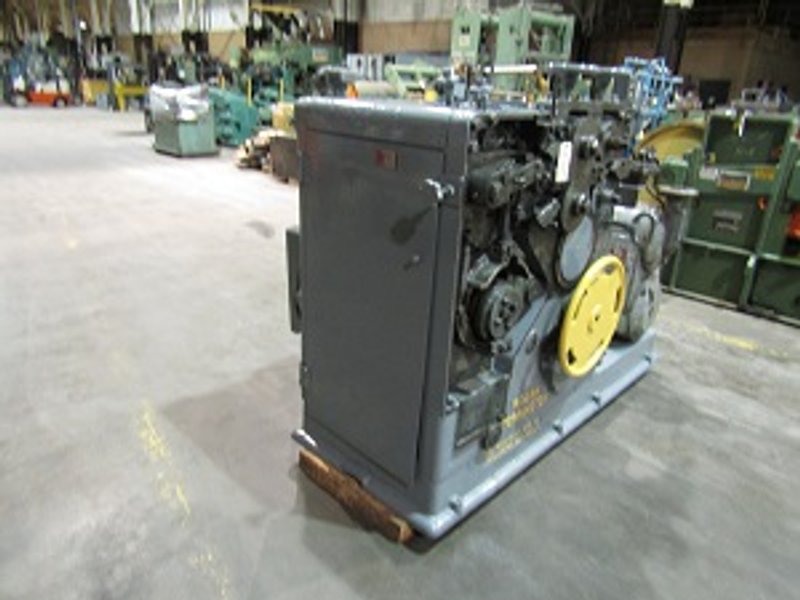

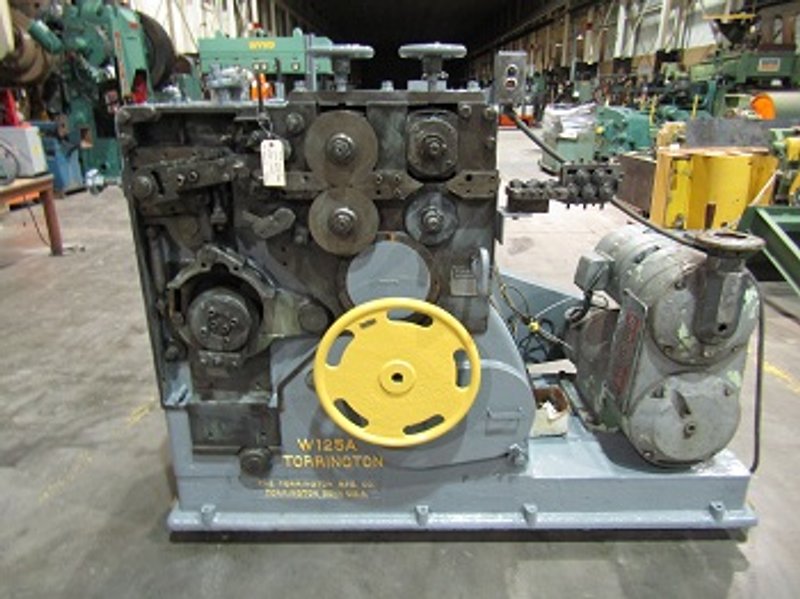

TORIN # W-125A WIRE SPRING COILER
Brand
Category
Type
Model
W-125A
Stock #
109881
Year
Not specified
Condition
Used
Location
Ohio
|
SPECIFICATIONS: WIRE DIAMETER (MIN-MAX): .080" - .207" TENSILE RATING: 250,000 PSI COIL RANGE (MAX-MIN): 3.75" - 3 x WIRE DIA. SPRINGS PER/MIN: 13-140 WIRE LENGTH/MIN: 200" PASSLINE: 48 EQUIPPED WITH: - MECHANICAL CLUTCH - UPPER & LOWER CLUTCH - PITCH & DIAMETER CONTROLS - TORSION LEG ATTACHMENT - 10 ROLL 2-PLANE STRAIGHTENER - 2 SETS PINCH FEED ROLLS w/GUIDES MOTOR DRIVE: 10HP REEVES - VARI SPEED 208-440V/60/3PH, 1740 RPM START/STOP BUTTONS OVERALL DIMENSIONS: 86" L x 56" W x 64" H WEIGHT: 8,000# APPROX. |
