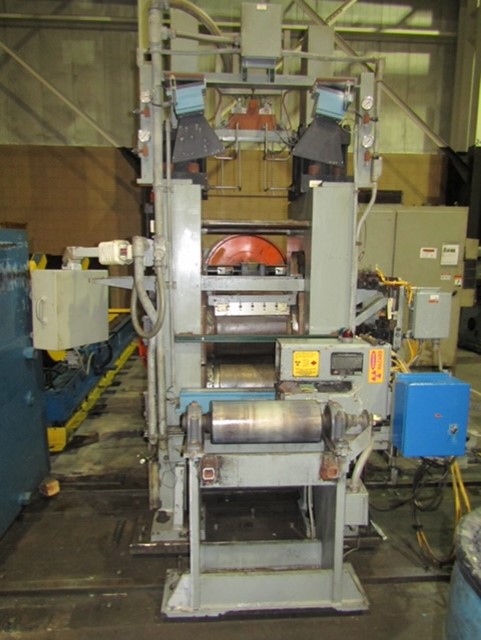

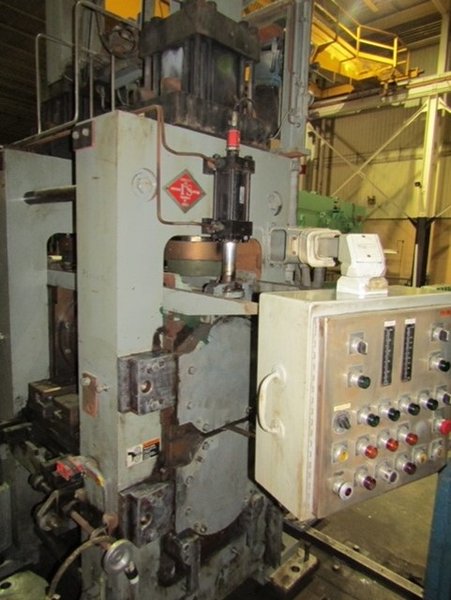

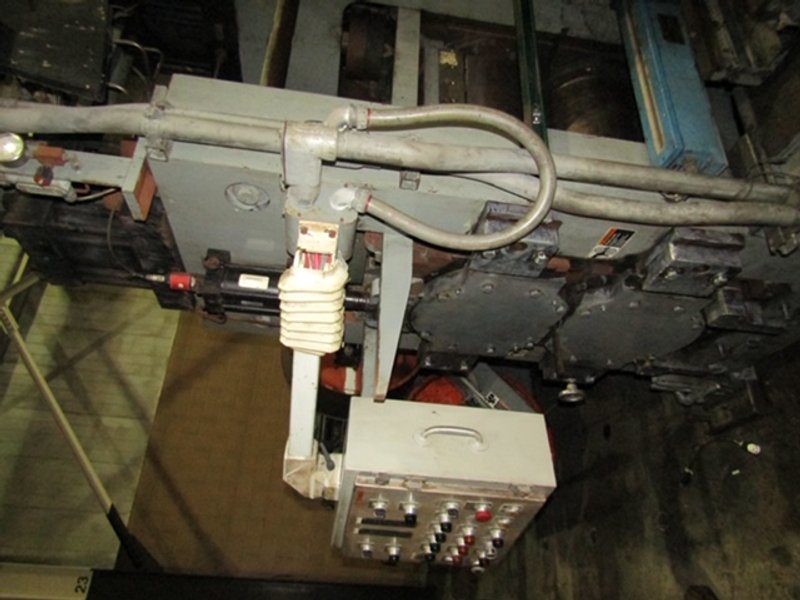

16" (419mm) DIA. x 18" (457mm) FACE I2S 2HI MILL W/ HYD. SCREWDOWNS, NEW 2002

MANUFACTURER - INTEGRATED INDUSTRIAL SYSTEMS (I2S)
YEAR - 2002
STRIP RANGE - .250" - .063" (6.35mm - 1.60mm)
STRIP WIDTH - 14.25" - 4.12" (368mm - 76mm)
SPEED - 500 FPM (152 MPM)
THREADING SPEED - 30 FPM
STRIP ENTRY/EXIT TENSION - 1500 LBS (680 kg)
SEPERATING FORCE - 575,000 LBS (3,000 MT)
ROLL FACE - 18" (457mm)
ROLL DIAMETER - 16" (419mm)
MOTOR - 250 HP DC ABB MOTOR, 300V 850/2400 RPM

MILL GEARBOX RATIO - BRAD FOOTE 20:1 SERVICE FACTOR 2.0

ROLL COUNTERBALANCE - HYDRAULIC CYLINDER

SCREWDOWN - MOOG SERVO POSITIONED HYD. SCREWDOWN SYSEM W/ 10" DIA. SCREW

CYLINDERS

DIRECTION - LEFT TO RIGHT

INCLUDES:
2-ROLL ENTRY "S" TYPE TENSION BRIDLE ROLLS
MILL STAND WITH HYDRAULIC SCREWDOWNS
MILL ENTRY AND EXIT GAUGES (SOURCE NOT INCLUDED)
EXIT BILLY ROLL
ROLL CHANGEOUT STAND
ELECTRICAL CABINET
MILL CONTROLS
