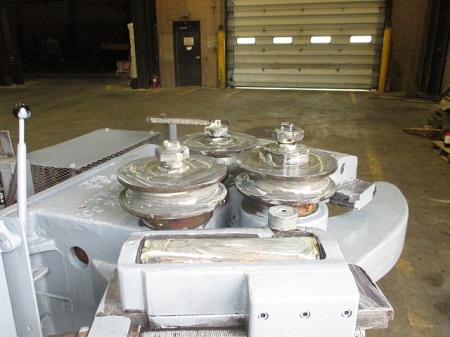

MANUAL HEIGHT ADJUSTMENT OF UPPER ROLL
MANUAL VERTICAL & LATERAL ADJUSTMENT OF GUIDE ROLLS
FOUR SET OF ANGLE ROLLS
MISCELANEOUS SPACE PLATES
FOUR SET OD RADIOUS ROLLS
10 HP MOTOR, WIRED 3 PHASE, 60 CYCLE, 220 VOLTS
FORWARD & REVERSING, CARI SPEED CONTROLLED BY DRUM SWITCH

ROLLING CAPACITY:
3" X 3" X 3/8" ANGLES: LEG OUT, MINIMUM DIAMETER 24"
3-1/2" X 3-1/2" X 5/16" ANGLES: LEG OUT, MINIMUM DIAMETER 36"
2-1/2" X 2-1/2" X 3/8" ANGLES: LEG IN, MINIMUM DIAMETER 30"
3" X 3" X 5/16" ANGLES: LEG IN, MINIMUM DIAMETERS 36"
SMALLEST ANGLE, LEG OUT: 1-1/2" X 1-1/2" X 3/16" MINIMUM DIMATER 13"
SMALLEST ANGLE, LEG IN: 1-1/2" X 1-1/2" X 3/16" MINIMUM DIAMETER 14"
FLATS ON EDGE: 3" X 5/8", MINIMUM DIAMETER 36"
FLATS ON FLAT: 6" X 1", MINIMUM DIAMETER 24"
ROUND BAR: 2" MINIMUM DIAMTER 24"
SQUARE BAR: 1-3/4", MINIMUM DIAMETER 24"
